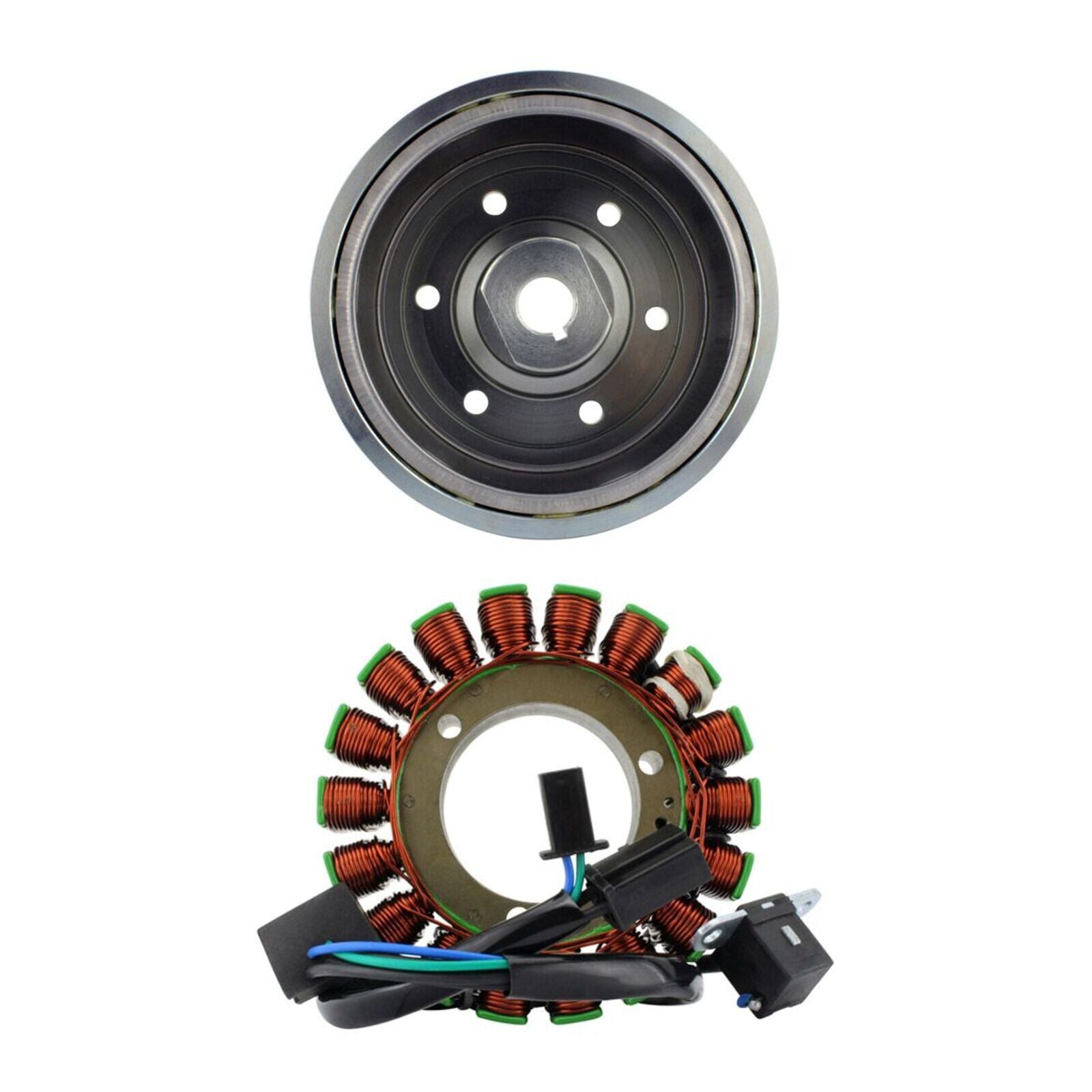

STATOR & FLYWHEEL KIT SUZ DL1000 02-09 & 12 (RMS900-108092)

Sale price: $1,069.99
Regular price
Regular price: $1,069.99
Unit price: per

Tax included. Shipping calculated at checkout.

Button-up shirt sleeves and a relaxed silhouette. It’s tailored with drapey, crinkle-texture fabric that’s made from TEAM90DEGREE™ LTD™ Viscose — responsibly sourced wood-based fibres produced through a process that reduces impact on forests, biodiversity and water supply.

Product variants

Only 0 items in stock! Out of stock!

Quantity

Guaranteed safe checkout

Estimate delivery: 12-26 days (International), 3-6 days (United States).

🔥 30 sold in the last 18 hours

Product Description

Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
Highest grade of lamination materials.
Highest grade of copper winding, resistant to 200 degrees Celsius.

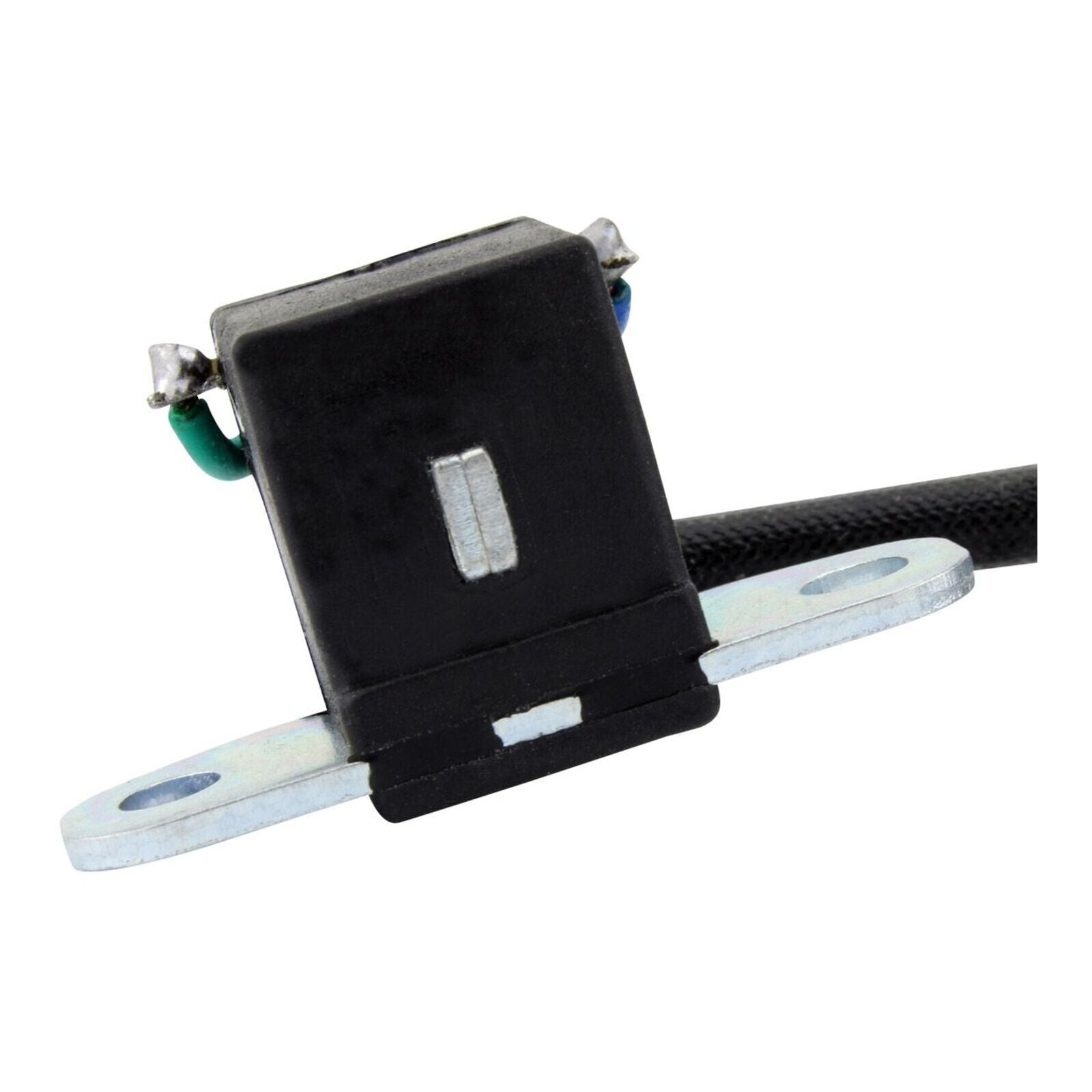

Pick up pulsar coil included.

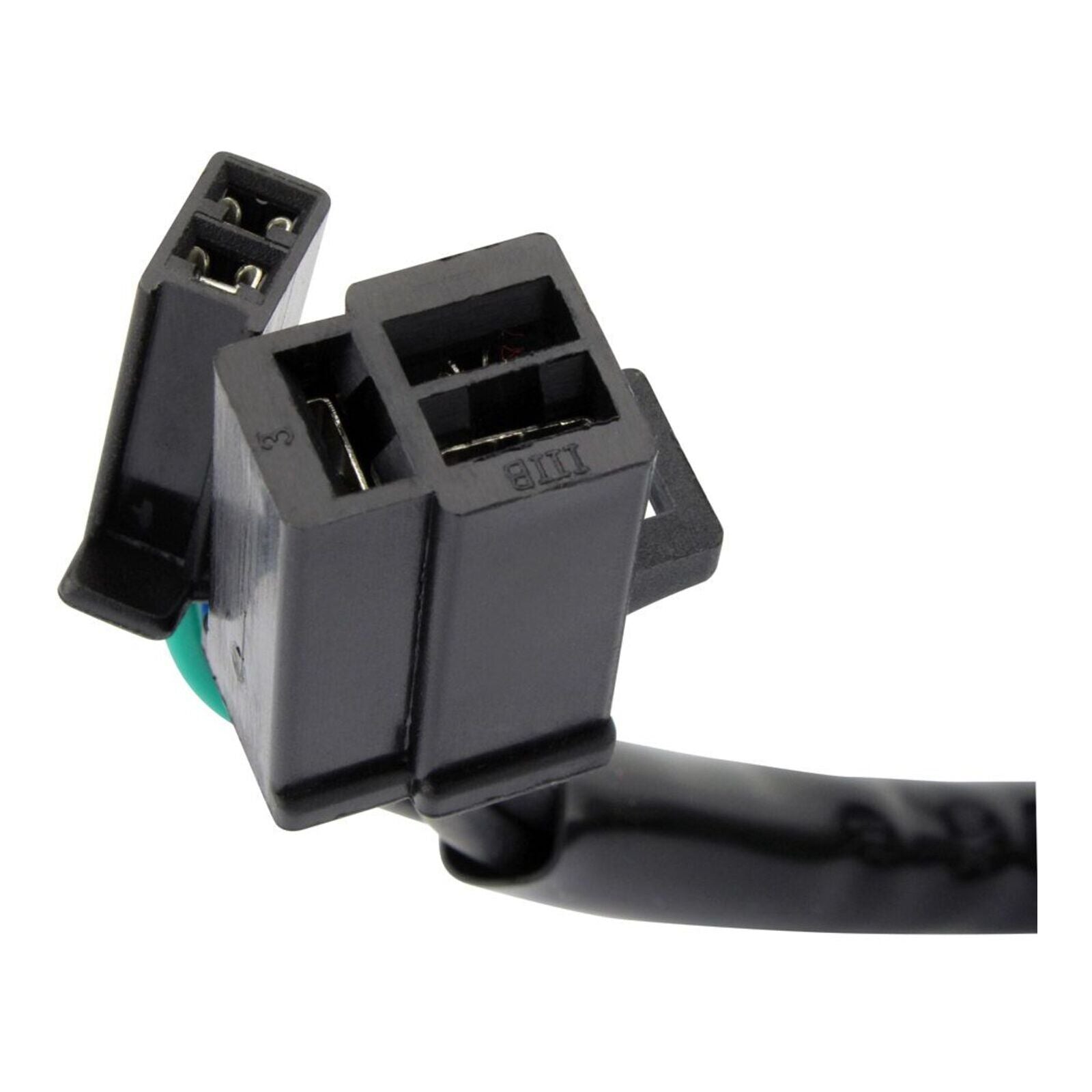

Connector included.

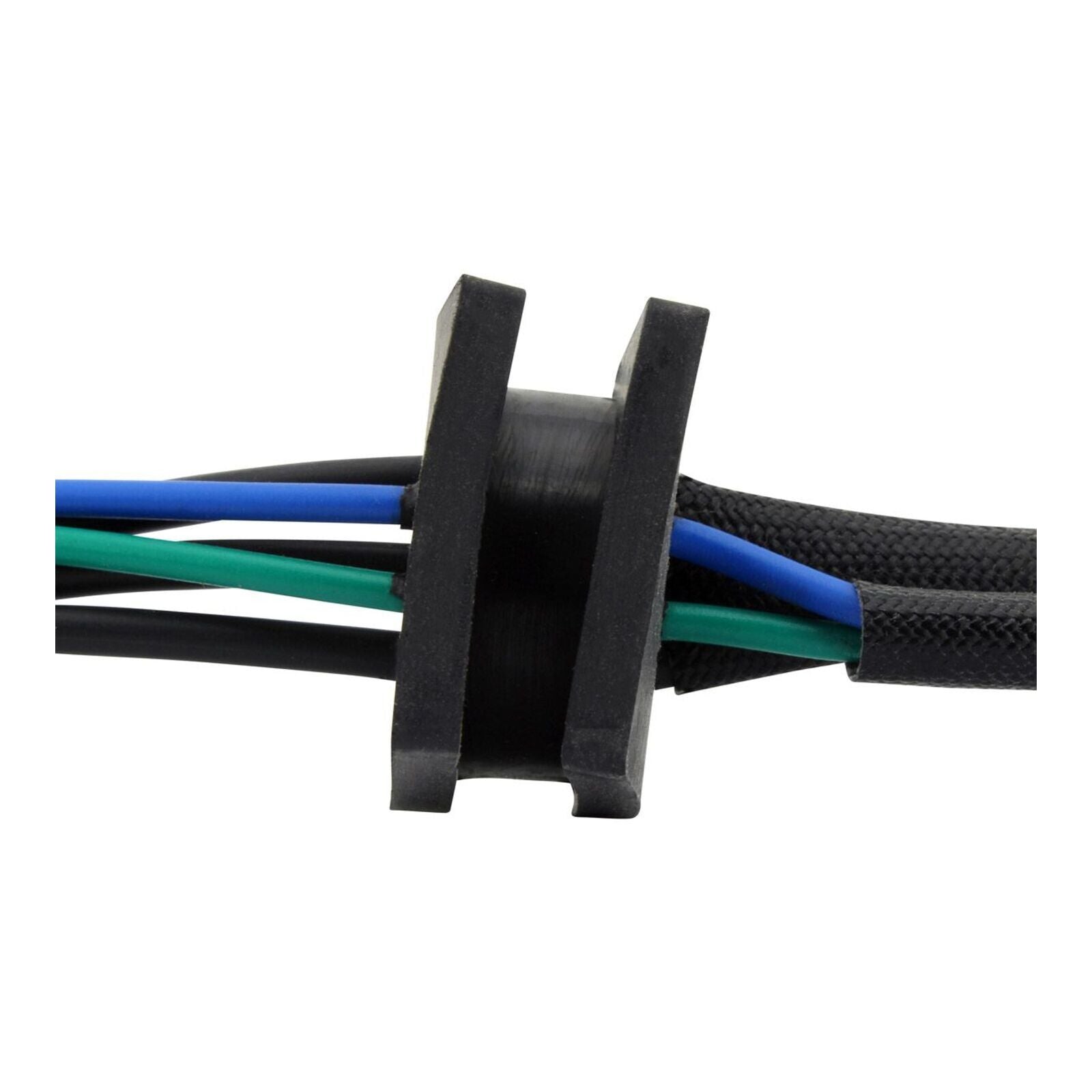

Rubber grommet included.
All products shipped are tested.

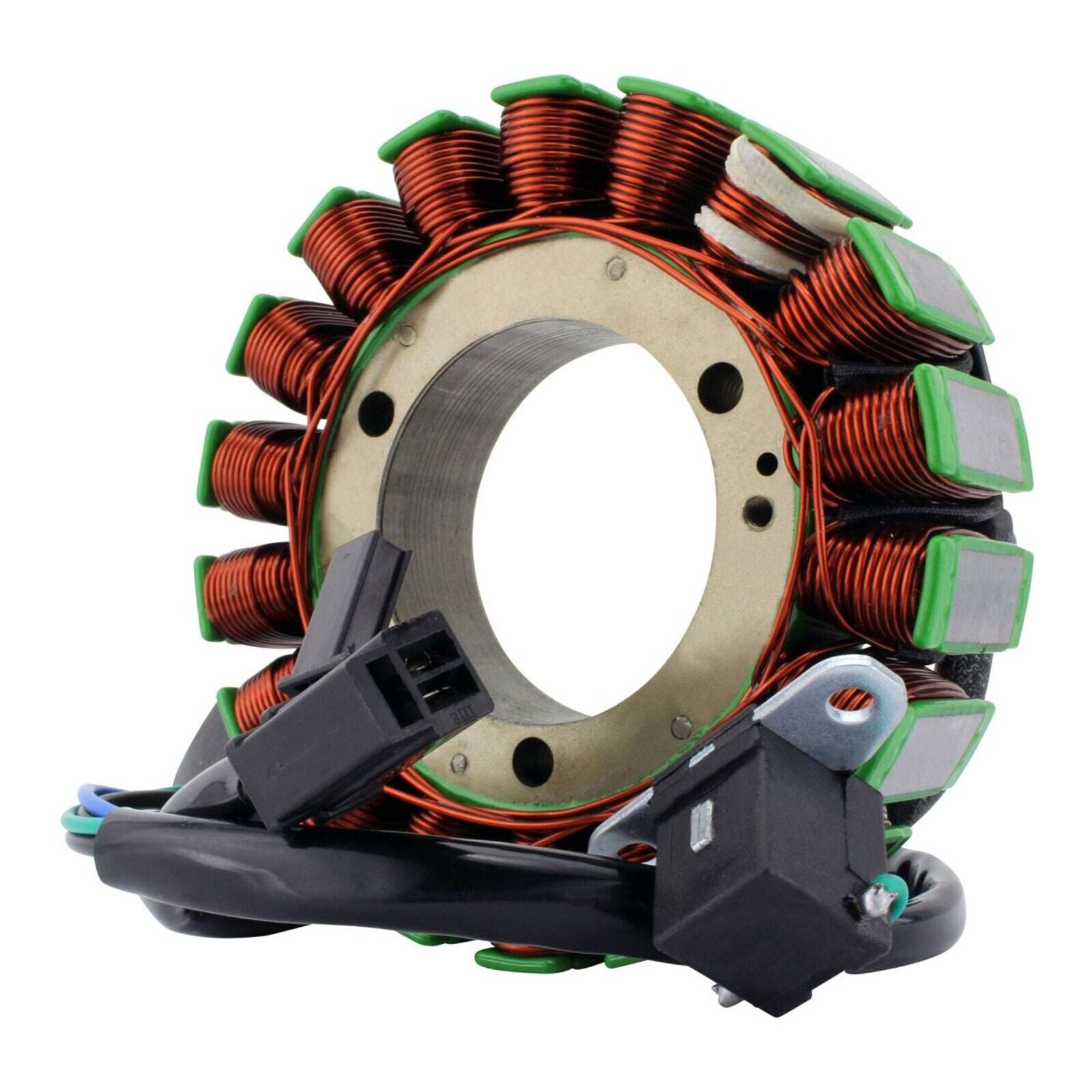

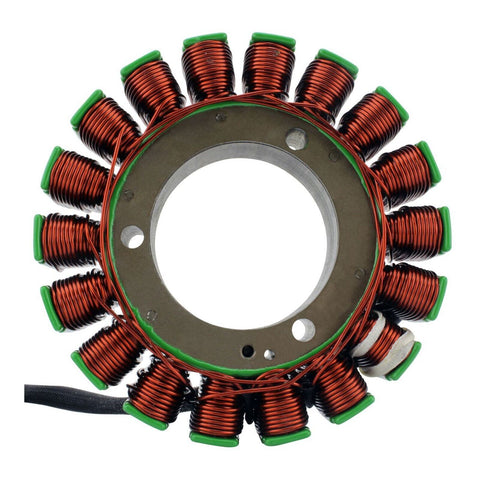

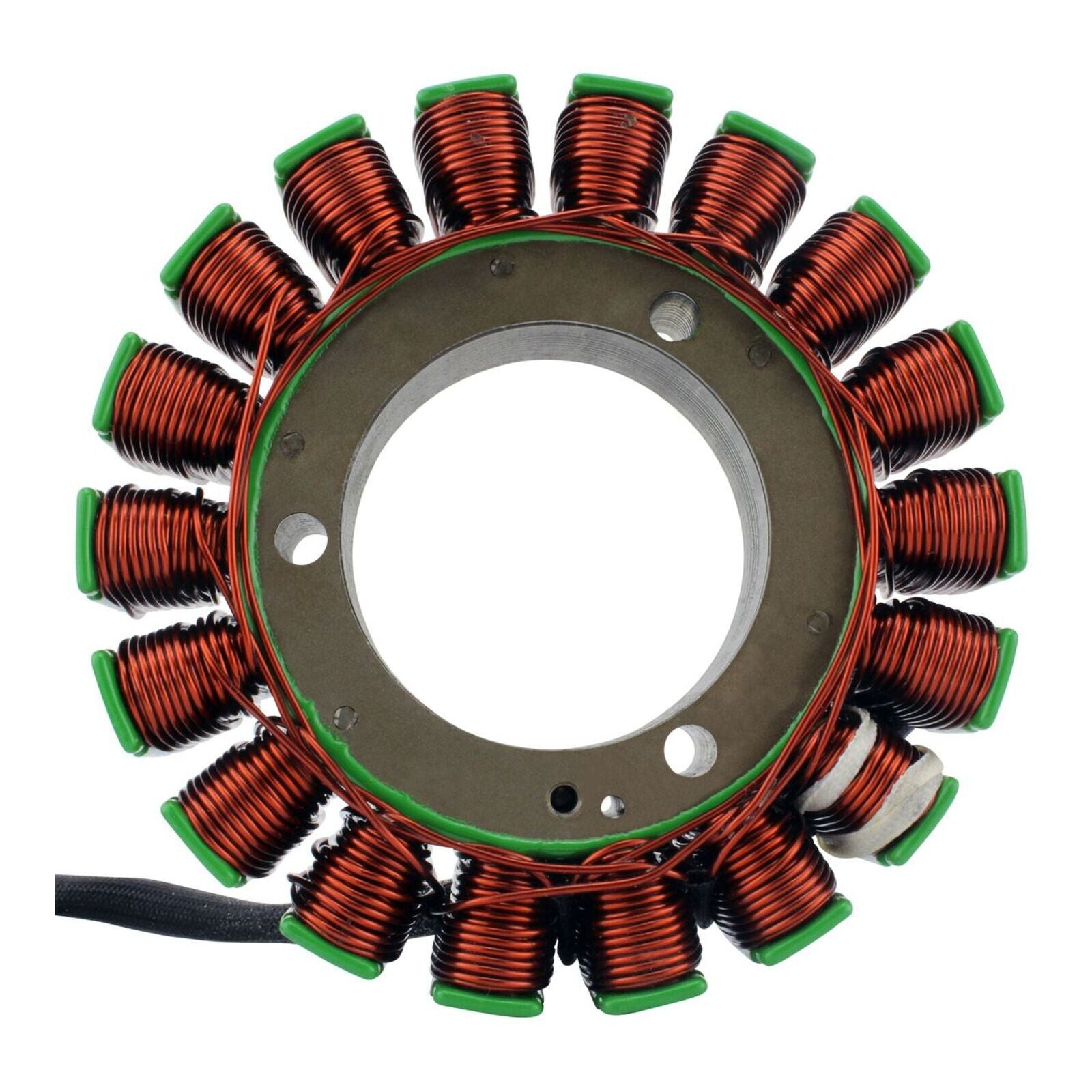

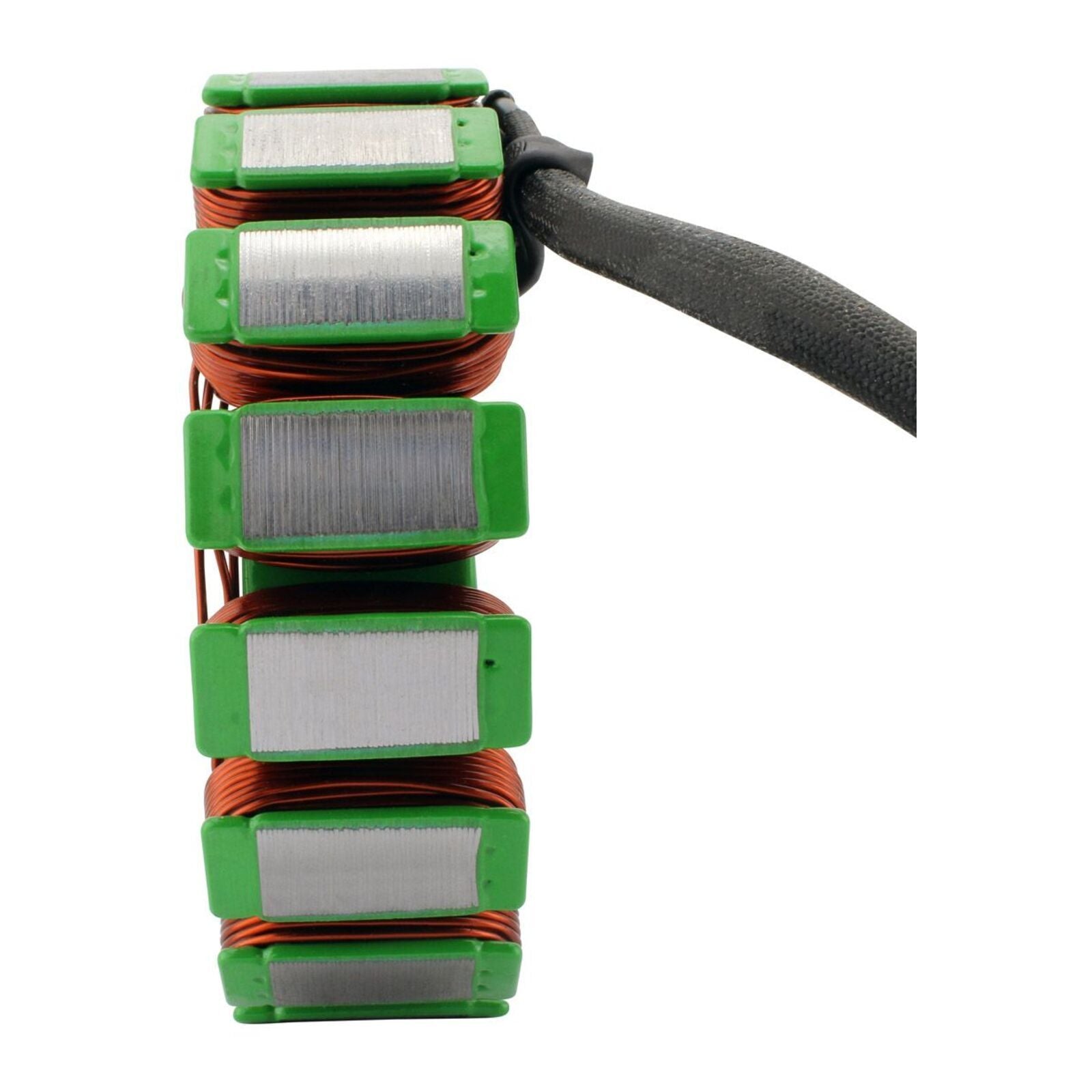

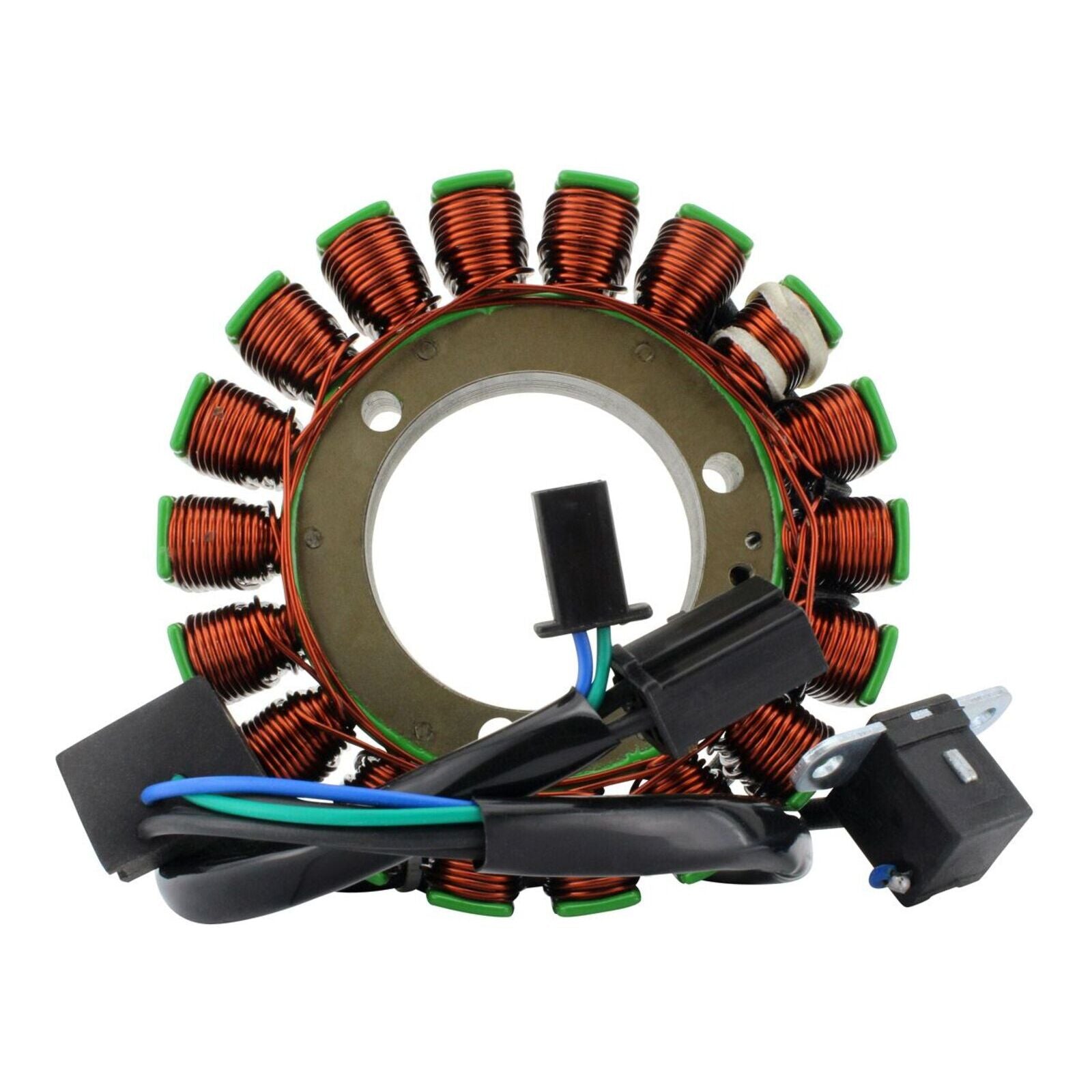

Stator:

Dim ensions:
- Interior diameter: 54 mm
- Exterior diameter: 119 mm
- Thickness: 25 mm
- Length of wires stator to grommet: 160 mm
- Length of wires grommet to plug: 430 mm
- Length of pickup coil's wire to grommet: 150 mm
Other specifications:
- Number of wires: 5
- Number of plugs: 2
- Number of pins: 5
- Number of poles: 18
- Wire to wire resistance:
  - Alternator: Black to Black = 0.6 ohms +-20%
  - Pickup: Blue to Green = 193 ohms +-20%

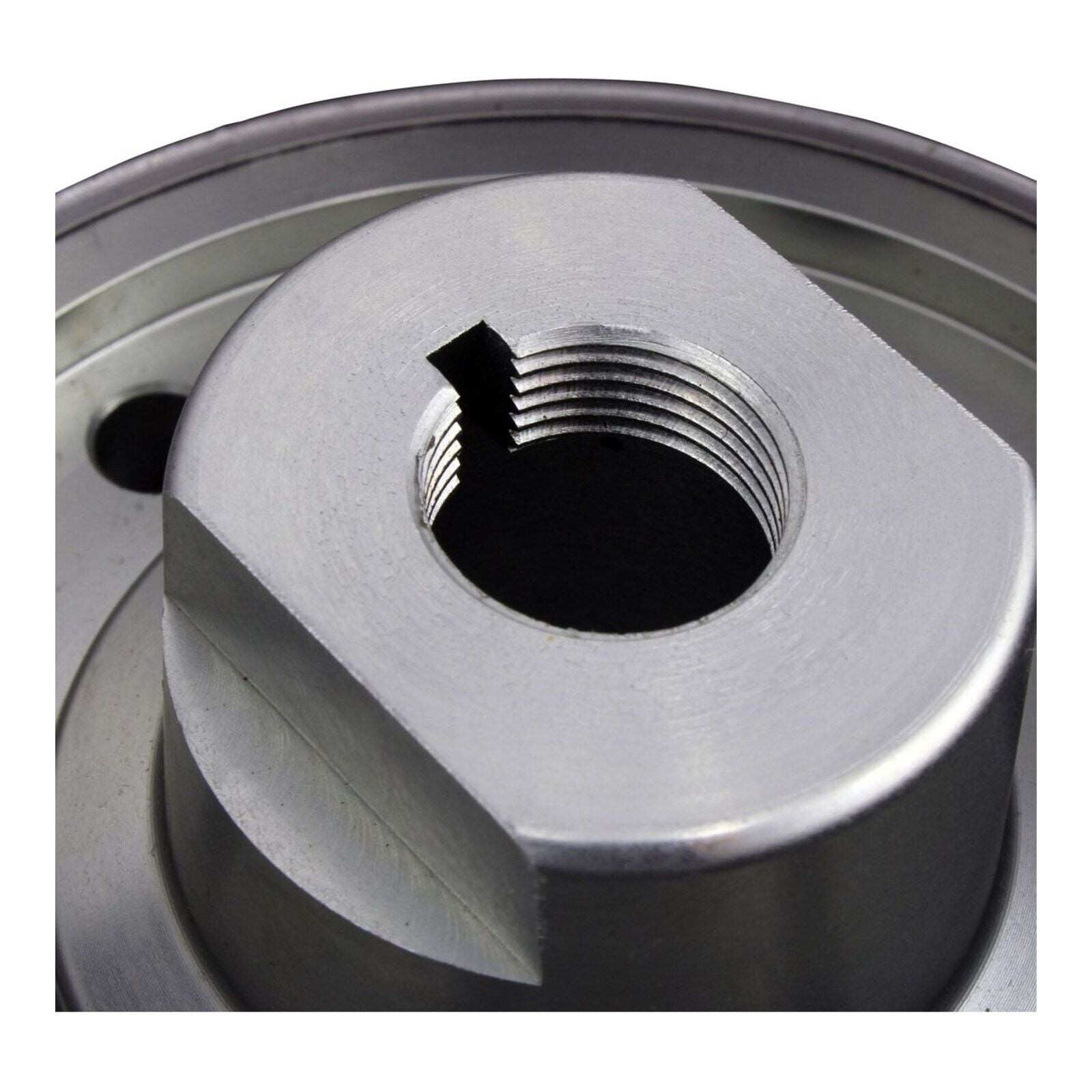

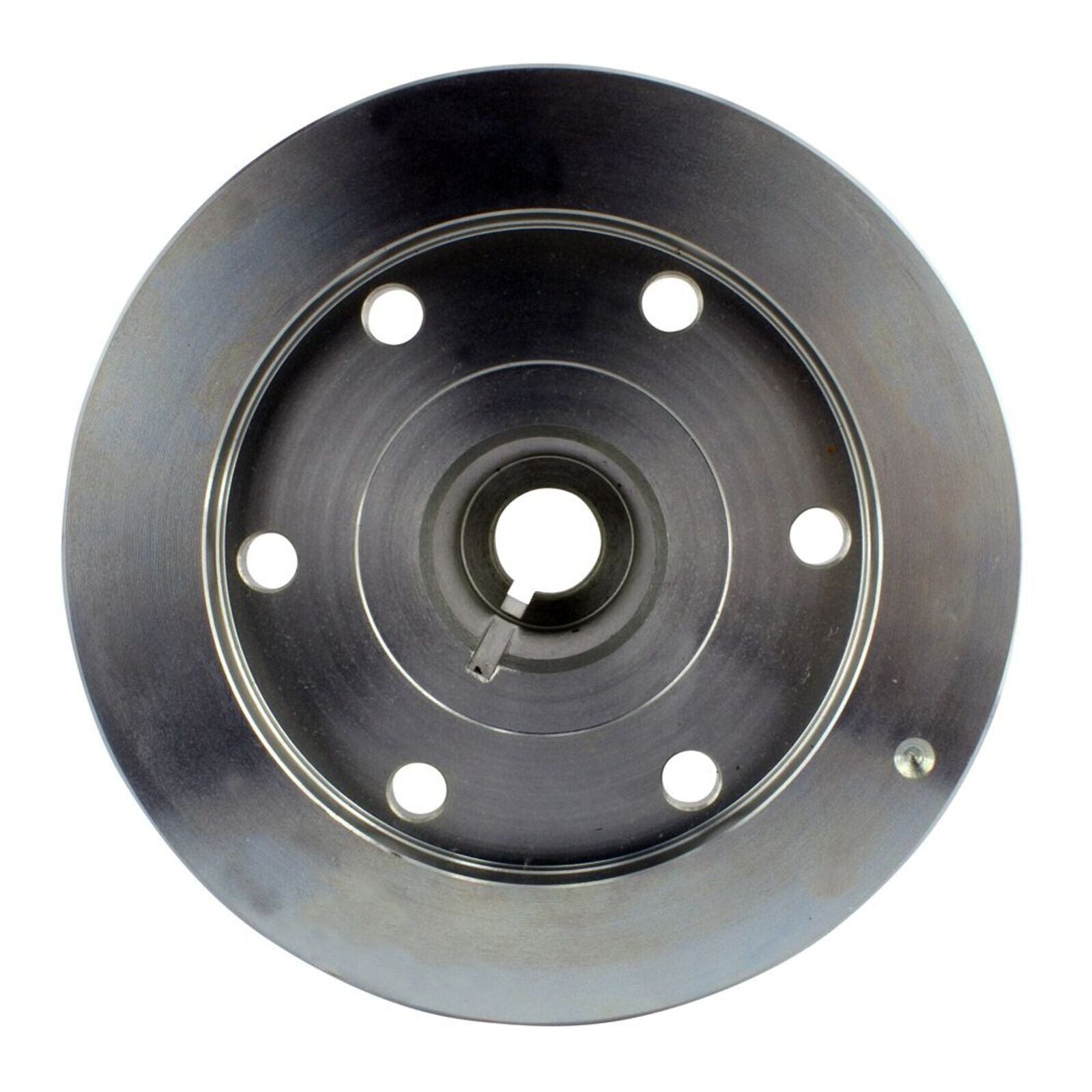

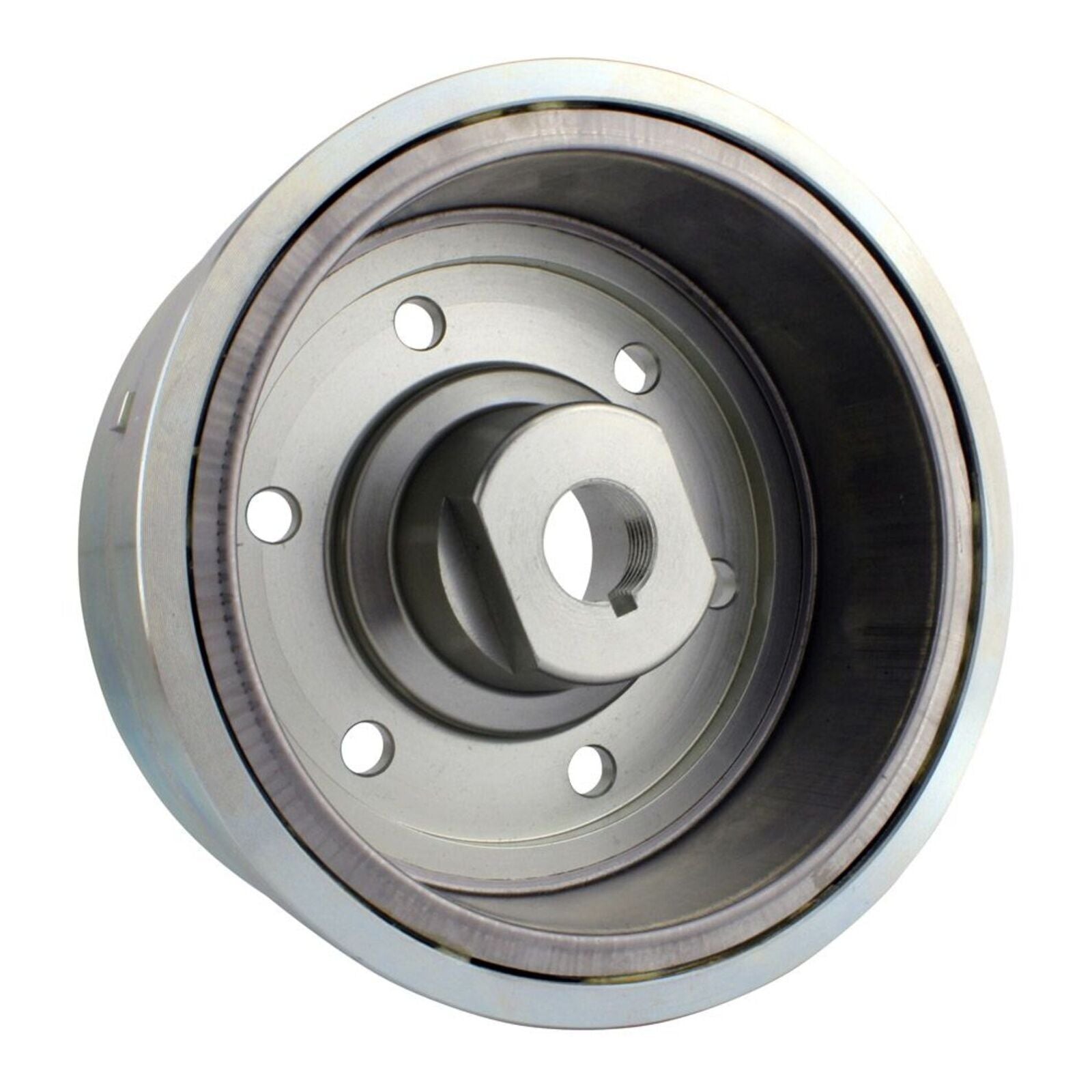

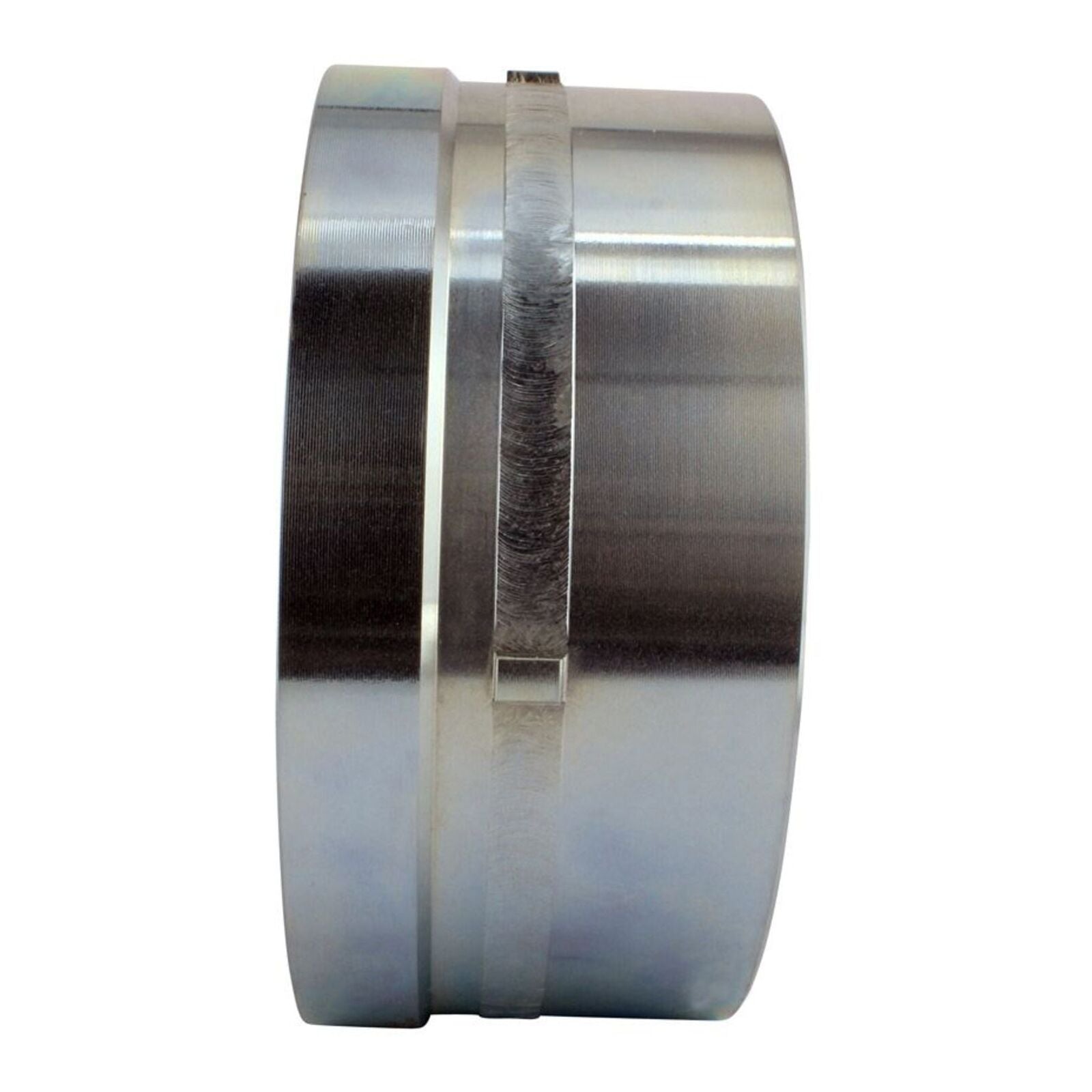

Flywheel:

Dimensions:
- Inner Diameter: 120 mm
- Outer Diameter: 149 mm
- Total Height: 65 mm
- Inside Height: 46 mm
- Center Housing Depth: 35 mm
- Center Housing Widest: 35 mm
- Center Housing Thickness: 26 mm
