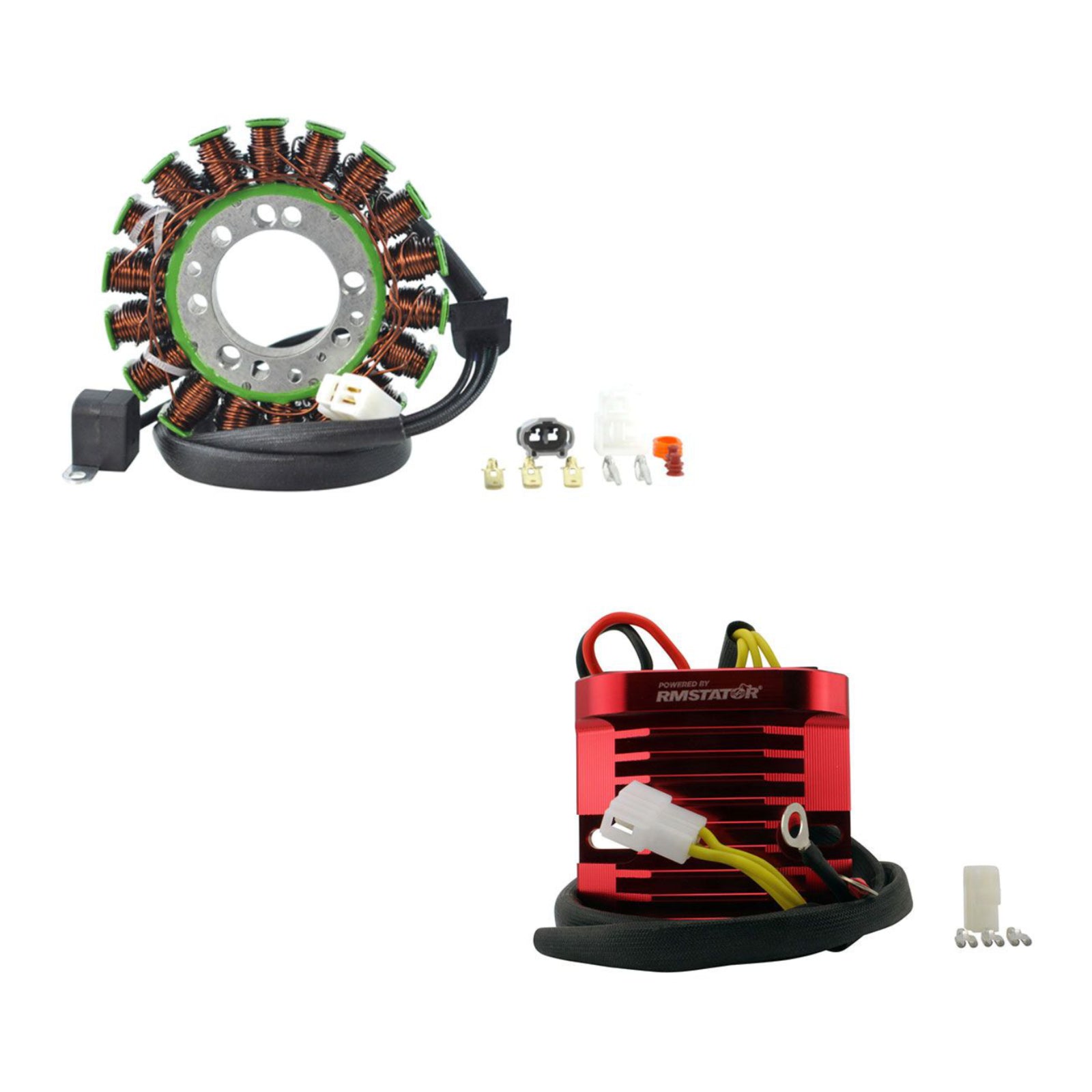

STATOR + CNC MOSFET KIT TRI STREET 675/R

Sale price: $813.99
Regular price
Regular price: $813.99
Unit price: per

Tax included. Shipping calculated at checkout.

Button-up shirt sleeves and a relaxed silhouette. It’s tailored with drapey, crinkle-texture fabric that’s made from TEAM90DEGREE™ LTD™ Viscose — responsibly sourced wood-based fibres produced through a process that reduces impact on forests, biodiversity and water supply.

Product variants

Only 2 items in stock! Out of stock!

Guaranteed safe checkout

Estimate delivery: 12-26 days (International), 3-6 days (United States).

🔥 30 sold in the last 18 hours

Product Description

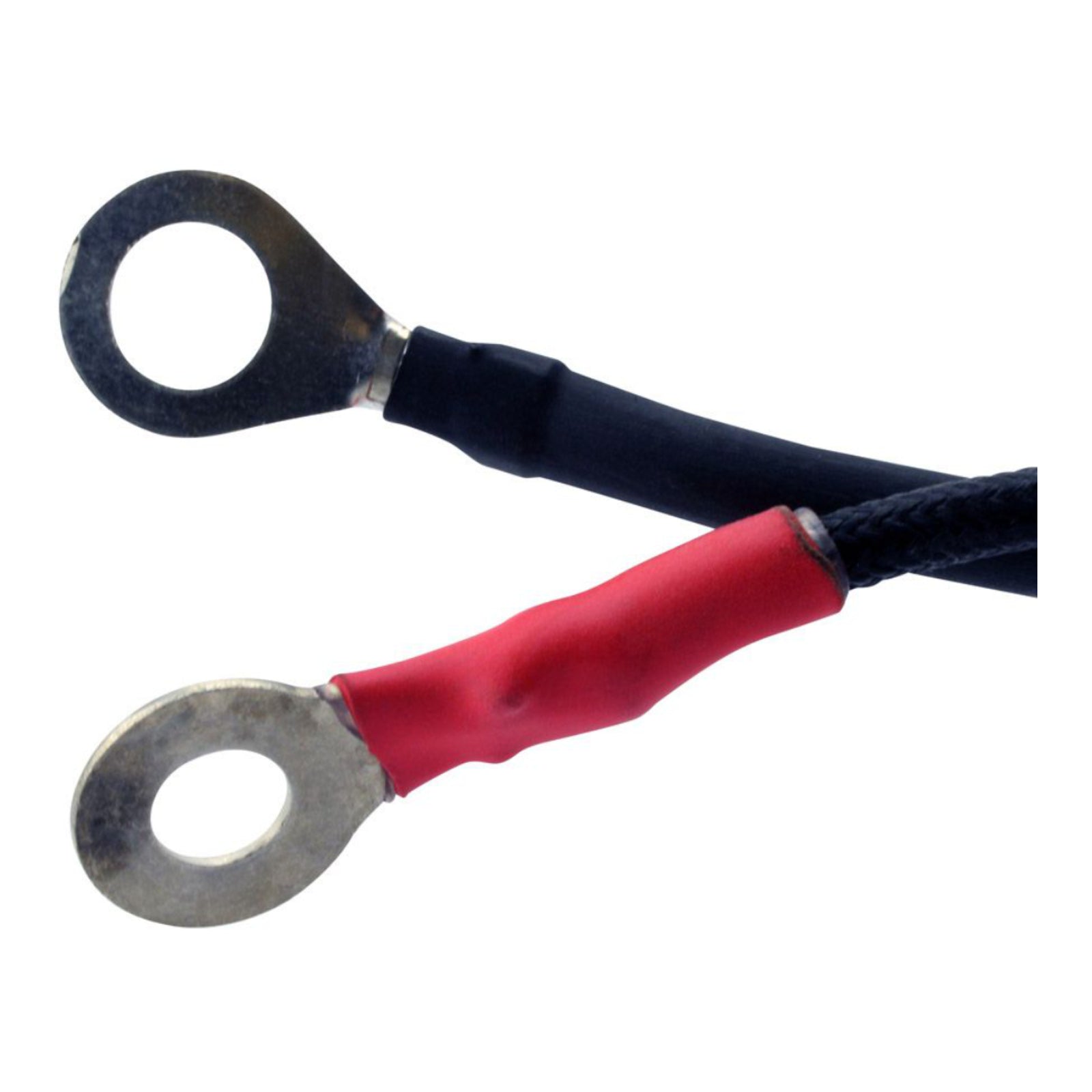

This special regulator bypasses the vehicle’s failure-prone wiring harness between the regulator and battery and instead connects directly to the battery with ring terminals for the best possible connection.

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Specifications:

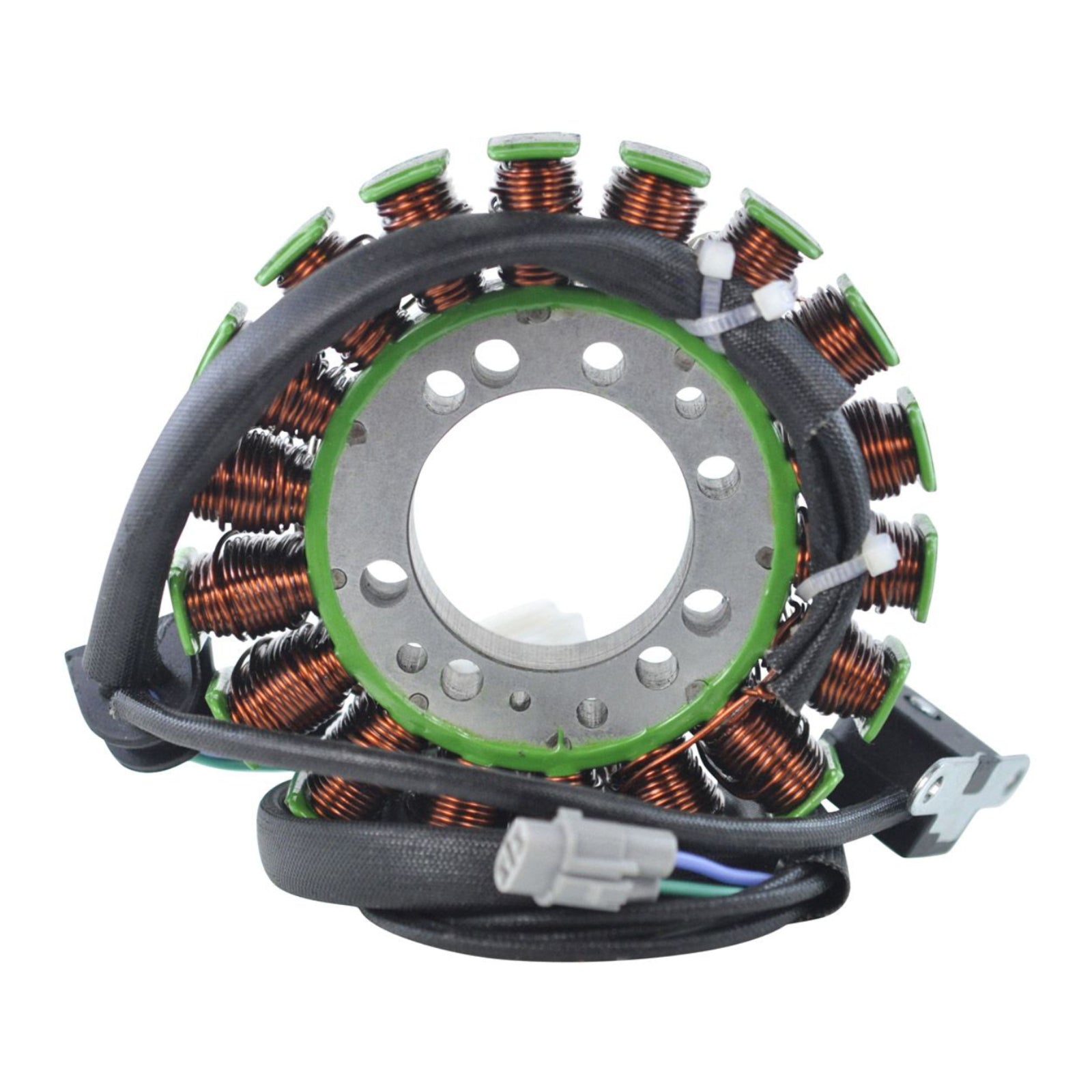

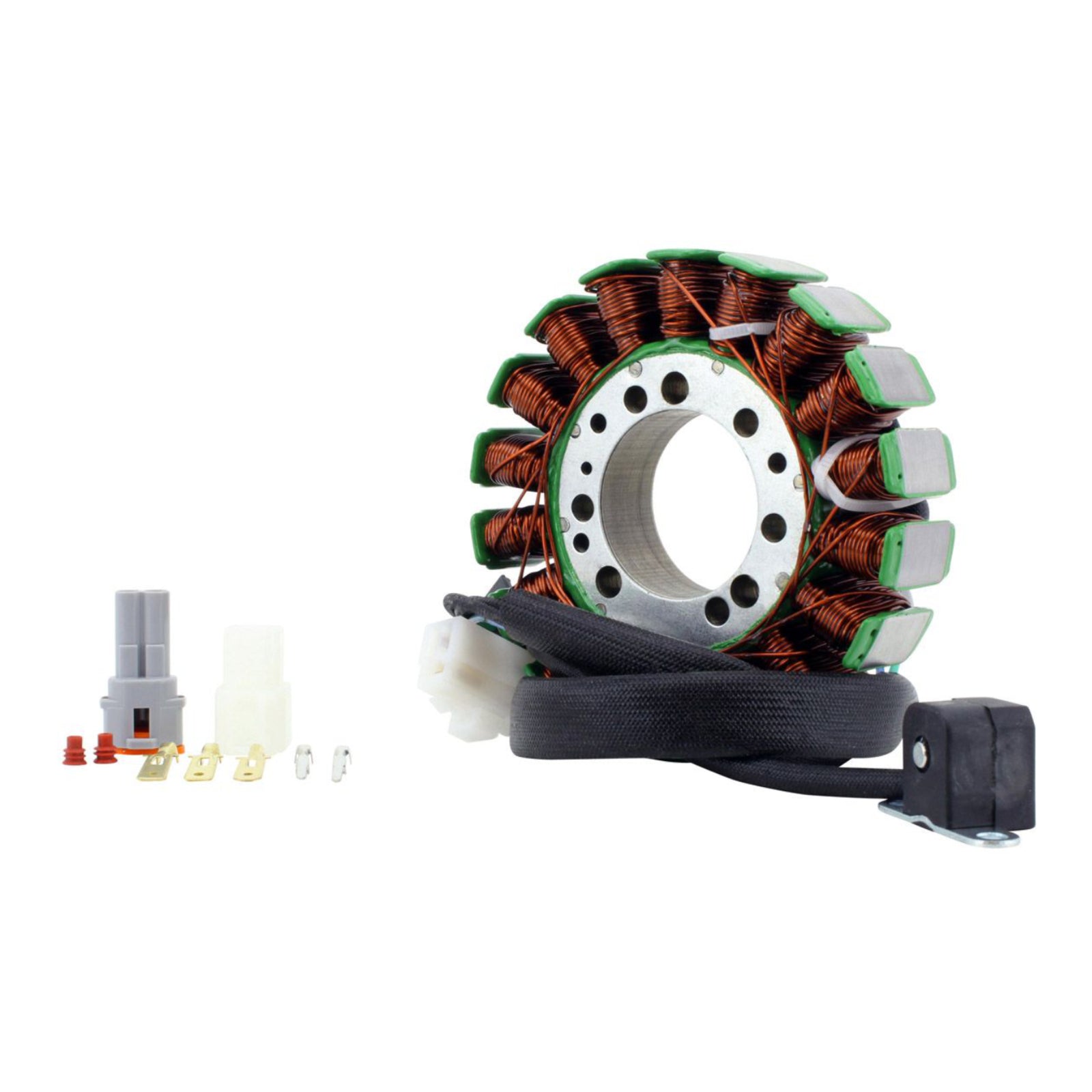

Stator:
- Dimensions:
  - Interior diameter: 42 mm
  - Exterior diameter: 115 mm
  - Thickness: 22 mm
  - Length of wires stator to grommet: 140 mm
  - Length of wires grommet to plug: 530 mm & 590 mm
  - Length of pickup coil's wire to grommet: 155 mm
- Other Specifications:
  - Number of wires: 5

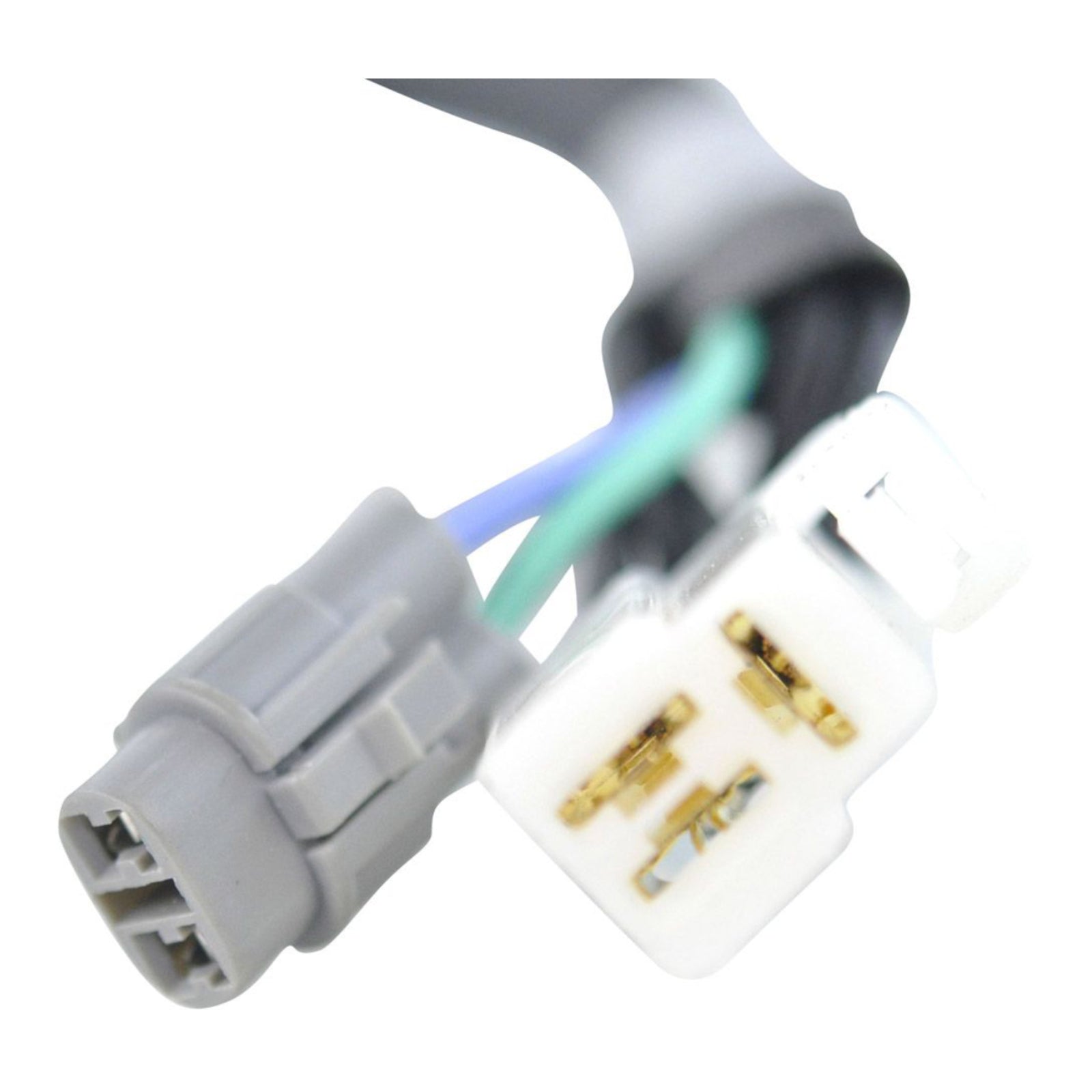

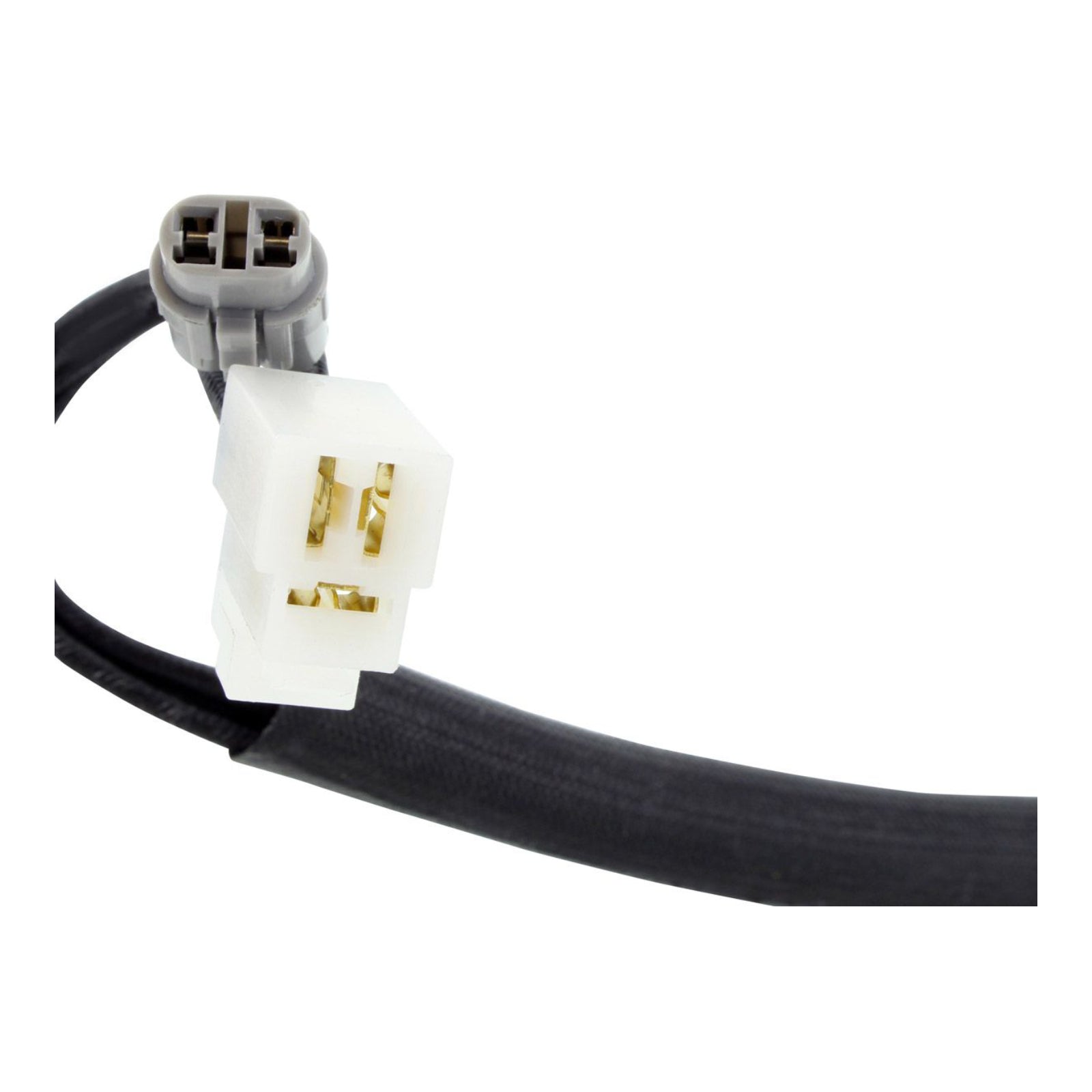

  - Number of plugs: 2
  - Number of pins: 5
  - Number of poles: 18
  - Wire to wire resistance:
    - Alternator: Black to Black = 0.5 ohms ±20%
    - Alternator: to ground = O.L (open loop)
    - Pickup: Green to Blue = 200 ohms ±20%

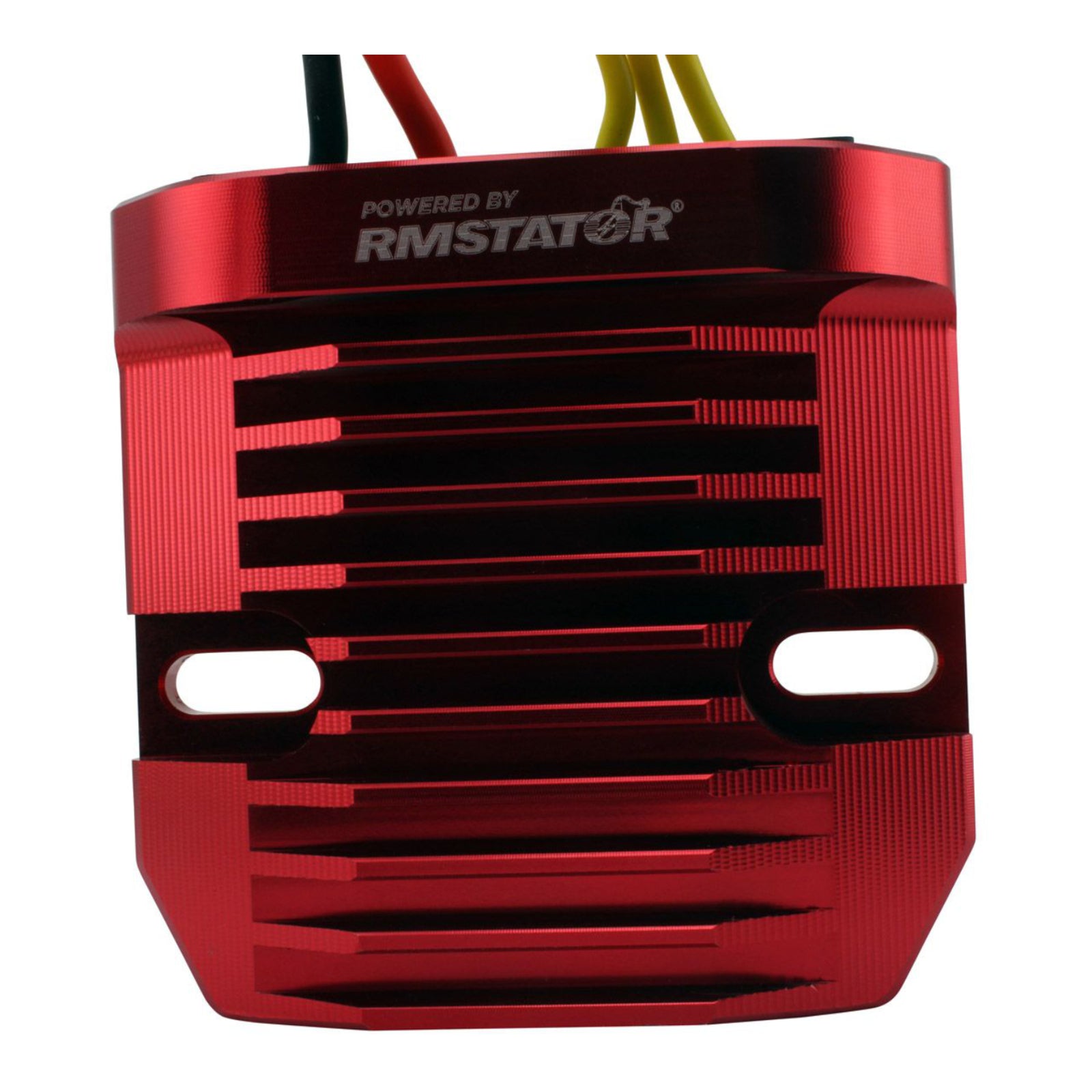

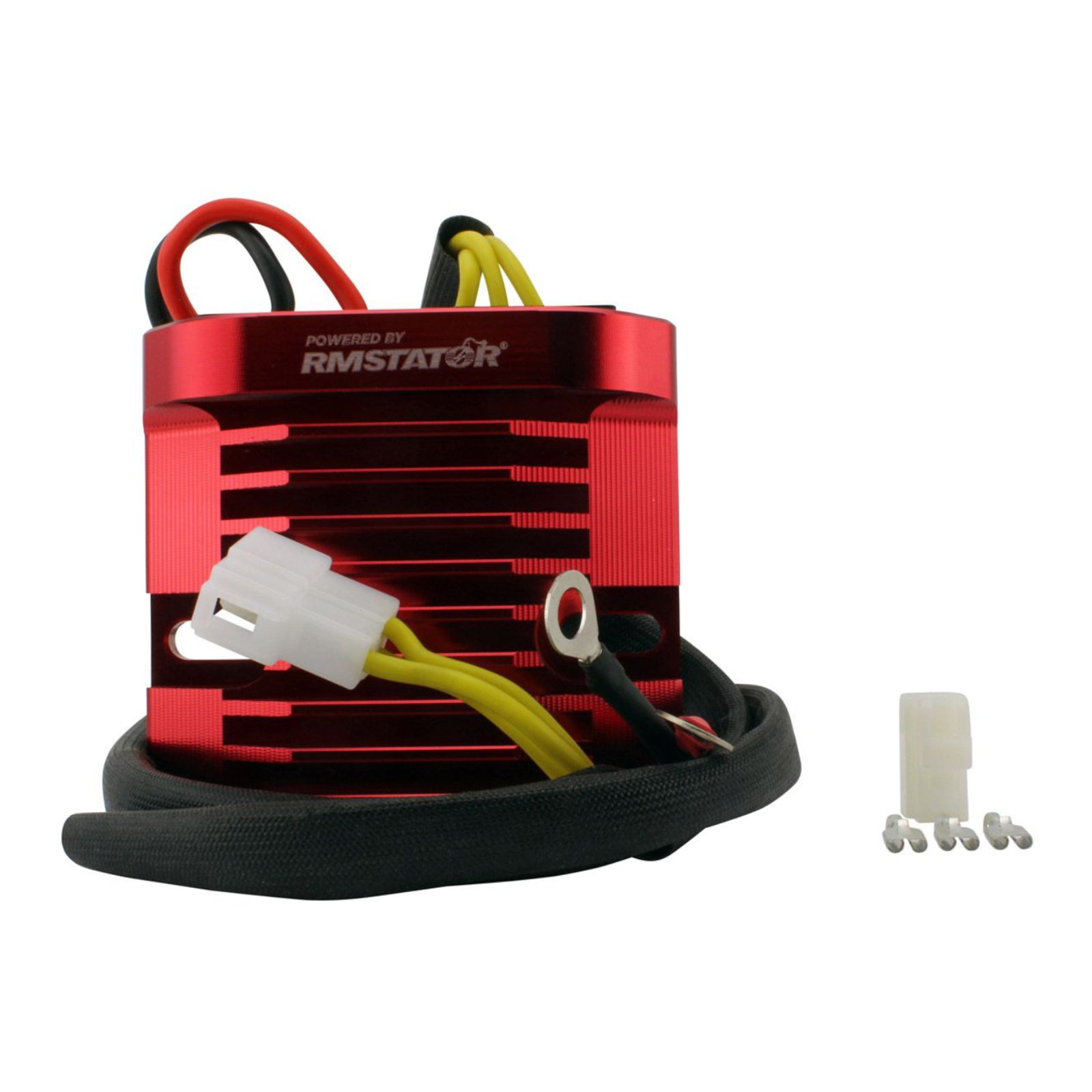

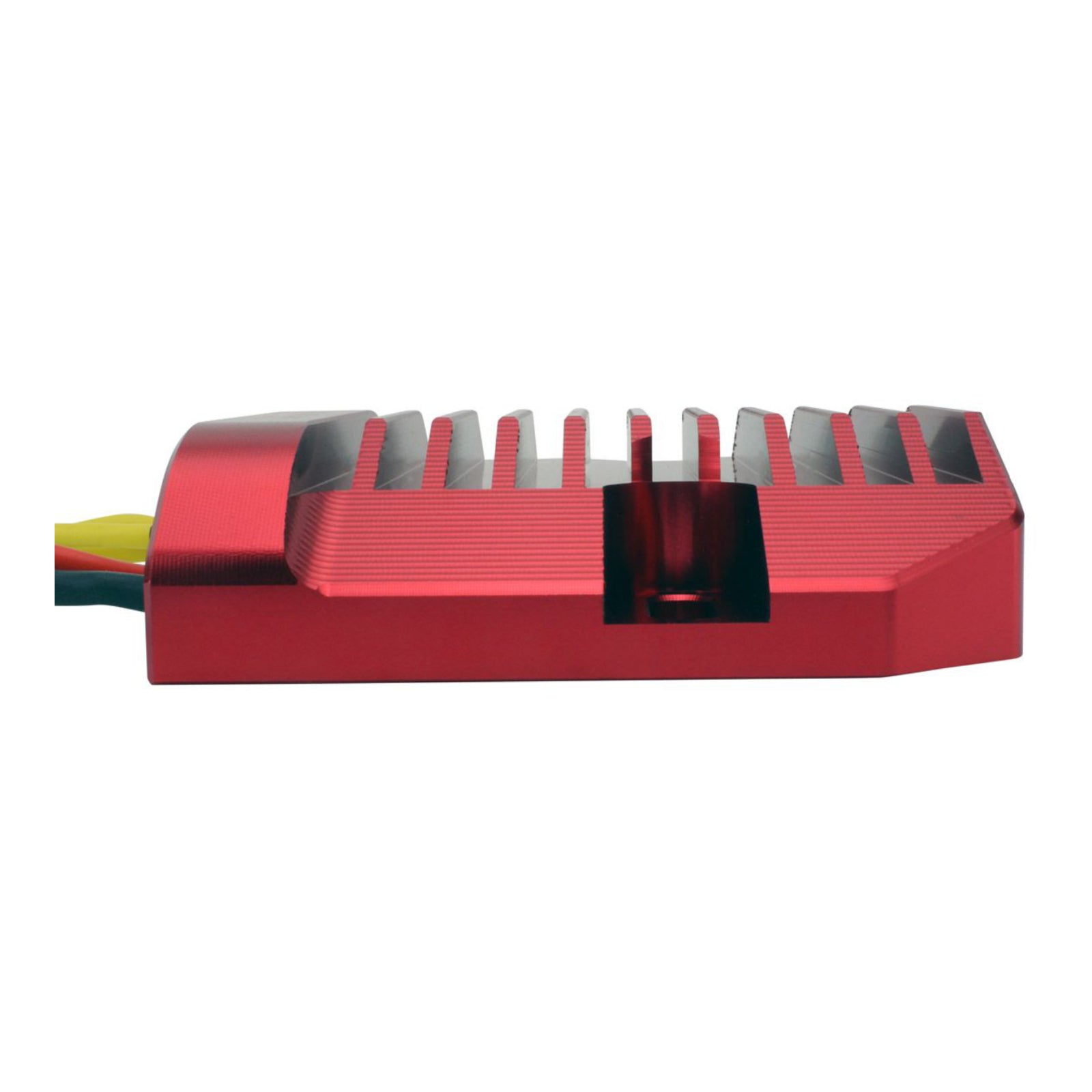

RMSTATOR Red Machined Aluminum Mosfet Voltage Regulator Rectifier:
- Dimensions:
  - Width: 95 mm
  - Length: 90 mm
  - Height: 30 mm
  - Wires length: 811
