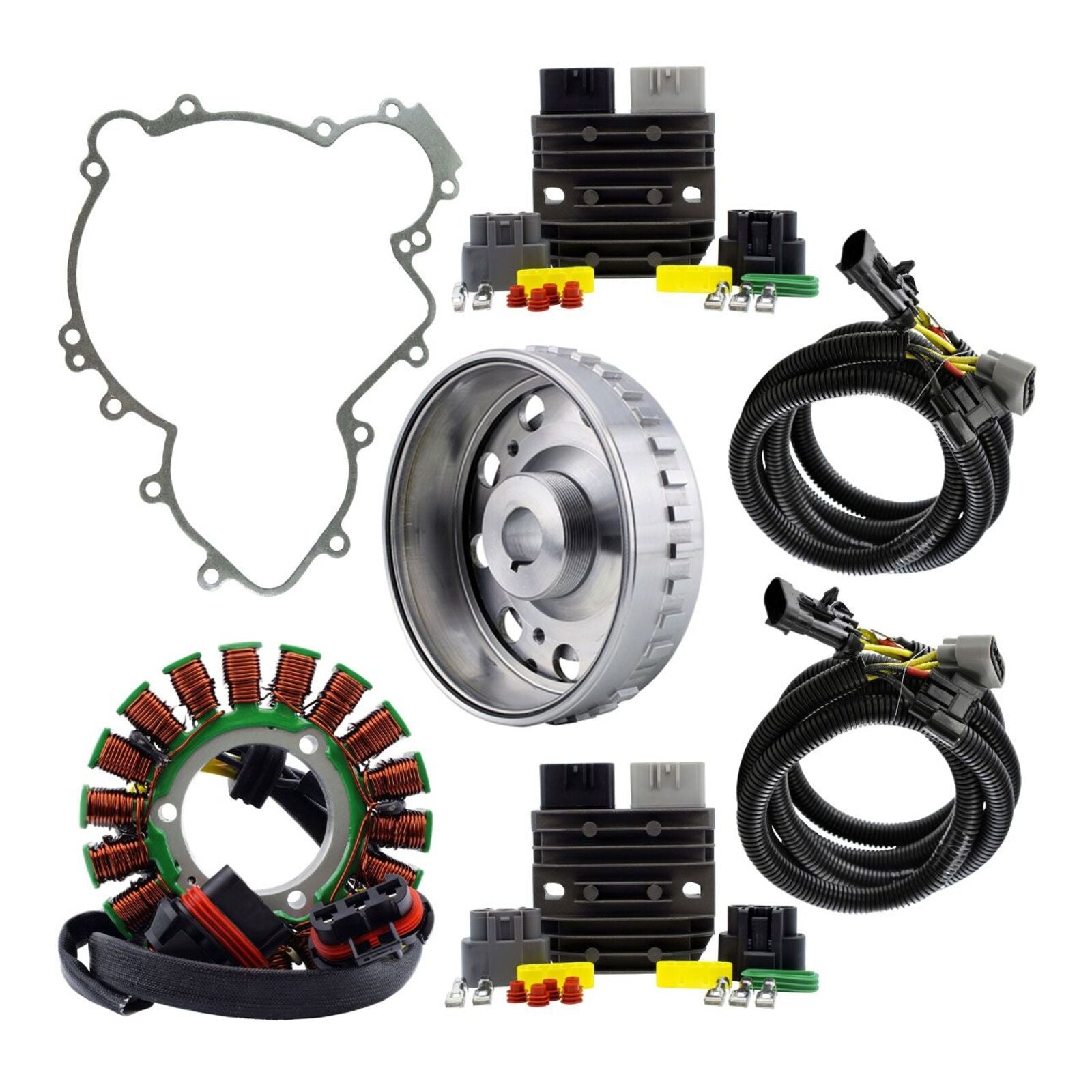

SPLYT TECHNOLOGY STATOR + TWIN REGULATOR KIT (RMS900-106949)

Why use the SPLYT Technology?

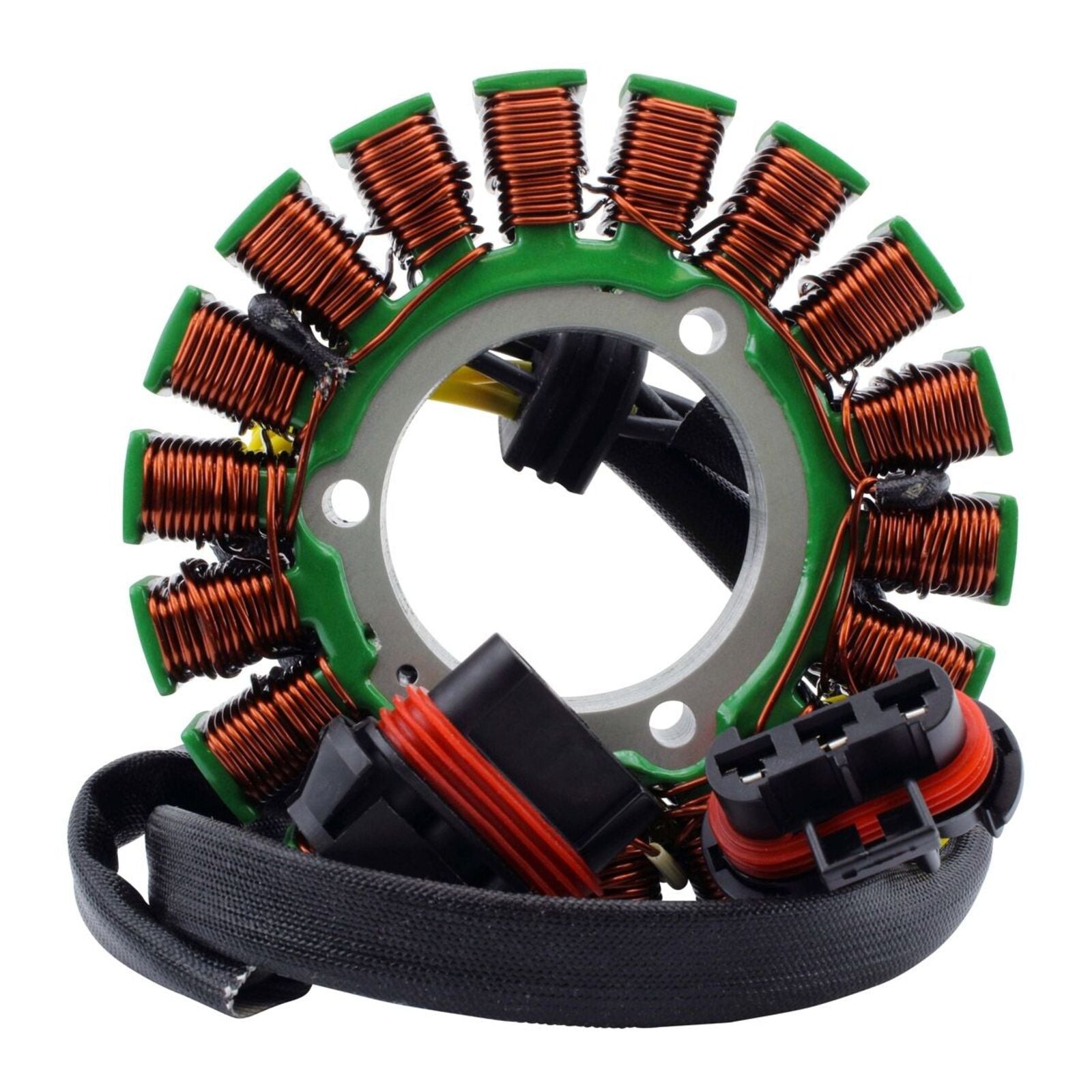

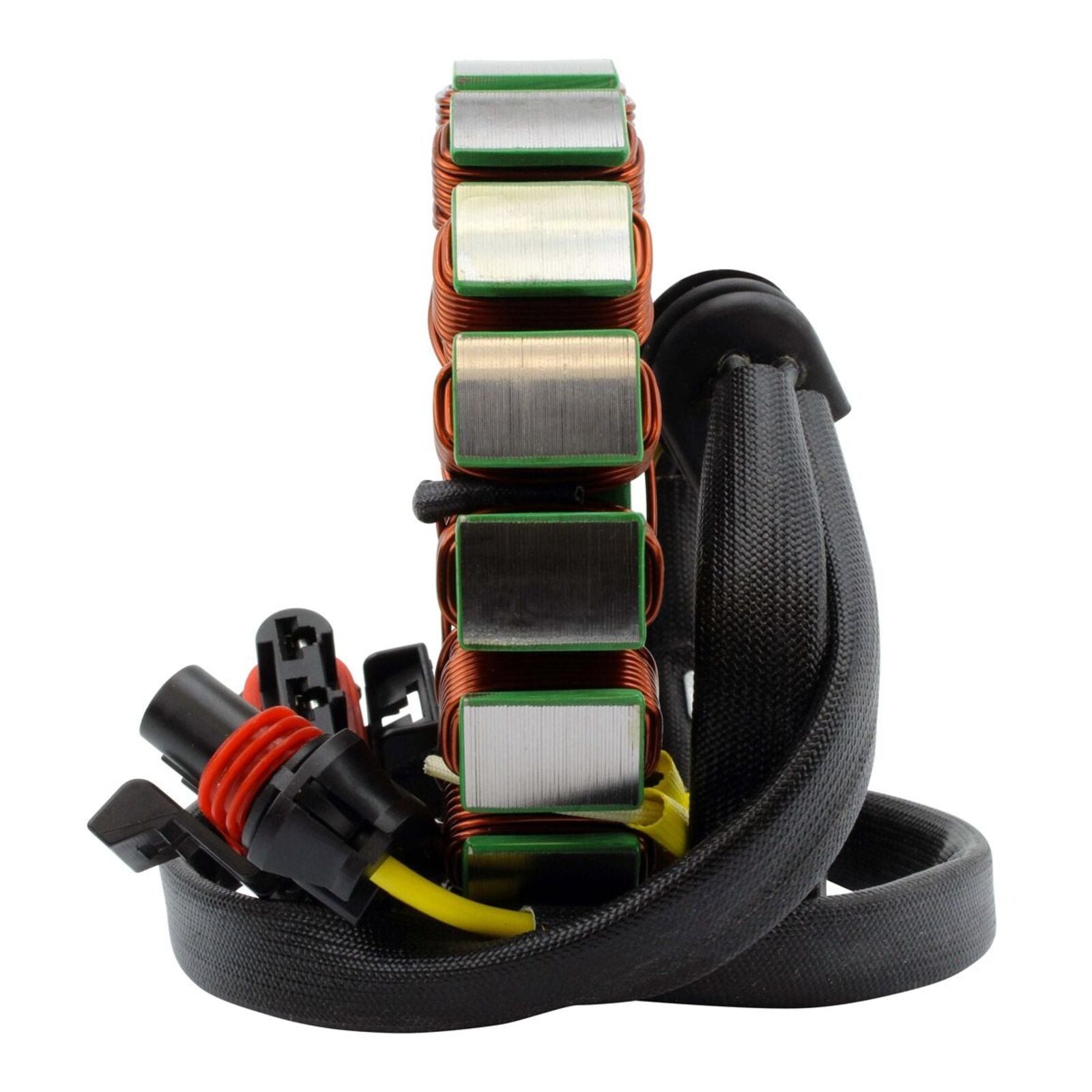

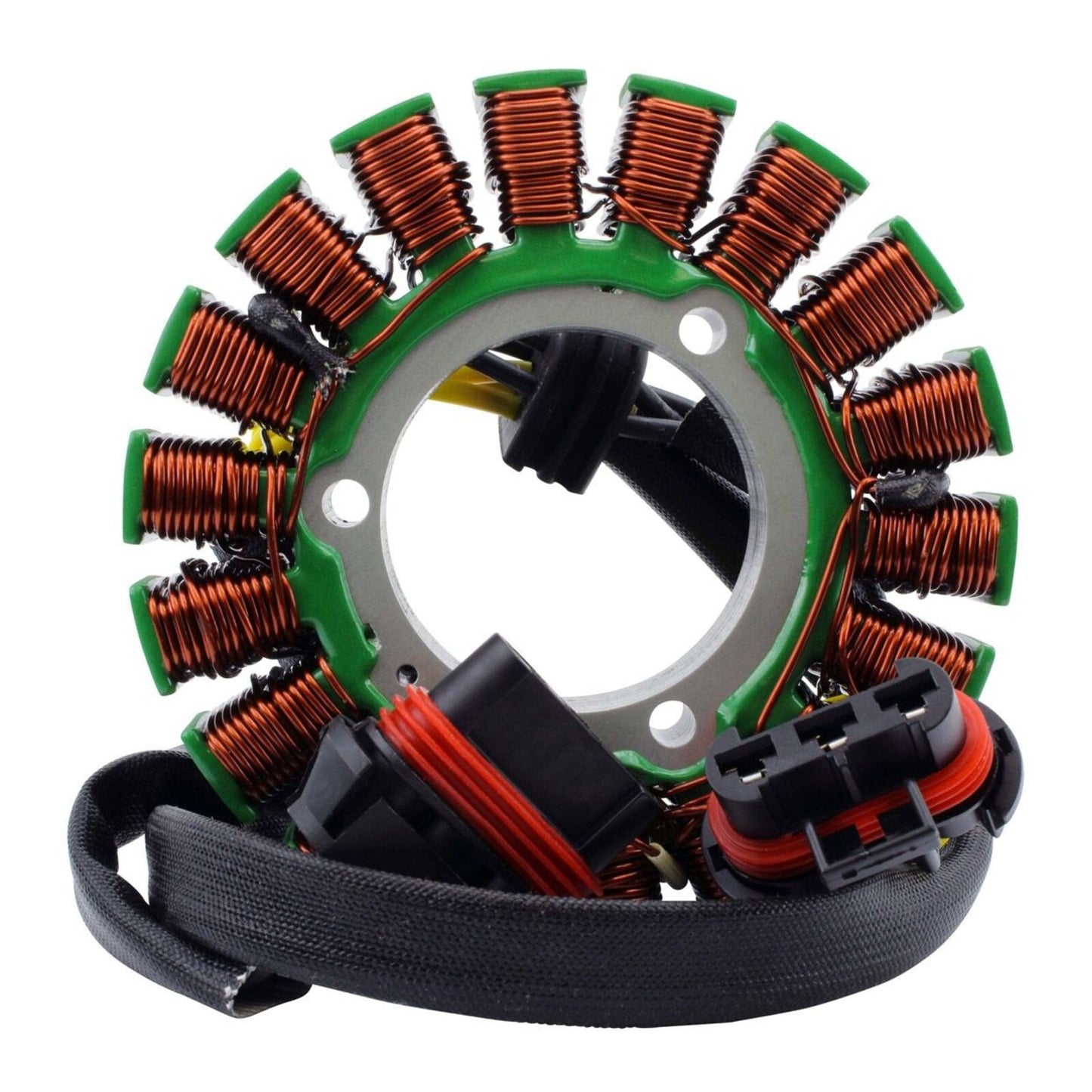

As featured by Dirt Trax Television, RMSTATOR SPLYT Technology provides a reliable solution to well-known charging system failures. Using a dual output stator with two completely separate stator windings, this system splits the power generated by the stator into two separate voltage regulators. These regulators then each operate with only half of the load of the original system, allowing them to maintain a lower temperature and increase reliability.

SERIES Voltage Regulation

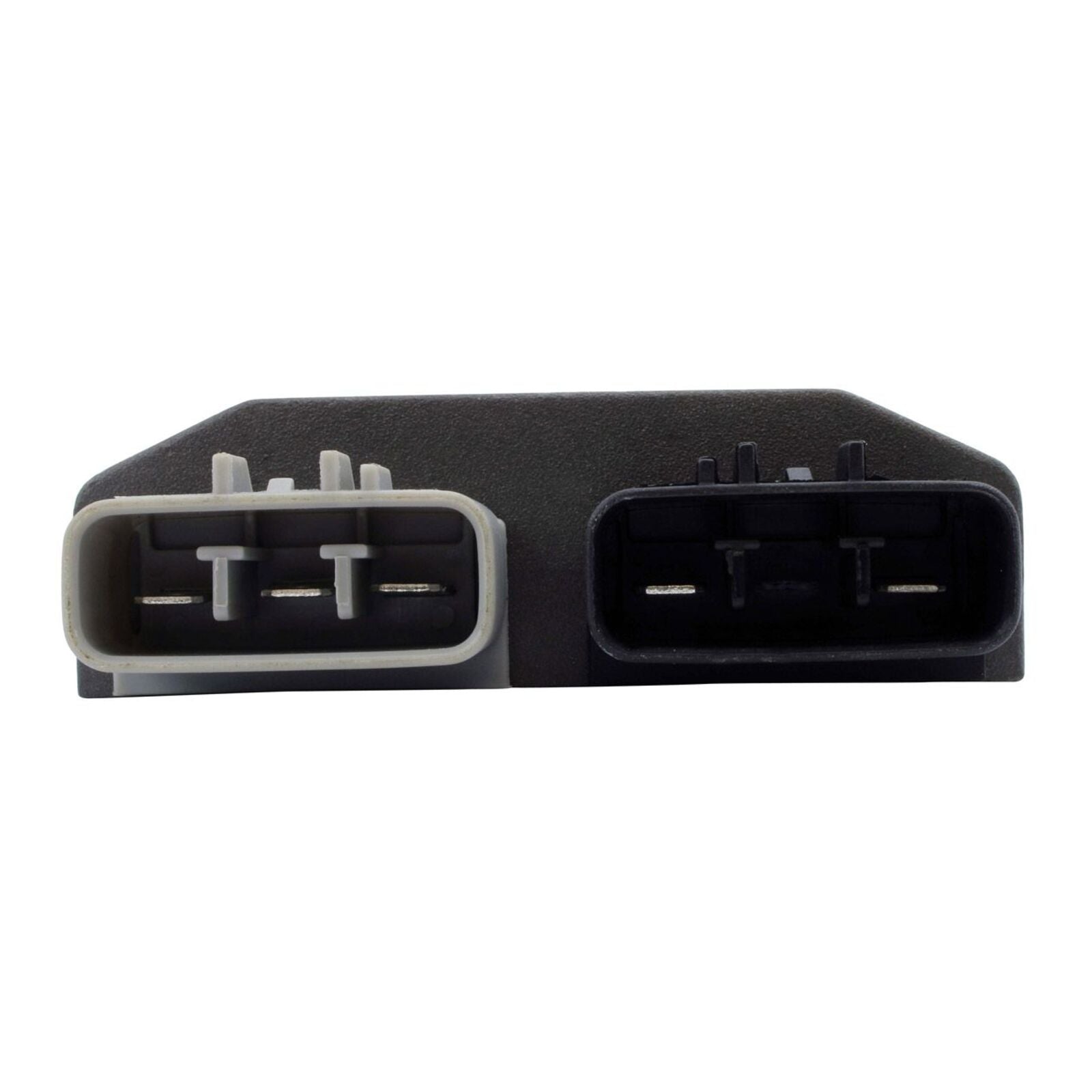

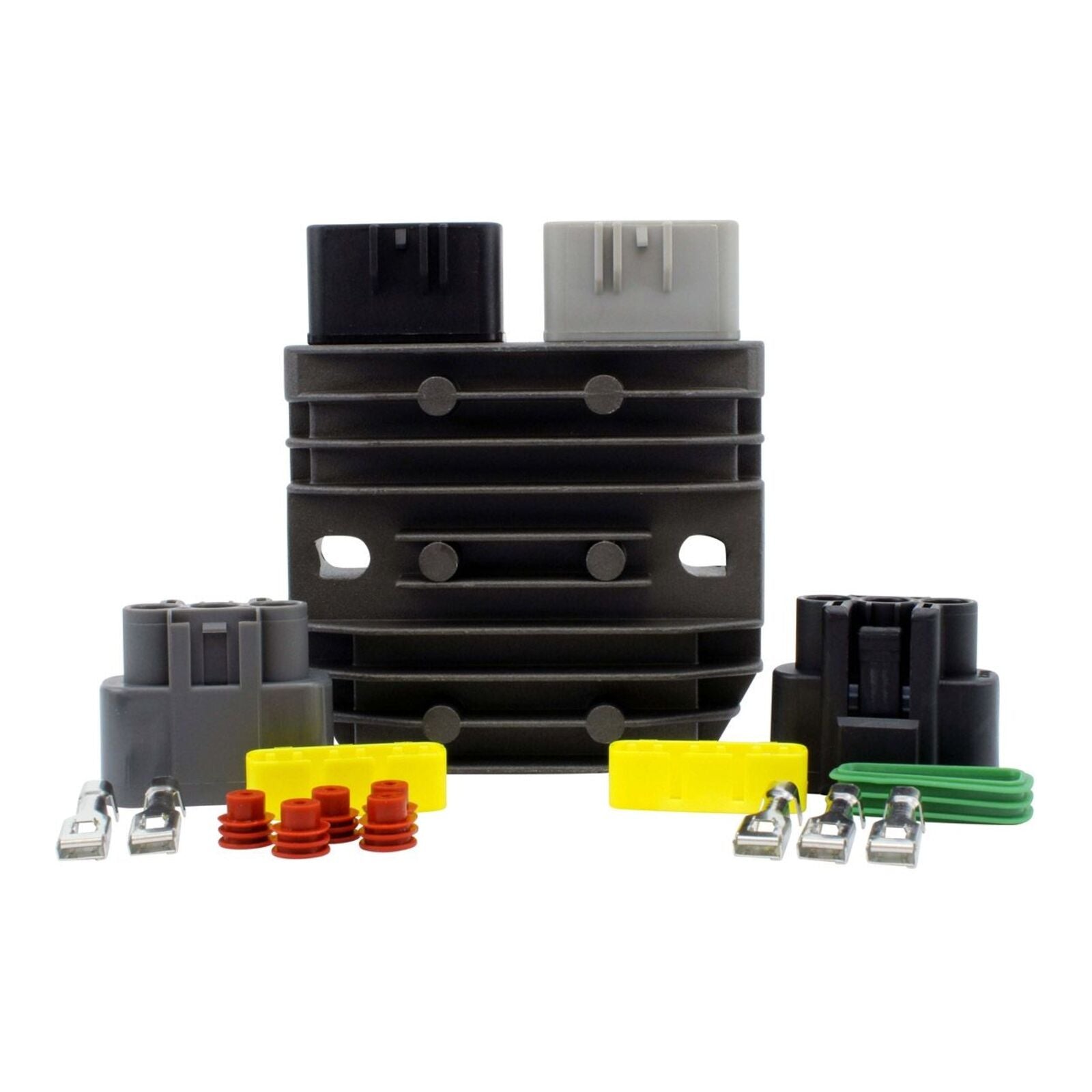

This system uses a new type of voltage regulator called a SERIES regulator. Rather than shunting excess power to ground like a typical regulator, it protects the battery from high voltage by disconnecting the stator coils from the regulator and preventing current from passing on. This type of voltage regulation generates less heat because current from the stator is prevented from flowing through the regulator.

Ultimate reliability

With a stock charging system, voltage regulators are consistently operating within 5% of their maximum capacity, leading to heat and stress related failure. With the RMSTATOR SPLYT system, both SERIES voltage regulators are operating with 40% overhead for long life and stable output.

Better design

Contrary to the original OEM stator that uses one three-phase stator winding,
