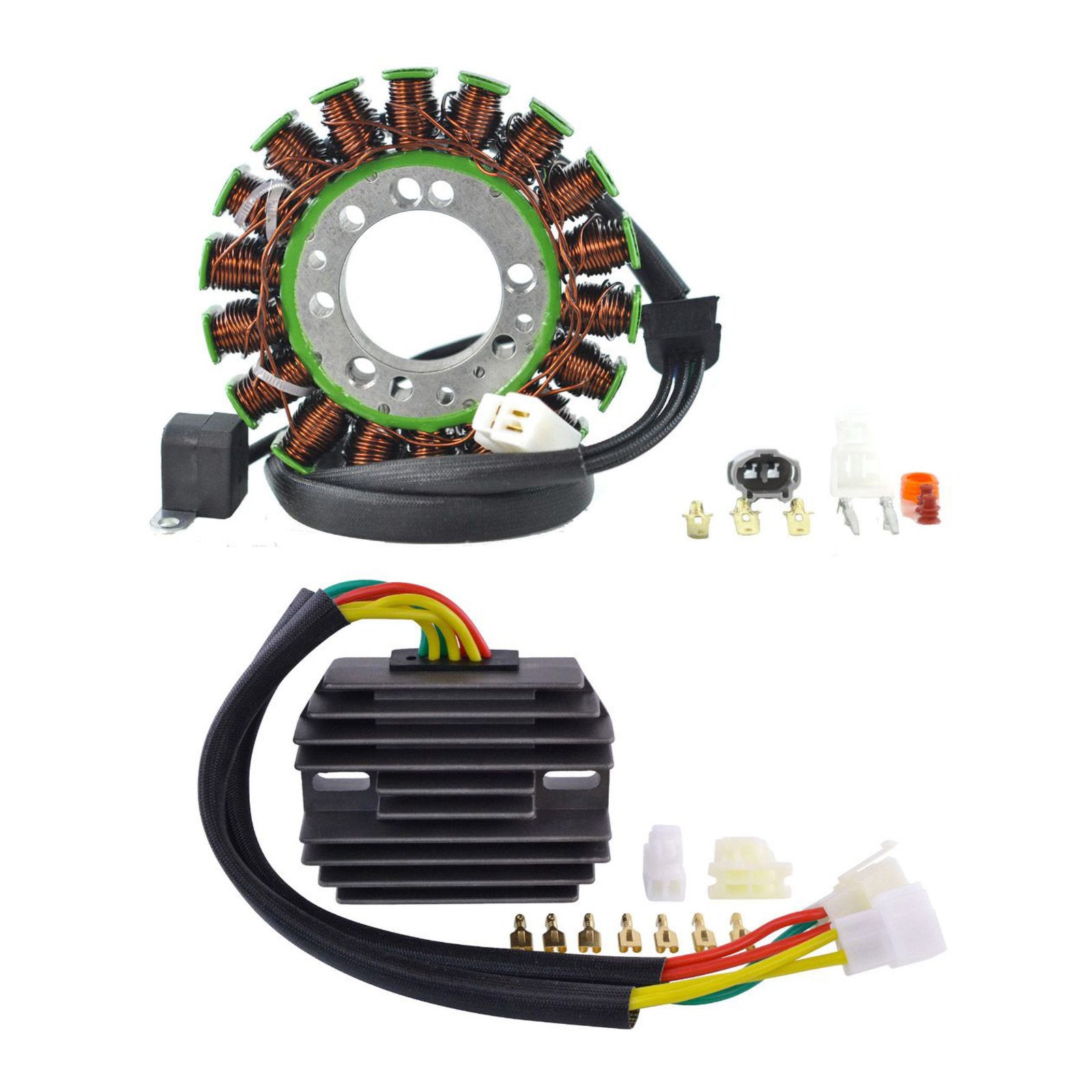

STATOR KIT + MOSFET REGULATOR (RMS900-106045)

Brand new aftermarket Stator + Voltage Regulator Kit

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

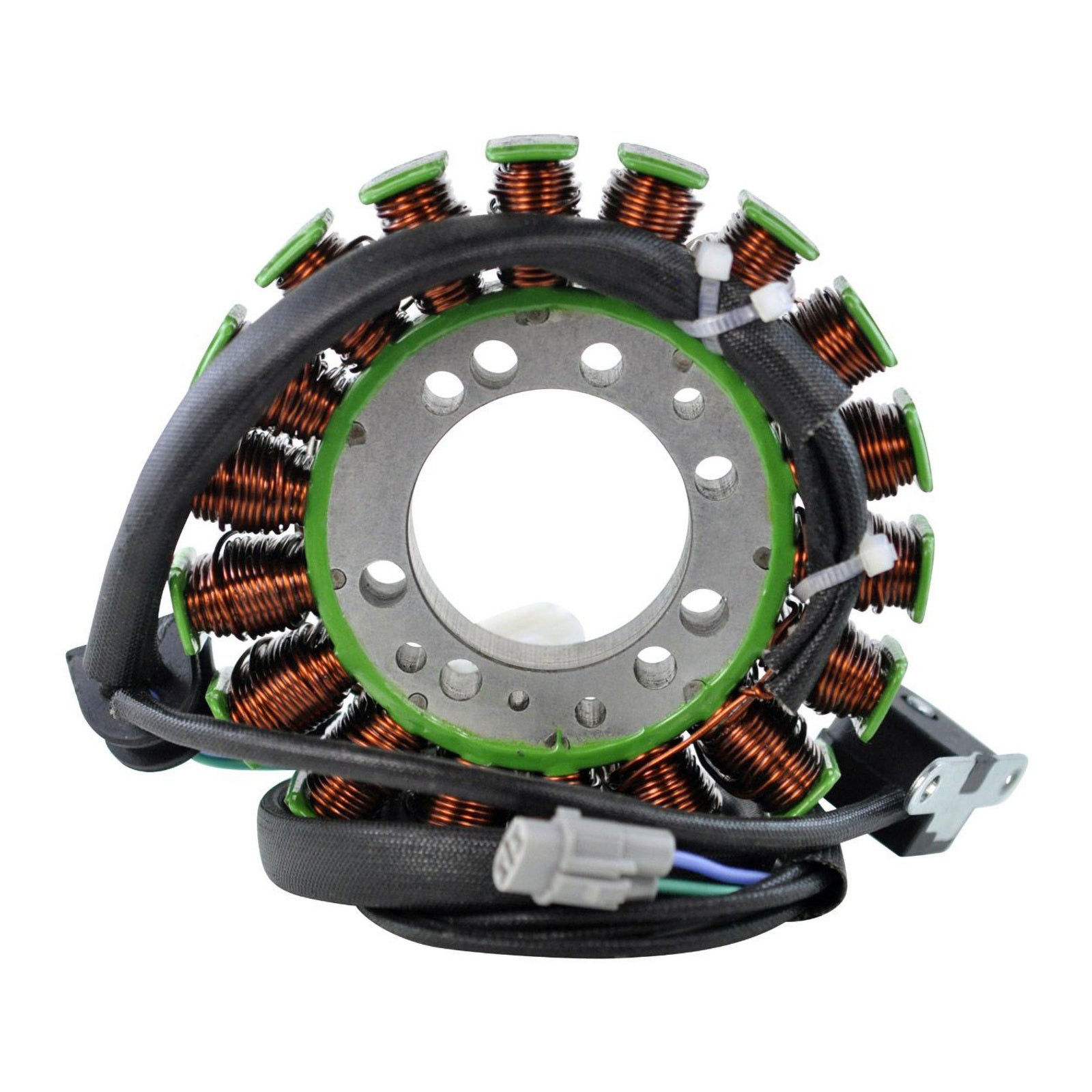

Stator

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius

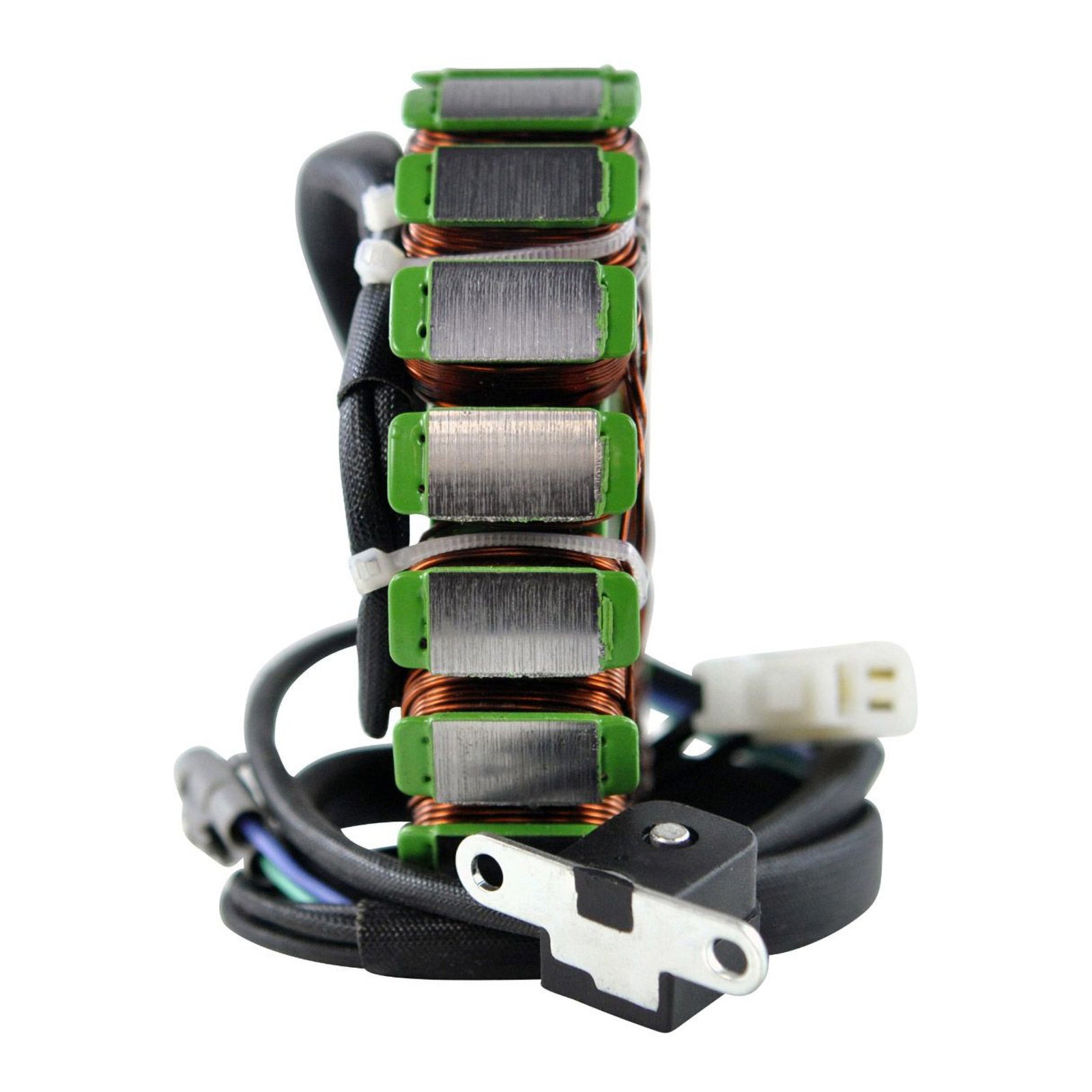

• Pick up pulsar coil included
• Connectors included
• Rubber grommet included

Voltage Regulator Rectifier

• No assembly required
• Higher grade of electric components
• The quality exceeds the OEM equipment

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and are a major cause of repetitive electrical issues.

Stator

Dimensions:

• Interior diameter: 42mm
• Exterior diameter: 115mm
• Thickness: 22mm
• Length of wires stator to grommet: 120mm
• Length of wires grommet to plug: 530mm
• Length of pickup coil's wire to grommet: 150mm

Other specifications:

• Number of wires: 5
• Number of plugs: 2
• Number of pins: 5
• Number of poles: 18

Wire to wire resistance:

• Alternator 3p: Black between each Black = 1 ohm +-20%
• Pickup: Green to Blue = 200 ohms +-20%
• Alternator to ground = O.L

Voltage Regulator

Dimensions:

• Width: 82mm
• Length: 94mm
• Height: 28mm
• Wires length: 183mm
• Fixation holes centre to centre: 73mm

Other specifications:

• Number of plugs: 2
• Number of pins: 7
• Number of wires: 7
• Minimum
