Kit Stator + Pickup Suzuki RM125 / RM250 '94-'01 (RM22843)

Sale price
$409.99
Regular price
Regular price
$409.99
-0%
Tax included. Shipping calculated at checkout.

Button-up shirt sleeves and a relaxed silhouette. It’s tailored with drapey, crinkle-texture fabric that’s made from TEAM90DEGREE™ LTD™ Viscose — responsibly sourced wood-based fibres produced through a process that reduces impact on forests, biodiversity and water supply.

Only 0 items in stock! Out of stock!

Guaranteed safe checkout

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa

Estimate delivery: 12-26 days (International), 3-6 days (United States).

🔥 30 sold in the last 18 hours

Product Description

  • You must re-install your original connector and grommet (see picture)
  • Once your connector and grommet is re-installed, our part becomes a plug-and-play unit, direct fit, and very easy to install

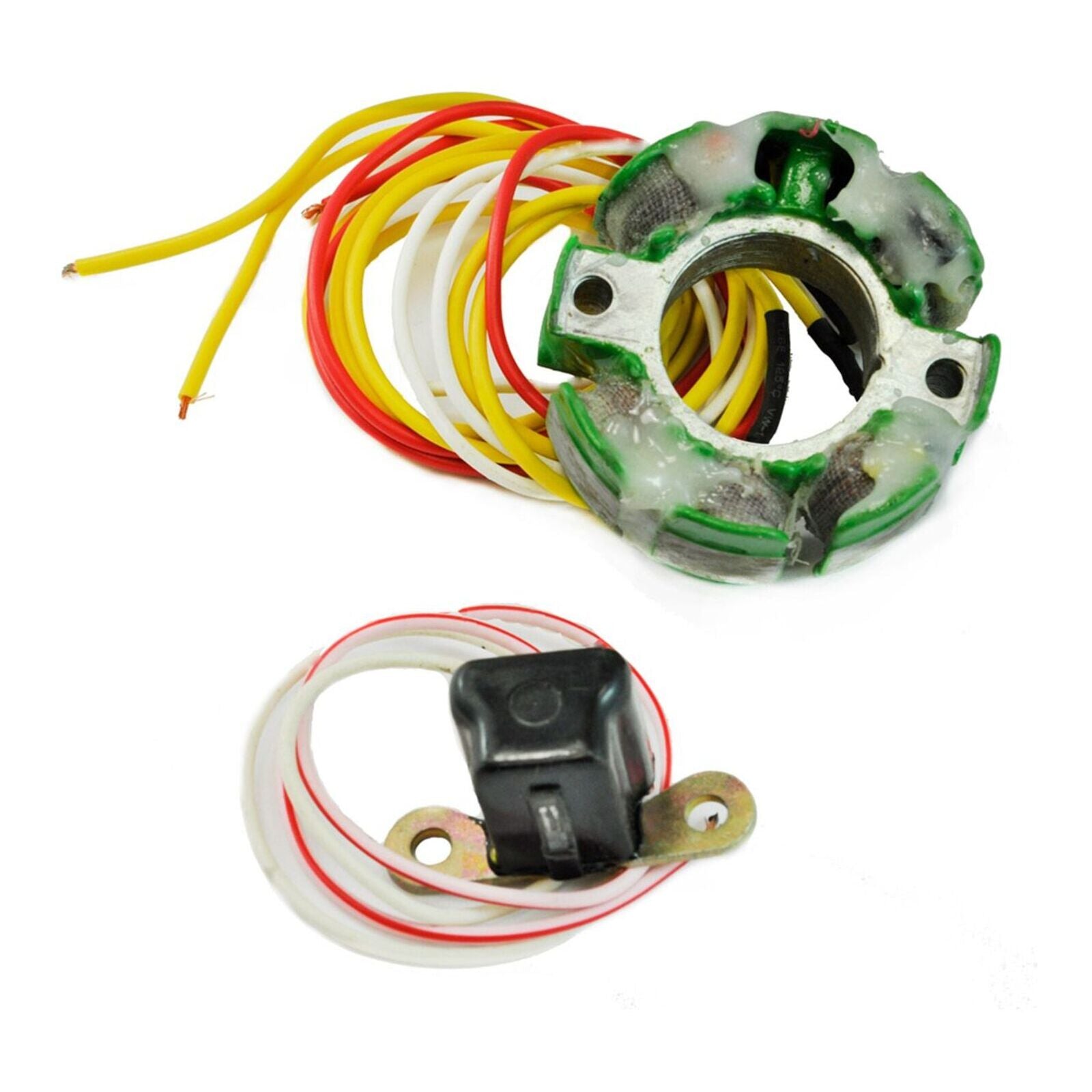

  • Pickup pulsar coil included (separate)
  • Higher grade of electric components
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • All shipped products are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

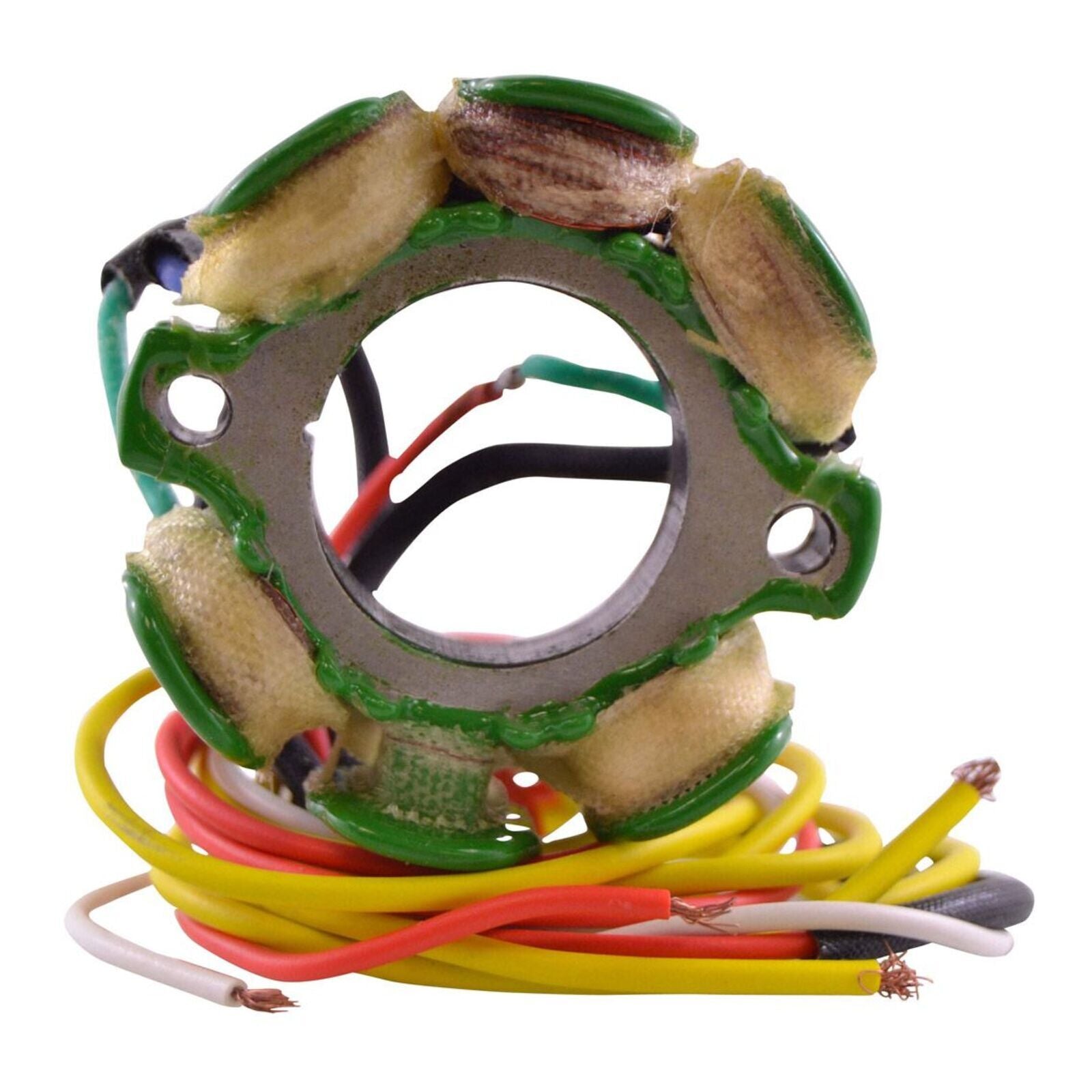

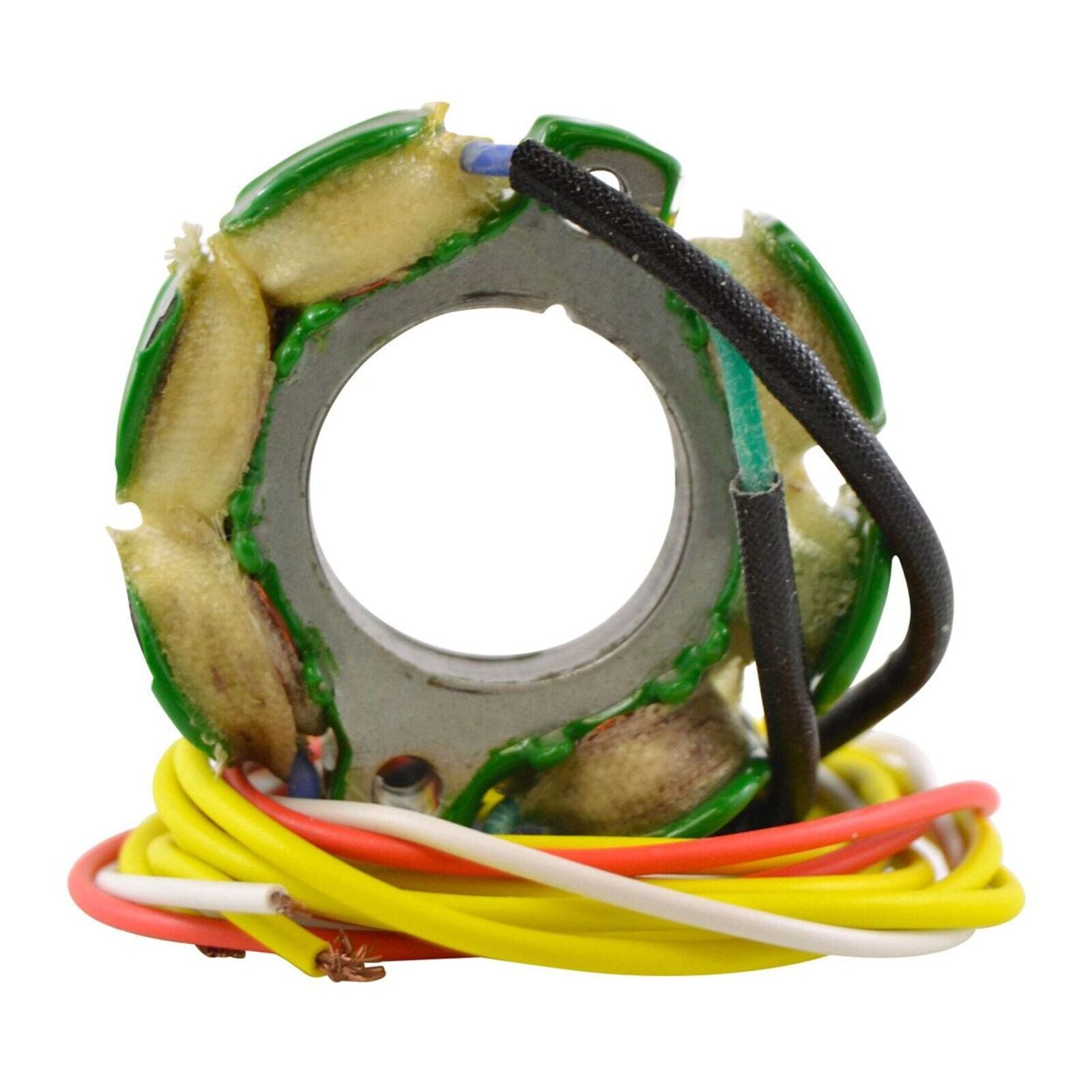

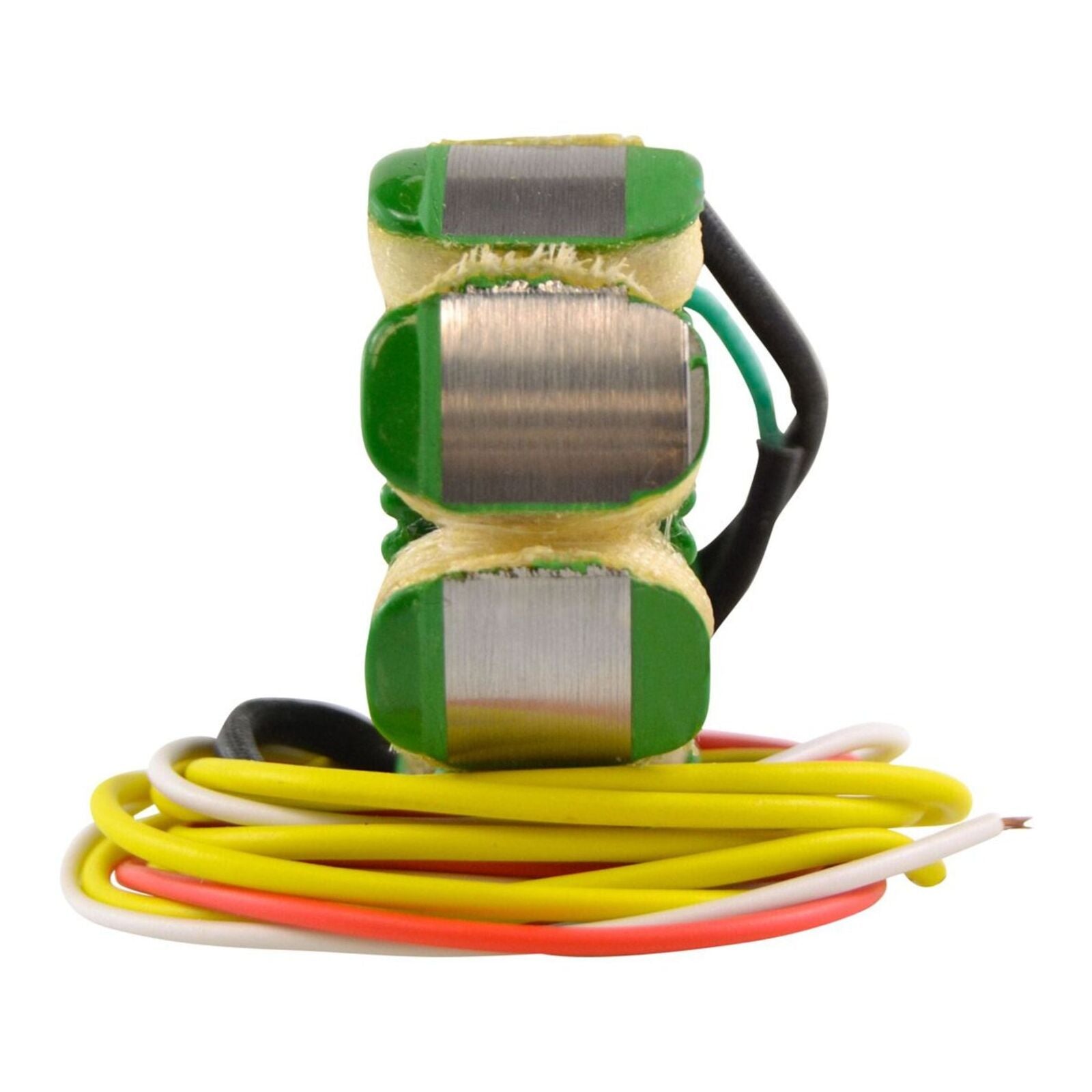

Dimensions Stator:

Physical Dimensions:

  • Interior diameter: 28mm
  • Exterior diameter: 57mm
  • Thickness: 15mm
  • Length of wires stator to terminals: 600mm

Other specifications:

  • Number of wires: 4
  • Number of plugs: 0
  • Number of terminals: 4

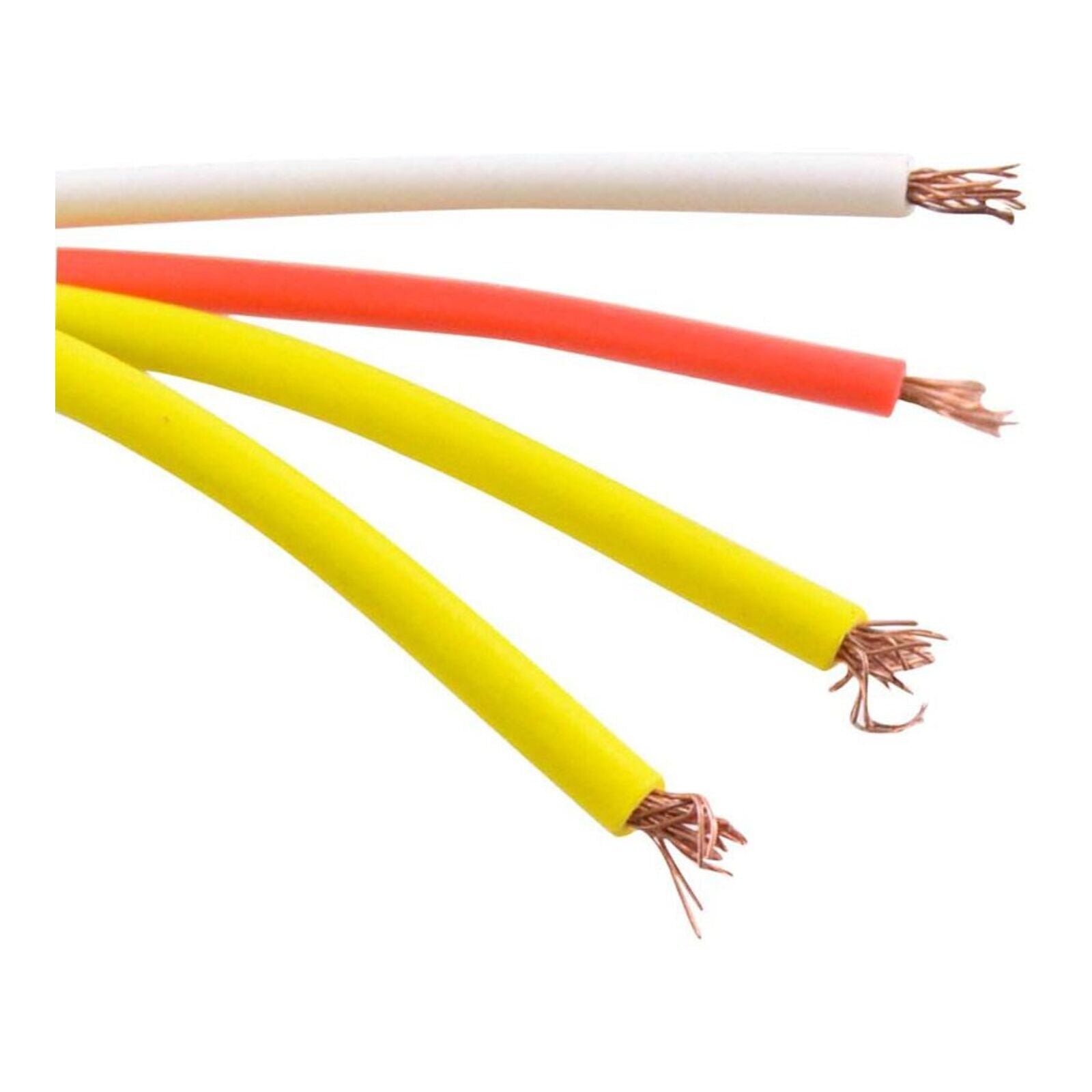

Wire to wire resistance:

  • Source 1 : Red to White = 28 ohms +/-20%
  • Source 2 : Yellow to Yellow = 0.4 ohms +/- 20%

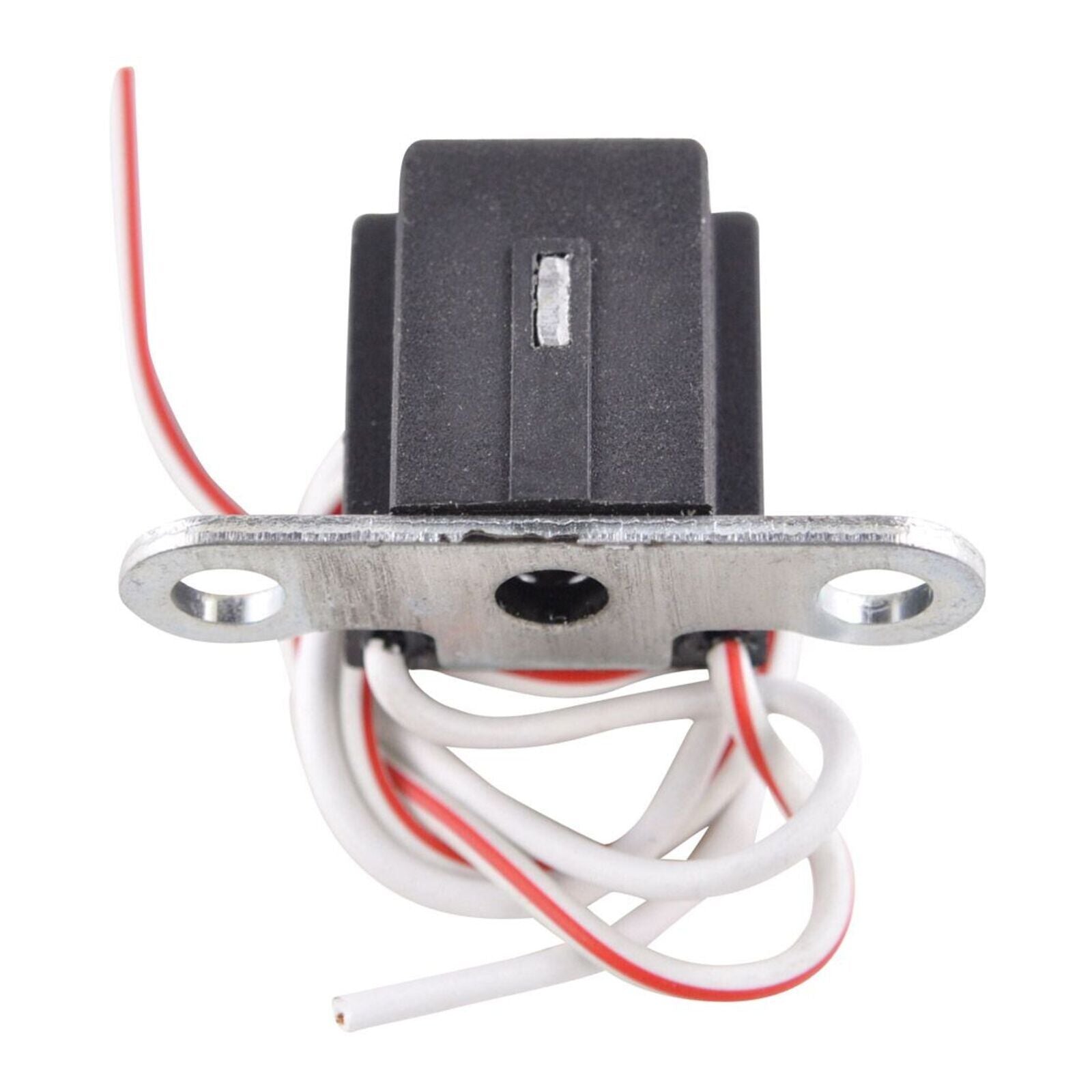

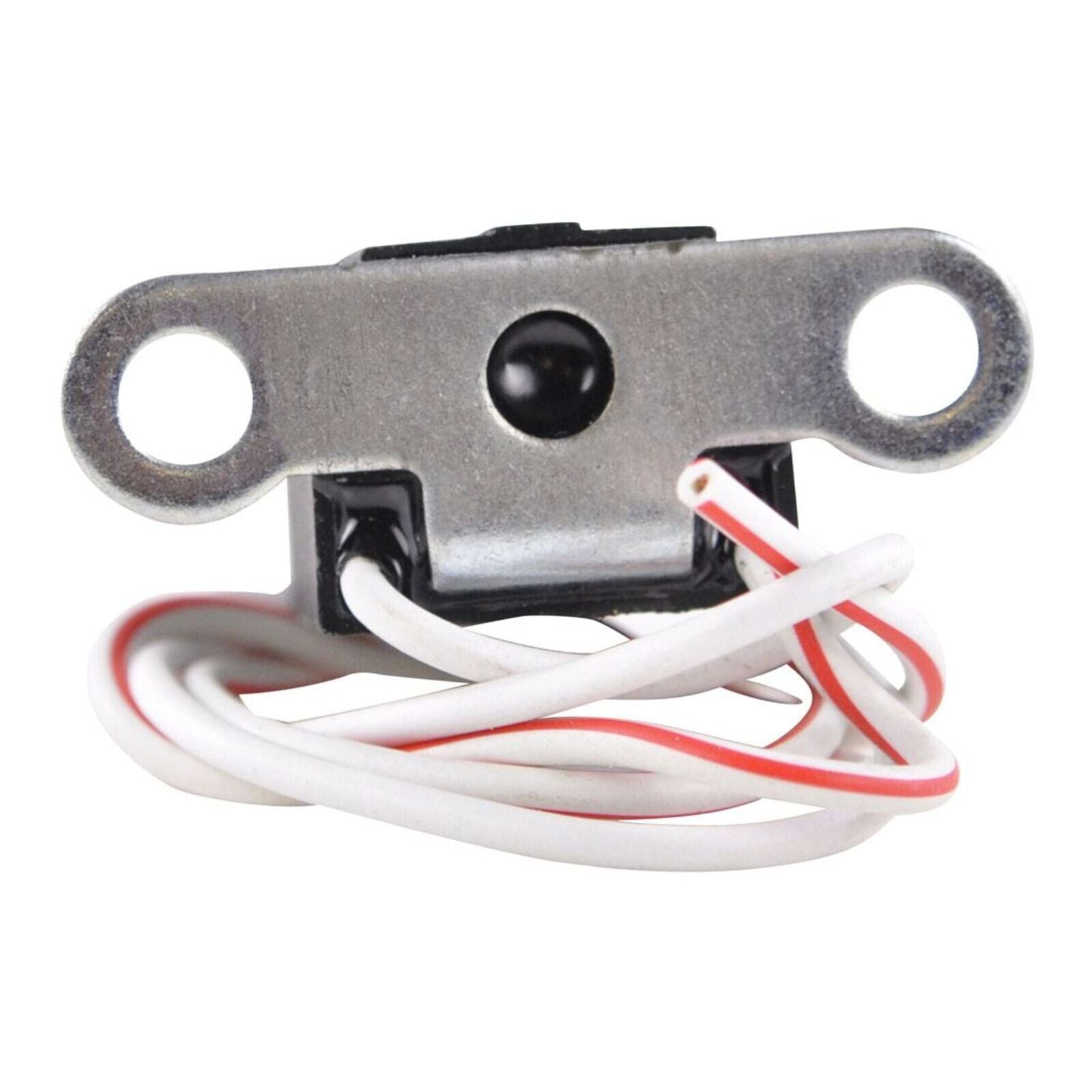

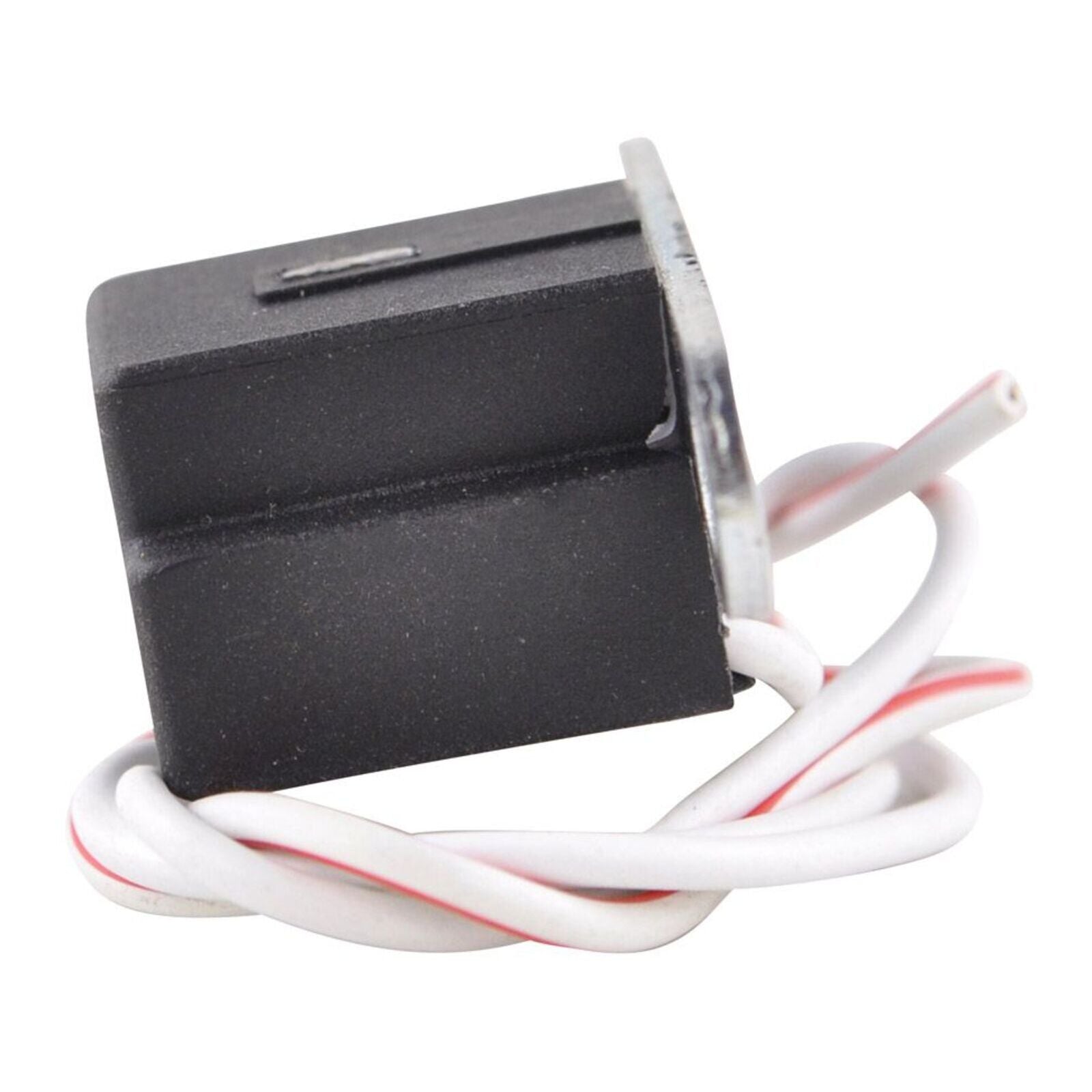

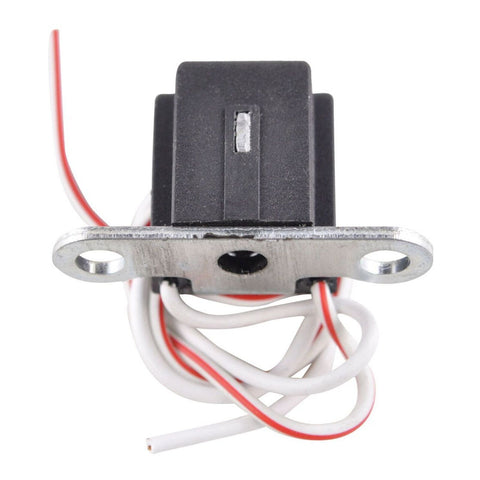

Dimensions Pickup Pulsar Coil:

Physical Dimensions:

  • Height: 25mm
  • Length: 22mm
  • Width: 18mm
  • Bracket centre to centre: 35mm
  • Wires length: 90mm

Other Specifications:

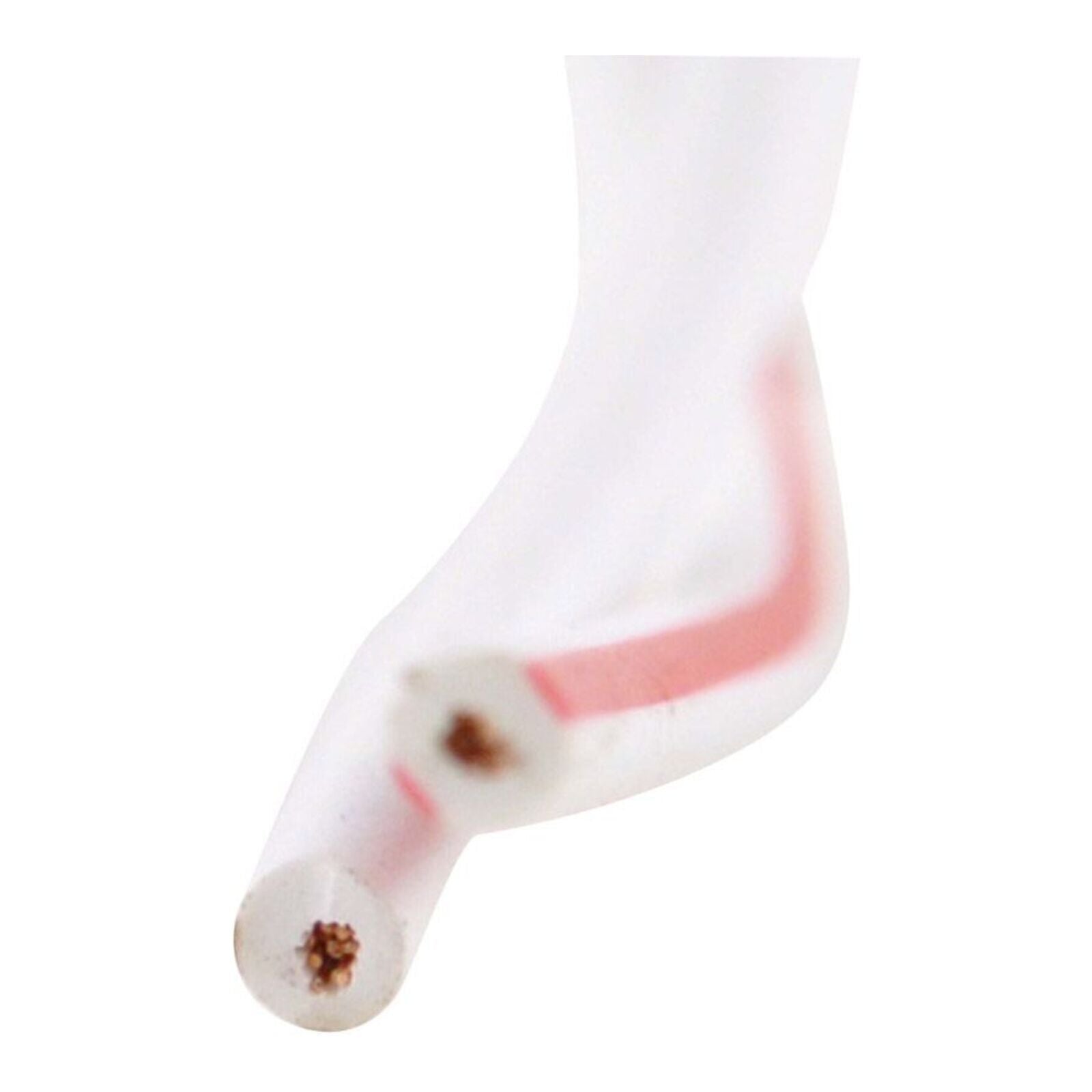

  • Number of wires: 2
  • Number of pins: 2

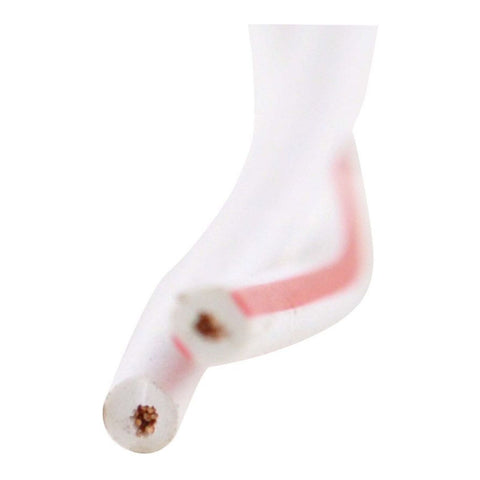

Wire-to-Wire Resistance:

  • Pink/Red to White = 100 ohms +/- 20%
