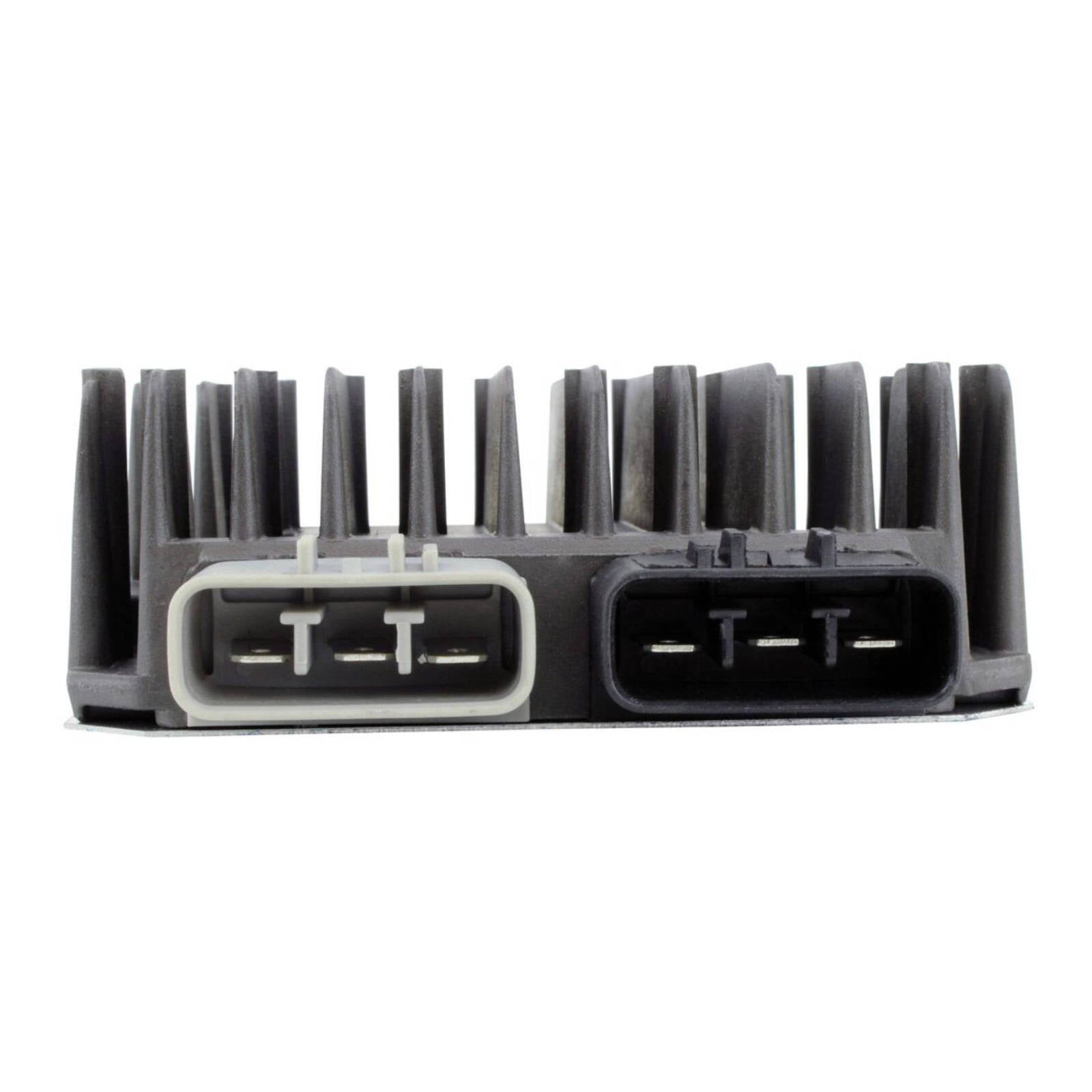

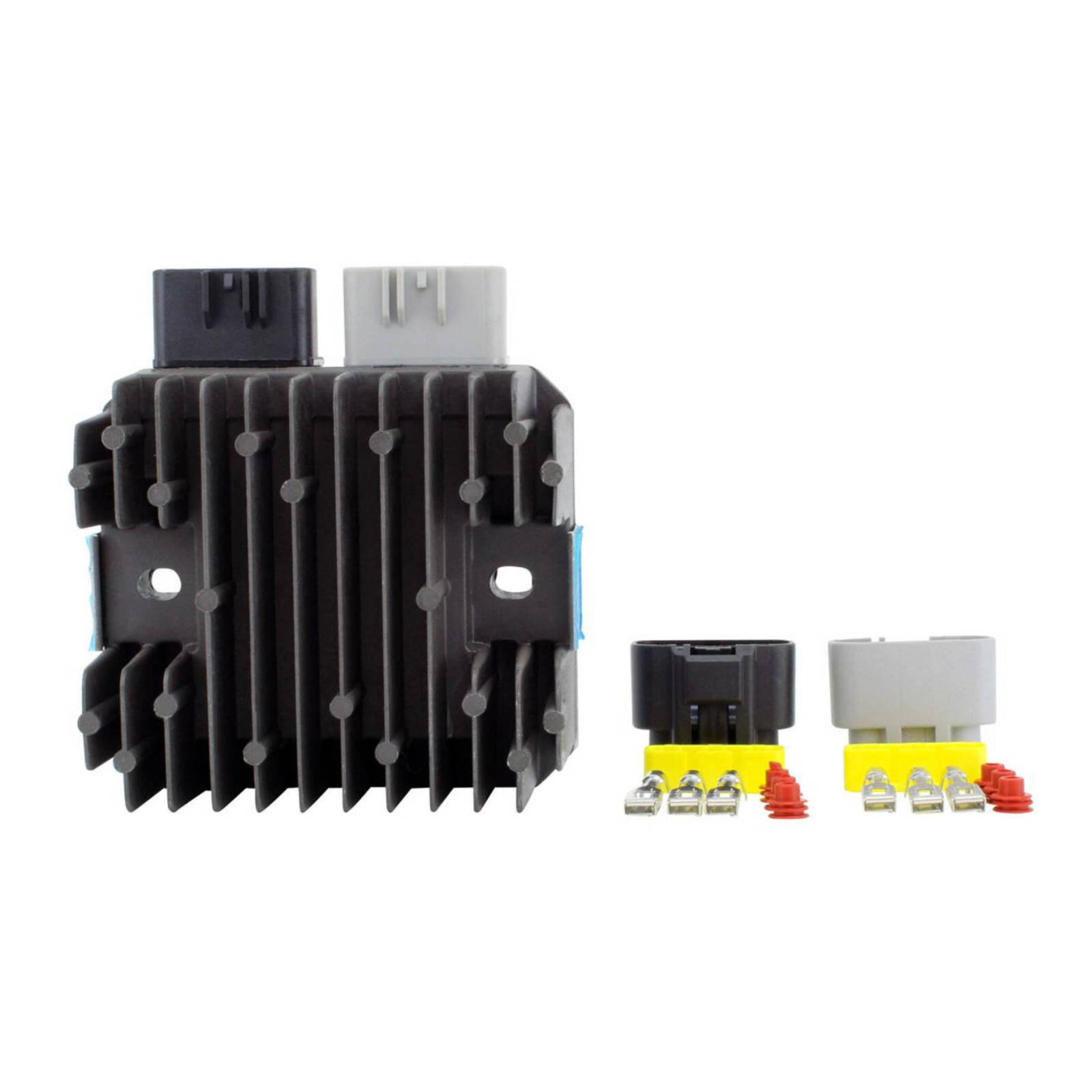

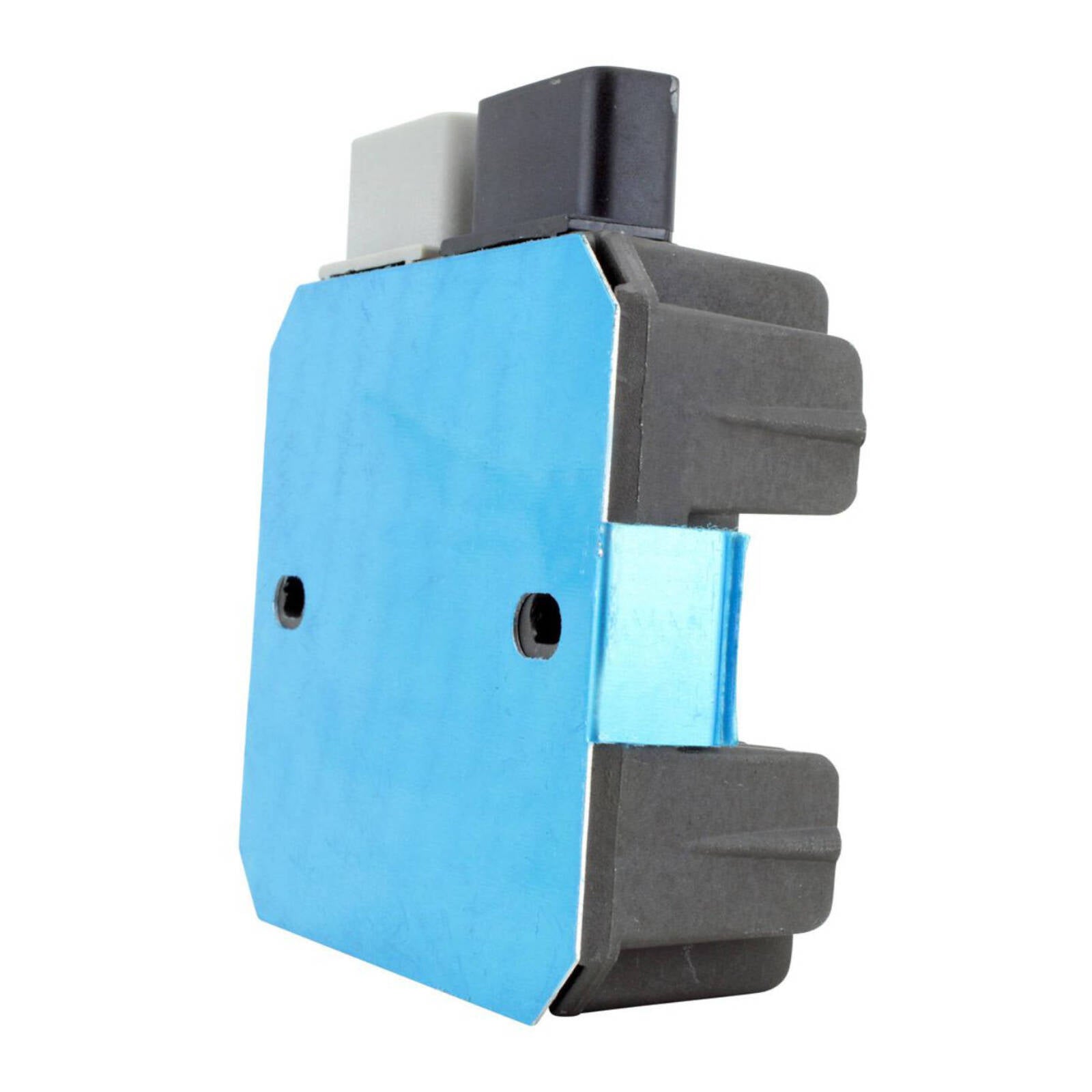

Performance Regulator Polaris RZR 900 / 1000 '14-'18 (RMS021-107099)

This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.

Polaris ATVs/UTVs are hugely popular vehicles. Unfortunately the voltage regulators on these vehicles are known for very poor reliability.

RM Stator's experience has shown that the amount of electrical customization, the vehicle environment and the driving style have a huge impact on the voltage regulator's ability to operate reliably.

With this in mind, they have designed a new voltage regulator with 65Amps-rated components to support more aggressive level of stress the owner puts on the vehicle's electrical system, either by adding accessories or by driving the vehicle to the edge of failure

Dimensions:

• Width: 110 mm
• Length: 121 mm
• Height: 41 mm
• Fixation holes center to center: 82 mm

Other specifications:

• Number of pins: 5
• Number of plugs: 2
• Minimum Charging Voltage: 14.5 V +/- 0.5 V
• Maximum Charging Current: 65A / 660W
• Open Circuit Voltage: < 15 V
• Operation Temperature: - 20° C to 85°C
