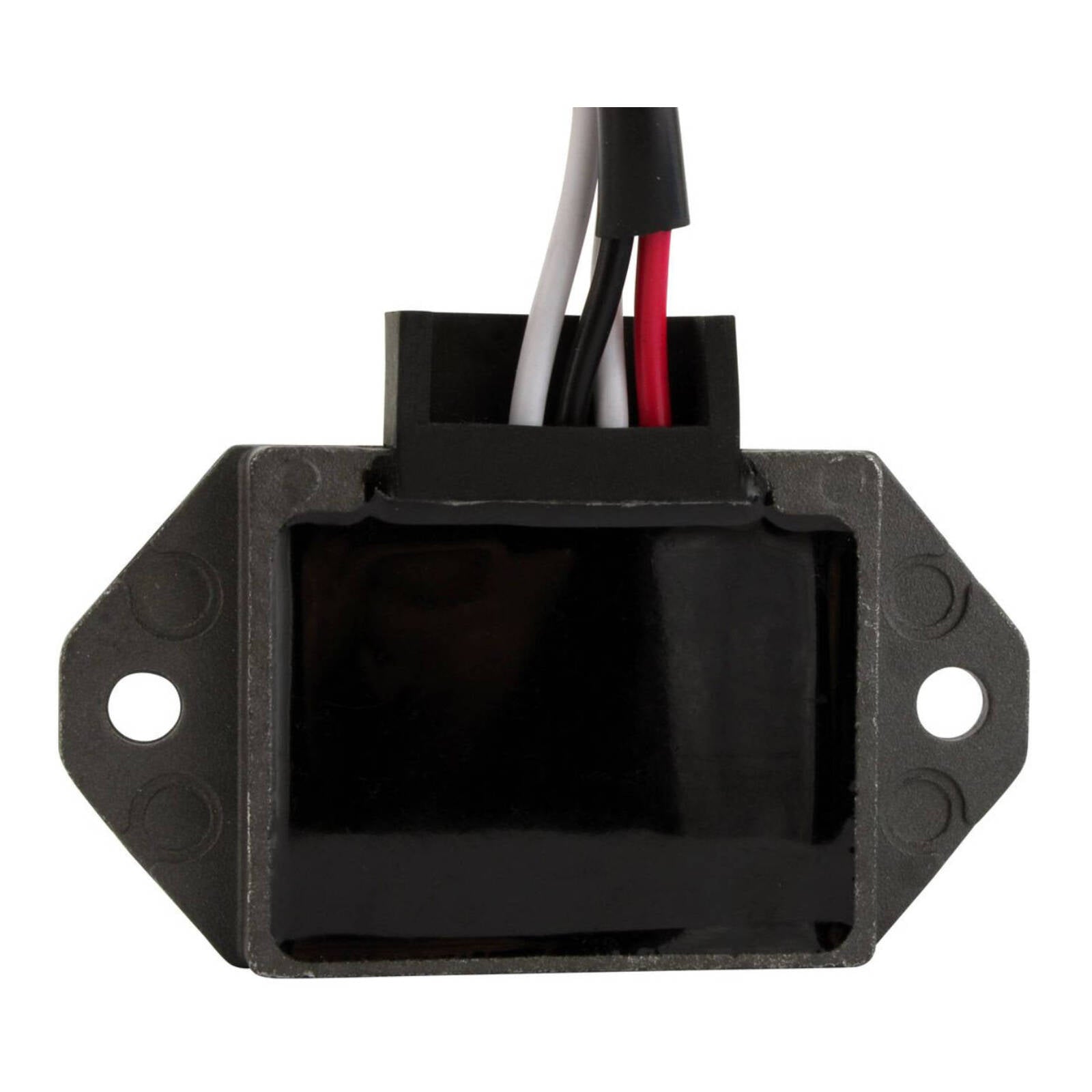

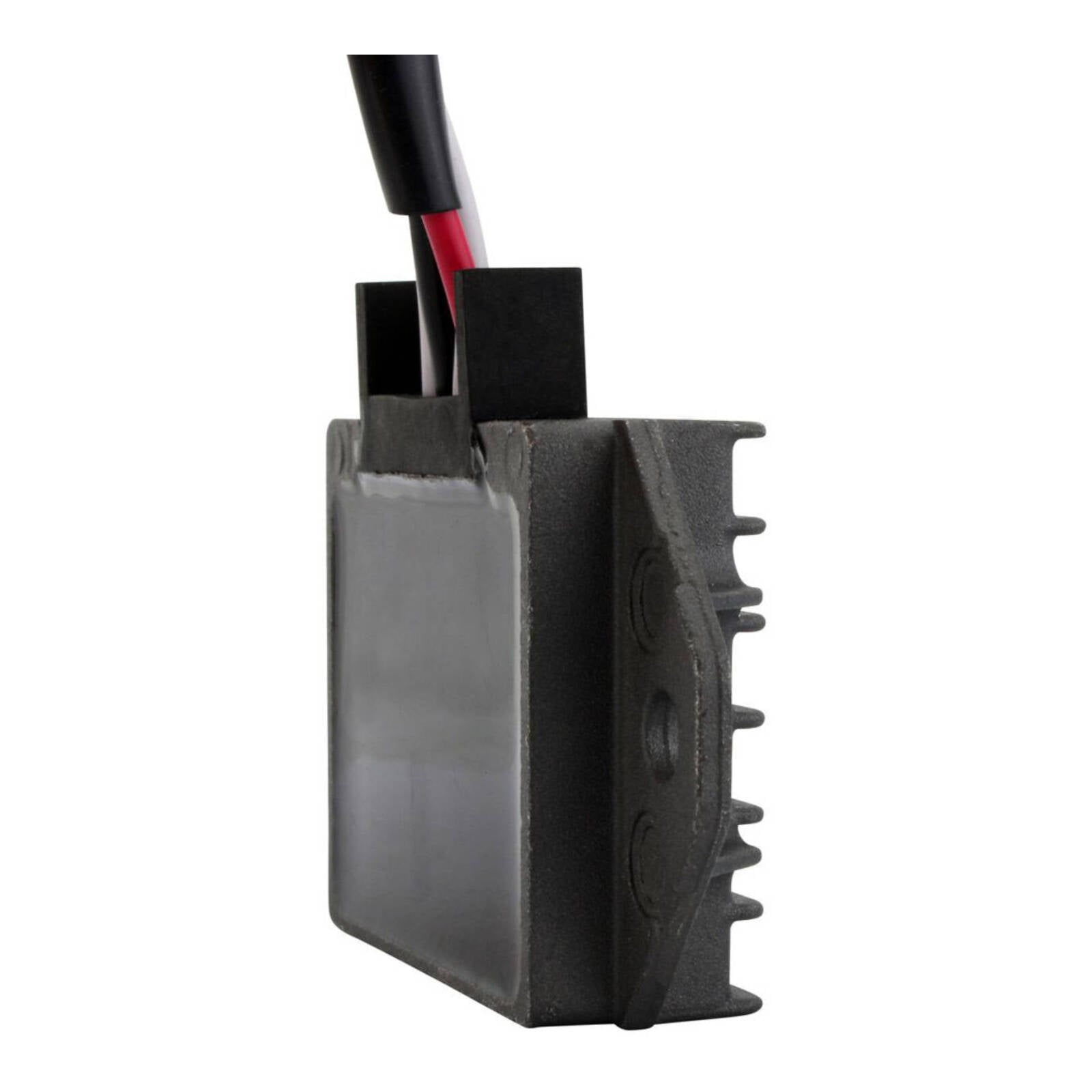

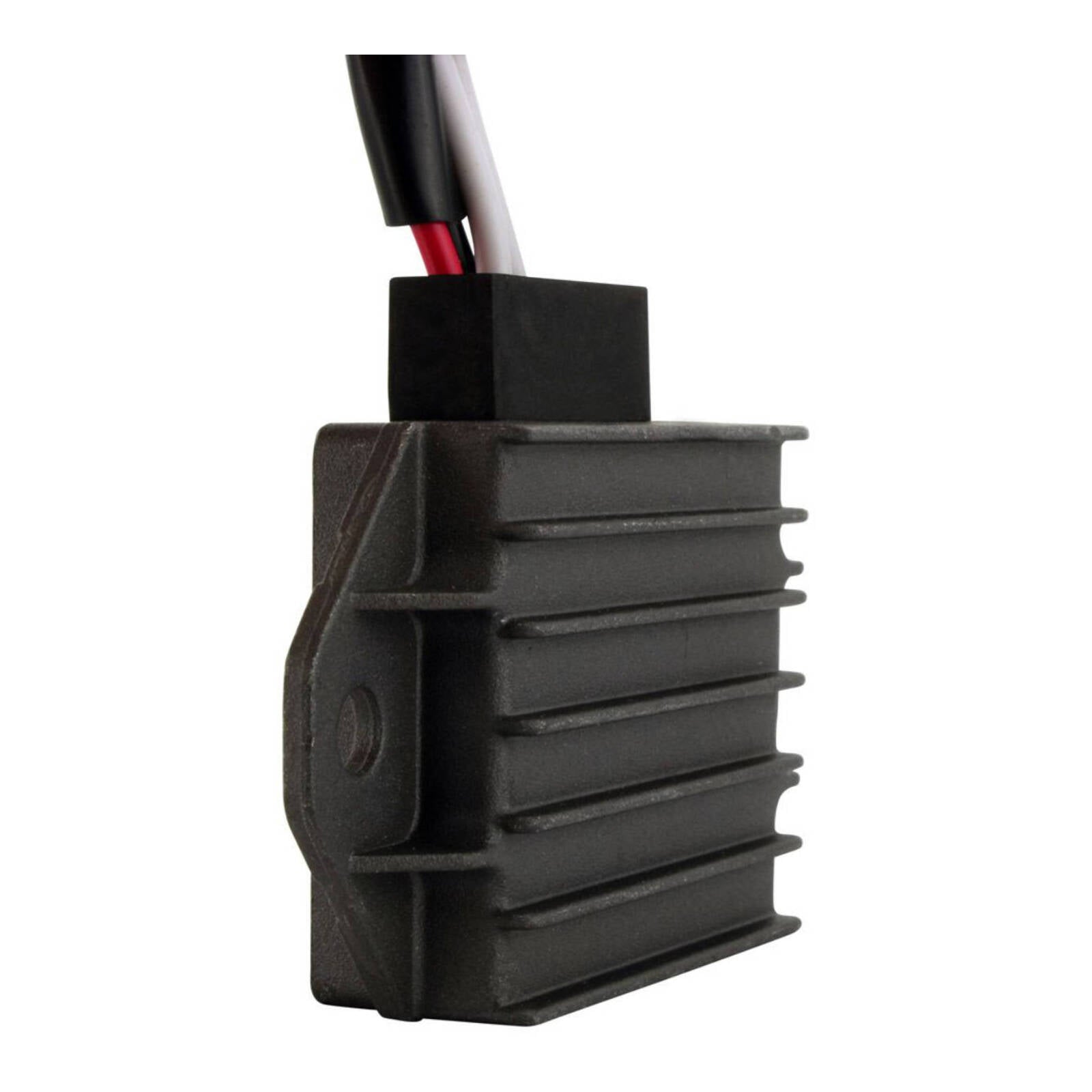

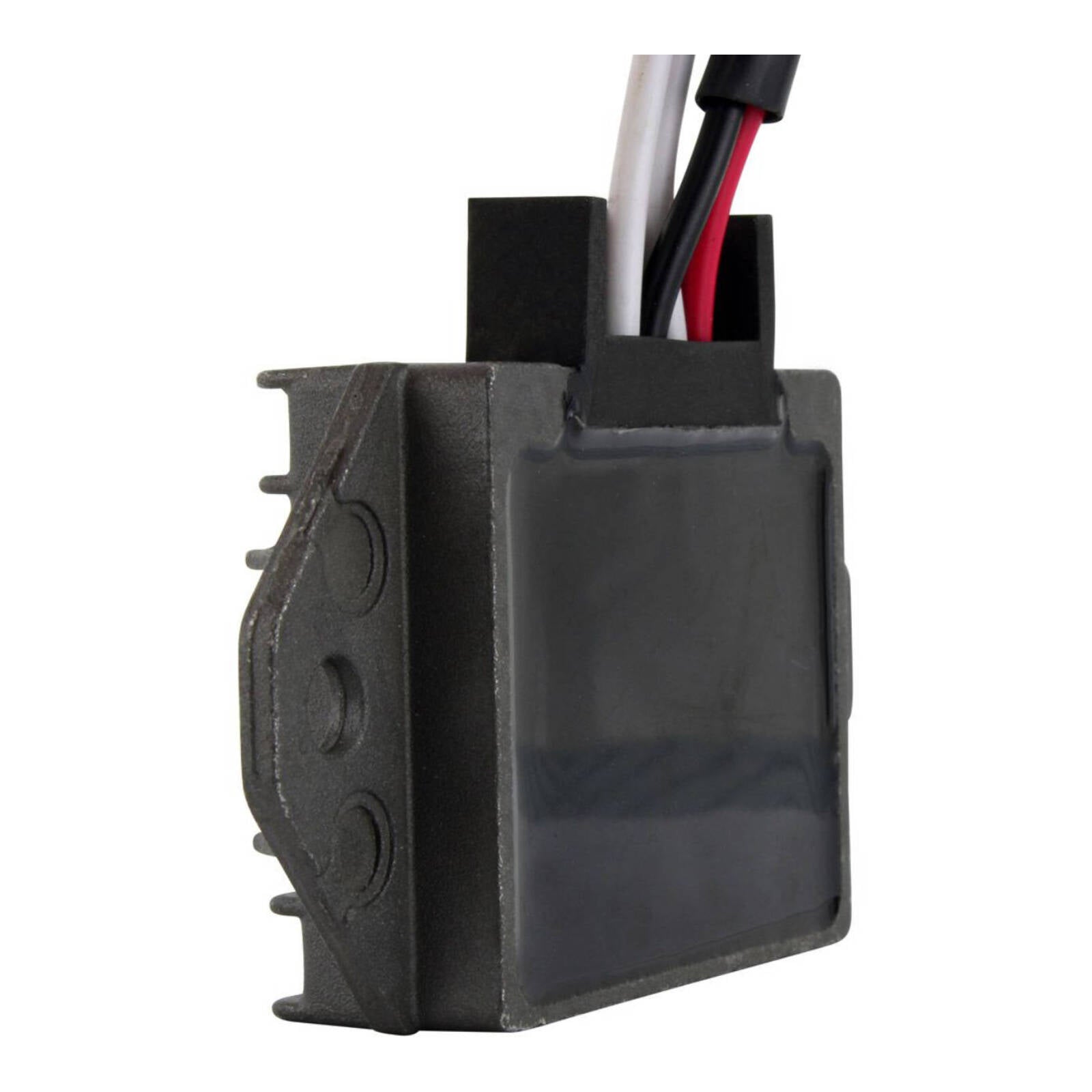

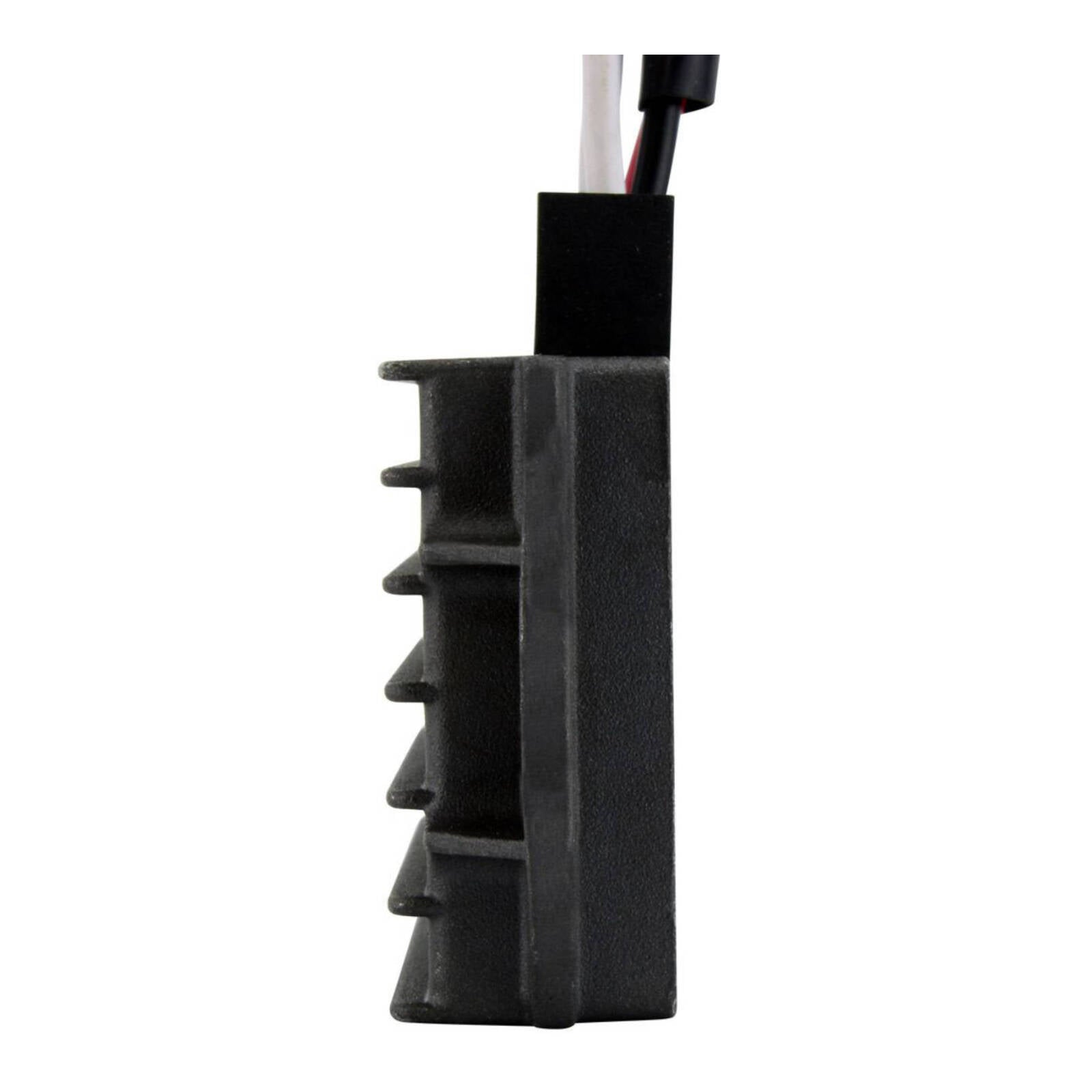

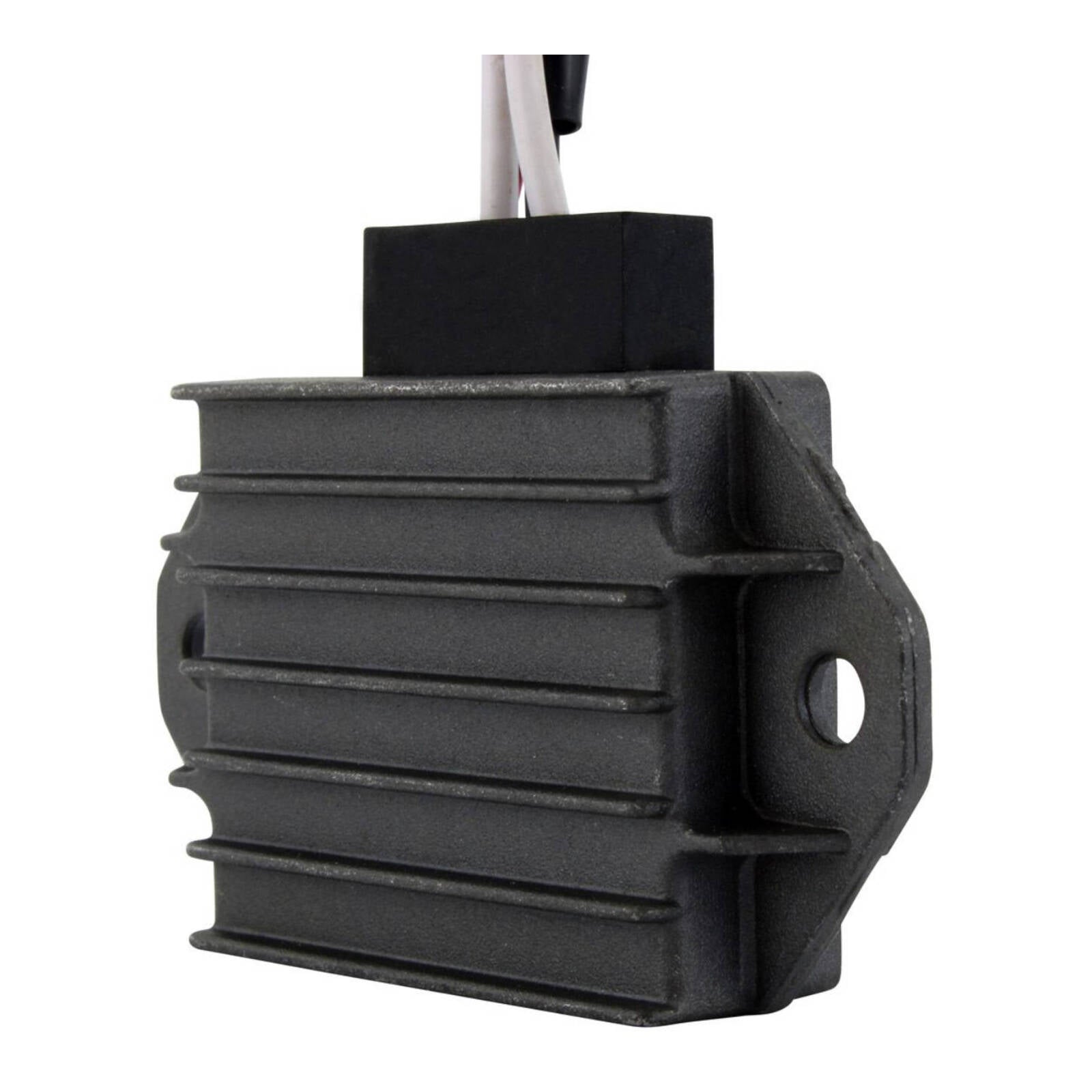

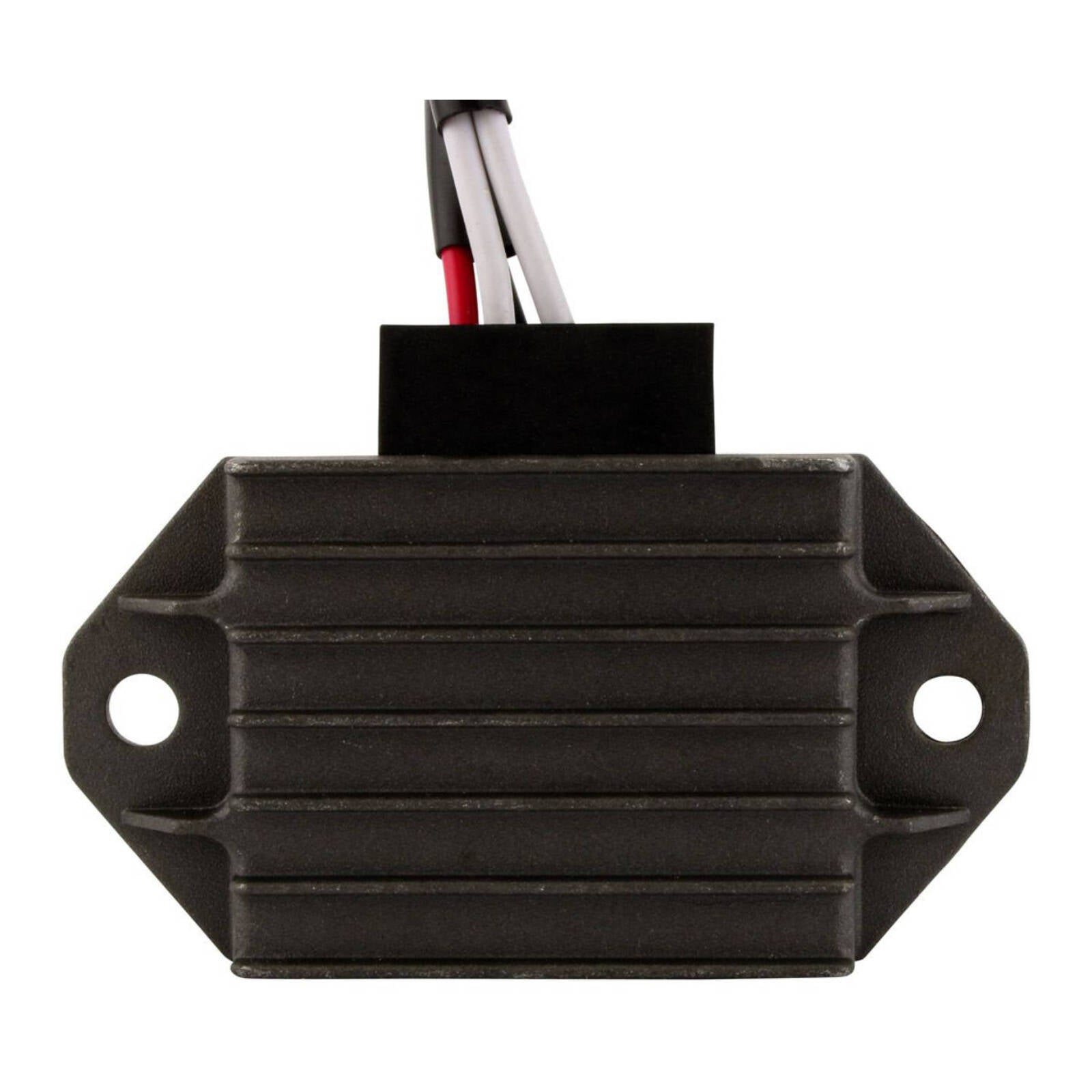

Regulator Rectifier Yamaha YZ450F '10-'13 (RMS020-107263)

Brand new aftermarket Voltage Regulator Rectifier

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• No assembly required
• Higher grade of electric components
• The quality exceeds the OEM equipment
• All products shipped are tested

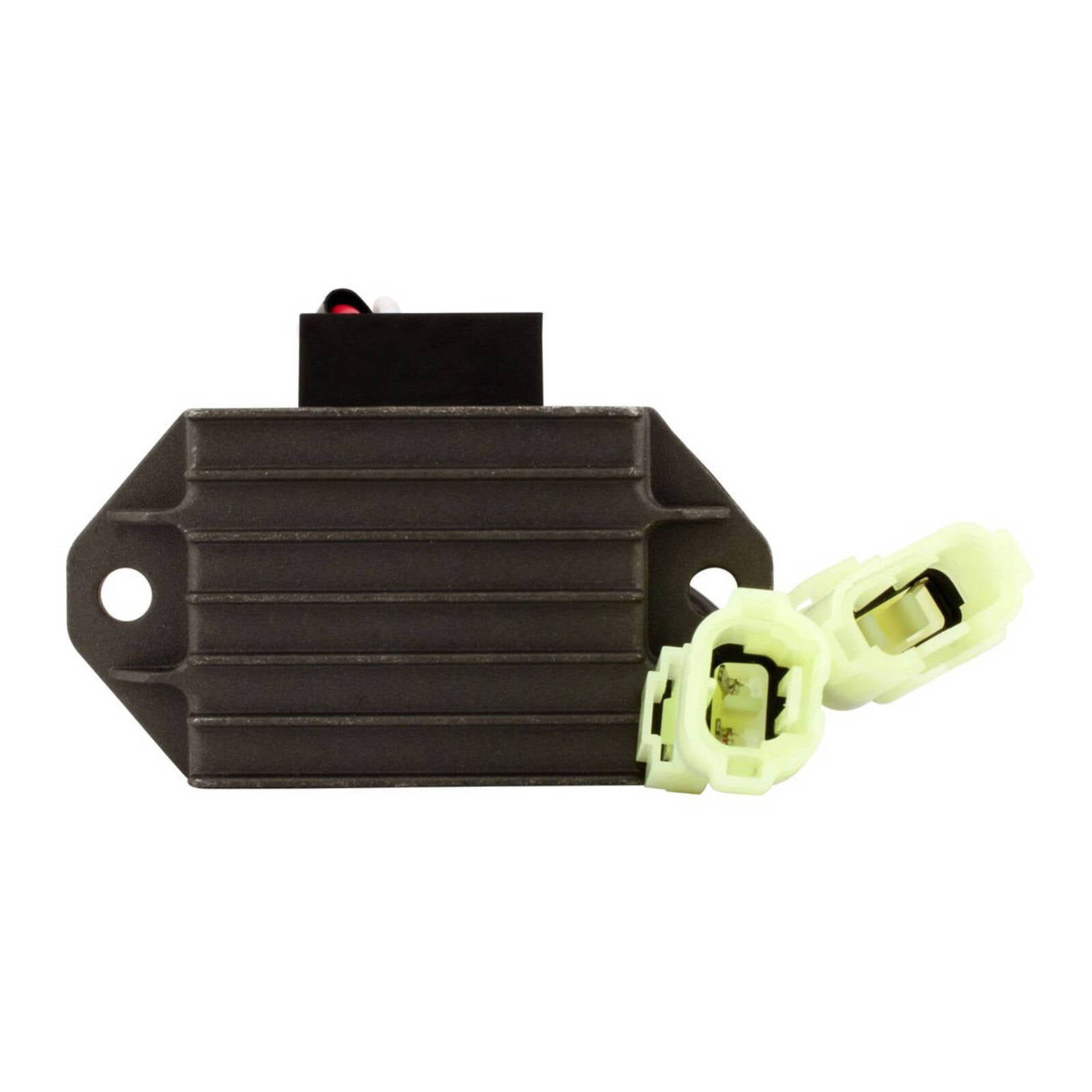

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and are a major cause of repetitive electrical issues.

All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Specifications:

Dimensions:

• W idth: 48 mm
• Length: 90 mm
• Height: 19 mm
• Wires length: 190 mm
• Distance between fixation holes center to center: 75 mm

Other specifications:

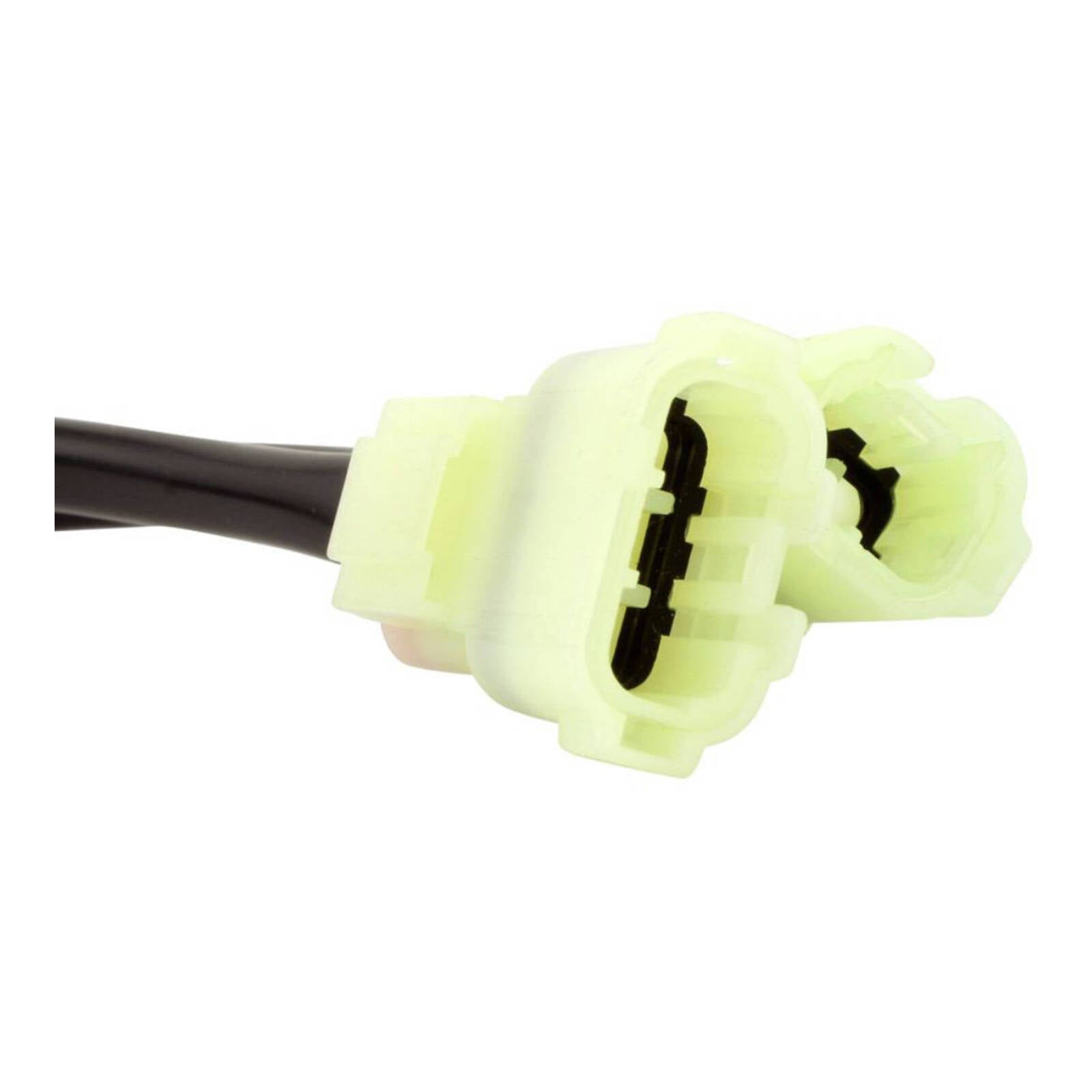

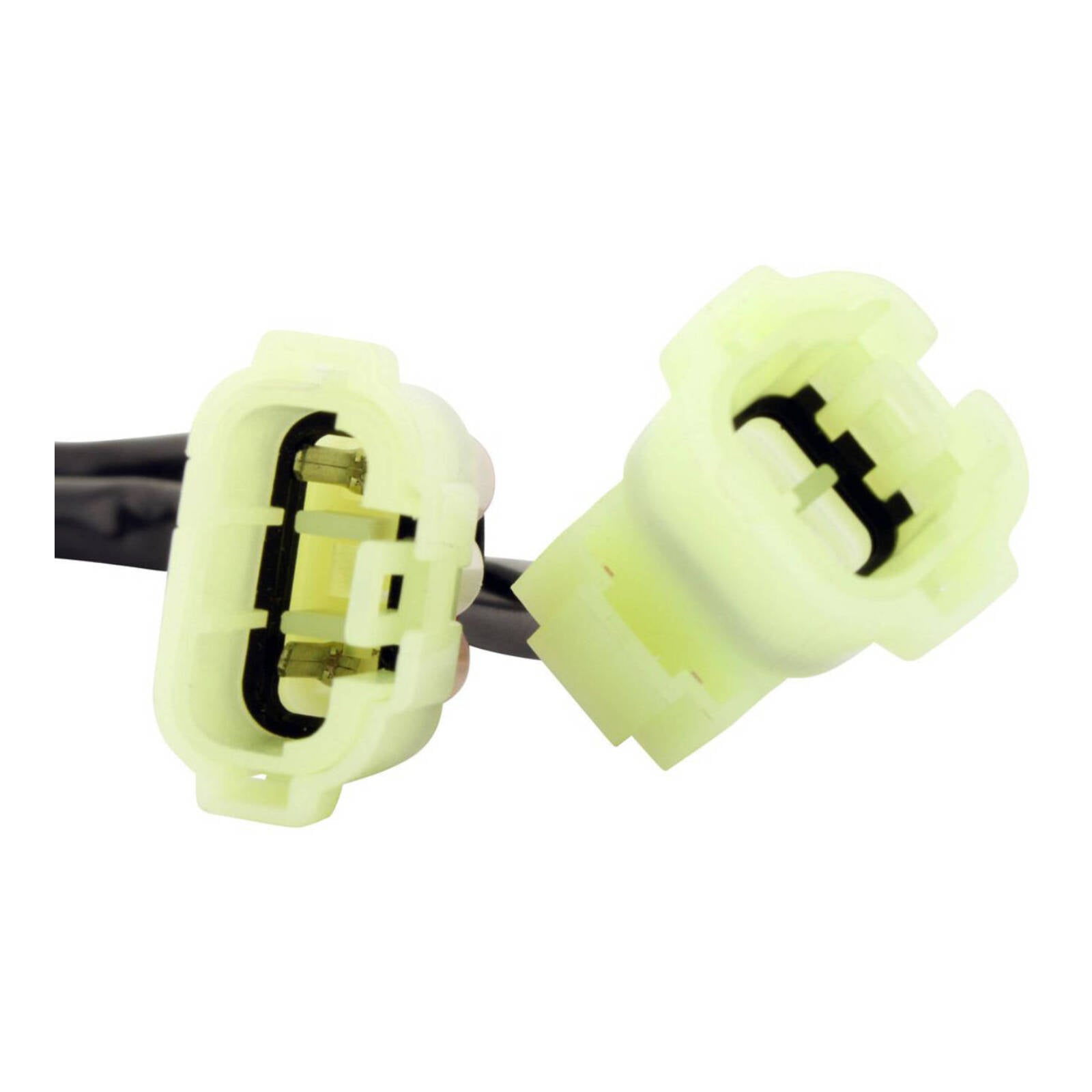

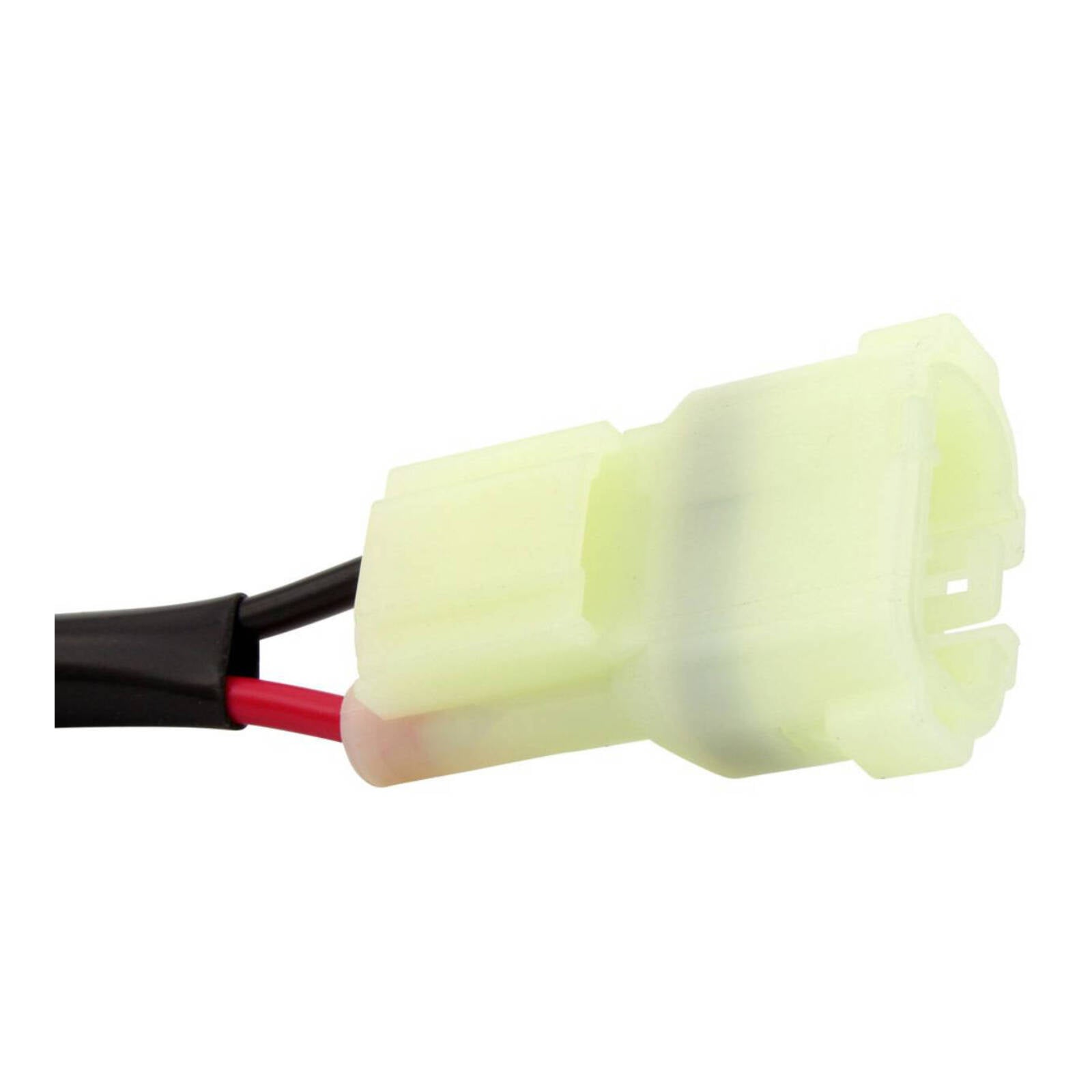

• Number of plugs: 2
• Number of pins: 4

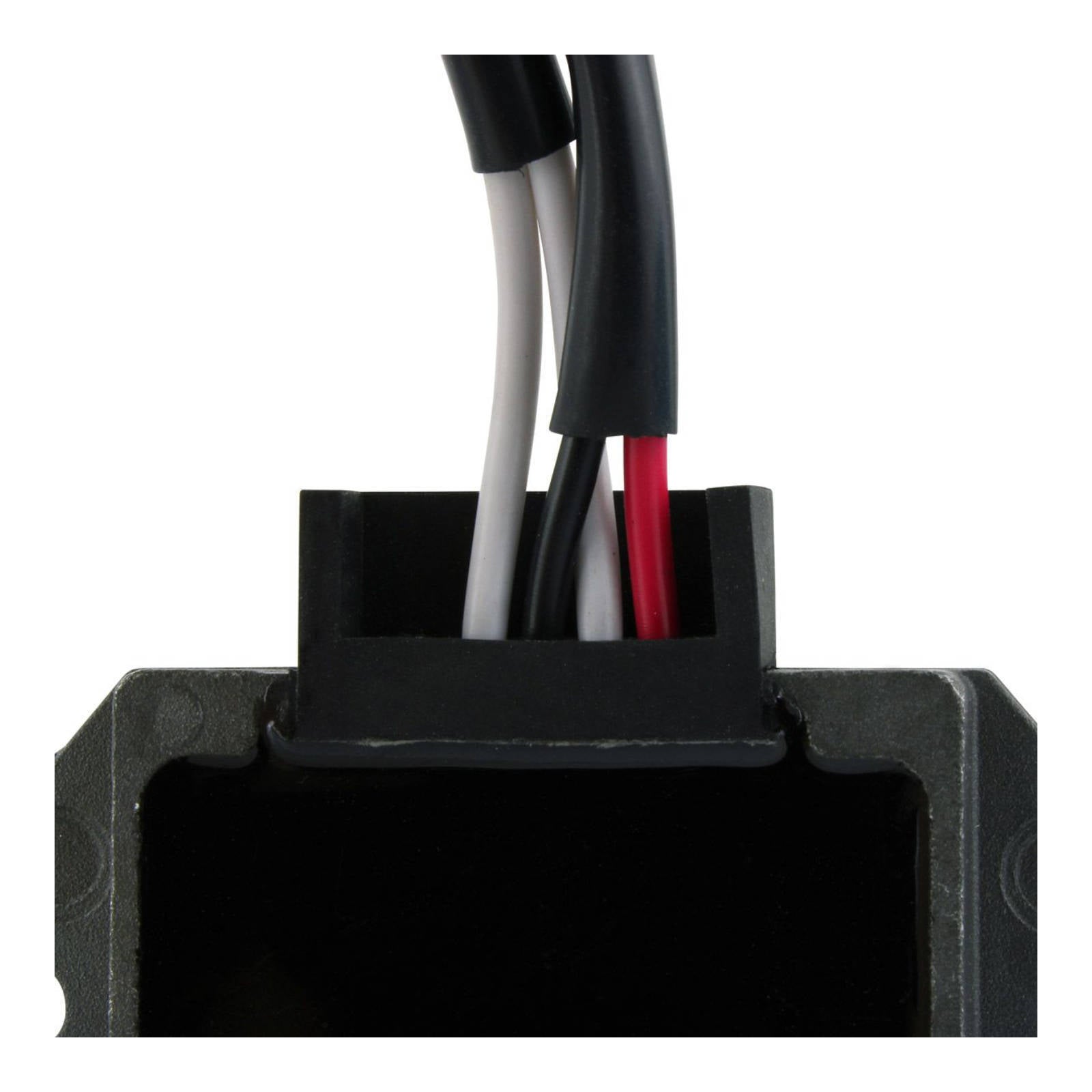

• Number of wires: 4
• Minimum Charging Voltage: 14.5 V +- 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: < 15 V
• Operation Temperature: -20°C to 85°C

Note: Battery condition is important. No regulator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY
