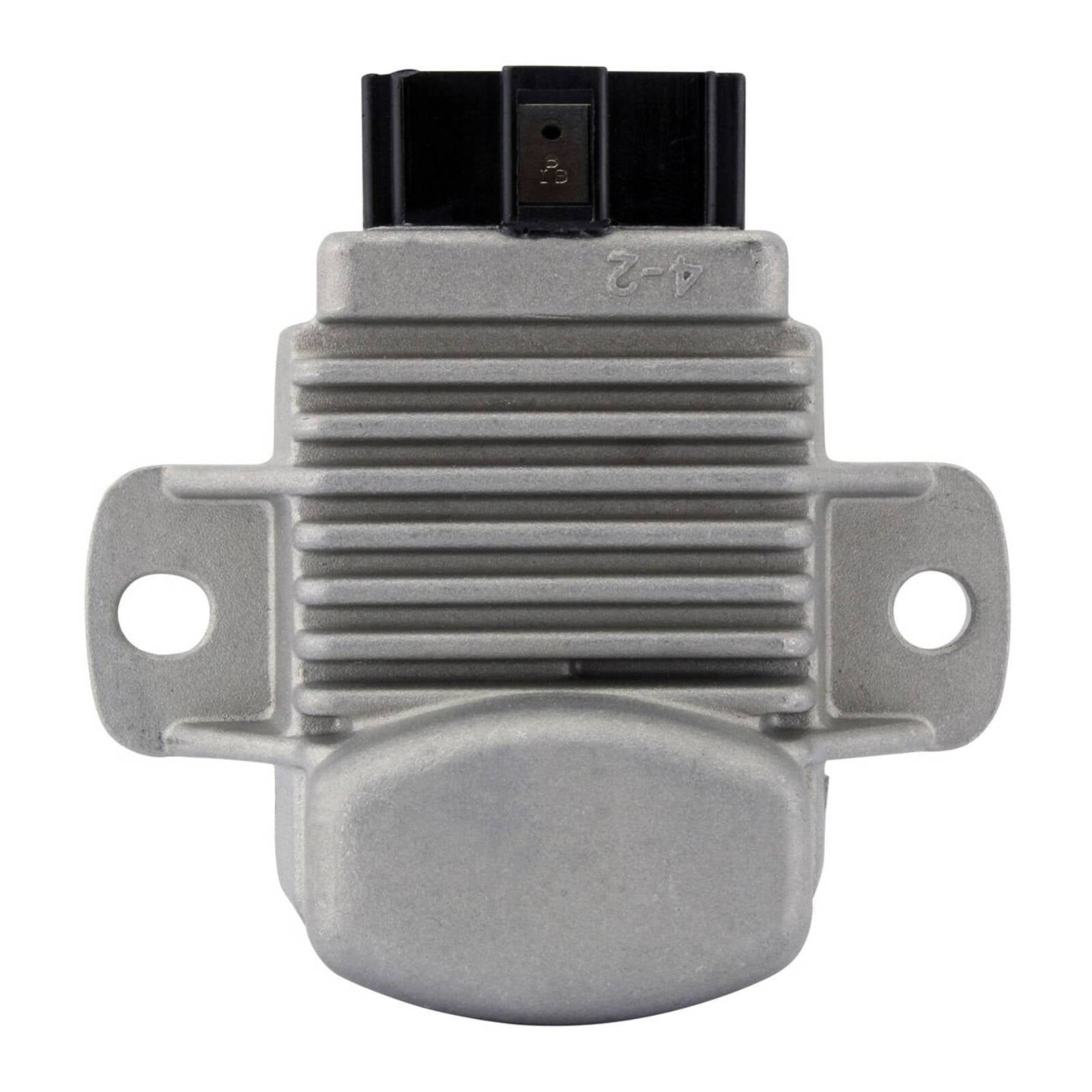

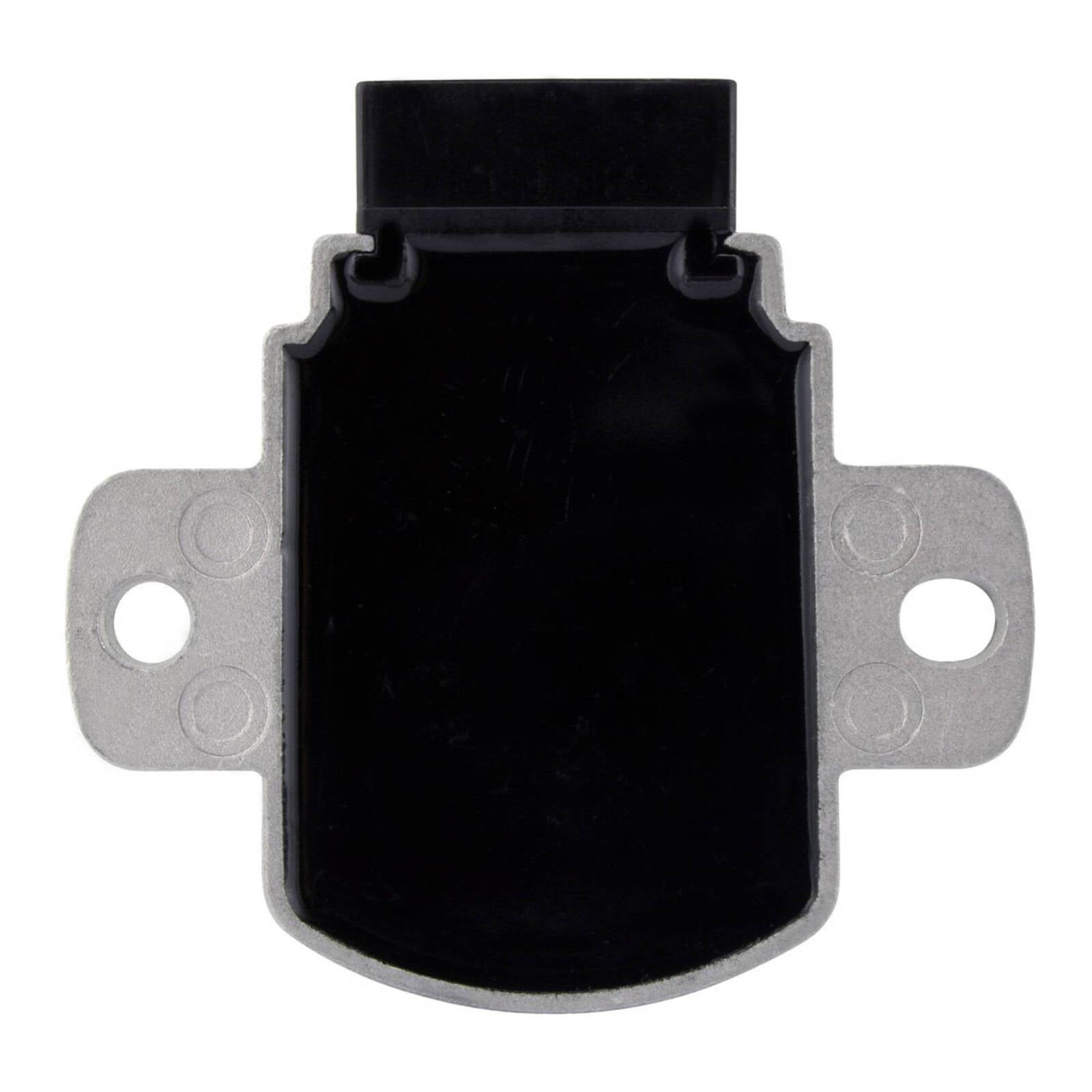

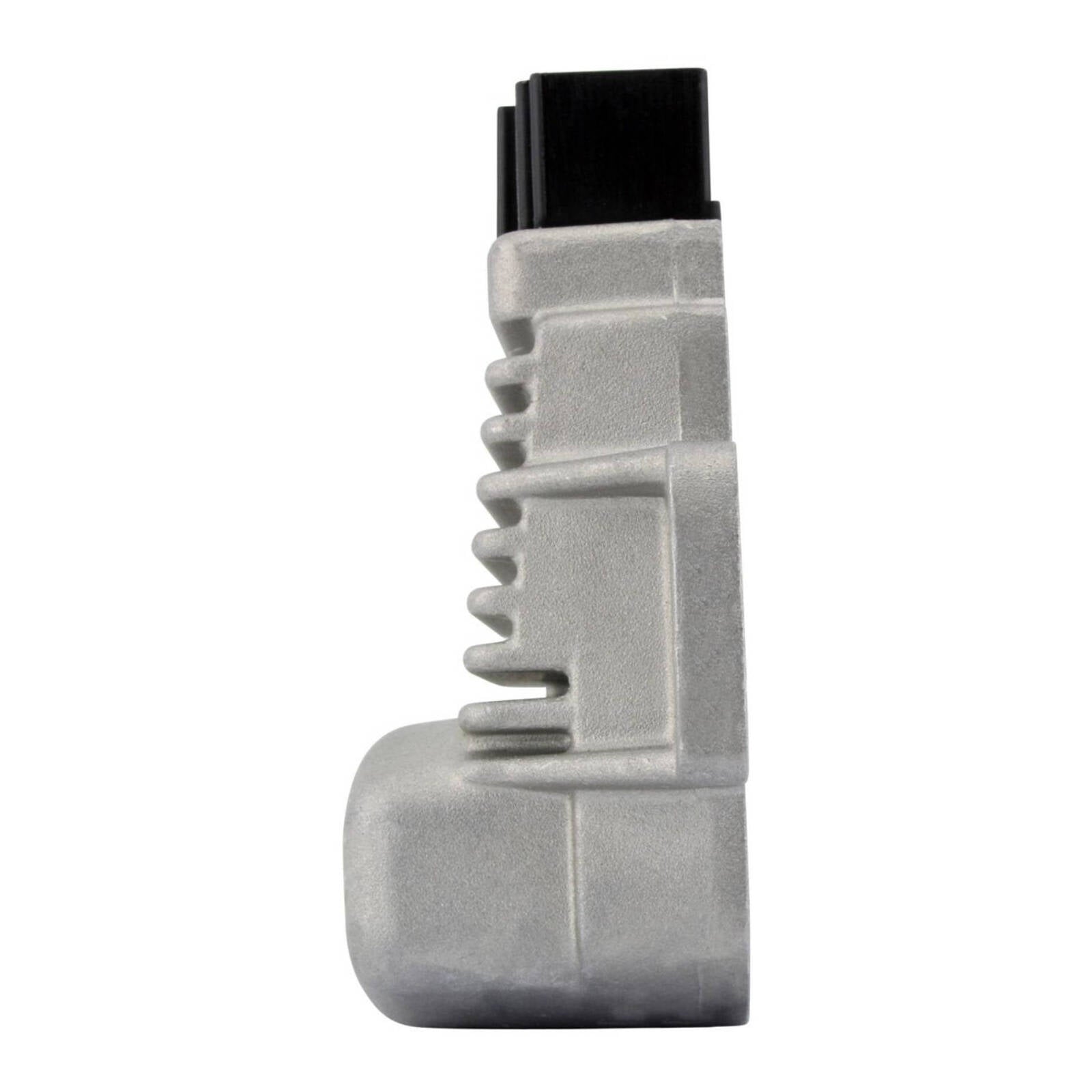

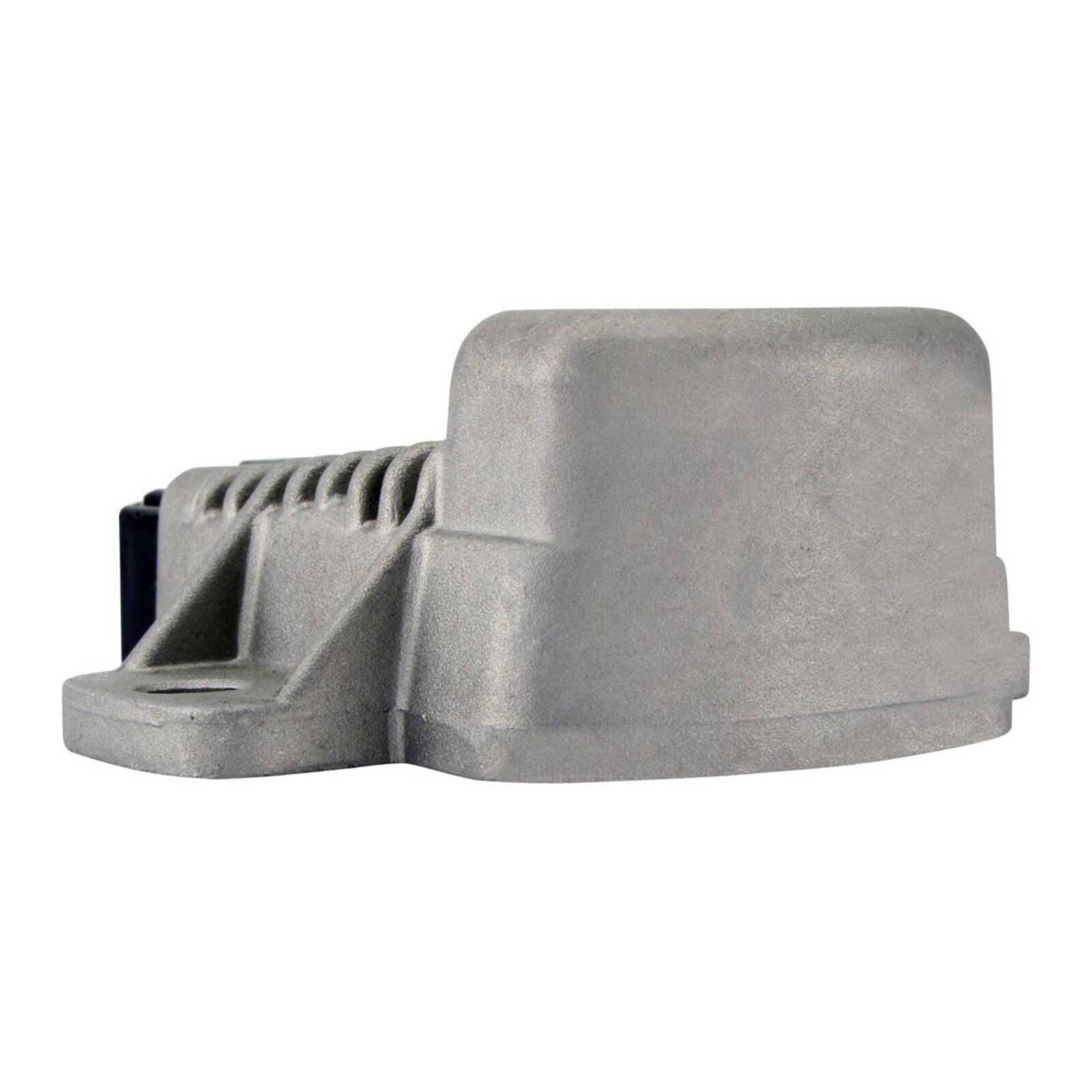

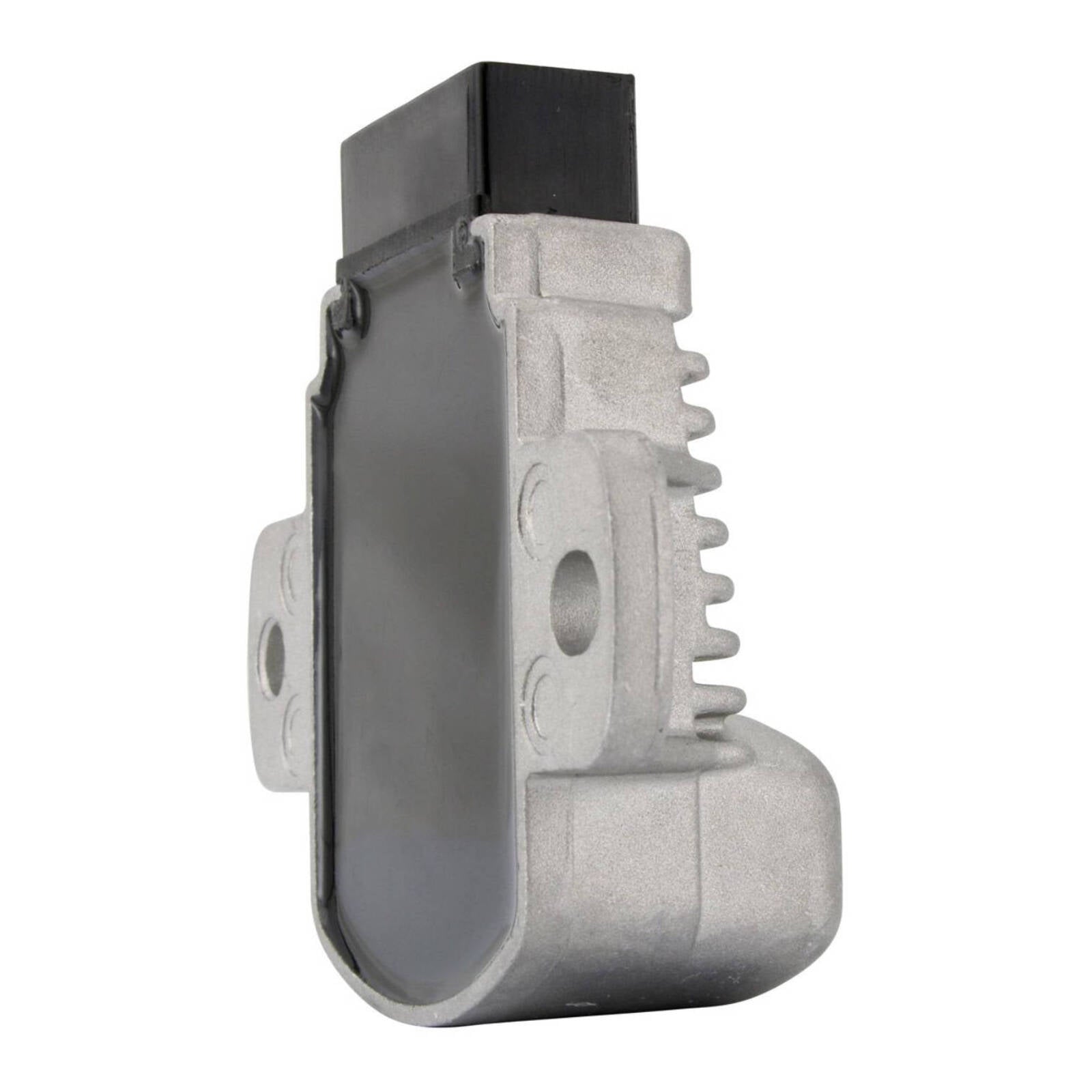

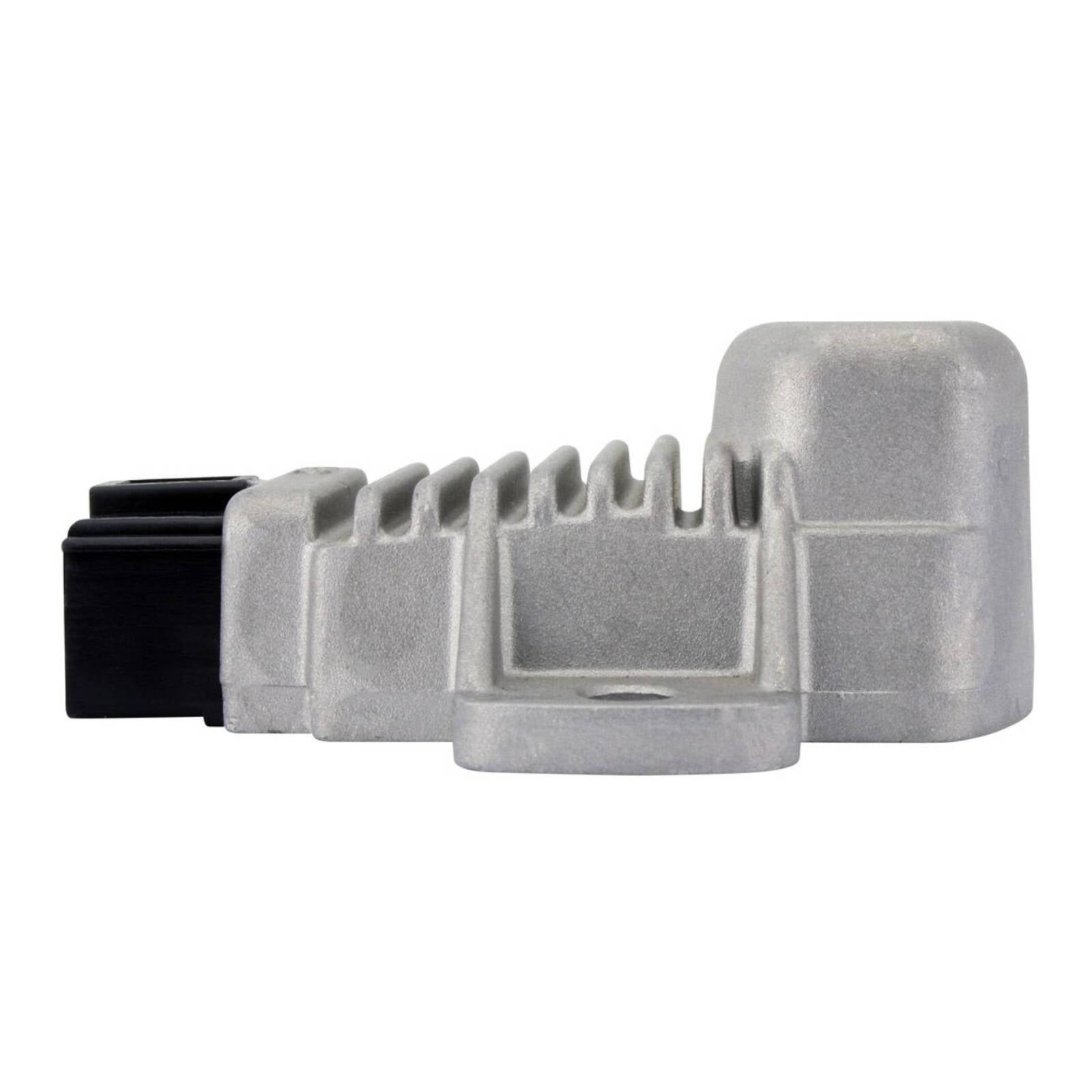

Voltage Regulator Rectifier Honda Grom

Brand new aftermarket Voltage Regulator Rectifier

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• No assembly required
• Higher grade of electric components
• Improved heat sink and charging capabilities
• The quality exceeds the OEM equipment
• All products shipped are tested

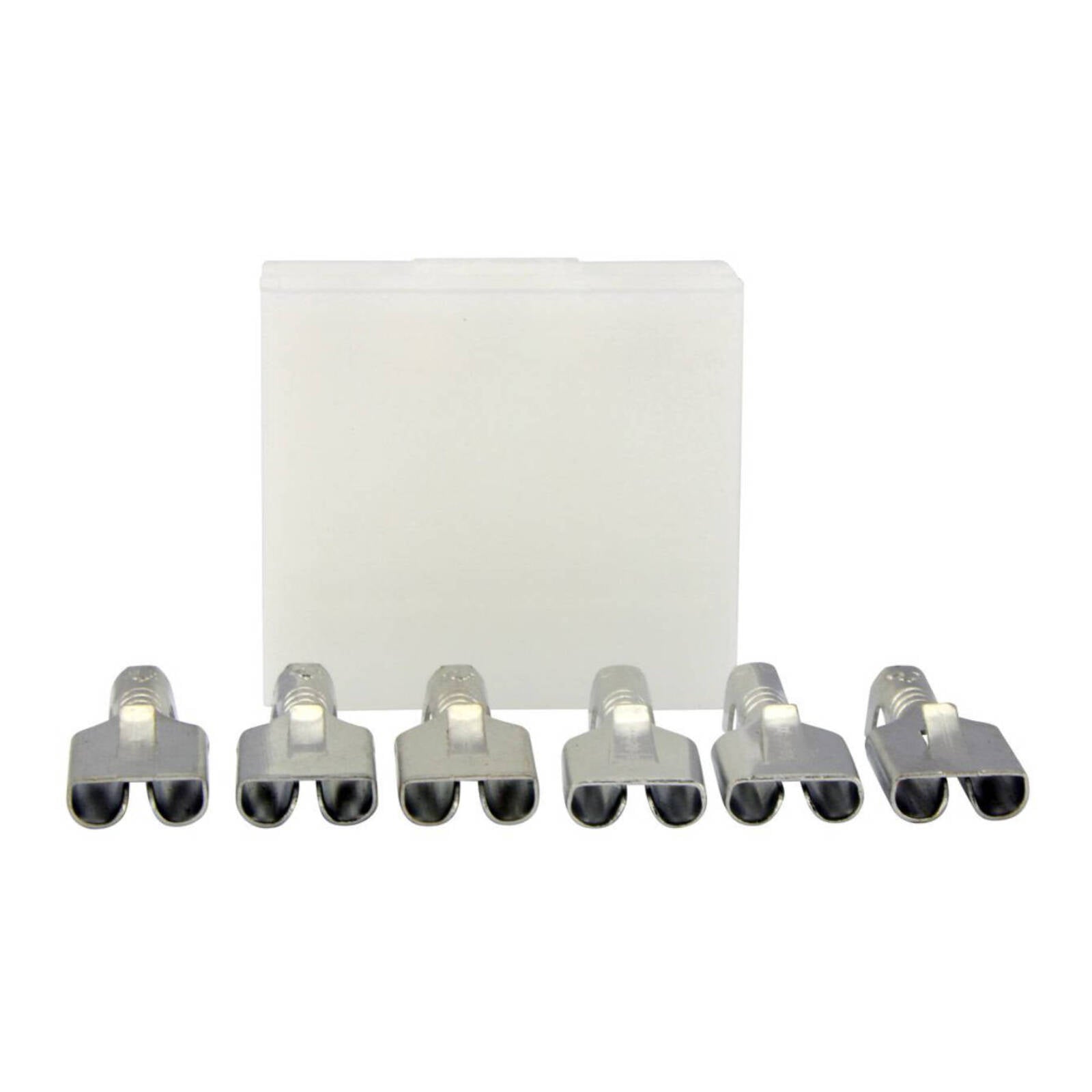

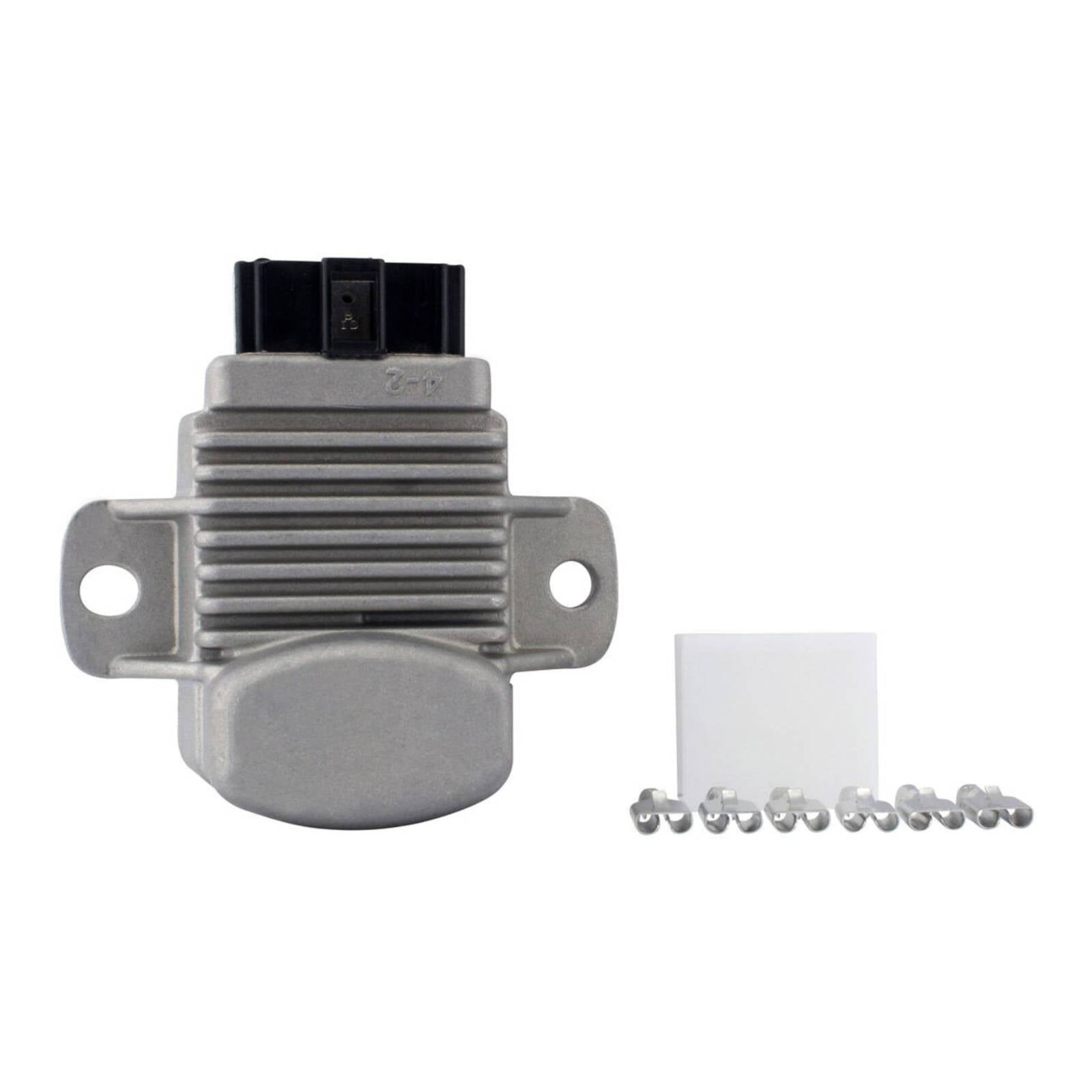

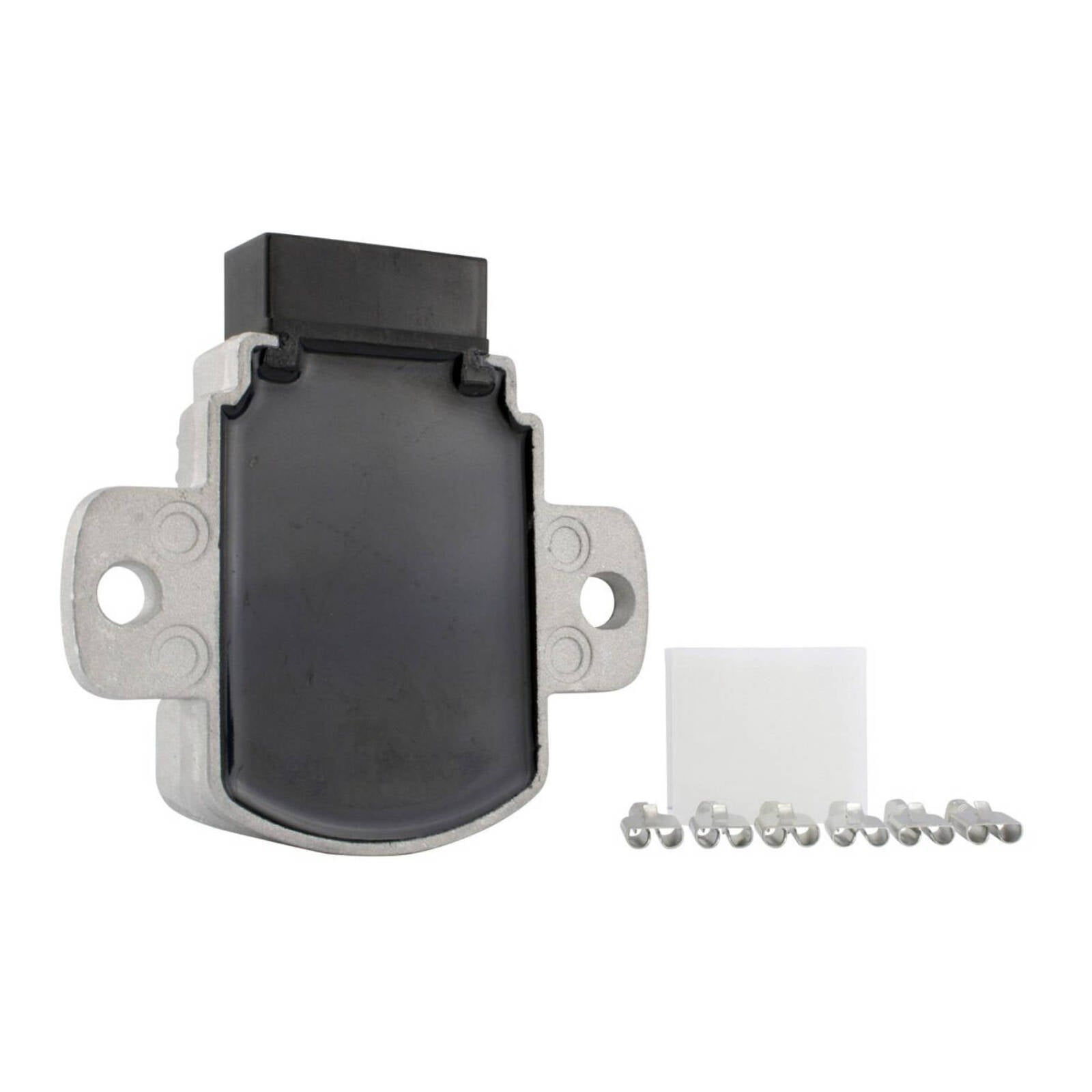

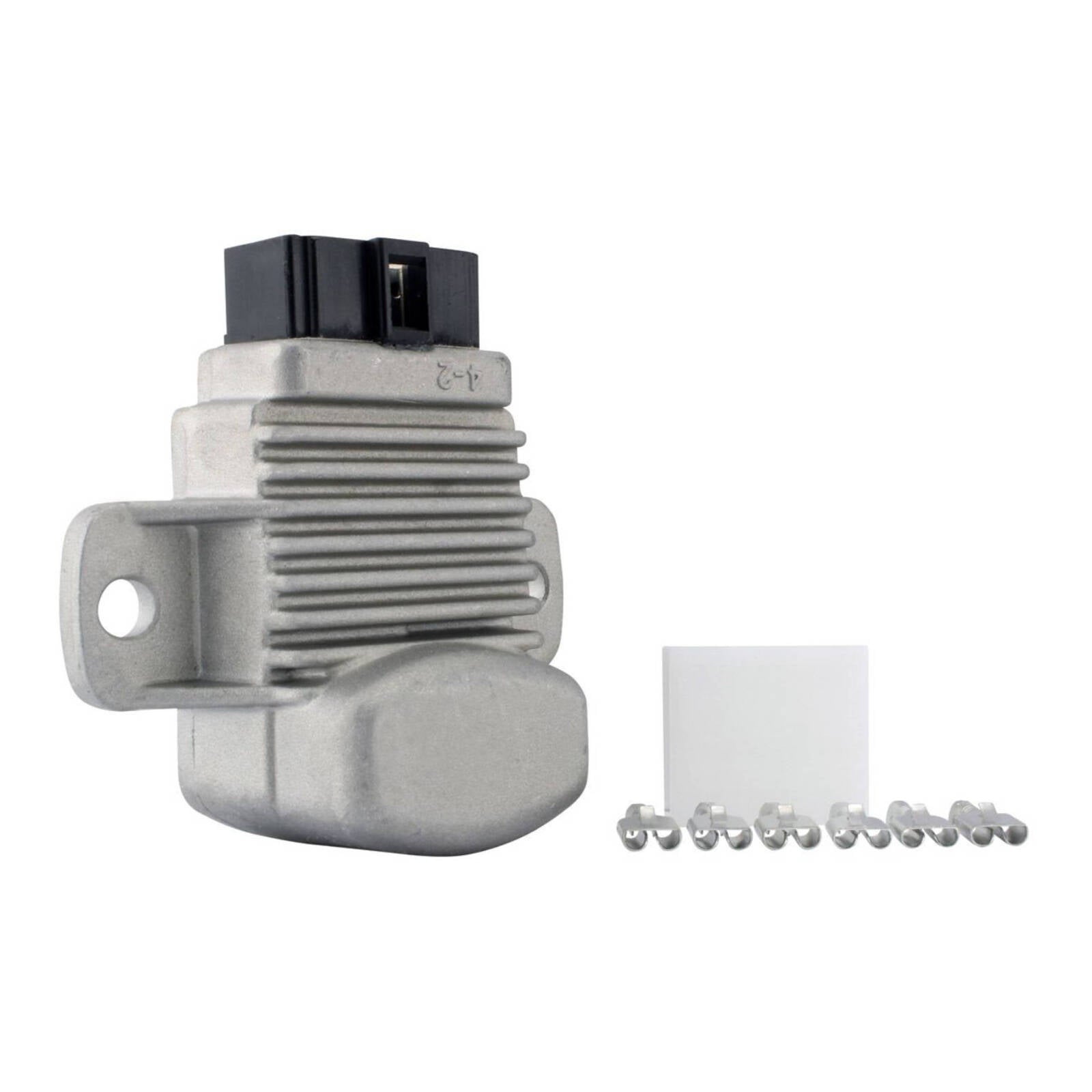

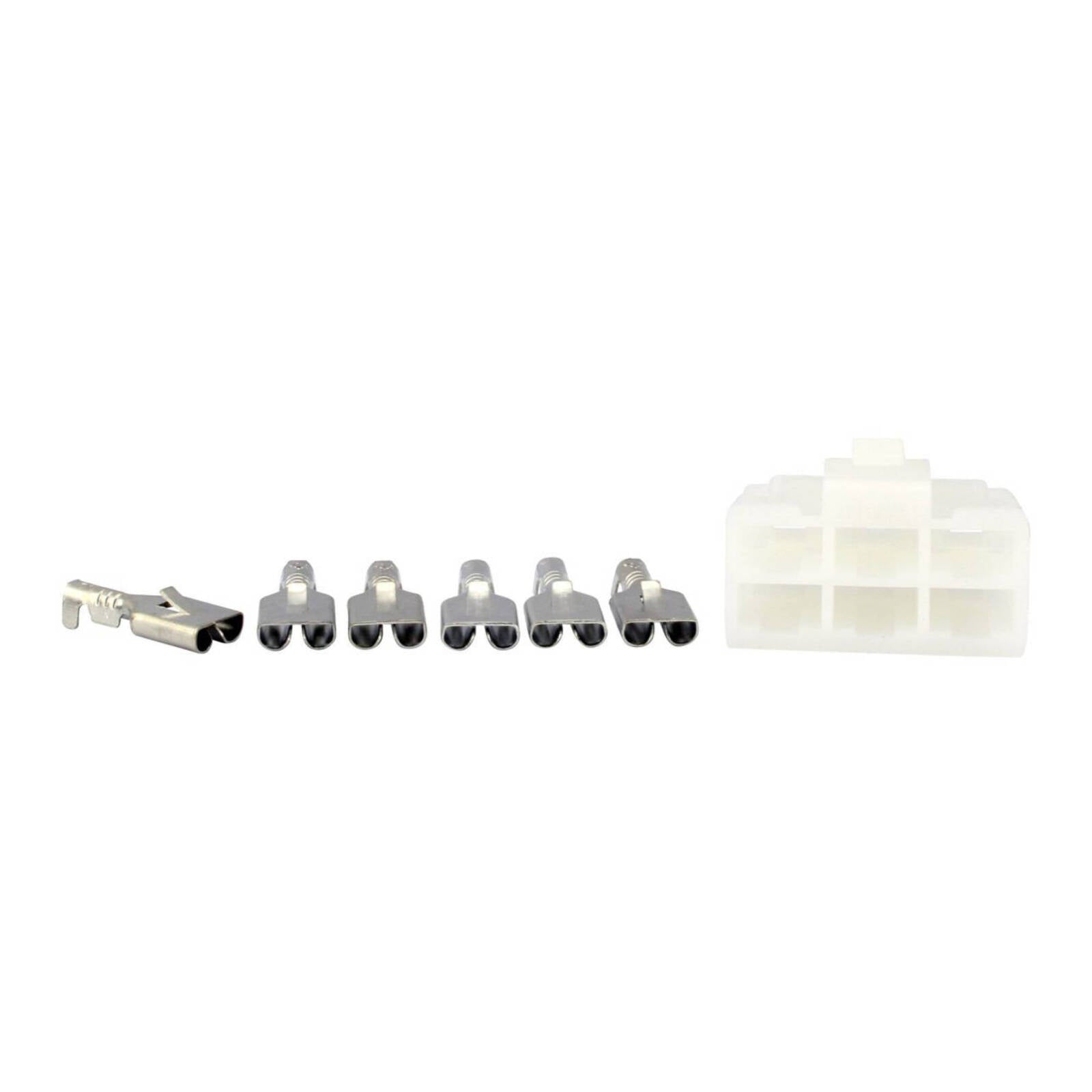

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and are a major cause of repetitive electrical issues.

All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Specfications:

Dimensions:

• Wi dth: 81 mm
• Length: 78 mm
• Height #1: 20 mm
• Height #2: 32 mm
• Distance between fixation holes center to center: 67 mm

Other specifications:

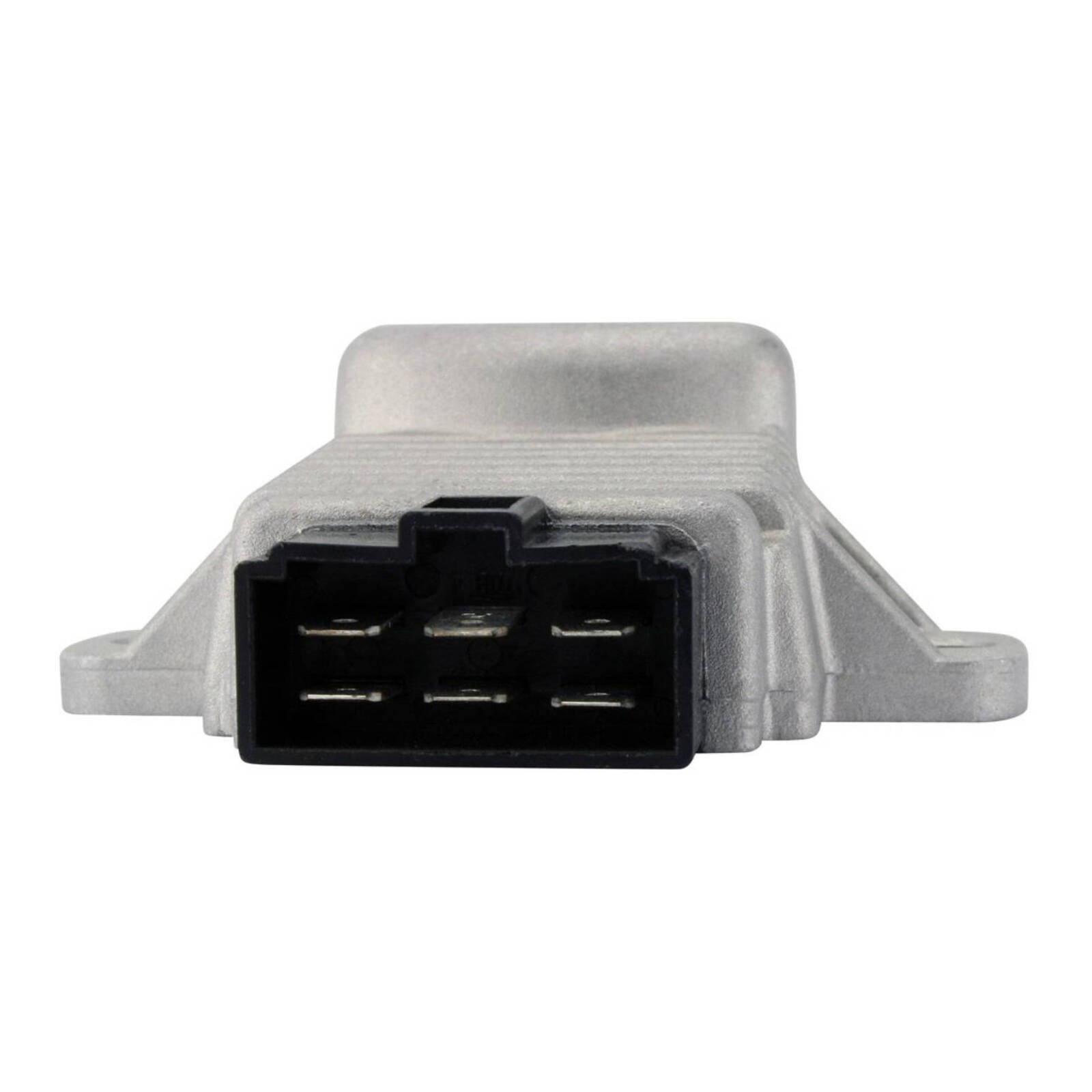

• Number of plugs: 1
• Number of pins: 6
• Minimum Charging Voltage: 14.5 V +- 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: < 15 V
• Operation Temperature: -20°C to 85°C

Note: Battery condition is important. No regulator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY
