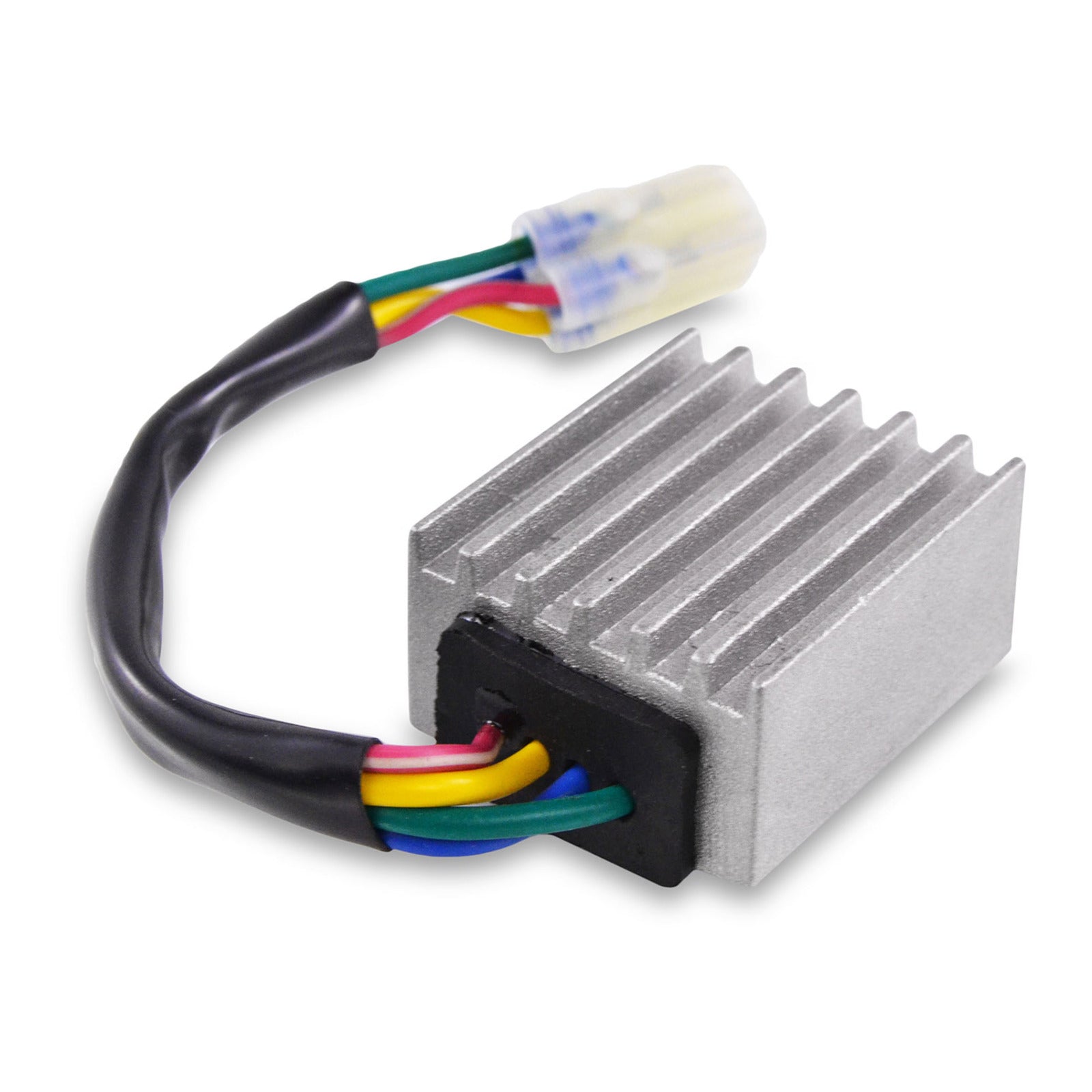

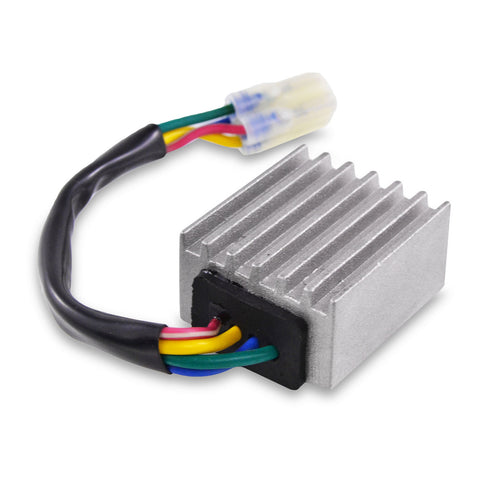

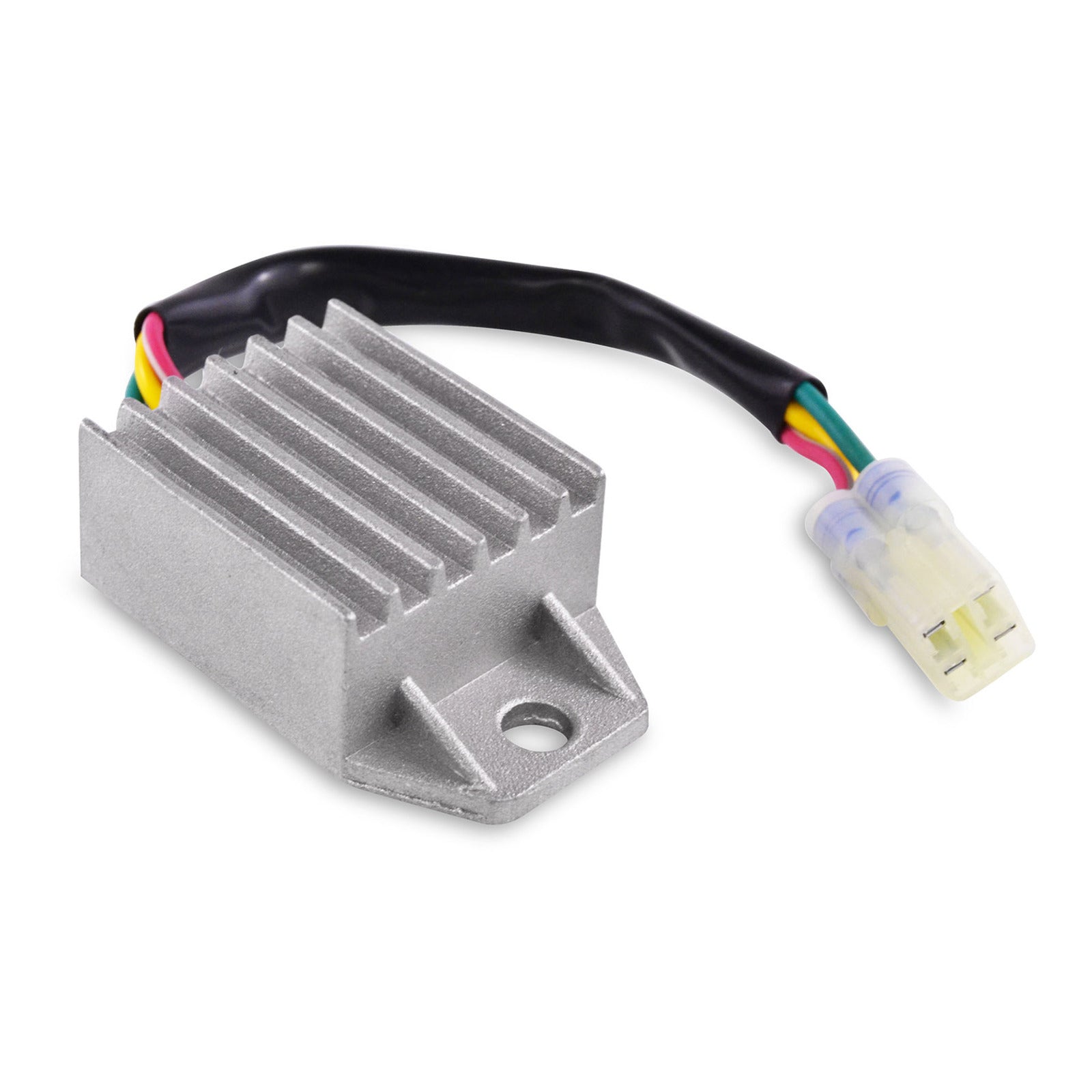

Voltage Regulator Honda CRF250X '04-'17 (RMS020-103312)
- Sale price
- $99.99
- Regular price
-
- Regular price
- $99.99
- Unit price
- / per
Button-up shirt sleeves and a relaxed silhouette. It’s tailored with drapey, crinkle-texture fabric that’s made from TEAM90DEGREE™ LTD™ Viscose — responsibly sourced wood-based fibres produced through a process that reduces impact on forests, biodiversity and water supply.
Guaranteed safe checkout
Couldn't load pickup availability
Estimate delivery: 12-26 days (International), 3-6 days (United States).
🔥 30 sold in the last 18 hours
Product Description
Product Description
Brand new aftermarket voltage regulator rectifier.
- Direct replacement to the original unit.
- Plug-and-play, direct fit, easy installation.
- No assembly required.
- Higher grade of electric components.
- The quality exceeds the OEM equipment.
- All products shipped are tested.

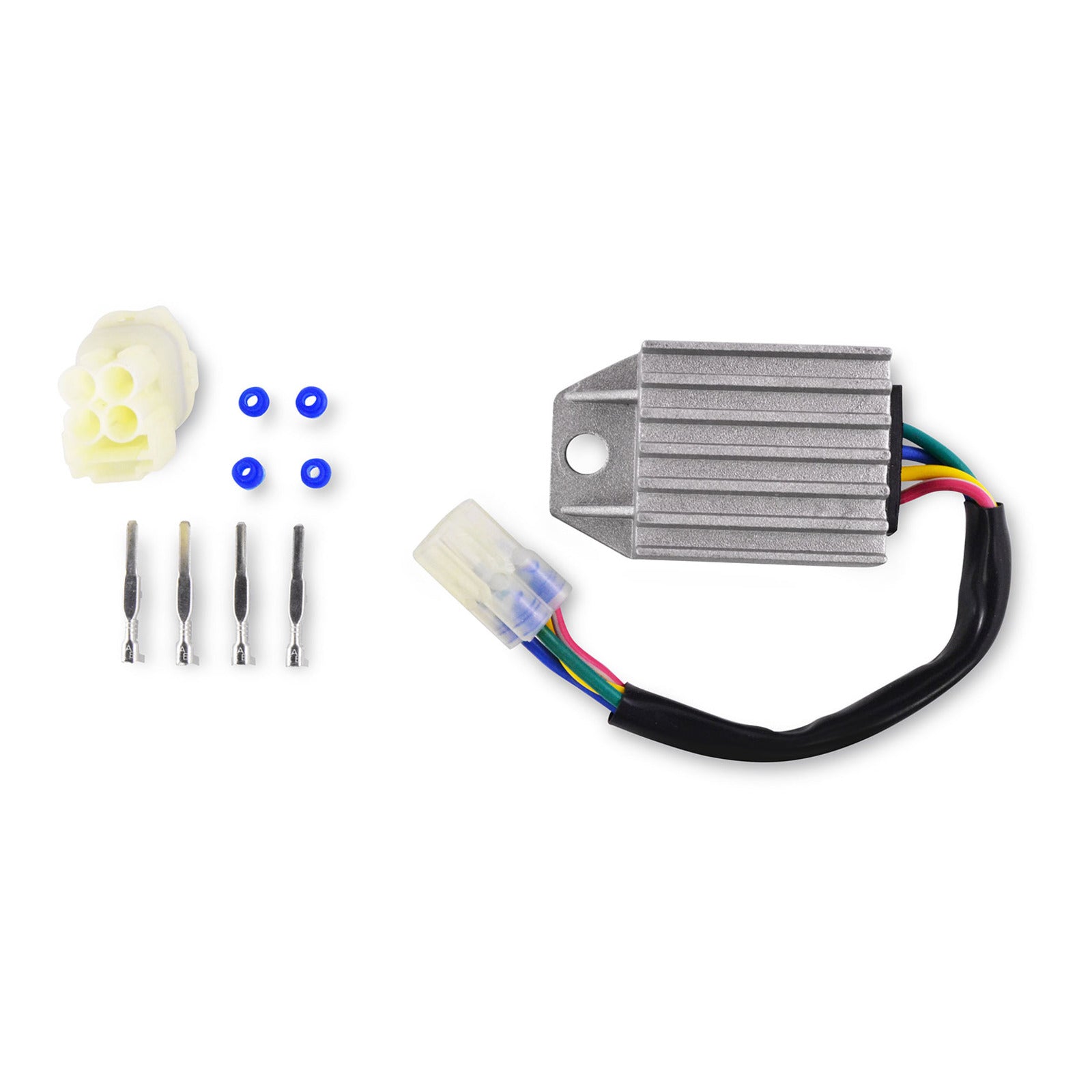

We have even included the opposite connector (main harness side) as we know these are often melted, corroded, defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt, do not hesitate to compare The item to the original part.
Before installing the new voltage regulator rectifier:
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator rectifier.
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
Dimensions:
- Width: 38 mm
- Length: 57 mm
- Height: 19 mm
- Wires length: 122 mm
Other specifications:
- Number of plugs: 1
- Number of pins: 4
- Number of wires: 4
- Minimum Charging Voltage: 14.5 V +/- 0.5 V
- Maximum Charging Current: 50 A / 500 W
- Open Circuit Voltage: < 15 V
- Operation Temperature: -20°C to 85°C
