Generator Stator Suzuki SV650 '99-'02 (RM01569)

Sale price: $369.99
Regular price
Regular price: $369.99
Unit price: per

Tax included. Shipping calculated at checkout.

Button-up shirt sleeves and a relaxed silhouette. It’s tailored with drapey, crinkle-texture fabric that’s made from TEAM90DEGREE™ LTD™ Viscose — responsibly sourced wood-based fibres produced through a process that reduces impact on forests, biodiversity and water supply.

Product variants

Only 0 items in stock! Out of stock!

Quantity

Guaranteed safe checkout

Estimate delivery: 12-26 days (International), 3-6 days (United States).

🔥 30 sold in the last 18 hours

Product Description

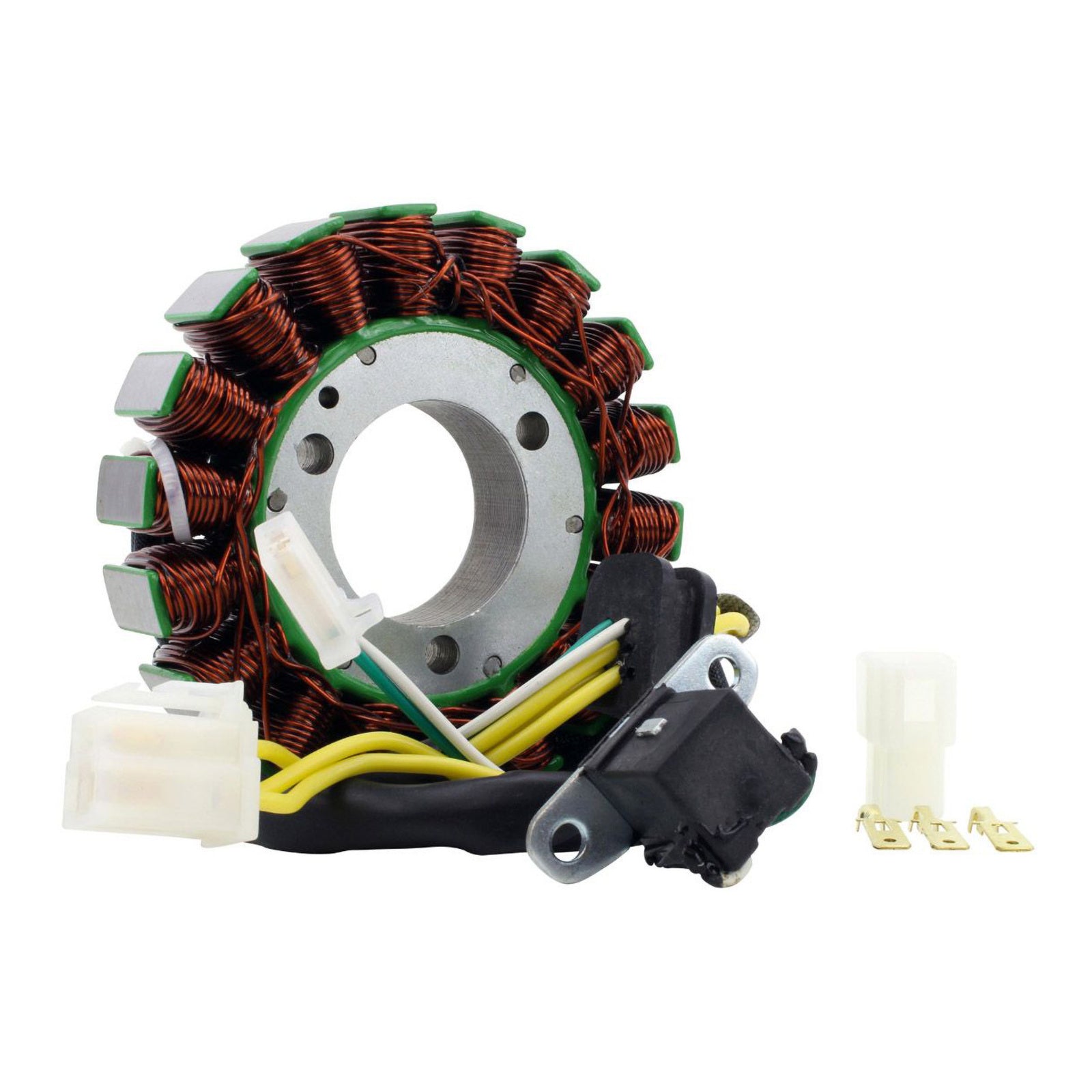

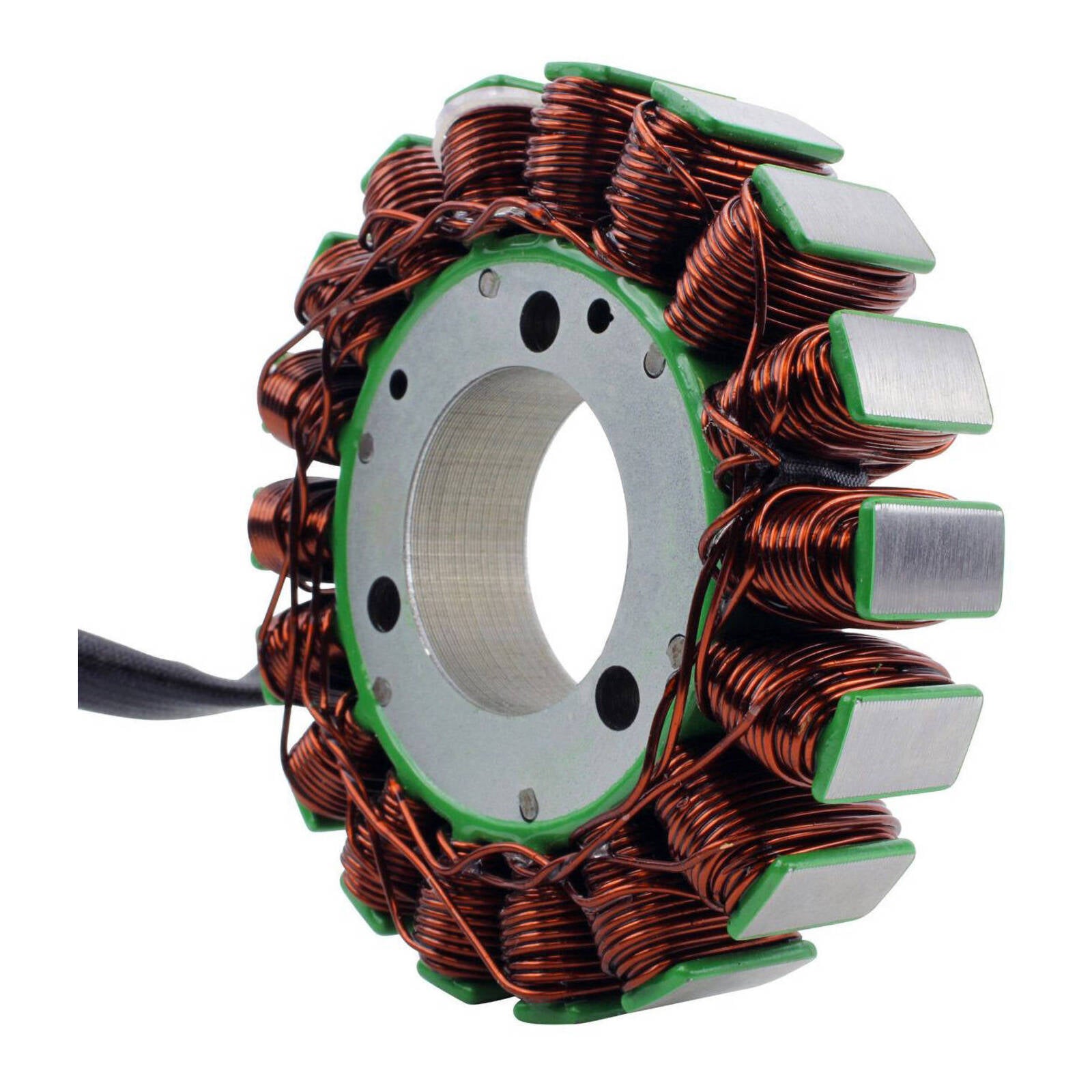

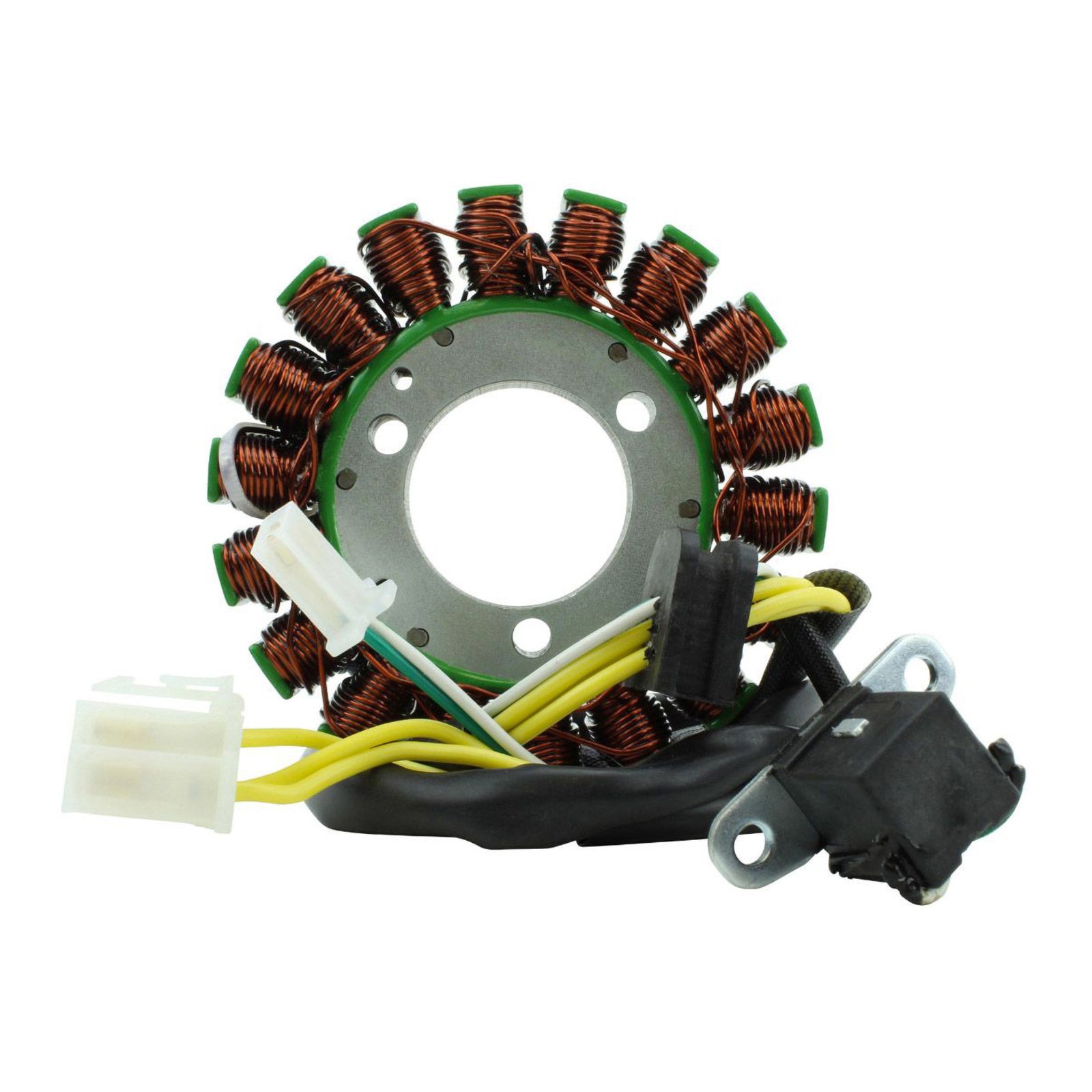

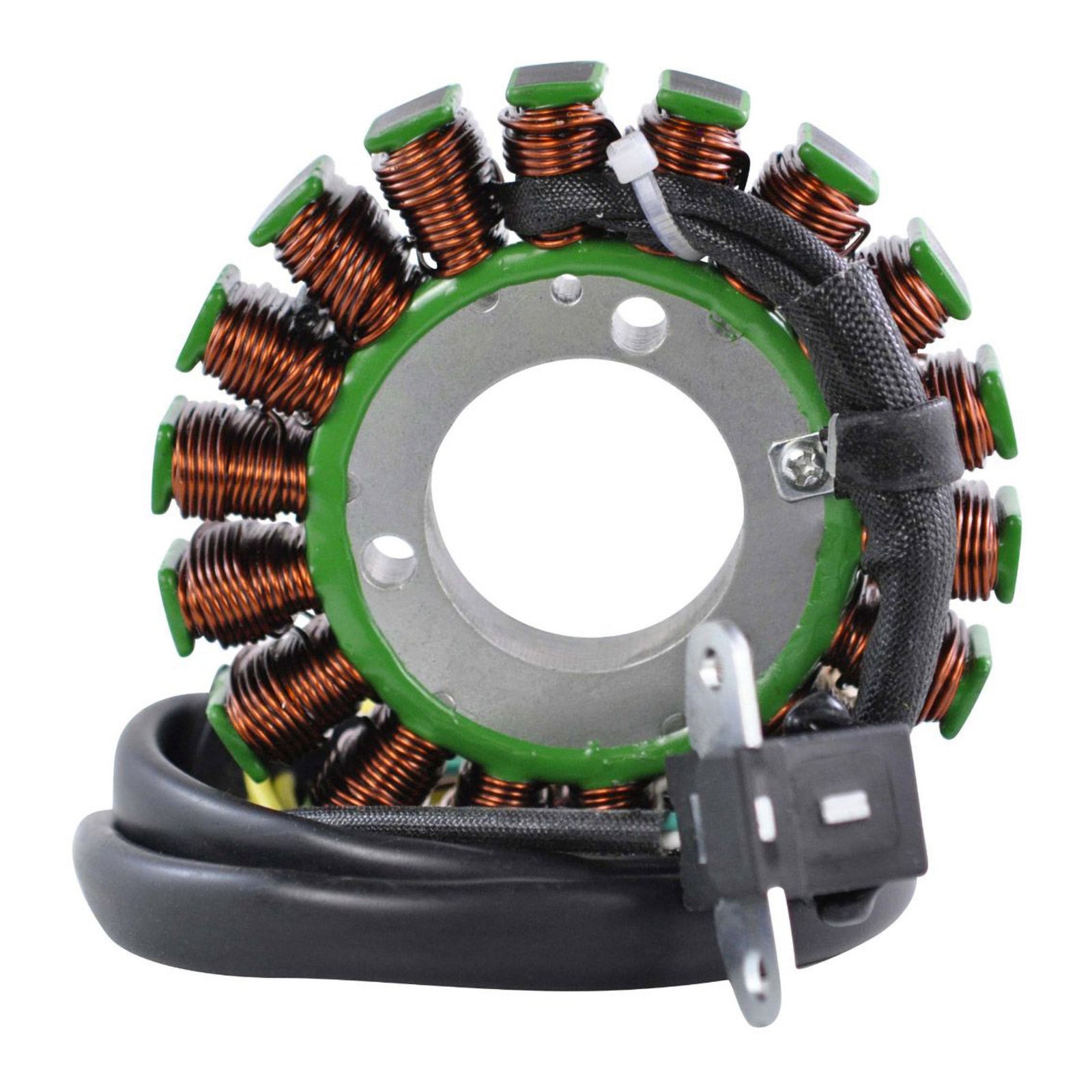

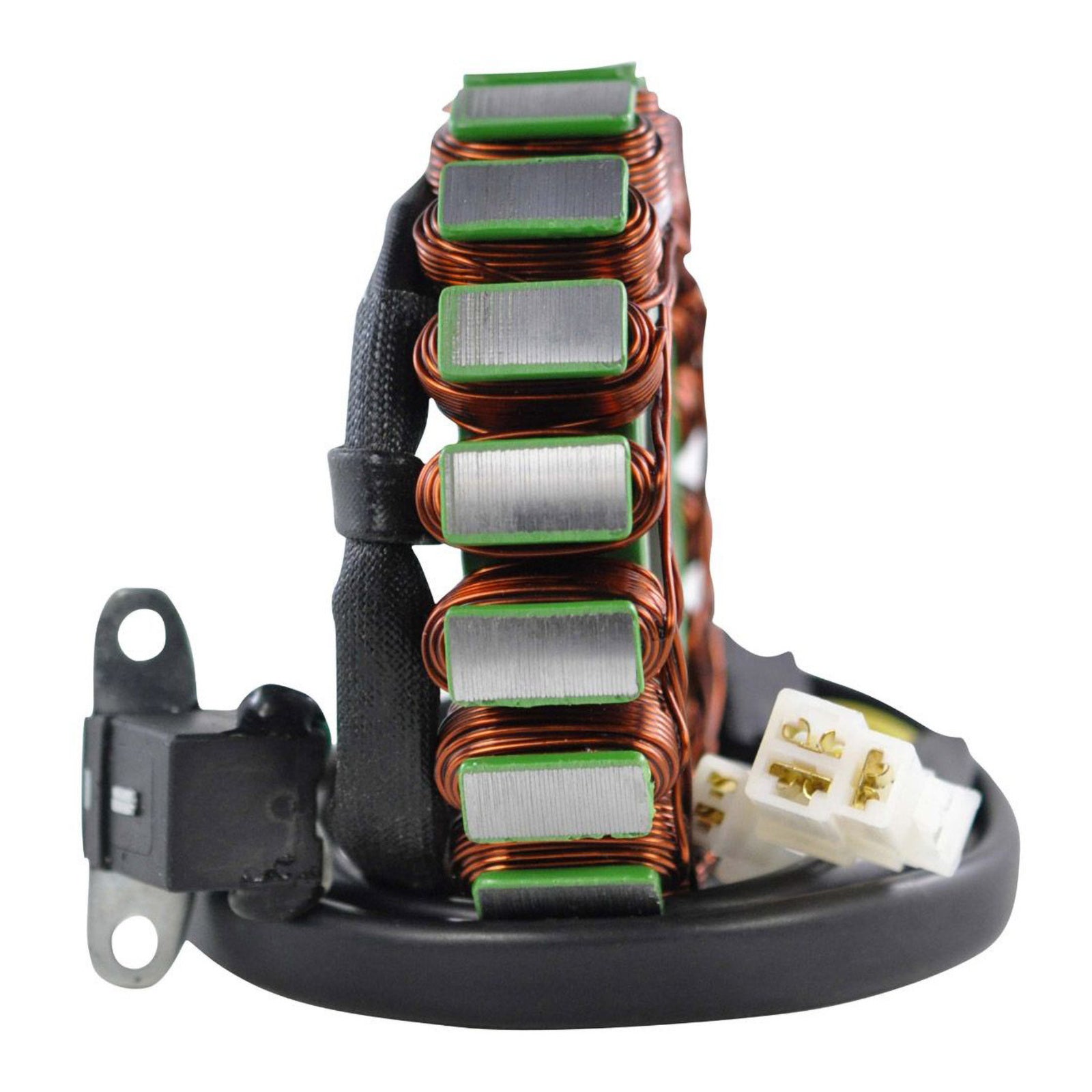

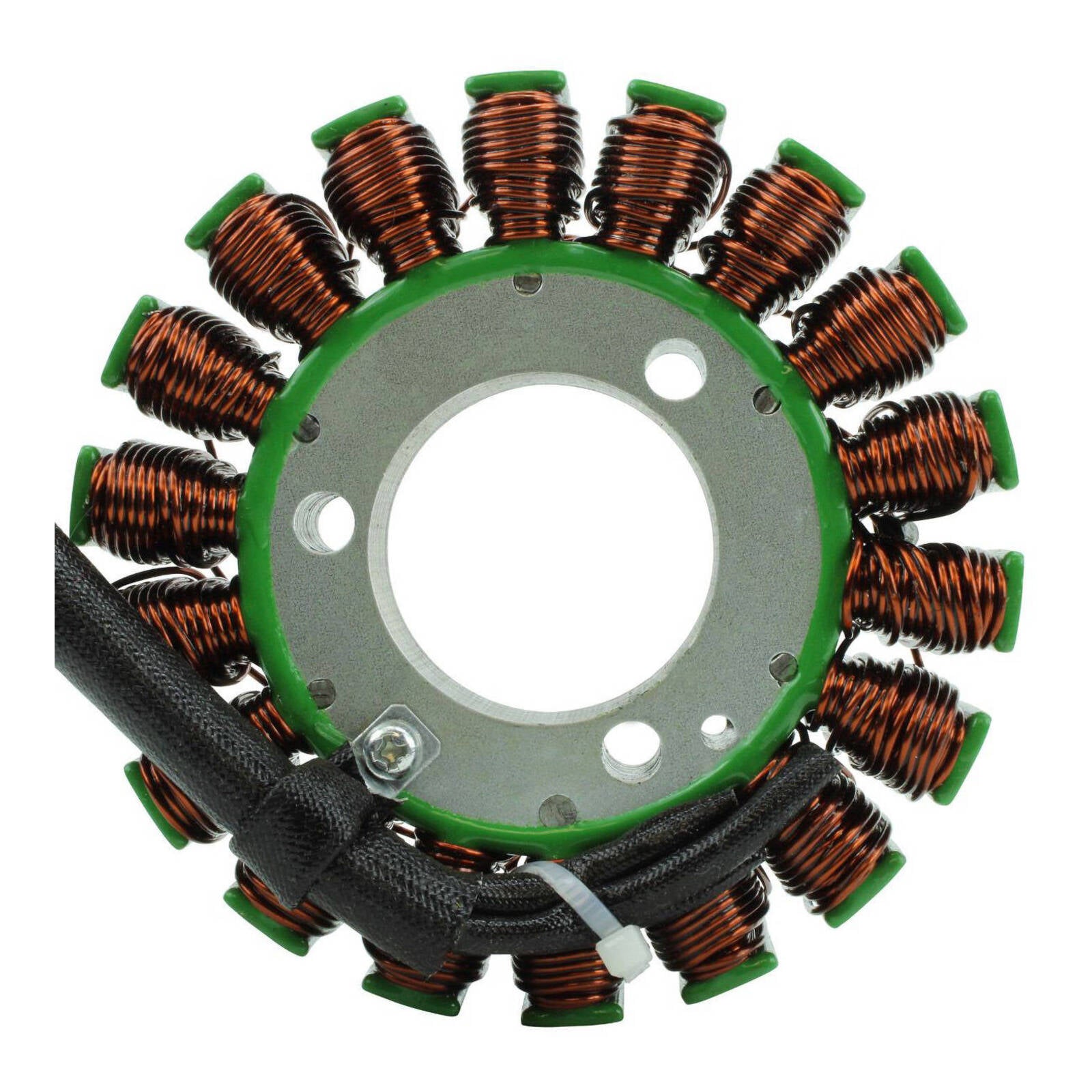

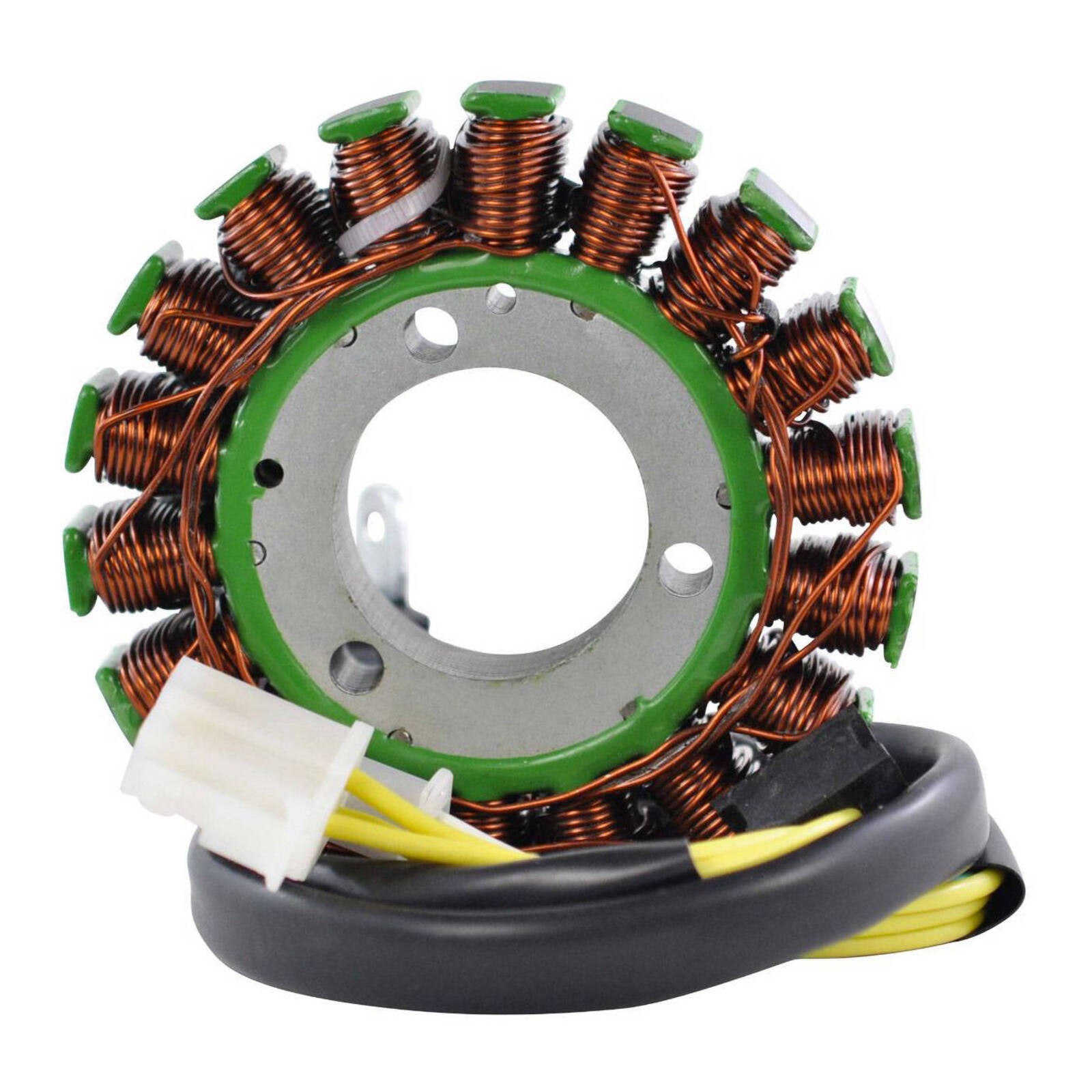

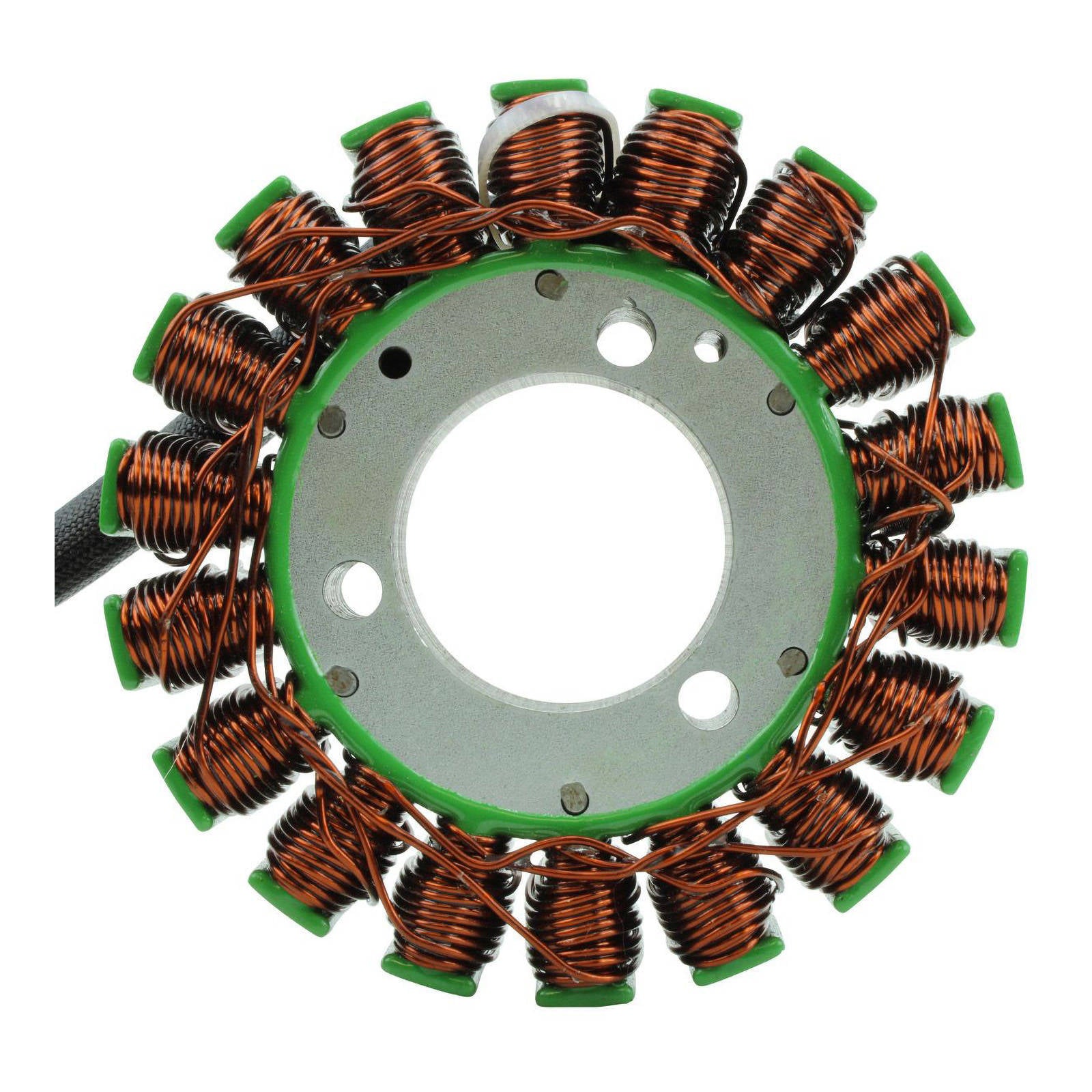

Plug-and-play replacement generator stator from RM Stator.

Details:

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation
Highest grade of lamination materials
Highest grade of copper winding, resistant to 200 degrees Celsius

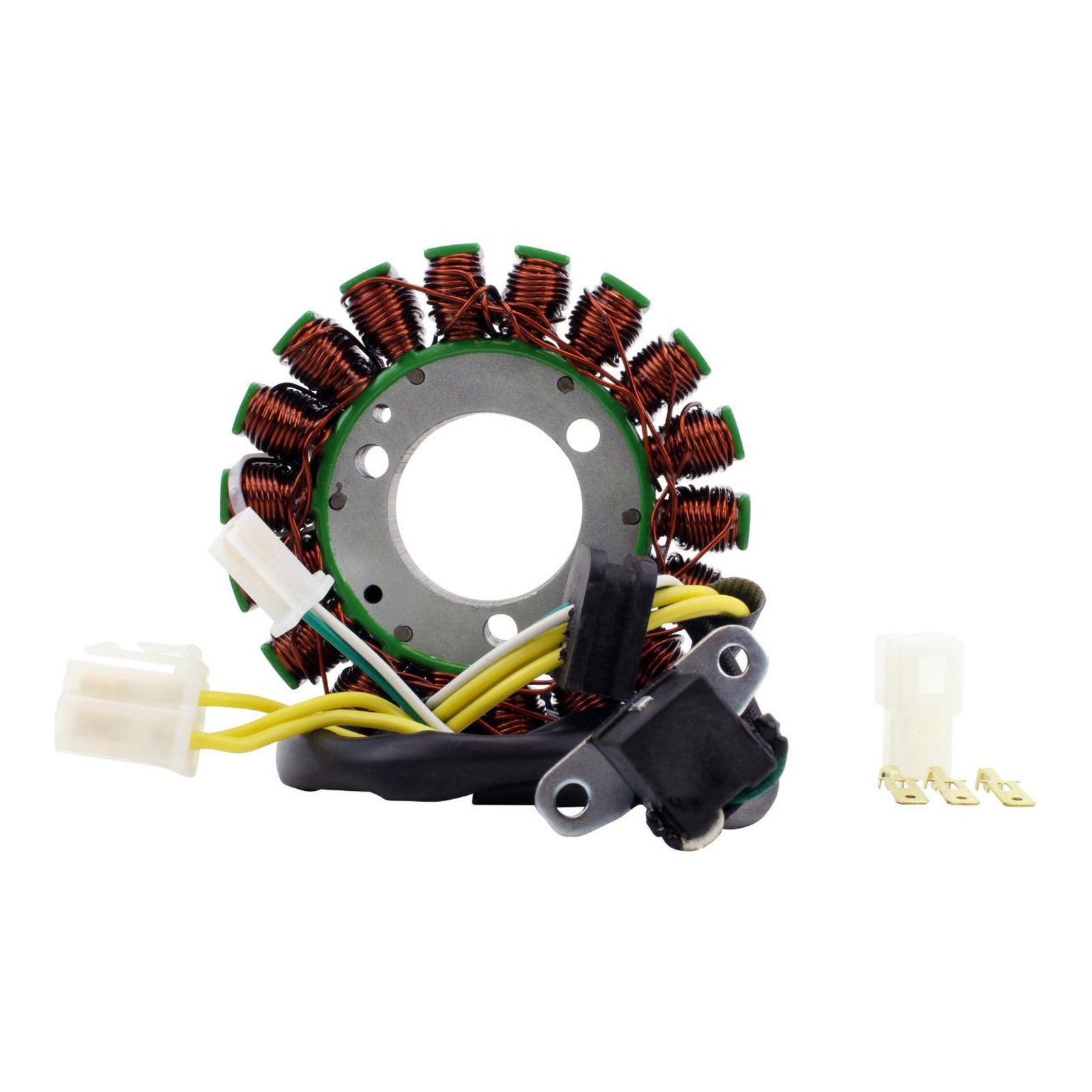

Pick up pulsar coil included

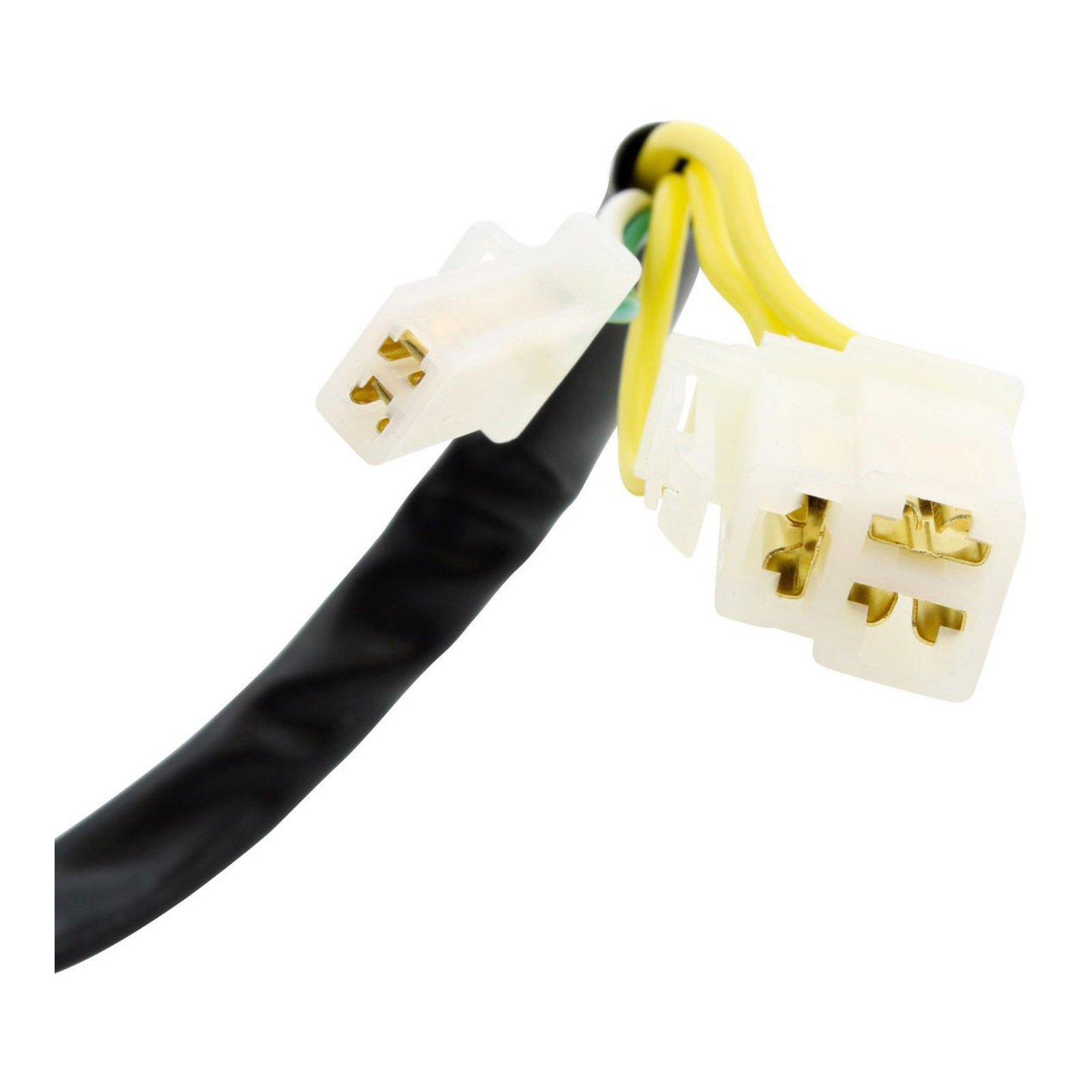

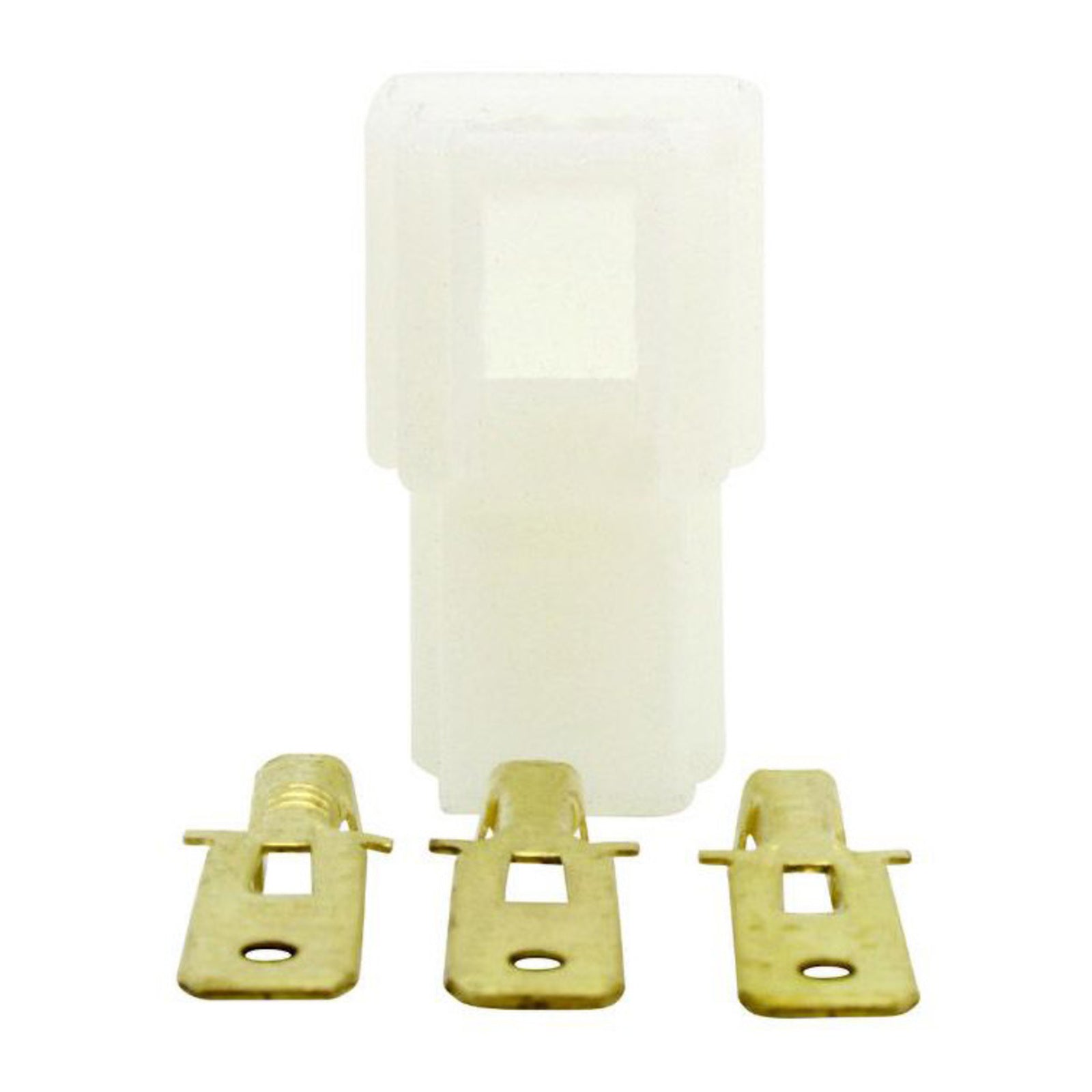

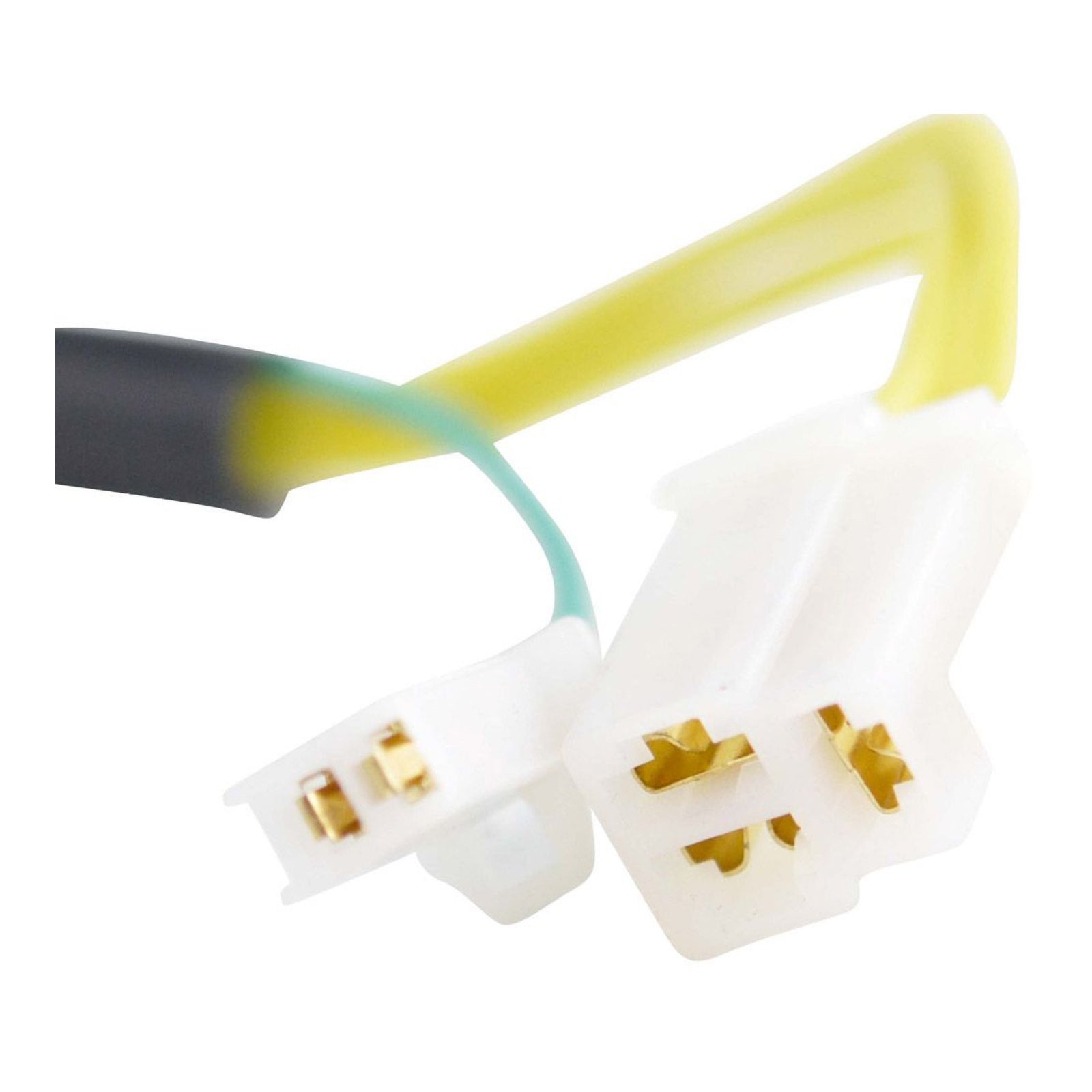

Connector included
Rubber grommet included
All products shipped are tested

Dimensions:

Interior diameter: 38mm
Exterior diameter: 105mm
Thickness: 19mm
Length of wires stator to grommet: 120mm
Length of wires grommet to plug: 650mm
Length of pickup coil's wire to grommet: 60mm

Other specifications:

Number of wires: 5
Number of plugs: 2
Number of pins: 5
Wire-to-wire resistance:
- Alternator: Yellow to Yellow = 0.7 ohms +-20%
- Pickup: Green to White = 195 ohms +/-20%
