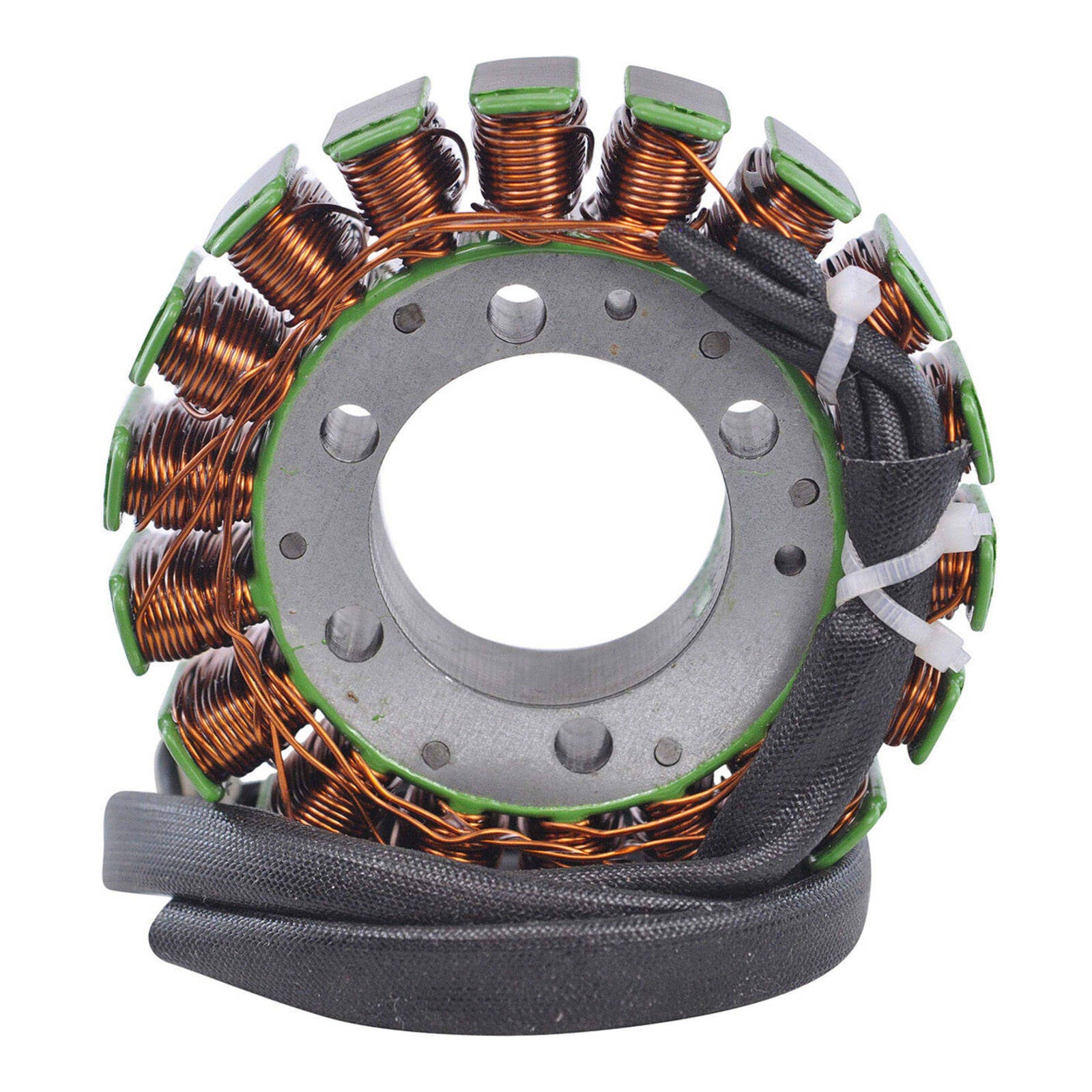

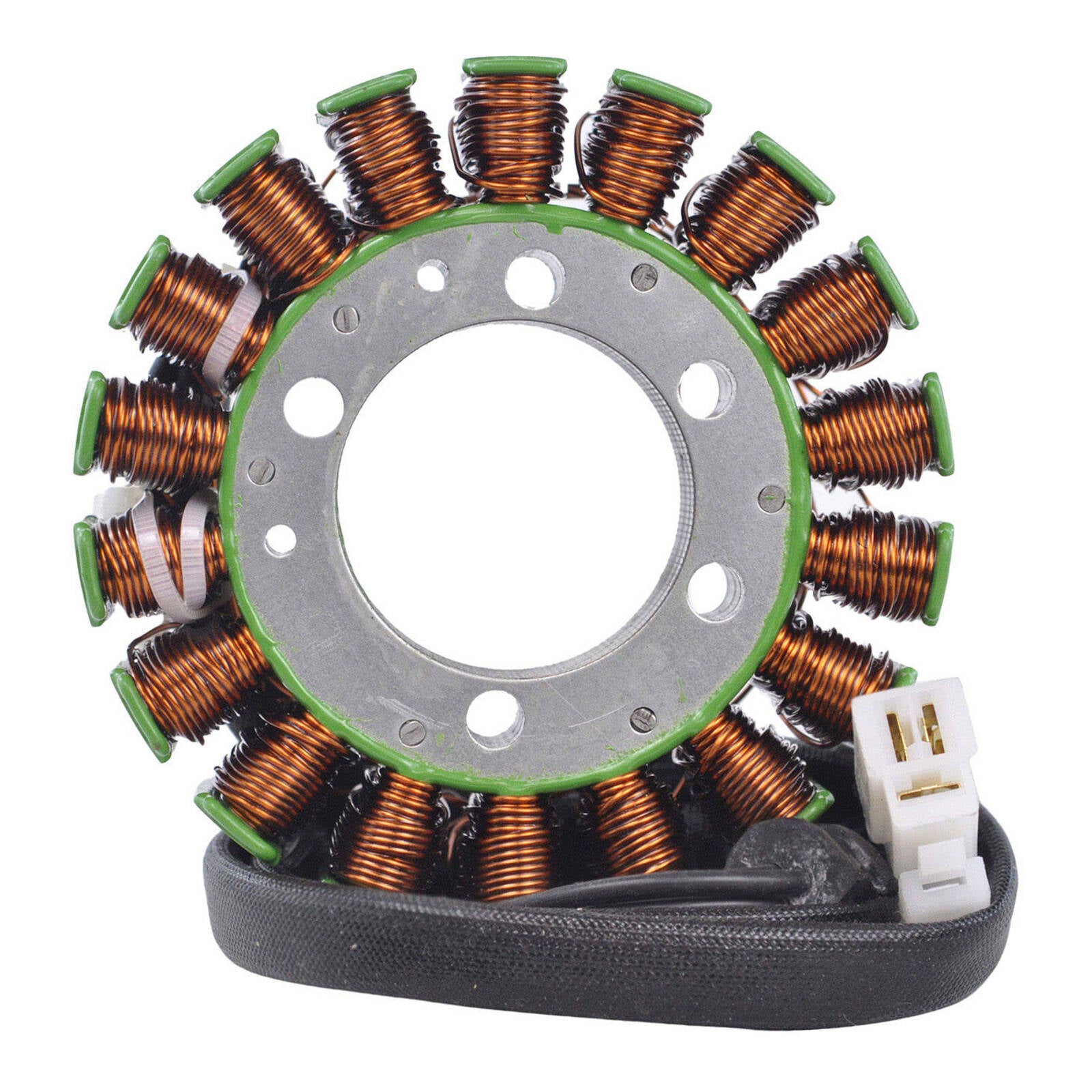

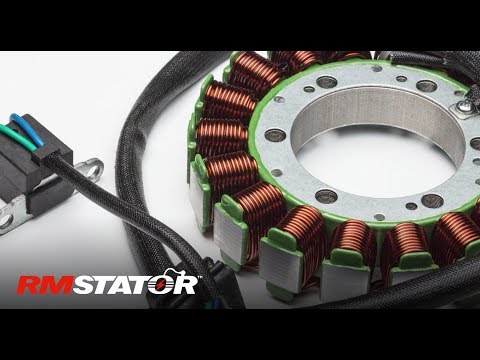

Generator Stator Triumph Speed Triple 1050 '05-'10 (RM01392S)

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Dimensions:

• Exterior diameter: 104mm
• Interior diameter: 42mm
• Thickness: 26mm

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.
4. There are 2 possible stators for the model's Triumph Speed Triple 1050 2005-2010: Refer to below:
• Speed Triple 1994 to 2018 This part will only fit Speed Triple with a VIN BETWEEN 141872 and 210444 and has a engine number HIGHER than 183487 or a VIN BETWEEN 210445 and 461331 and an engine number LOWER than 356142. If your vehicle has a VIN between 141872 and 210444 and with an engine number lower than 183486, refer to RM01387S. If your vehicle has a VIN between 210445 and 461331 and an engine number higher than 356143 or a VIN between 461332 and 735437, refer to RM01390. If your vehicle has a VIN lower than 141871, refer to RM01348.
