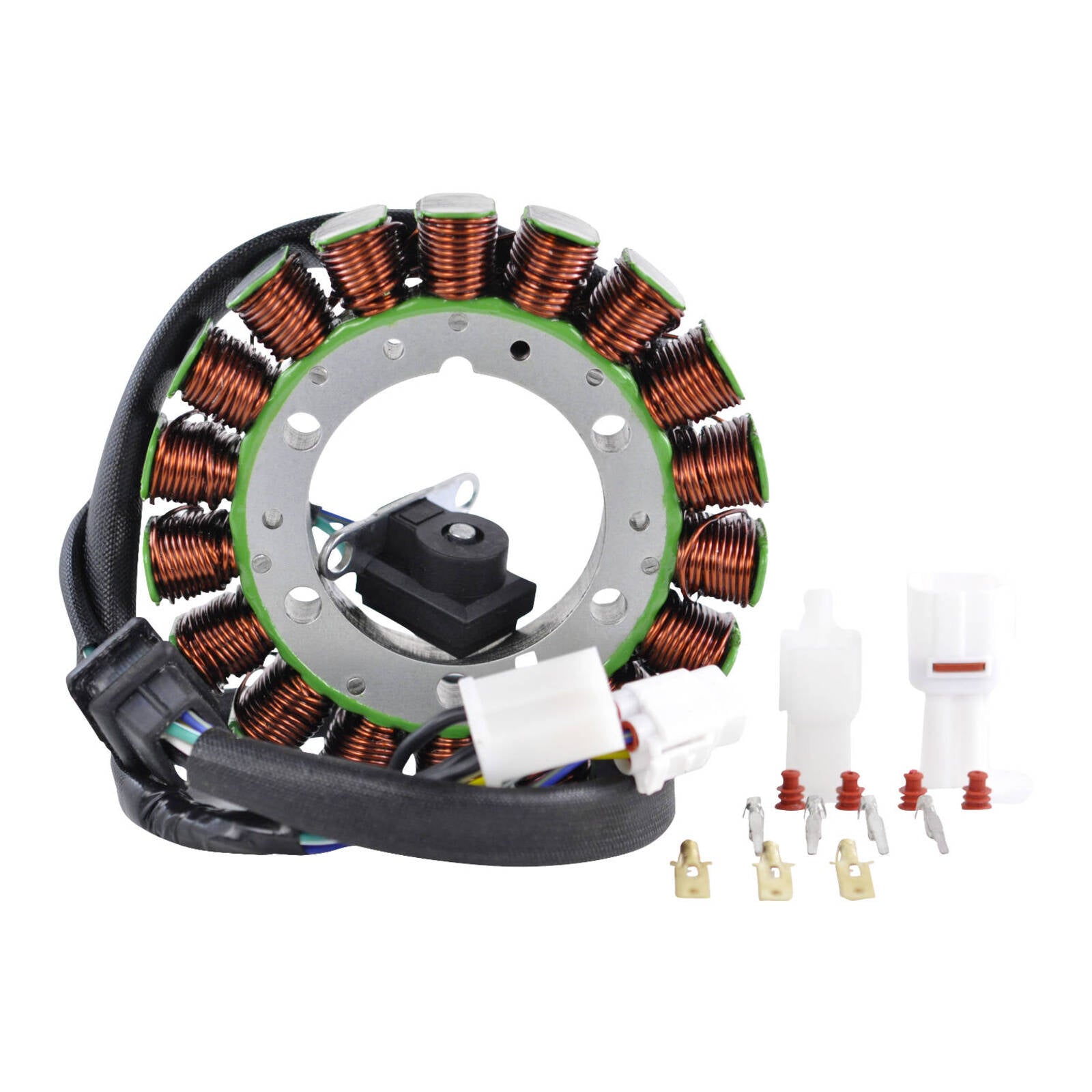

Generator Stator Various Arctic Cat (RM01285)

Sale price: $355.99
Regular price
Regular price: $355.99
Unit price: per

Tax included. Shipping calculated at checkout.

Button-up shirt sleeves and a relaxed silhouette. It’s tailored with drapey, crinkle-texture fabric that’s made from TEAM90DEGREE™ LTD™ Viscose — responsibly sourced wood-based fibres produced through a process that reduces impact on forests, biodiversity and water supply.

Product variants

Only 0 items in stock! Out of stock!

Guaranteed safe checkout

Estimate delivery: 12-26 days (International), 3-6 days (United States).

🔥 30 sold in the last 18 hours

Product Description

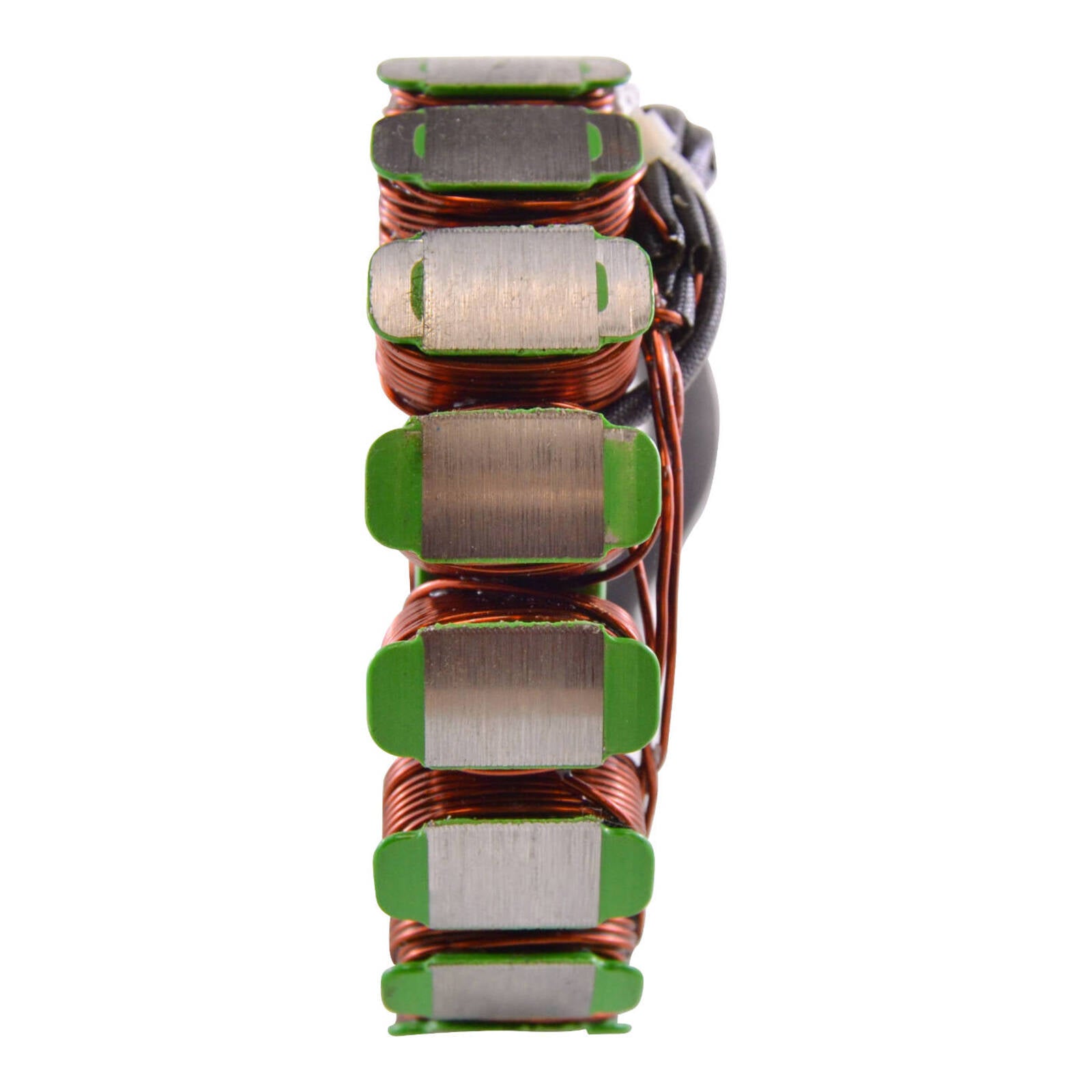

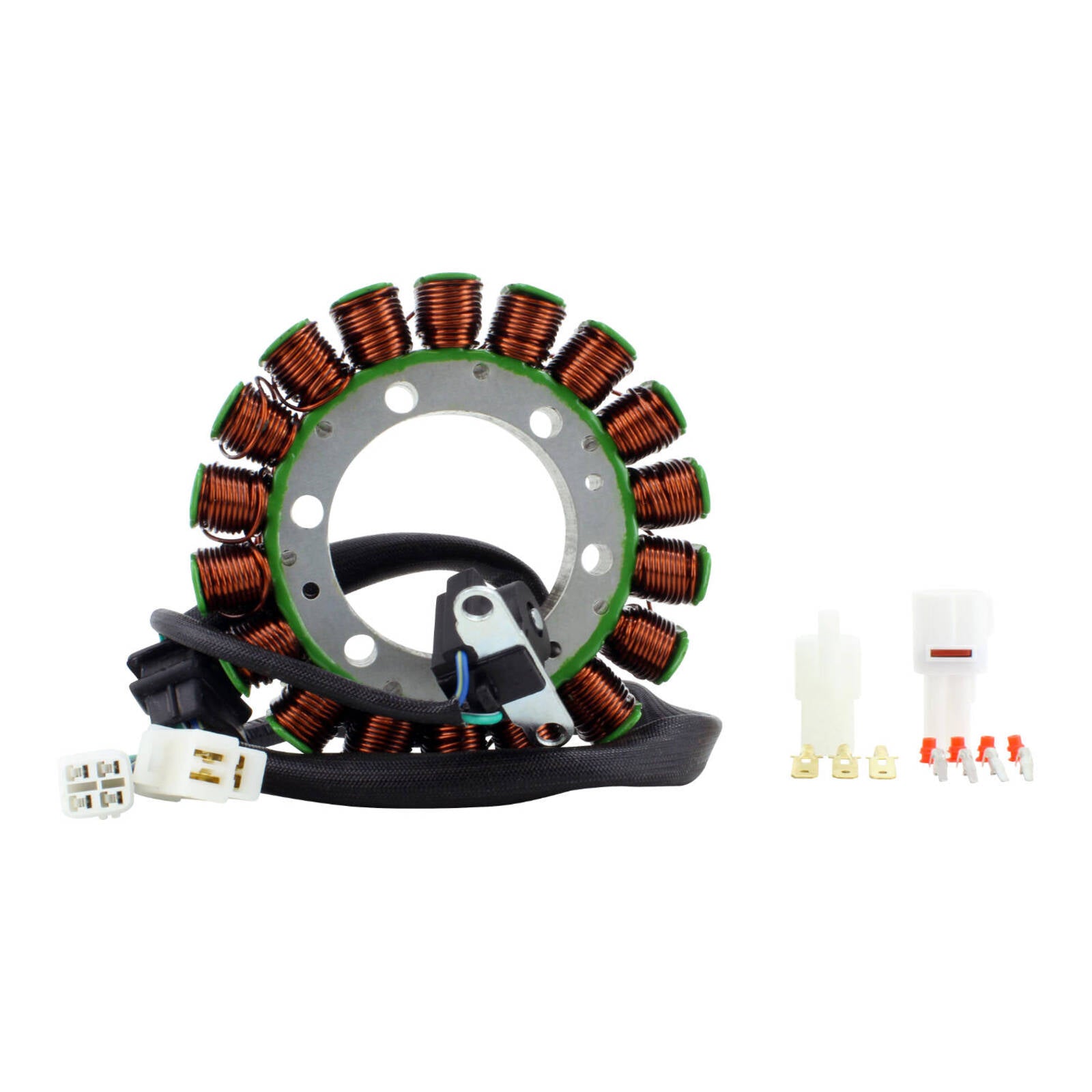

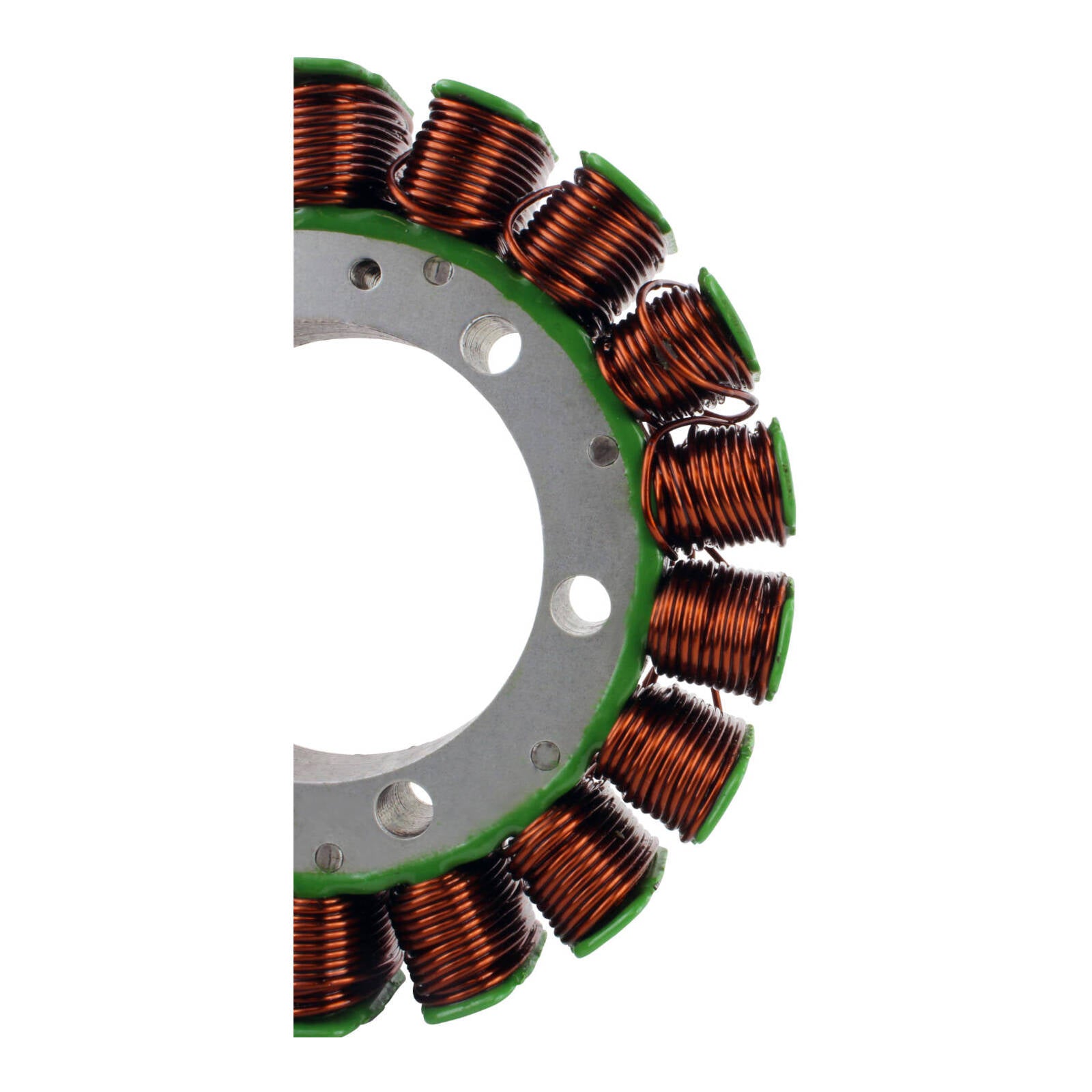

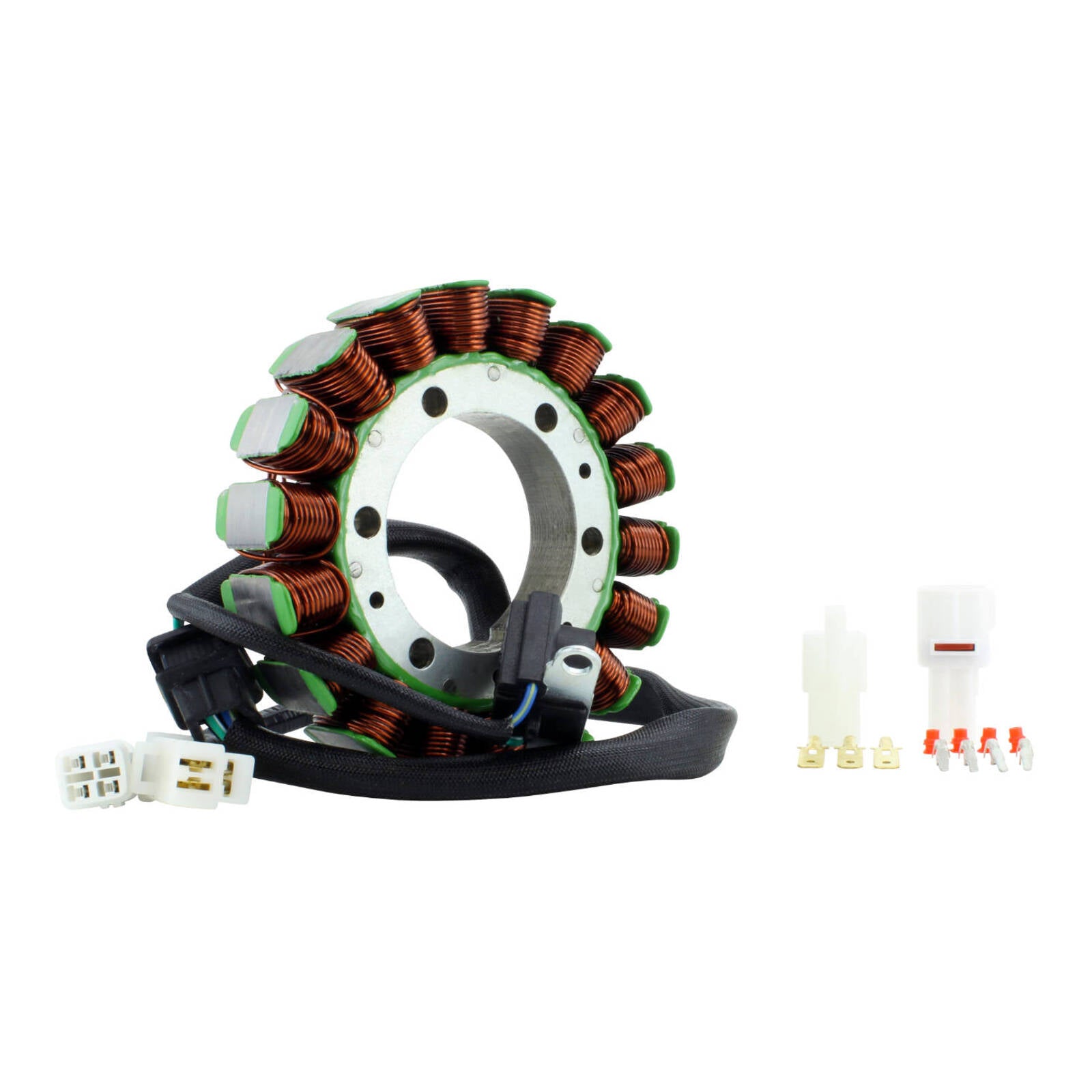

Plug-and-play replacement generator stator from RM Stator.

Dimensions:

Interior diameter: 54mm
Exterior diameter: 114mm
Thickness: 18mm
Length of wires stator to grommet: 140mm
Length of wires grommet to plug: 320mm
Length of pickup coil's wire to grommet: 95mm

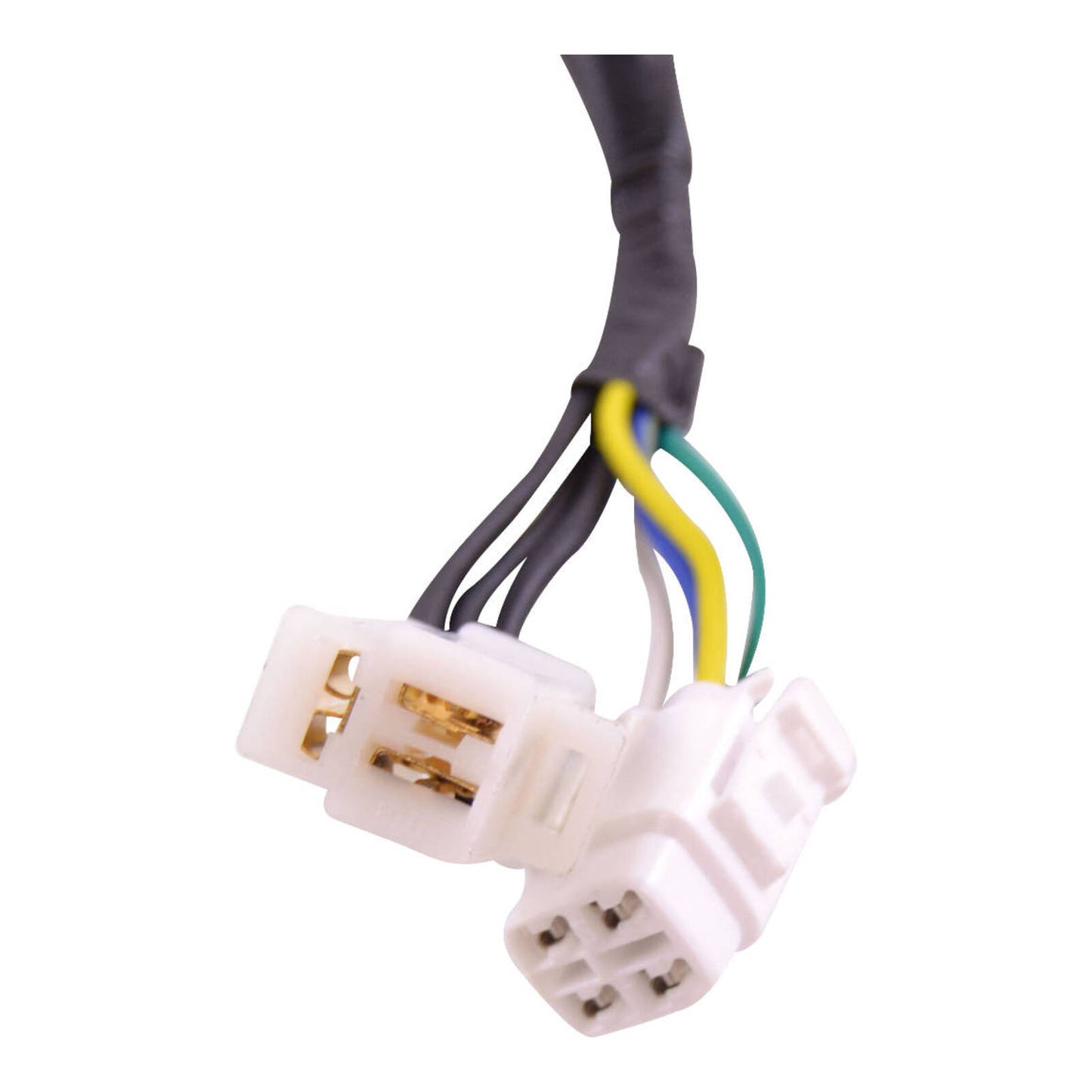

Other specifications:

Number of wires: 7

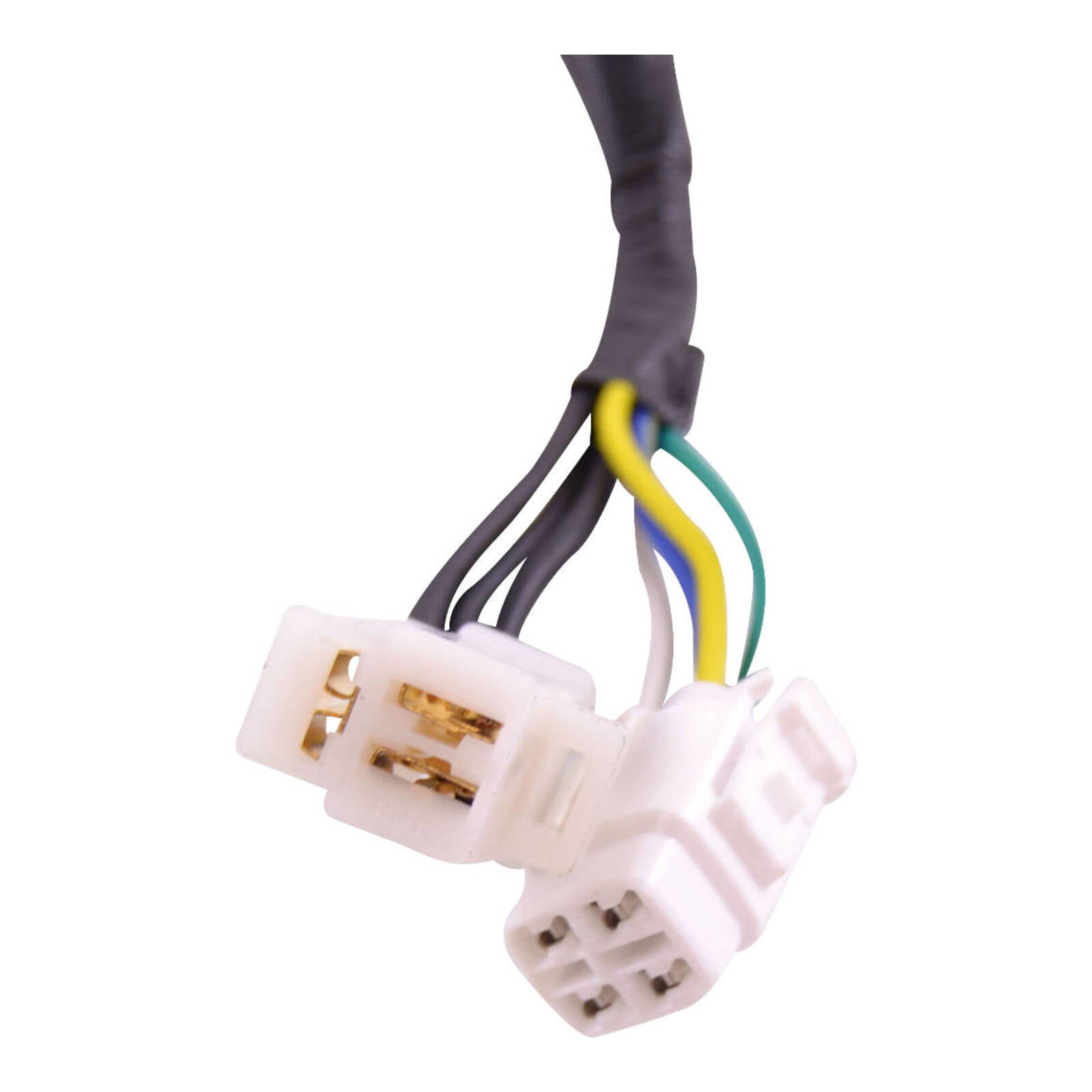

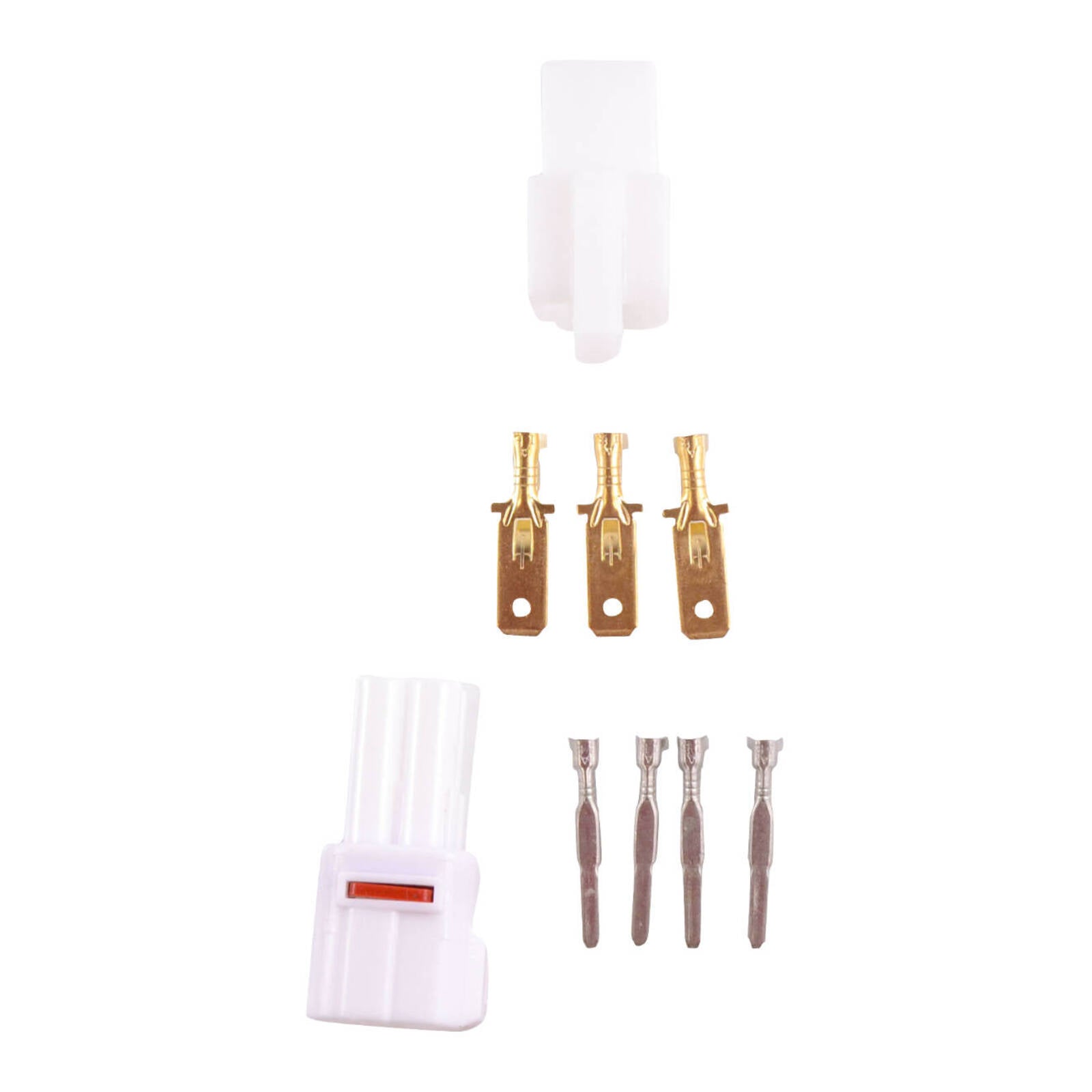

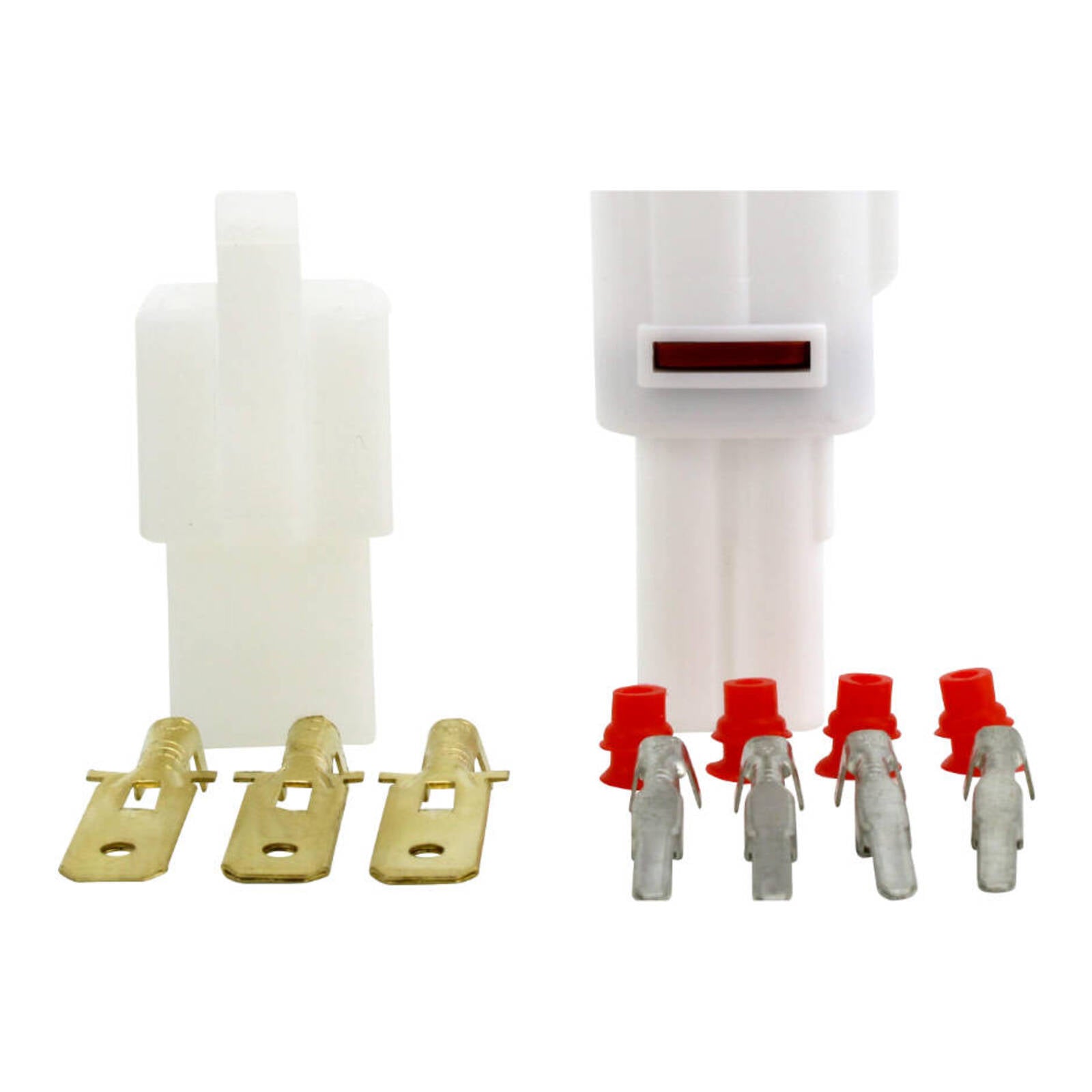

Number of plugs: 2
Number of pins: 7
Wire to wire resistance:
- Alternator: Black between each Black = 0.4 ohms +-20%
- Pickup: Blue to Green = 185 ohms +/-20%
- Position Sensor: White to Yellow = 0.2ohms +/-20%
