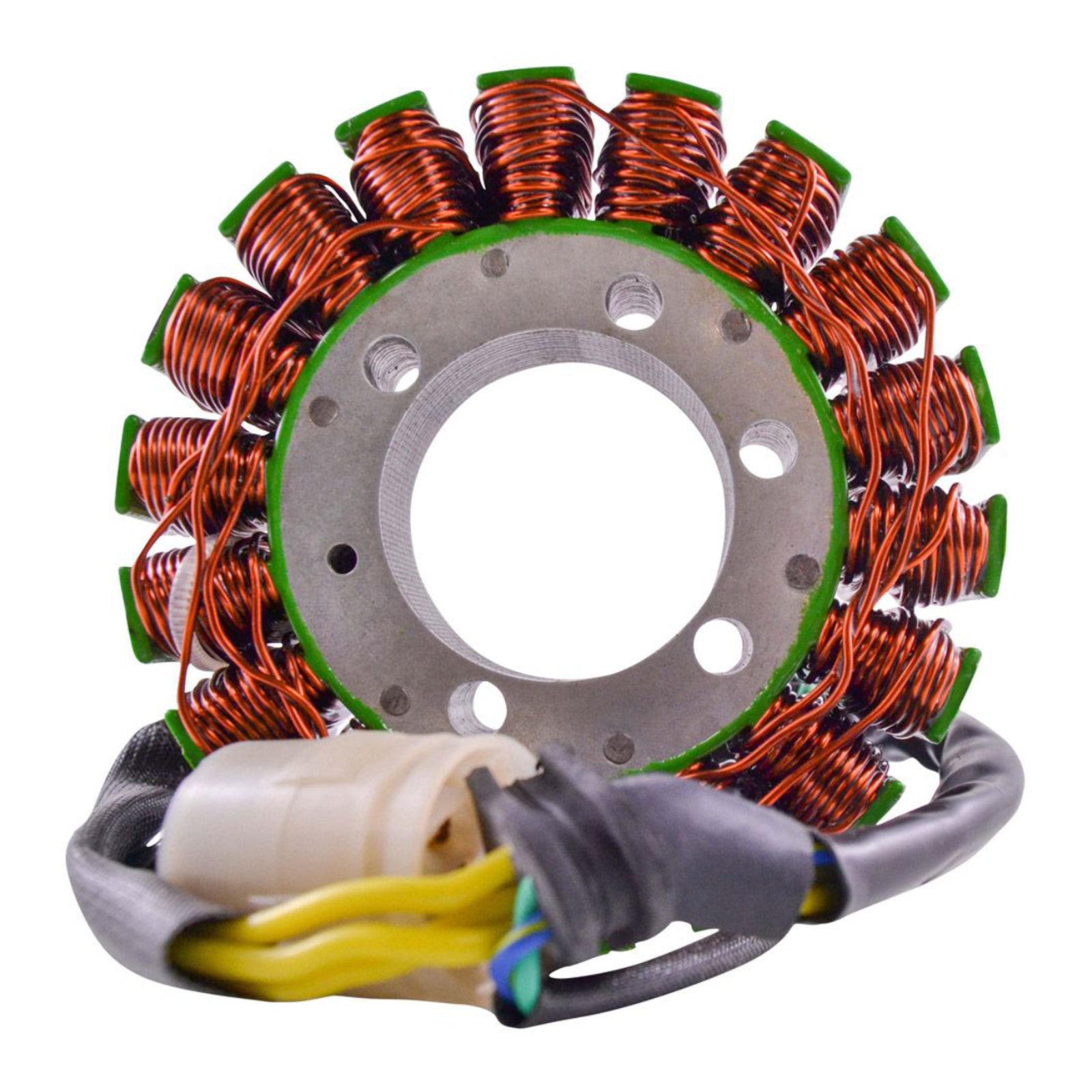

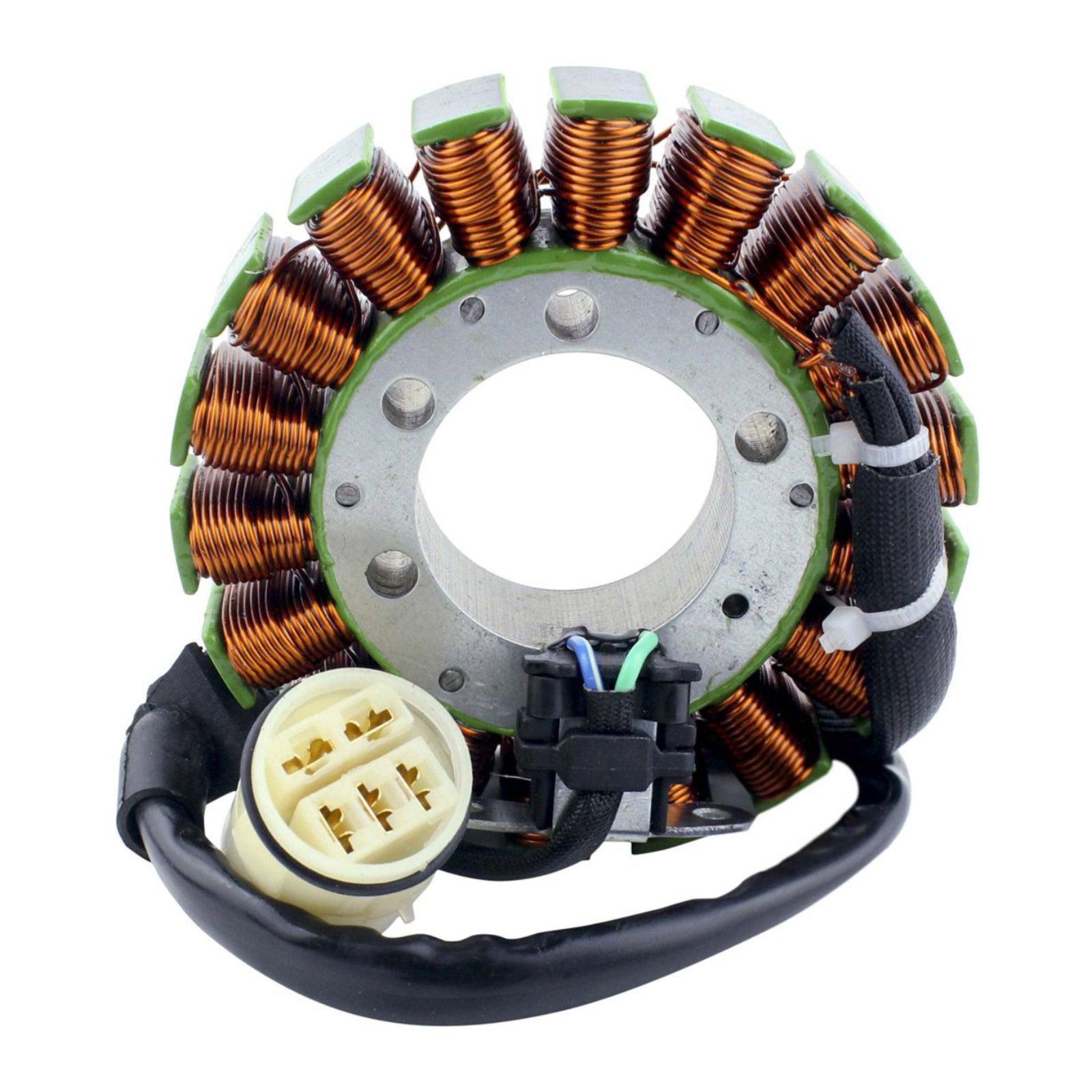

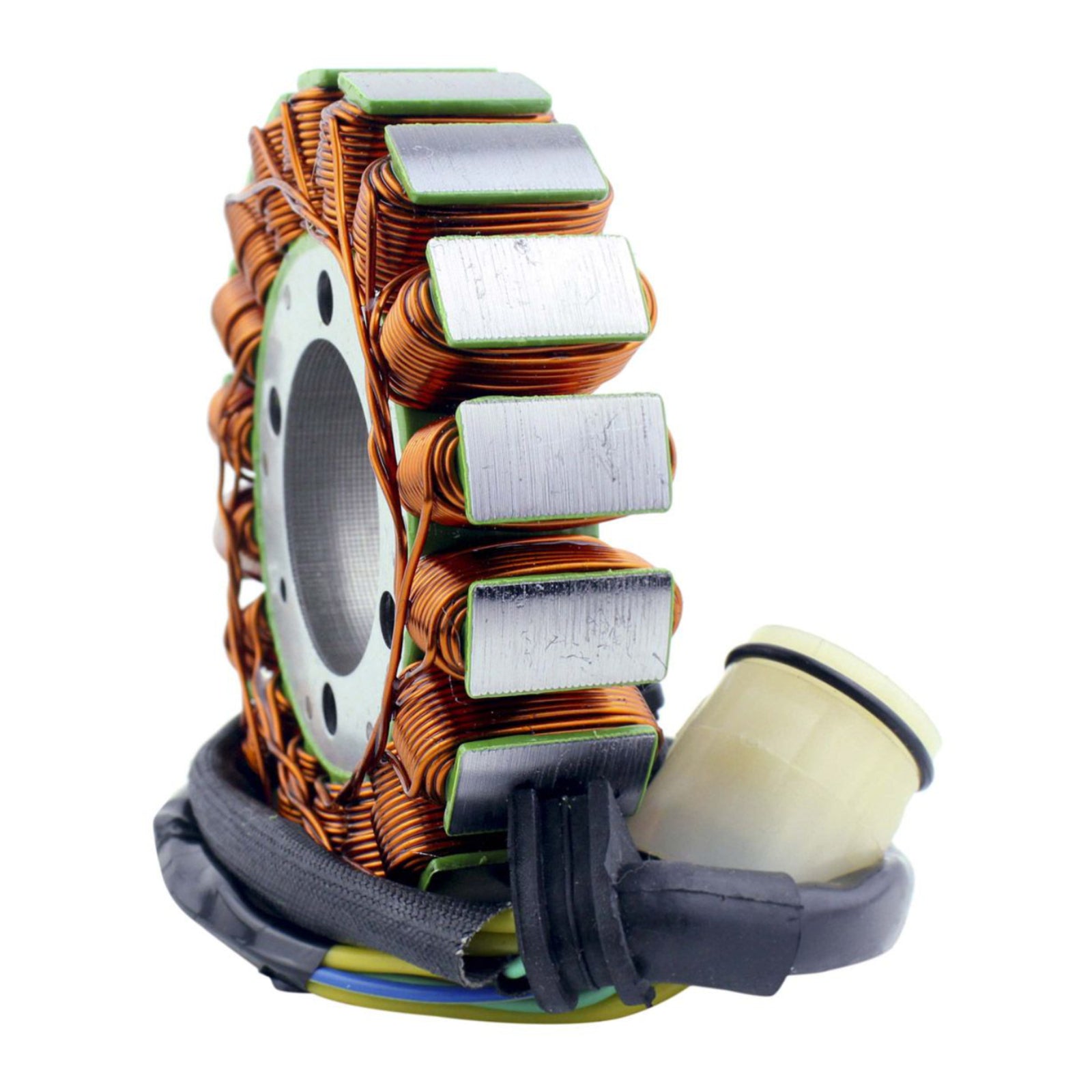

Stator Honda TRX500FE/FM/FPE/FPM '12-'13 (RM01154)
- Sale price
- $406.99
- Regular price
-
- Regular price
- $406.99
- Unit price
- per
Button-up shirt sleeves and a relaxed silhouette. It’s tailored with drapey, crinkle-texture fabric that’s made from TEAM90DEGREE™ LTD™ Viscose — responsibly sourced wood-based fibres produced through a process that reduces impact on forests, biodiversity and water supply.
Guaranteed safe checkout
Couldn't load pickup availability
Estimate delivery: 12-26 days (International), 3-6 days (United States).
🔥 30 sold in the last 18 hours
Product Description
Product Description
Plug-and-play replacement generator stator from RM Stator.
Dimensions:
- Interior diameter: 41mm
- Exterior diameter: 107mm
- Thickness: 21mm
- Harness Length — stator to grommet: 130mm
- Harness Length — grommet to plug: 270mm
- Pick-up coil wire length — coil to grommet: 70mm
Other specifications:
- Number of wires: 5
- Number of plugs: 1
- Number of terminals: 5
- Wire to wire resistance:
- Alternator: Yellow to Yellow = 0.4 ohms +-20%
- Pick-up 1 resistance: Blue/Yellow to Green = 239 ohms +-20%
Details:
- < li>Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

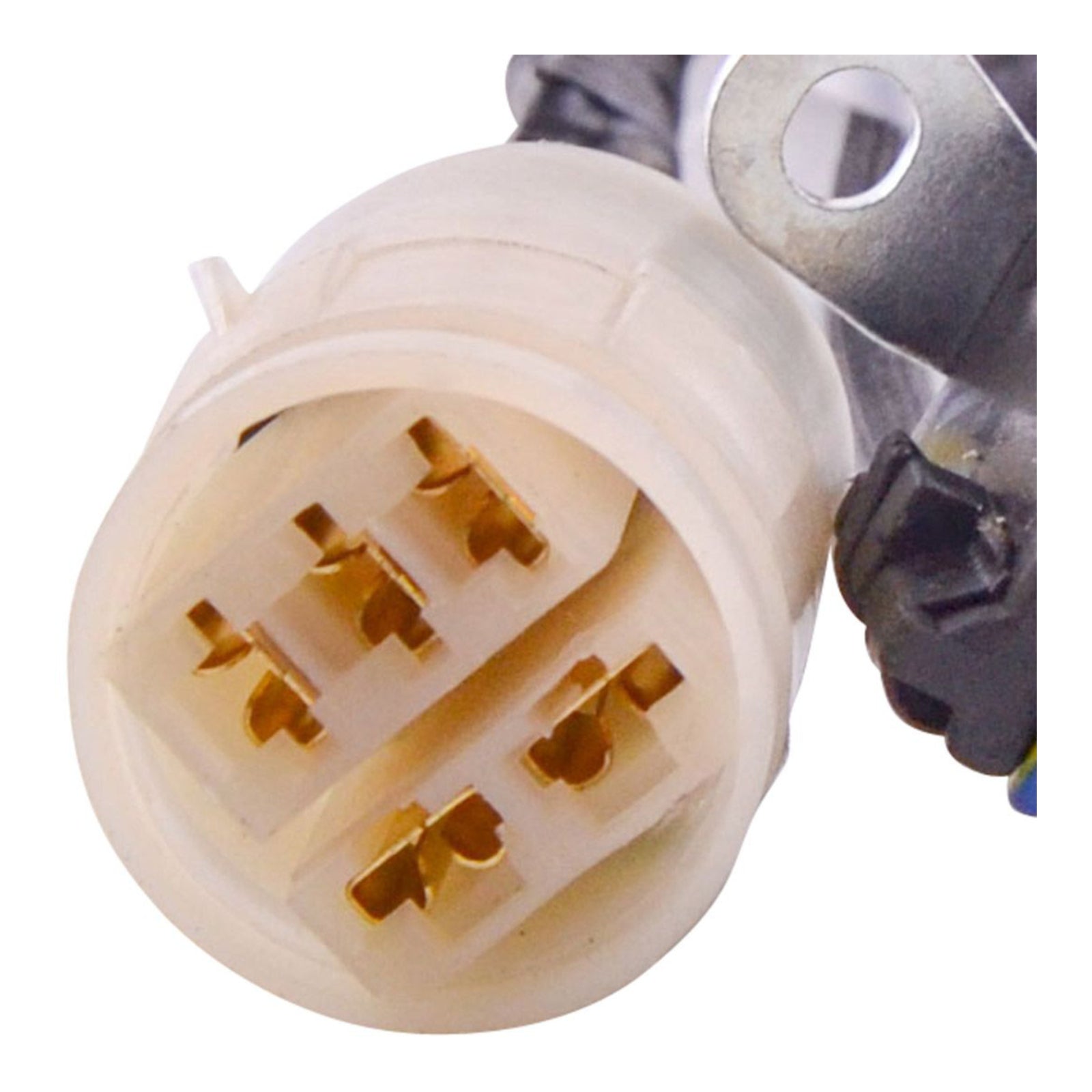

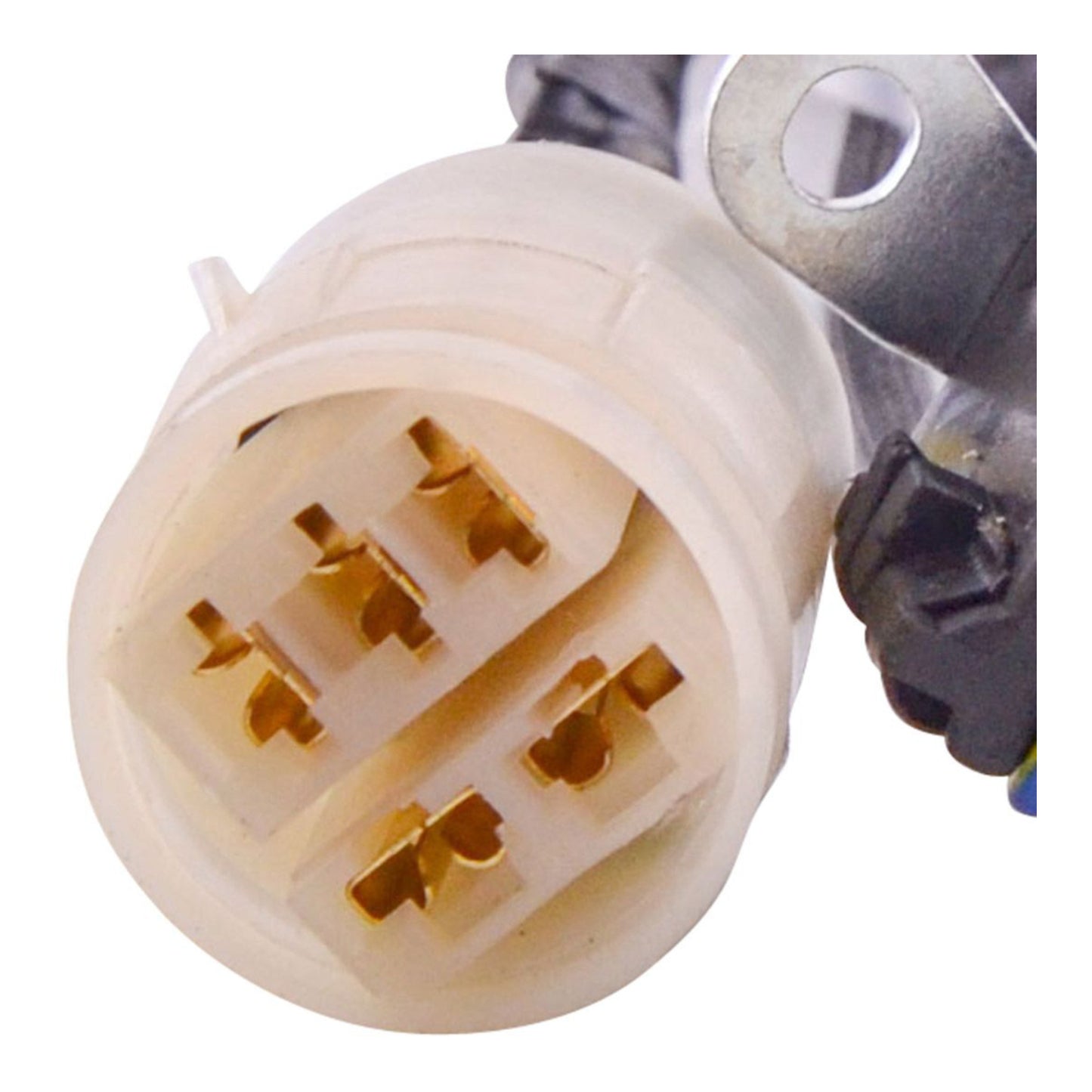

- Connector included
- Rubber grommet included
- Pick-up coil included
- All products shipped are tested
