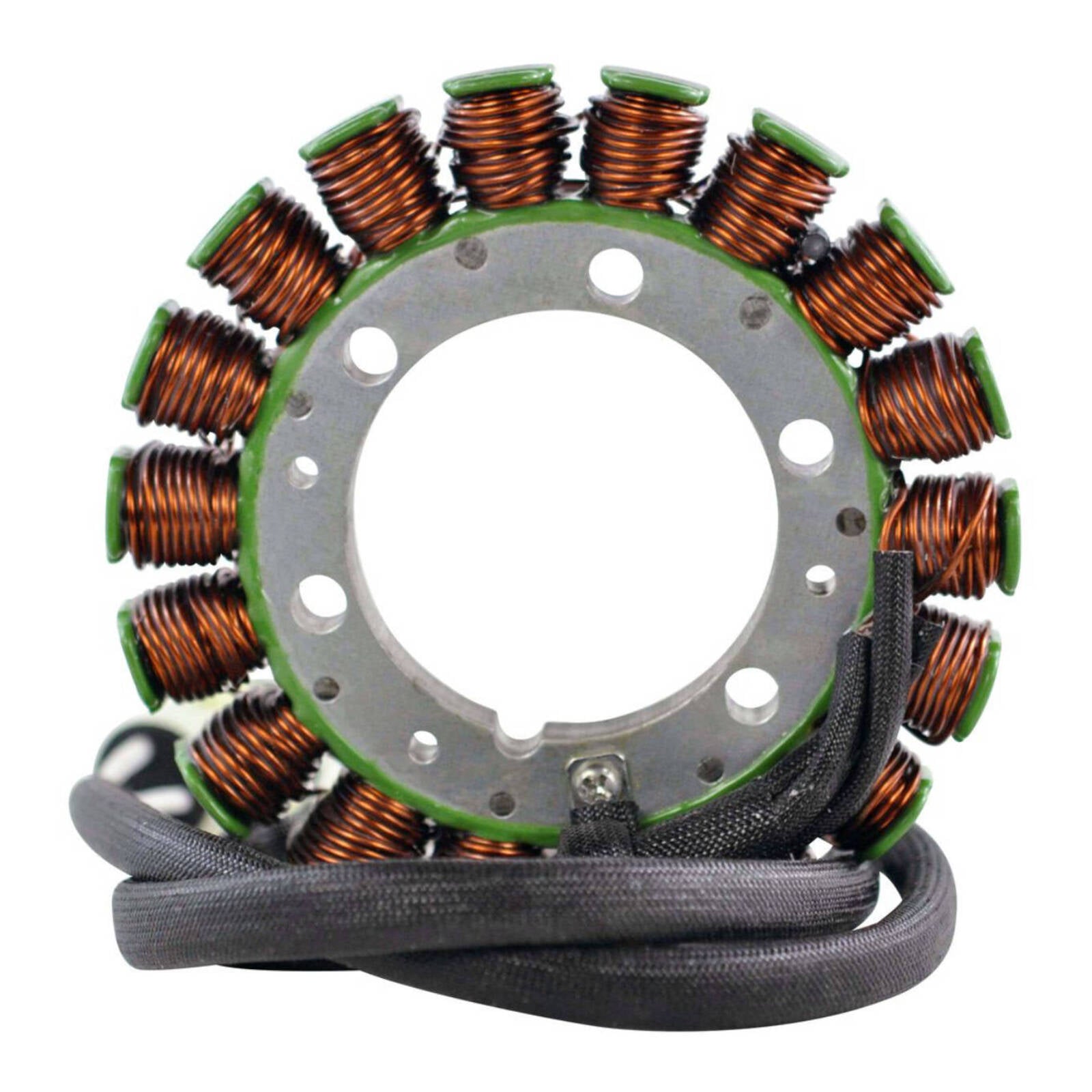

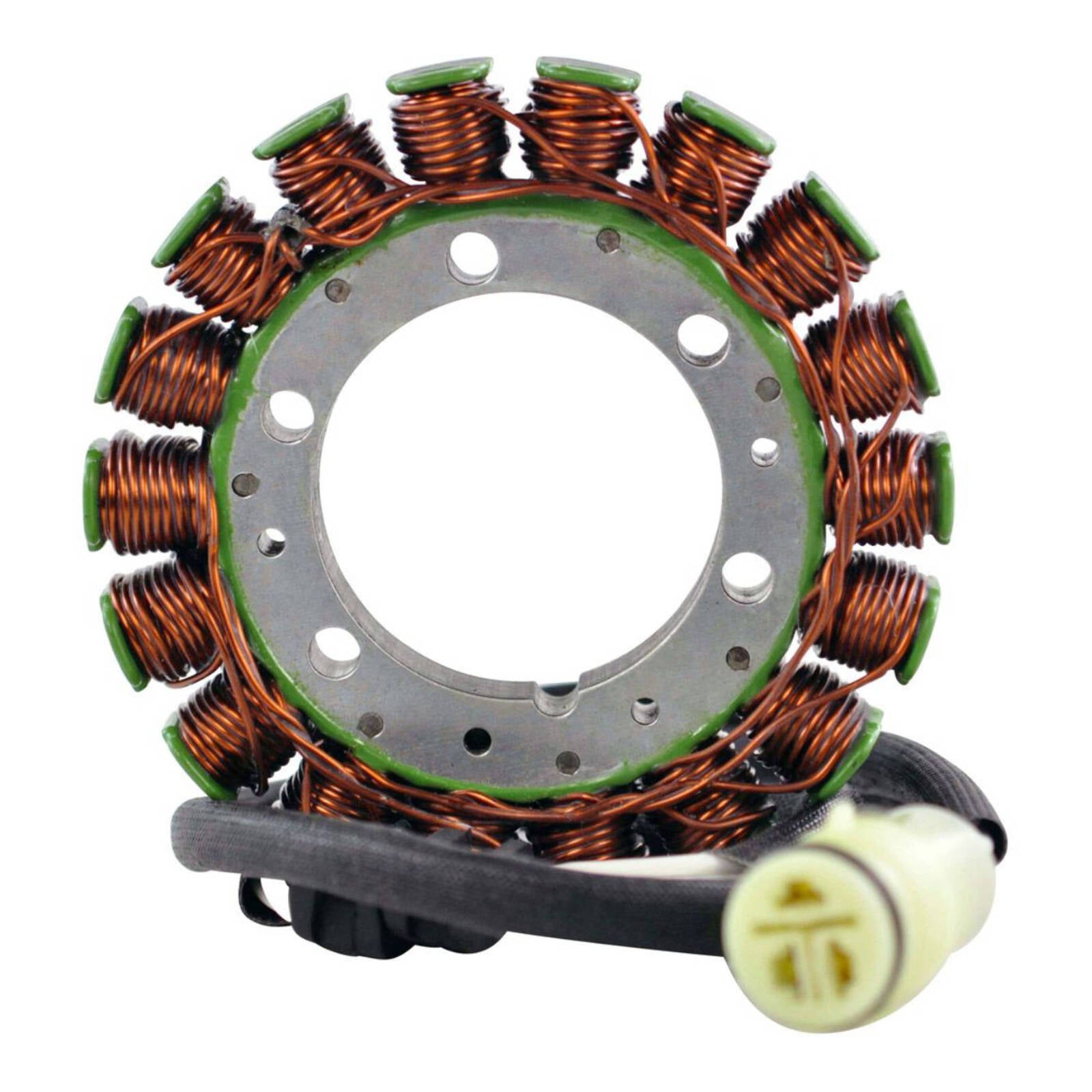

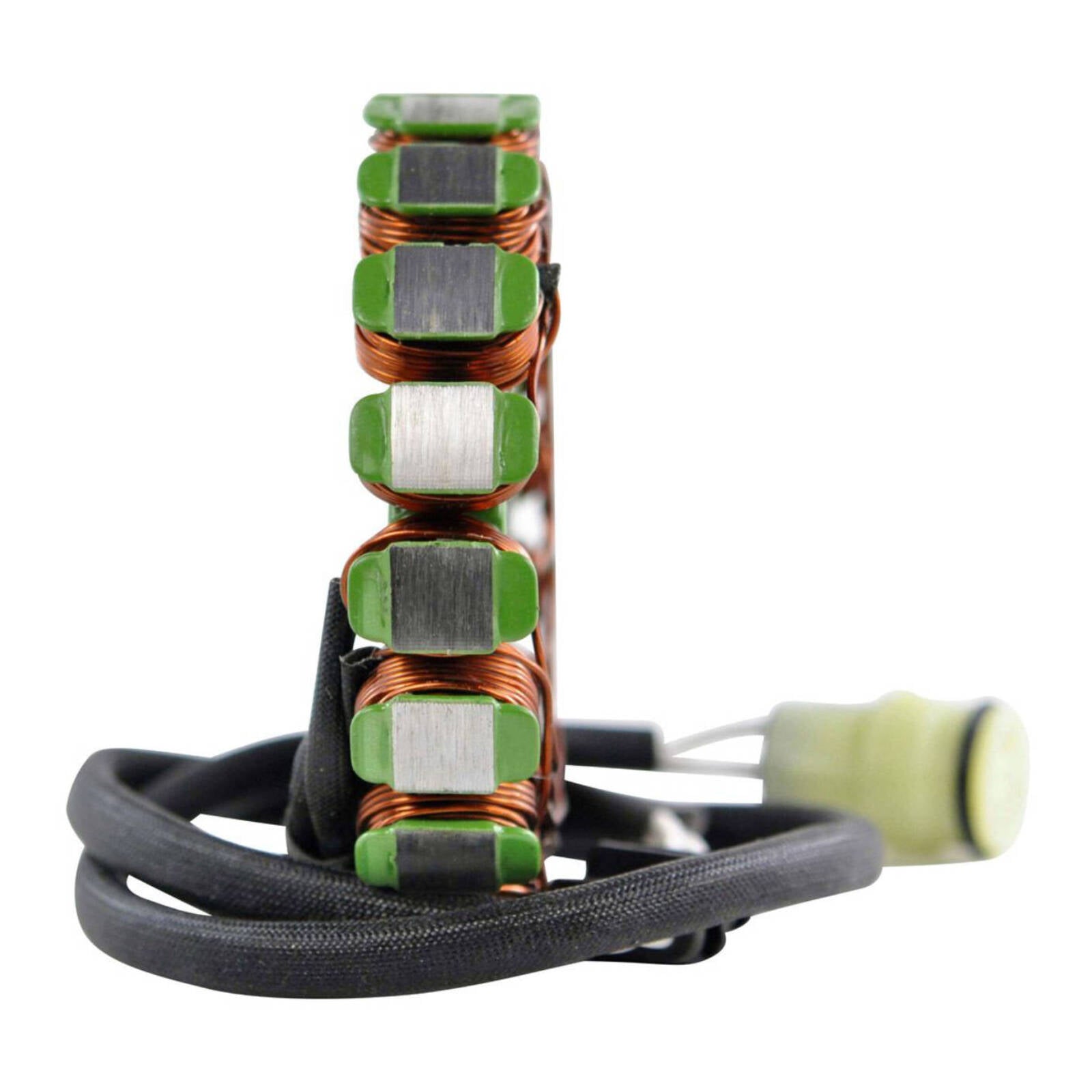

High Output Stator Kawasaki KVF360/400 Prairie '99-'12 (RM01074)

Plug-and-play, high output replacement stator from RM Stator.

Dimensions:

• Interior diameter: 53mm
• Exterior diameter: 115mm
• Thickness: 14mm
• Length of wires — stator to grommet: 90mm
• Length of wires — grommet to plug: 500mm

Other specifications:

• Number of wires: 3
• Number of plugs: 1
• Number of pins: 3
• Wire to wire resistance:
  • Alternator: White to White = 0.4 ohms +-20%
  • Altnerator: White to Ground = O.L on Display

Details:

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius

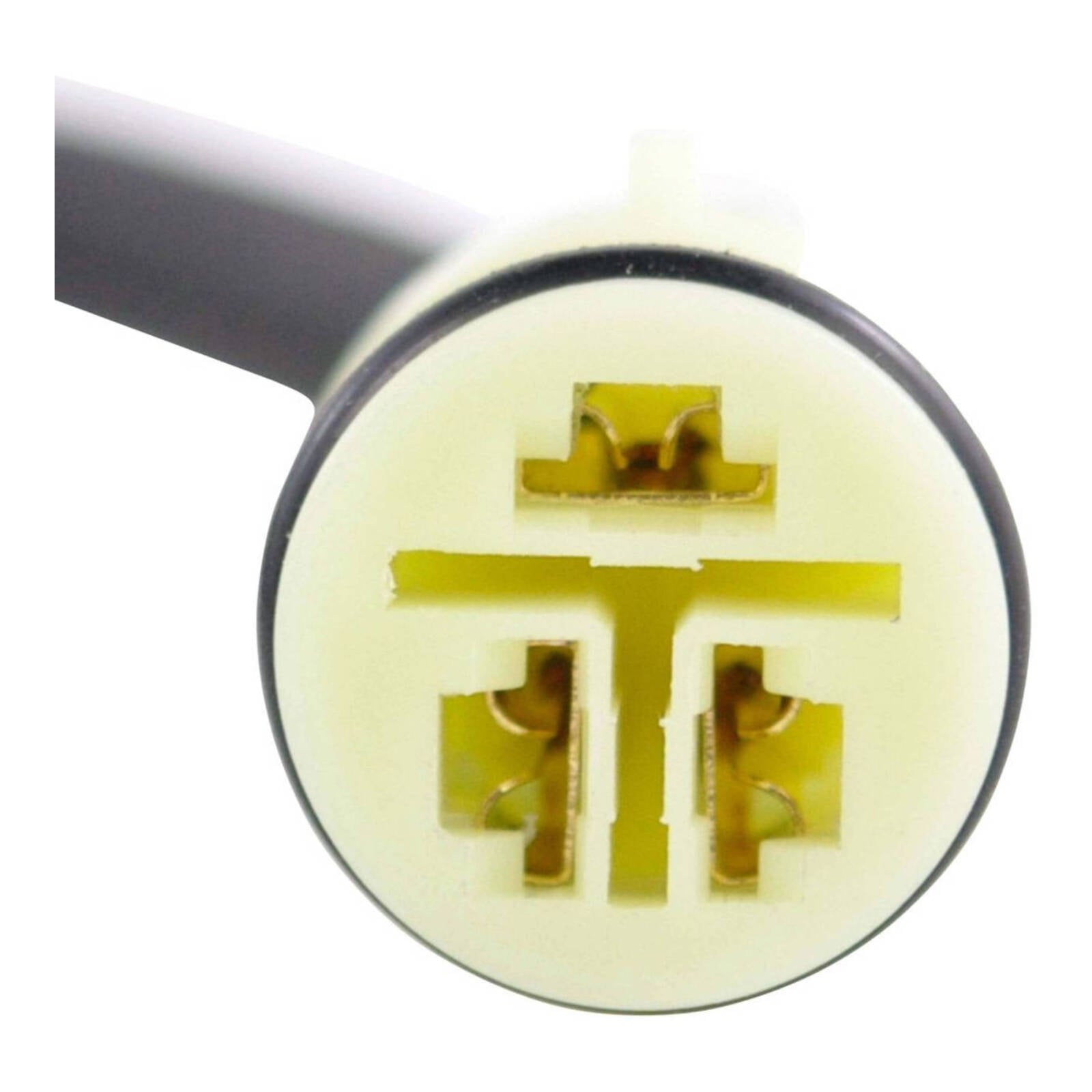

• Connector included
• Includes the opposite connector (main harness side) as these are often melted/corroded/defective and a major cause for repetitive electrical issues
• Rubber grommet included
• All products shipped are tested
