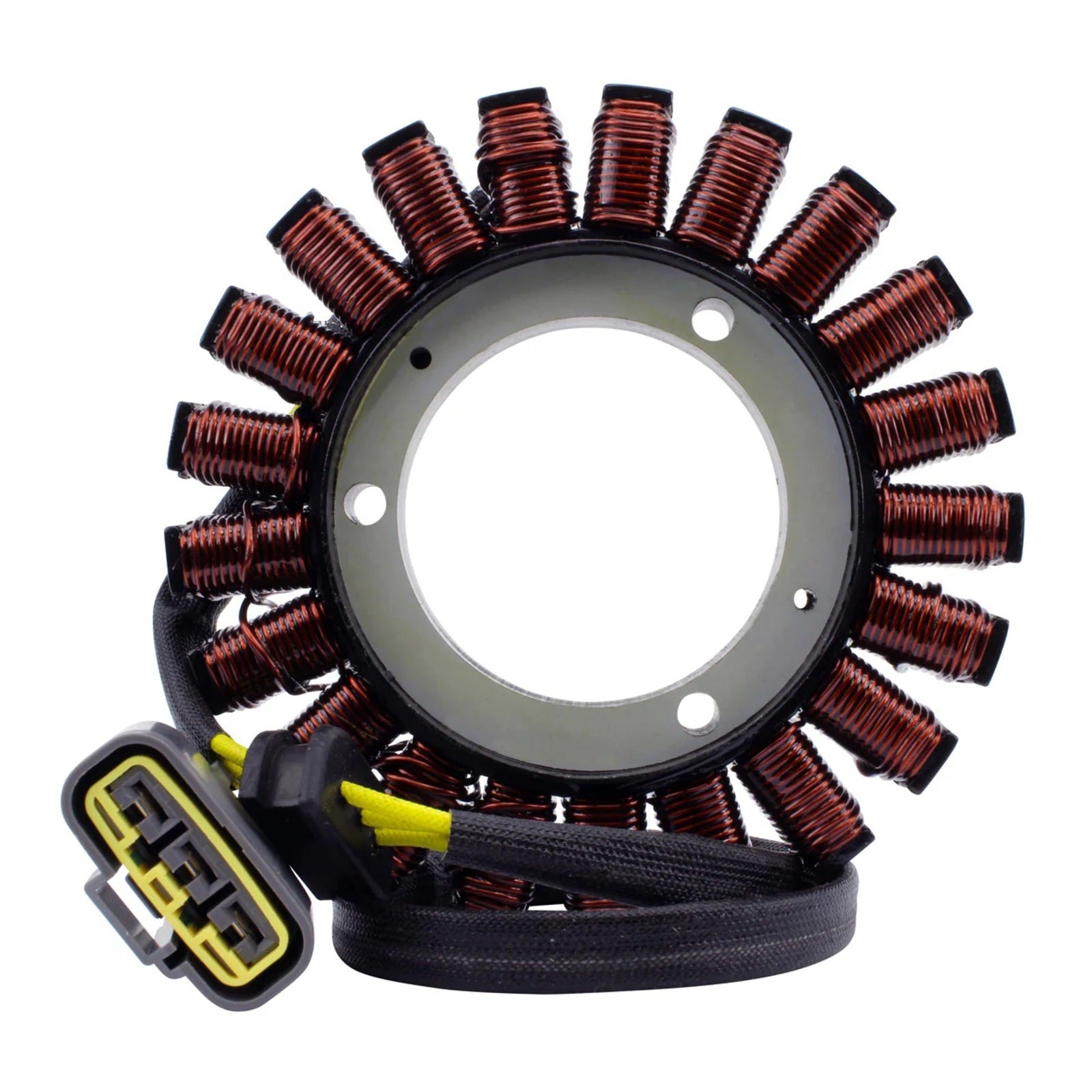

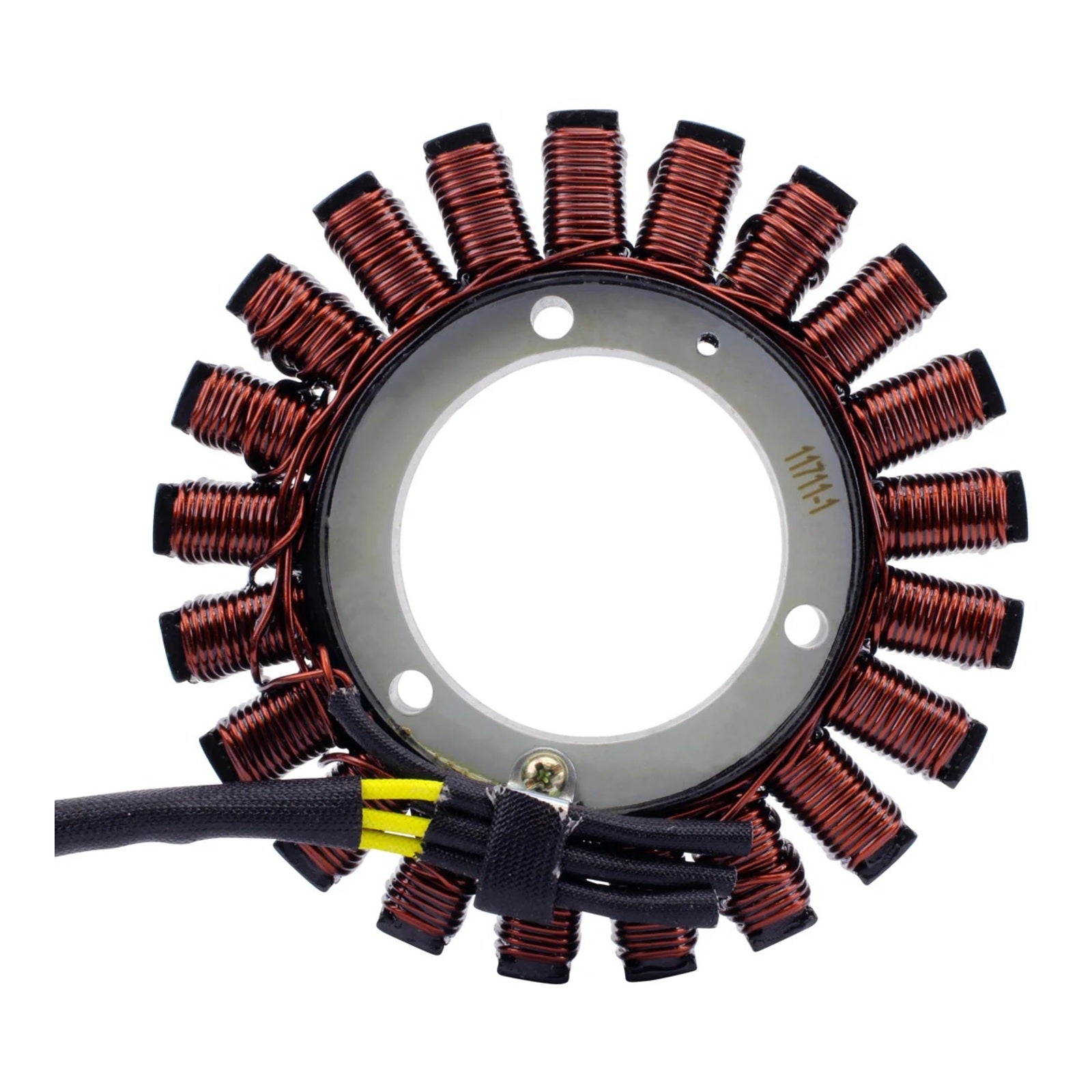

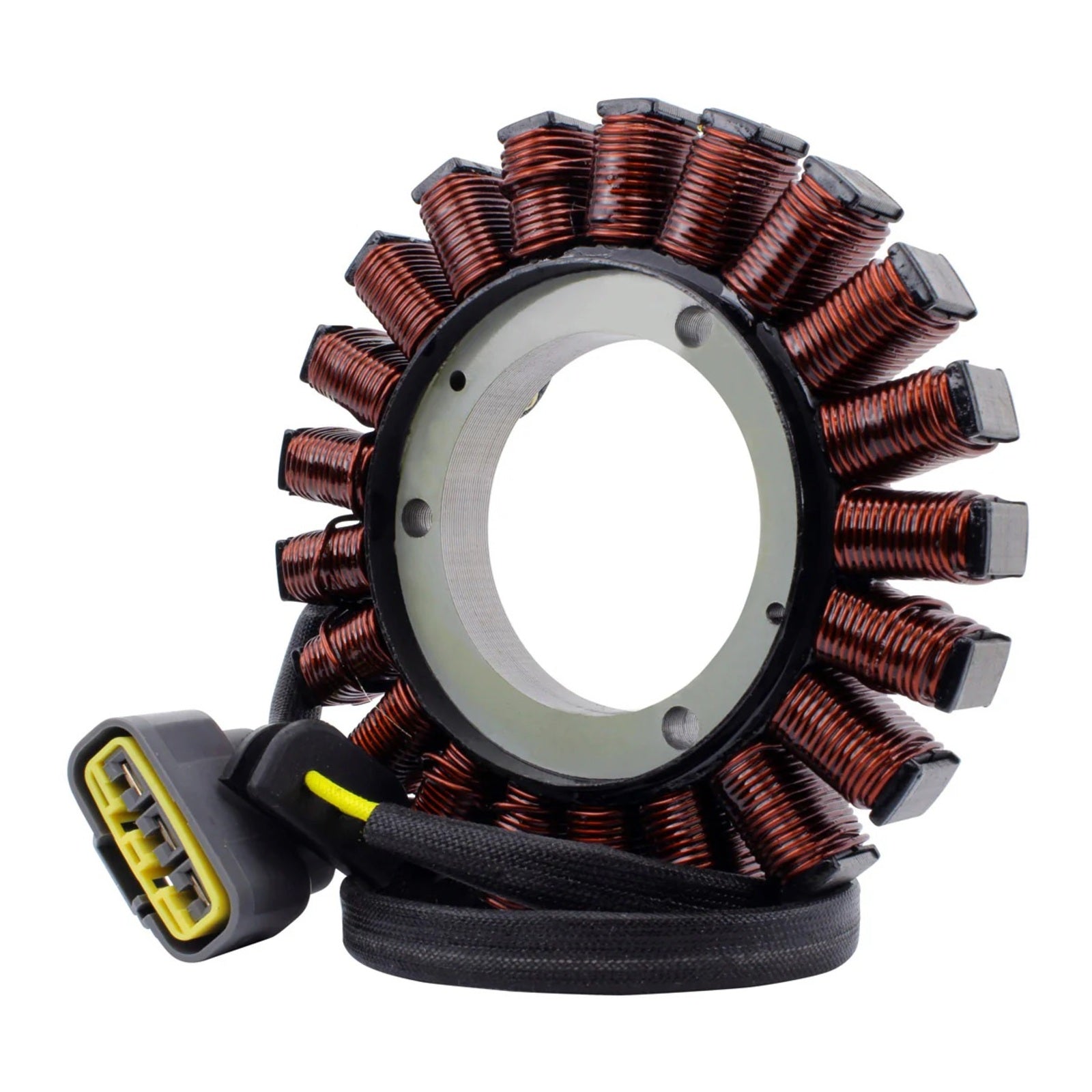

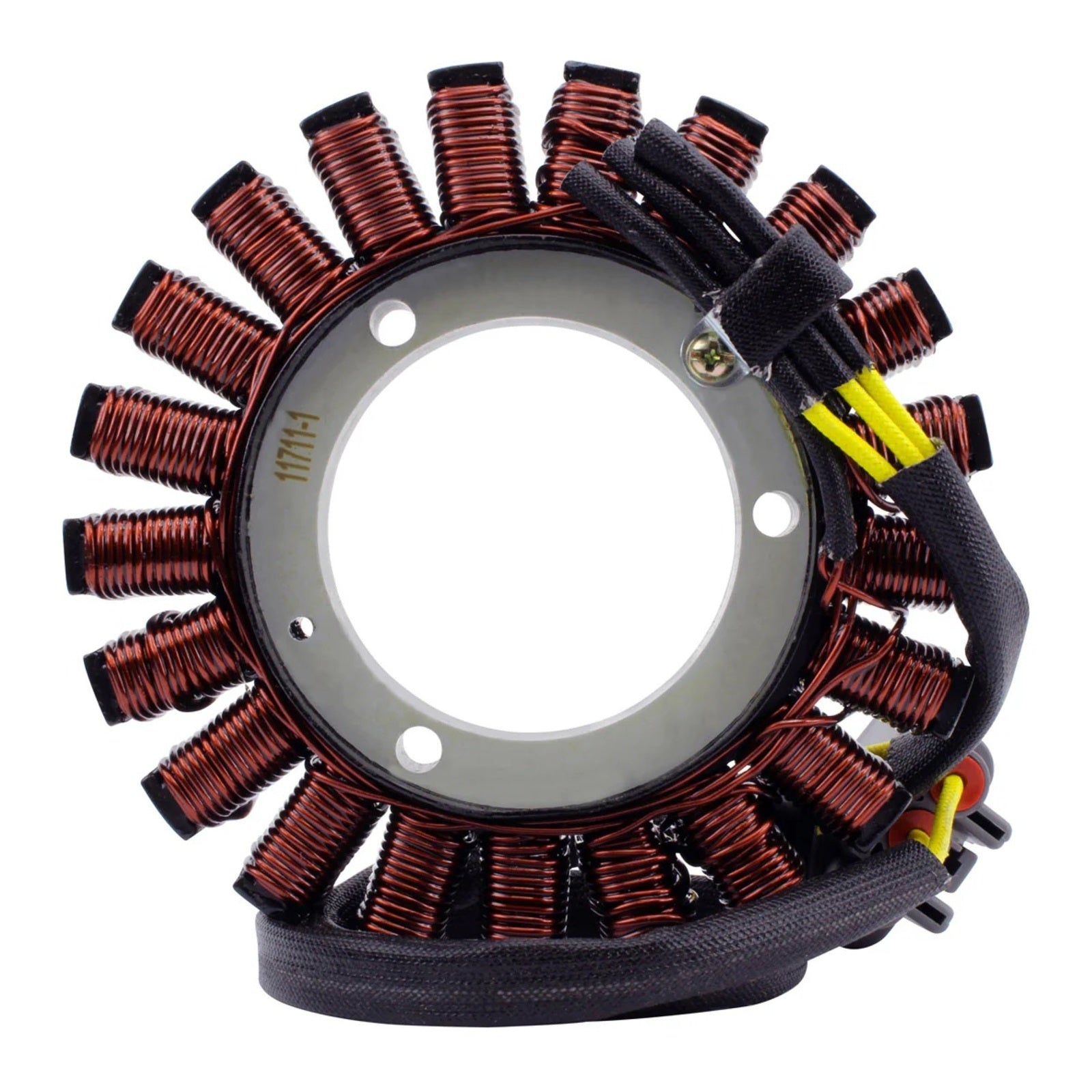

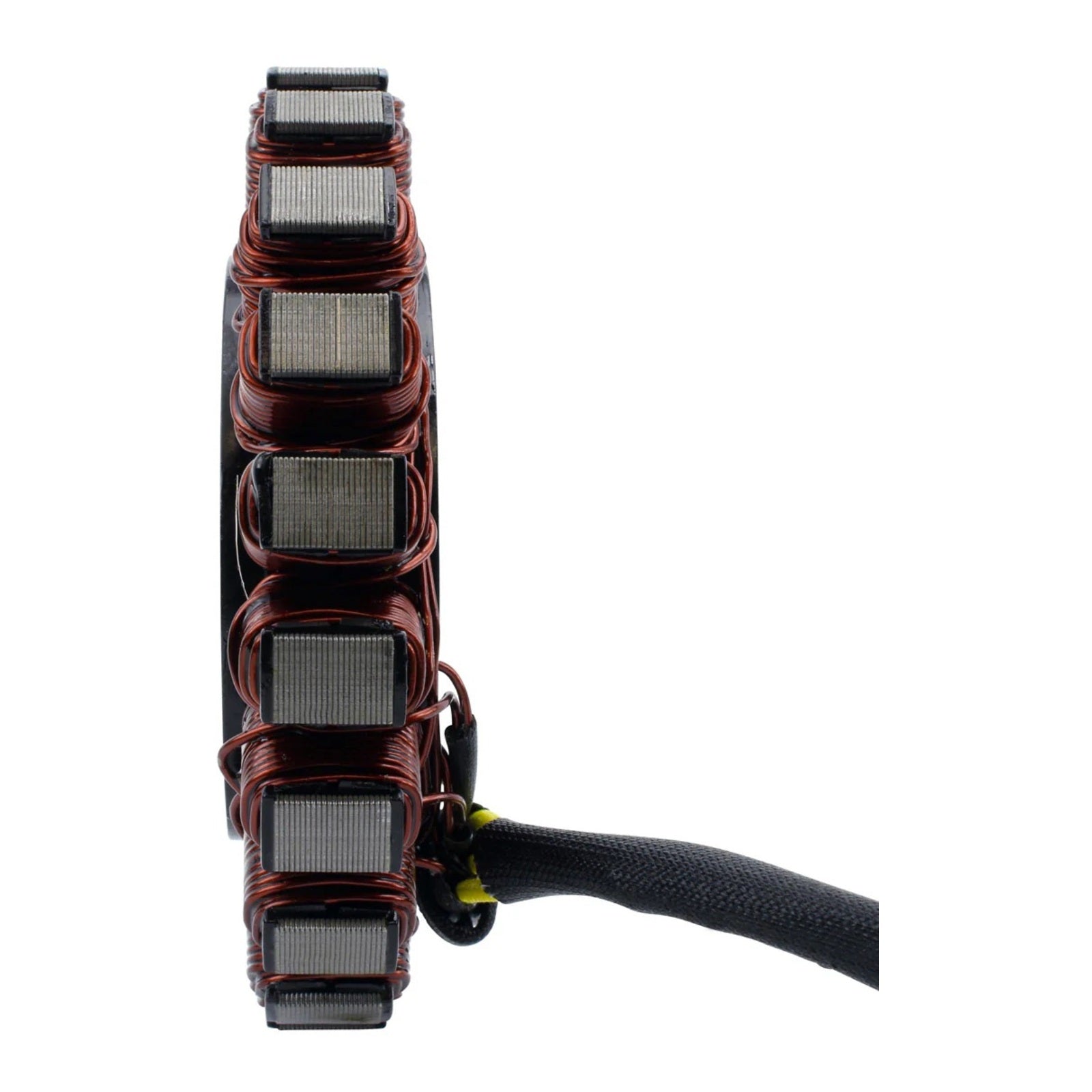

Stator BMW R1200 Models '12-'18 (RMS010-105024)

Sale price: $662.99
Regular price
Regular price: $662.99
Unit price: per

Tax included. Shipping calculated at checkout.

Button-up shirt sleeves and a relaxed silhouette. It’s tailored with drapey, crinkle-texture fabric that’s made from TEAM90DEGREE™ LTD™ Viscose — responsibly sourced wood-based fibres produced through a process that reduces impact on forests, biodiversity and water supply.

Product variants

Only 4 items in stock! Out of stock!

Quantity

Guaranteed safe checkout

Estimate delivery: 12-26 days (International), 3-6 days (United States).

🔥 30 sold in the last 18 hours

Product Description

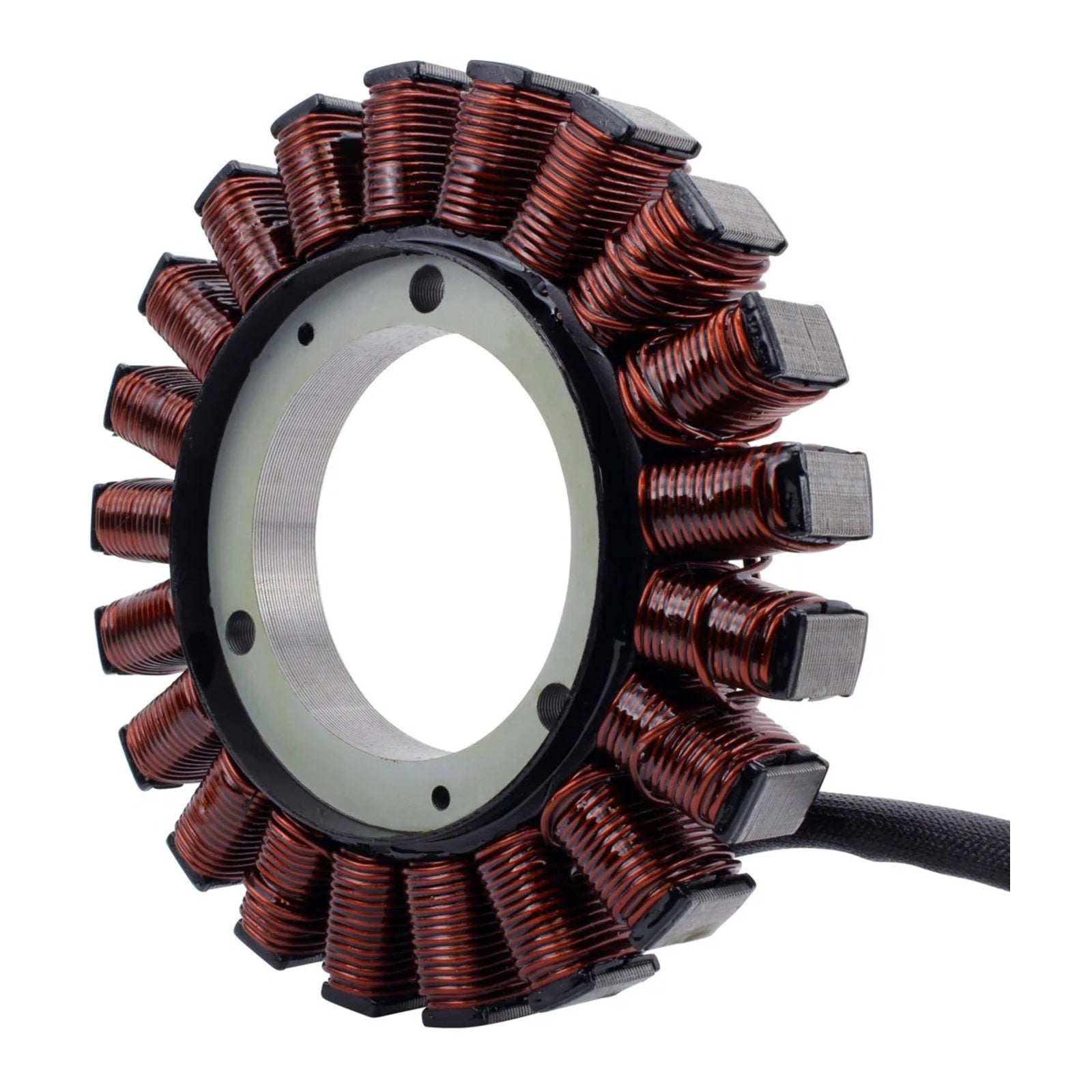

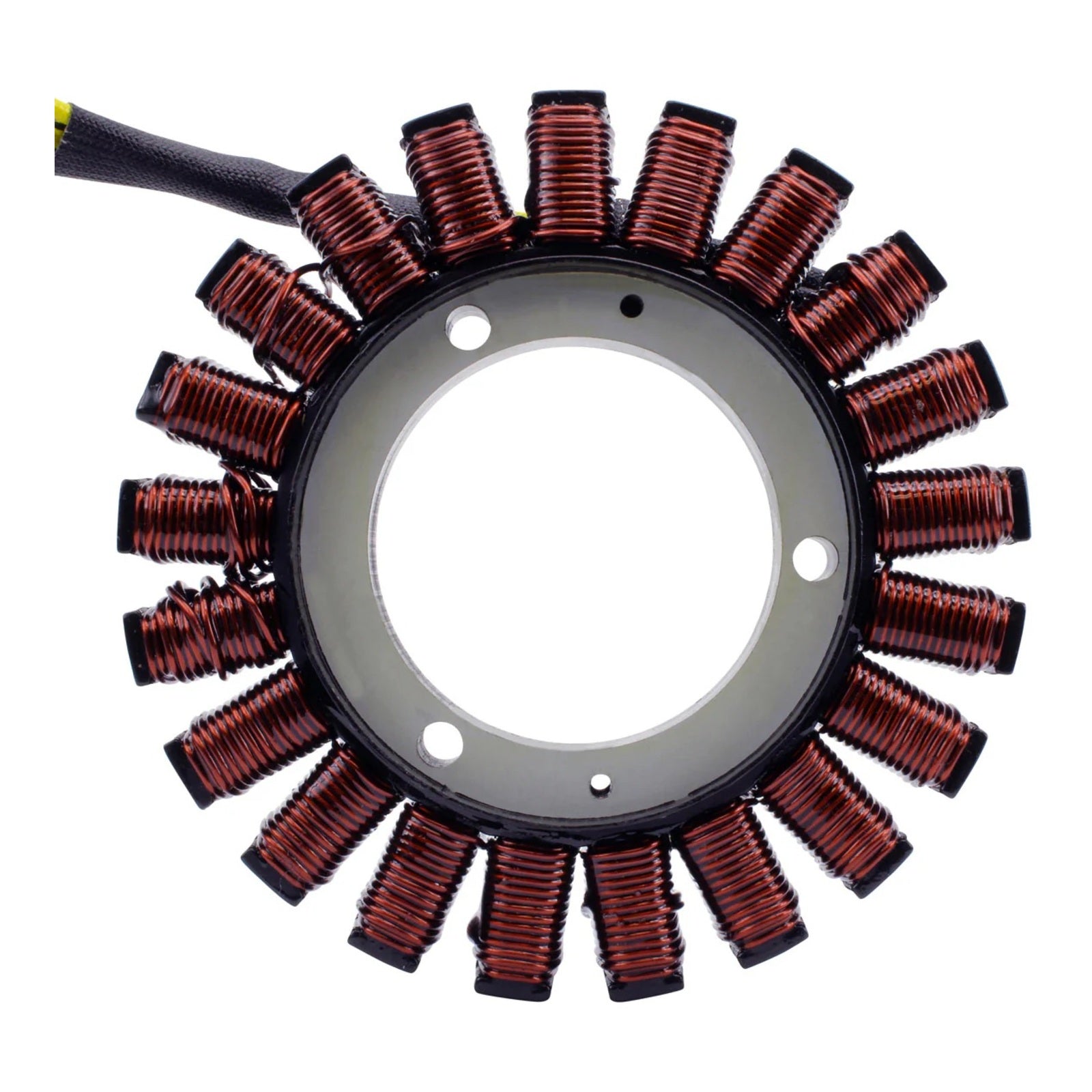

Brand new aftermarket Stator.

Features:

Direct replacement of your original unit.
Plug-and-play, direct fit, easy installation.

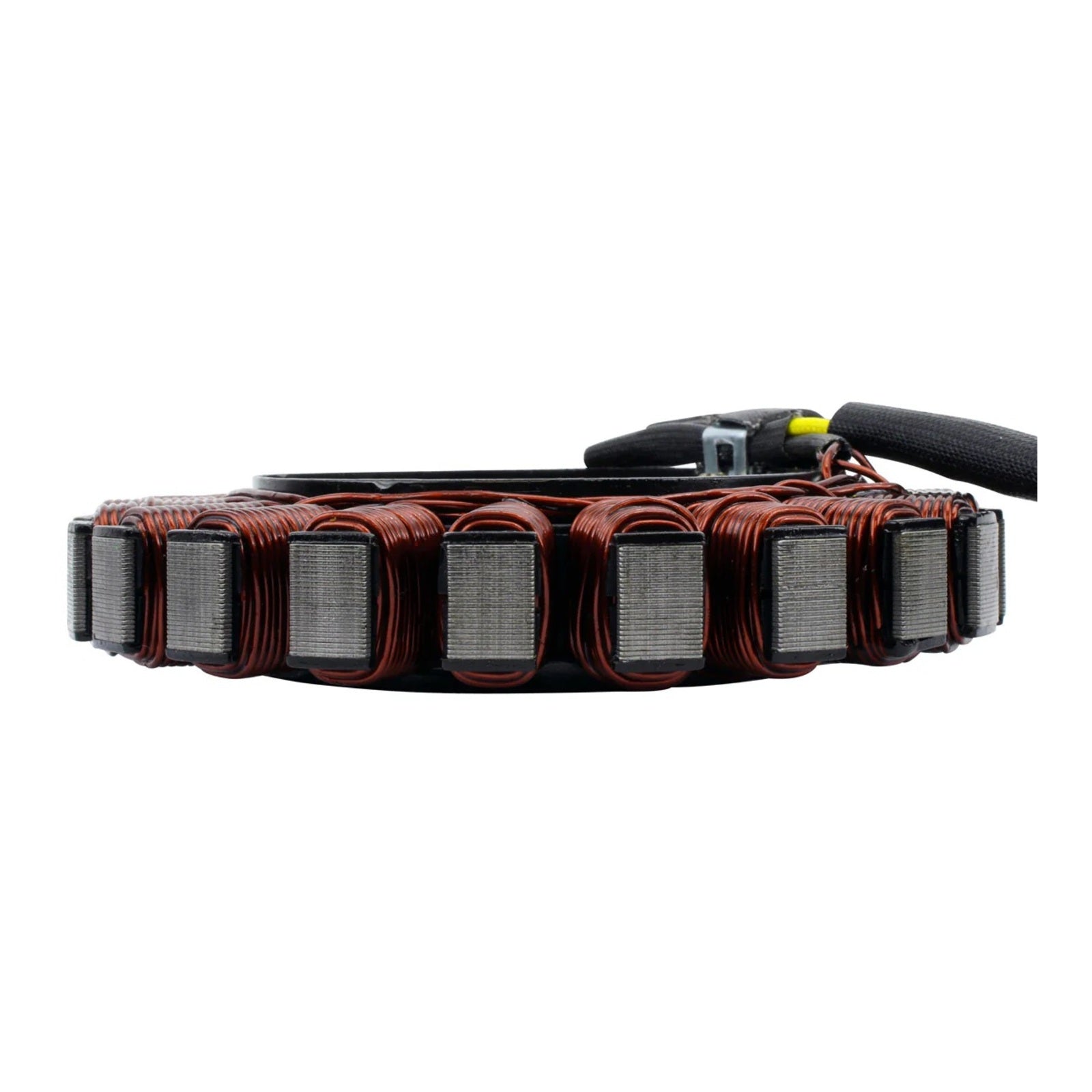

Highest grade of lamination materials.
Highest grade of copper winding, resistant to 200 degrees Celsius.

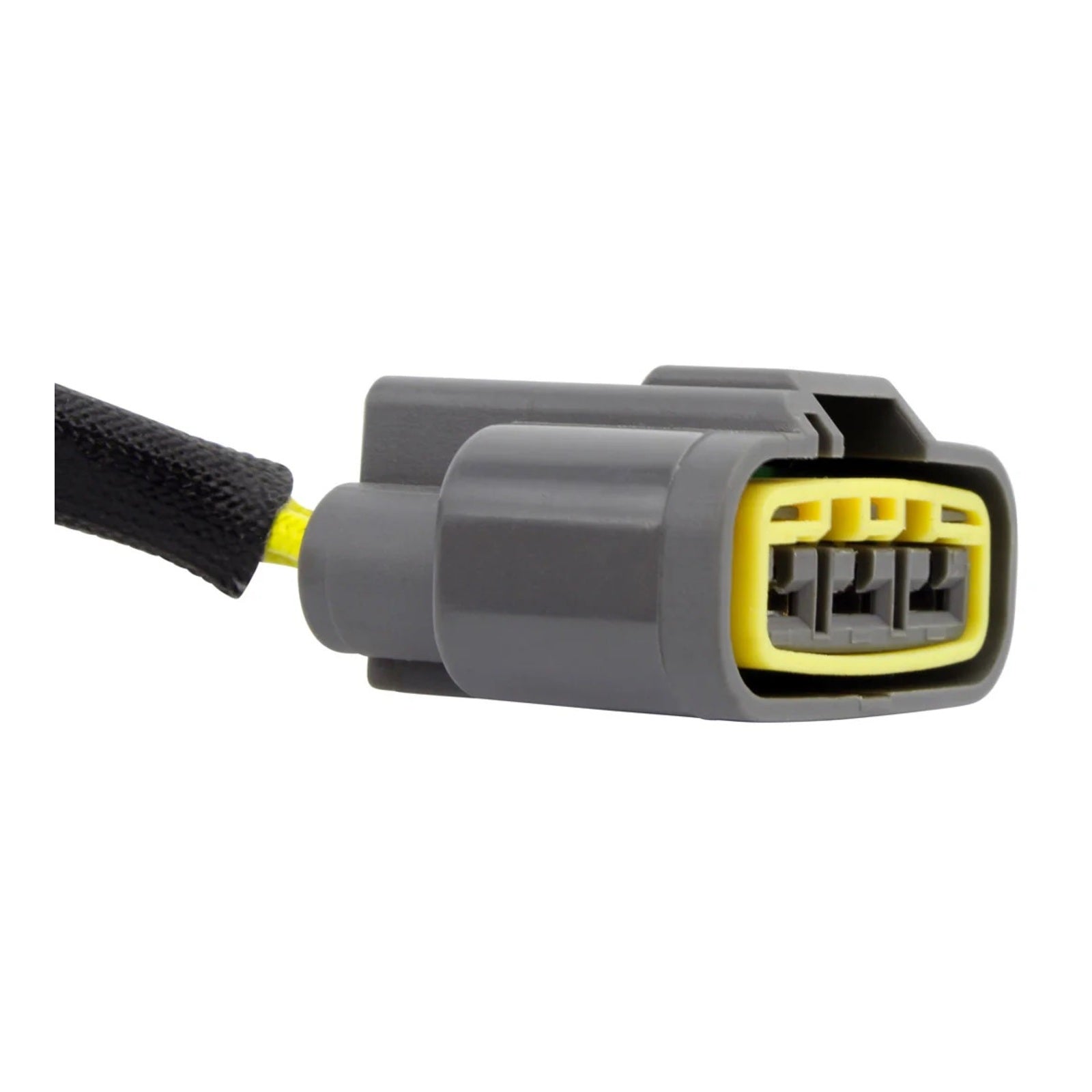

Connectors included.

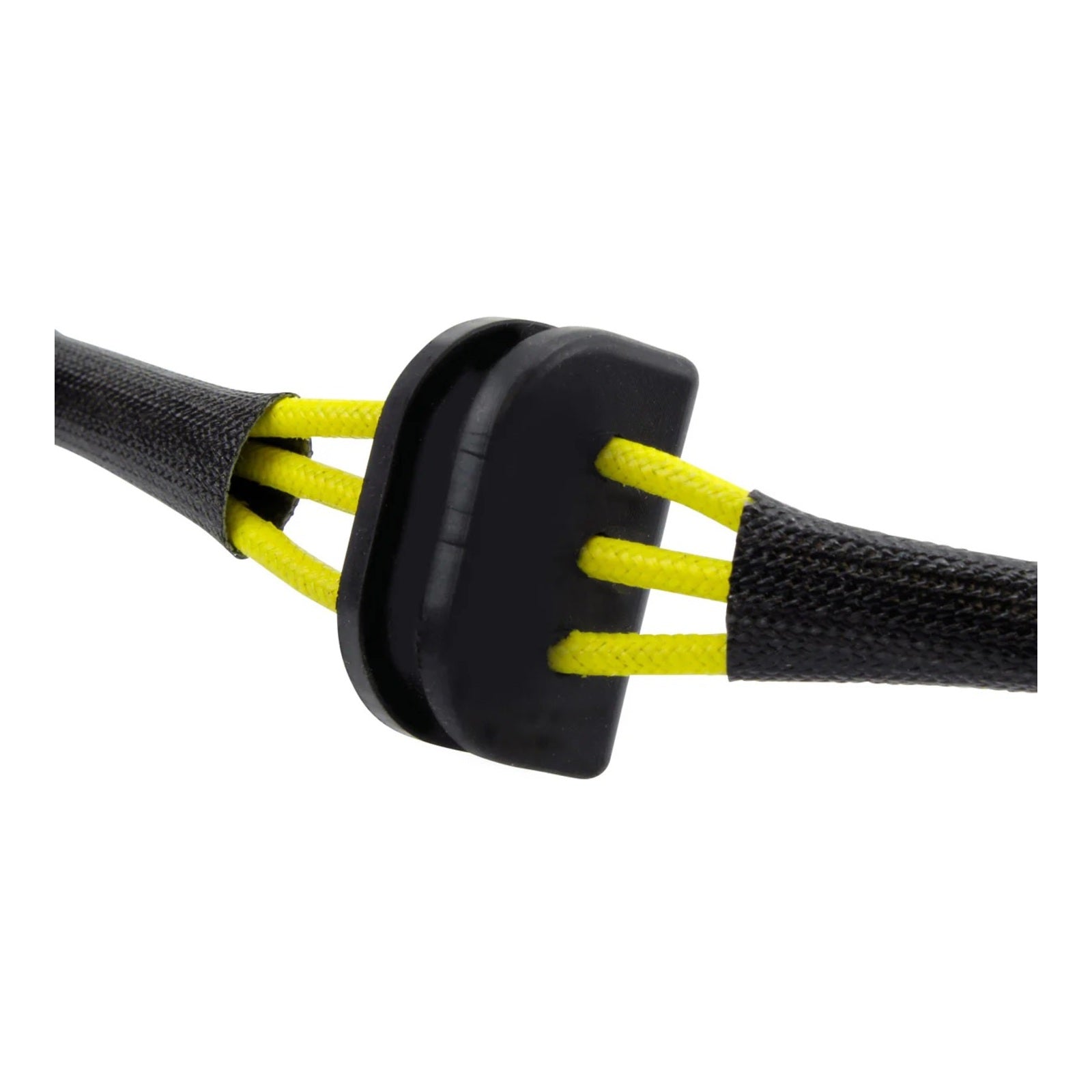

Rubber grommet included.
All products shipped are tested.

Specifications:

Dim ensions:
- Interior diameter: 60 mm
- Exterior diameter:133 mm
- Thickness: 18 mm
- Length of wires stator to grommet: 68 mm
- Length of wires grommet to plug: 470 mm
Other specifications:
- Number of wires: 3

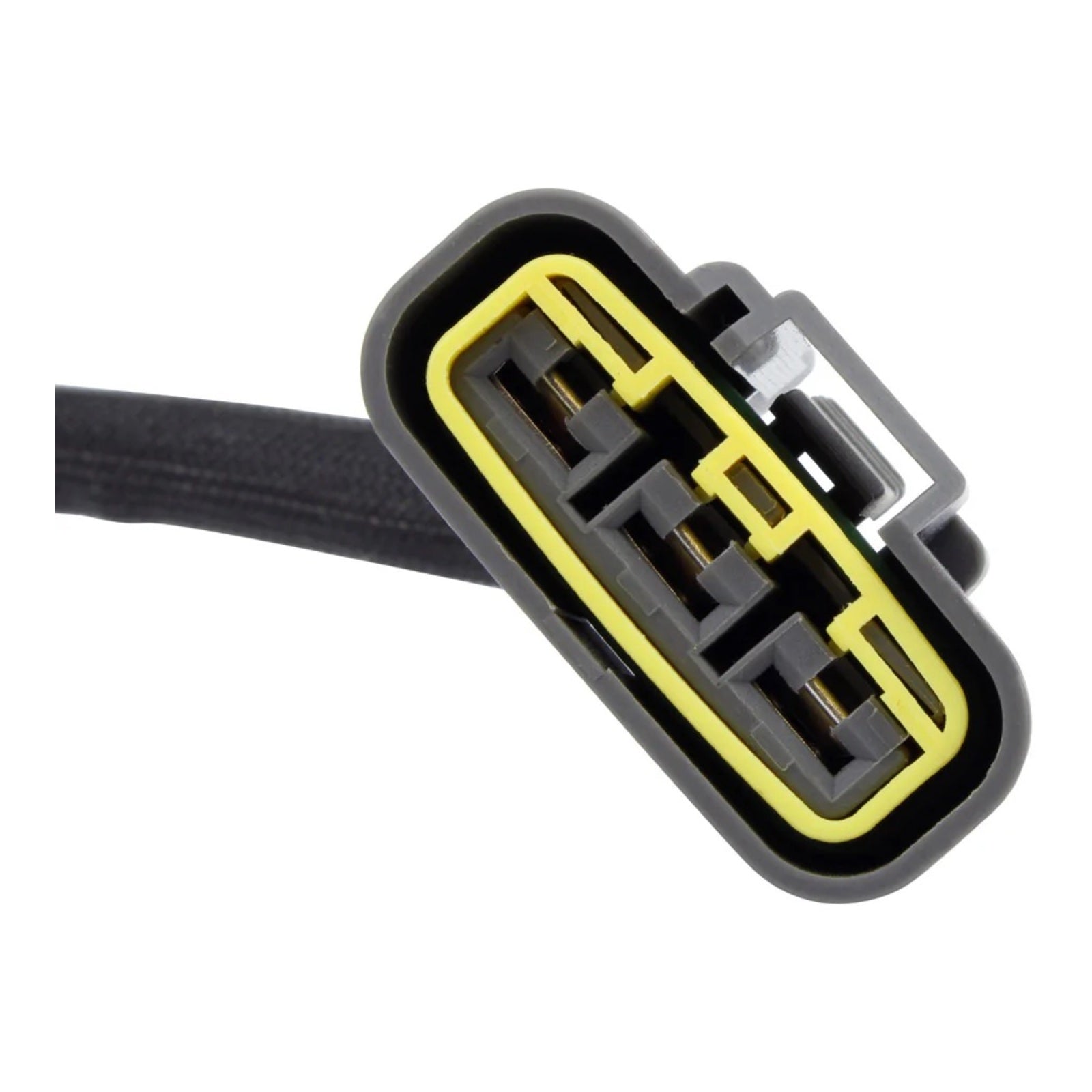

- Number of plugs: 1
- Number of pins: 3
- Number of poles: 21
Wire-to-wire resistance:
- Alternator 3p: Between each Yellow = 0.4 ohms +-20%
