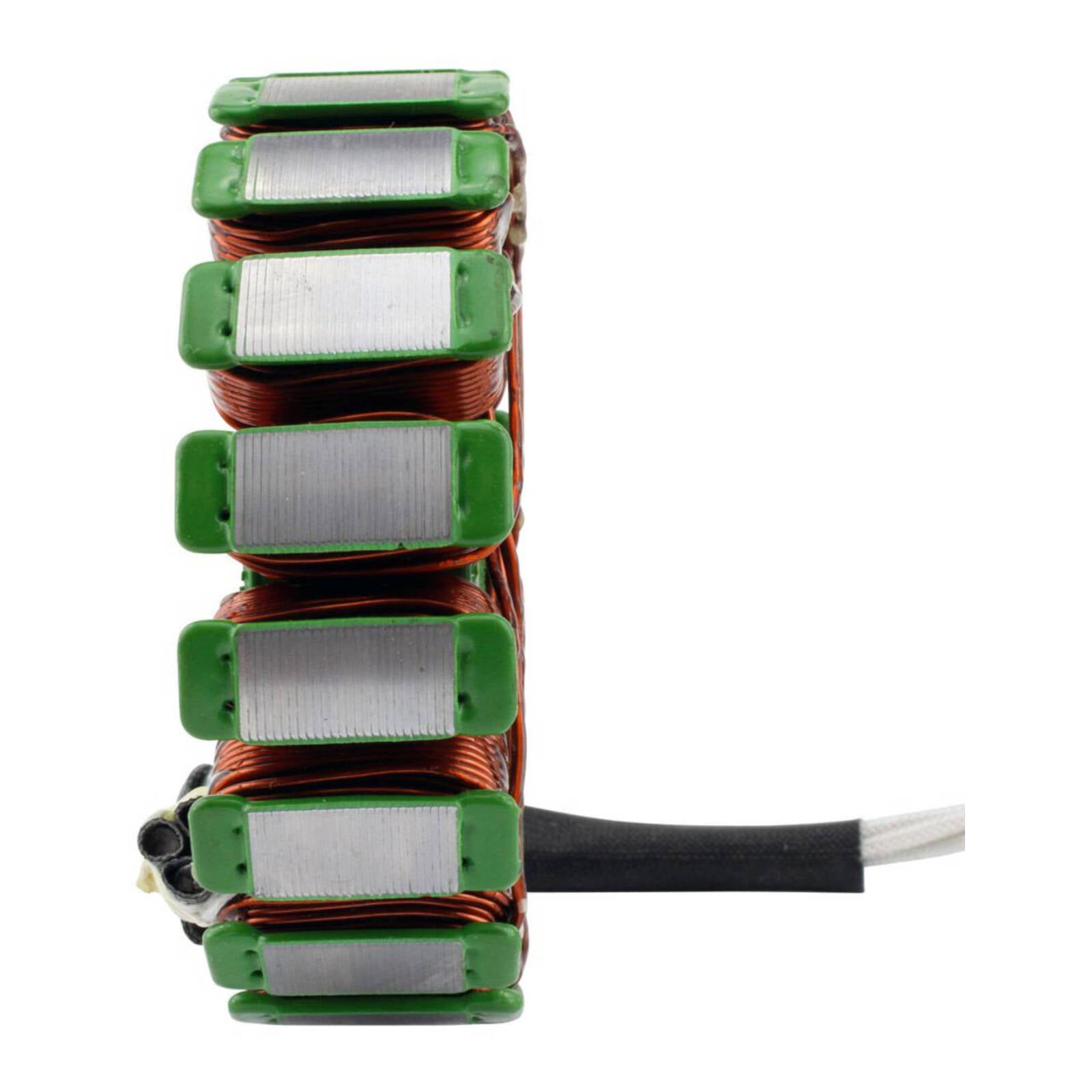

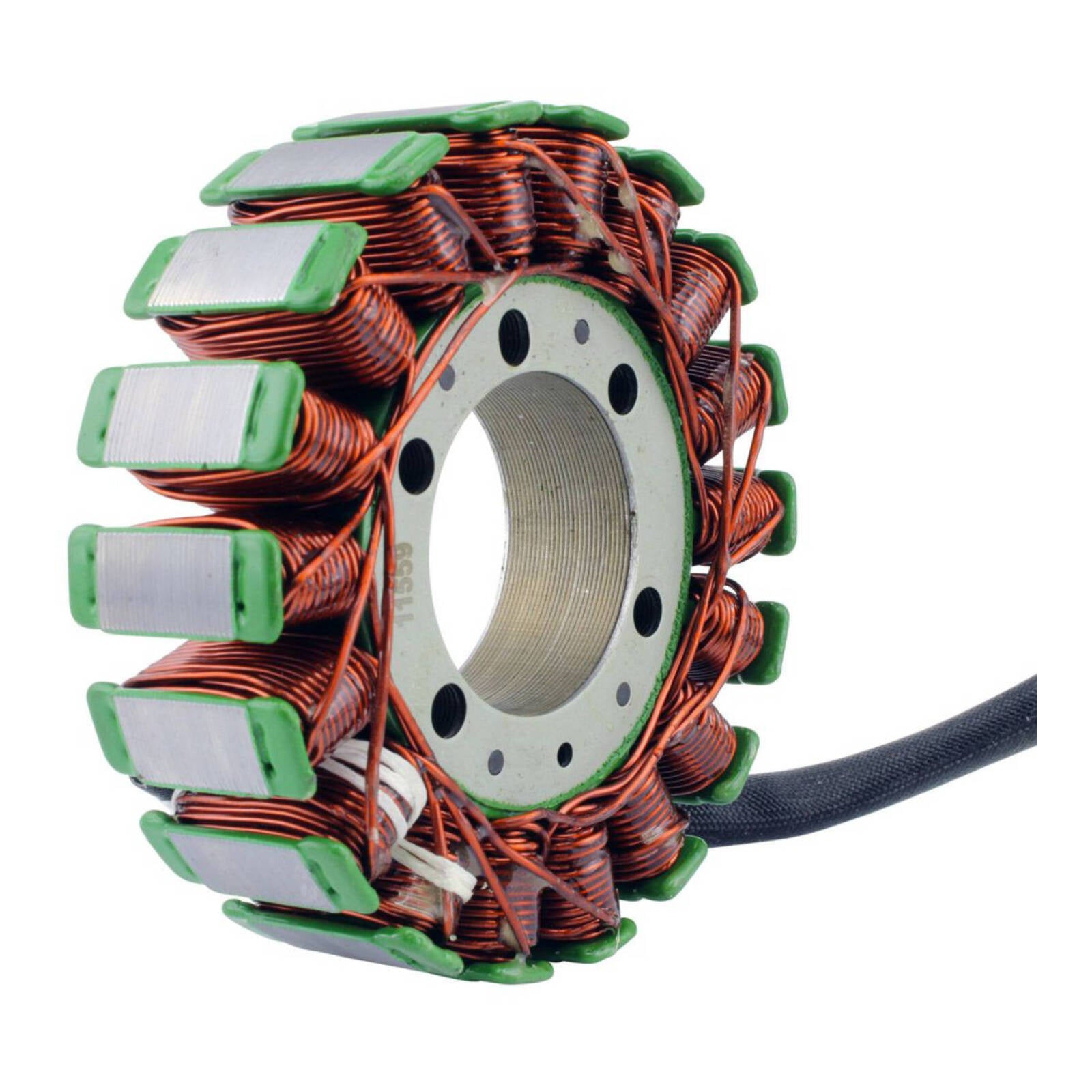

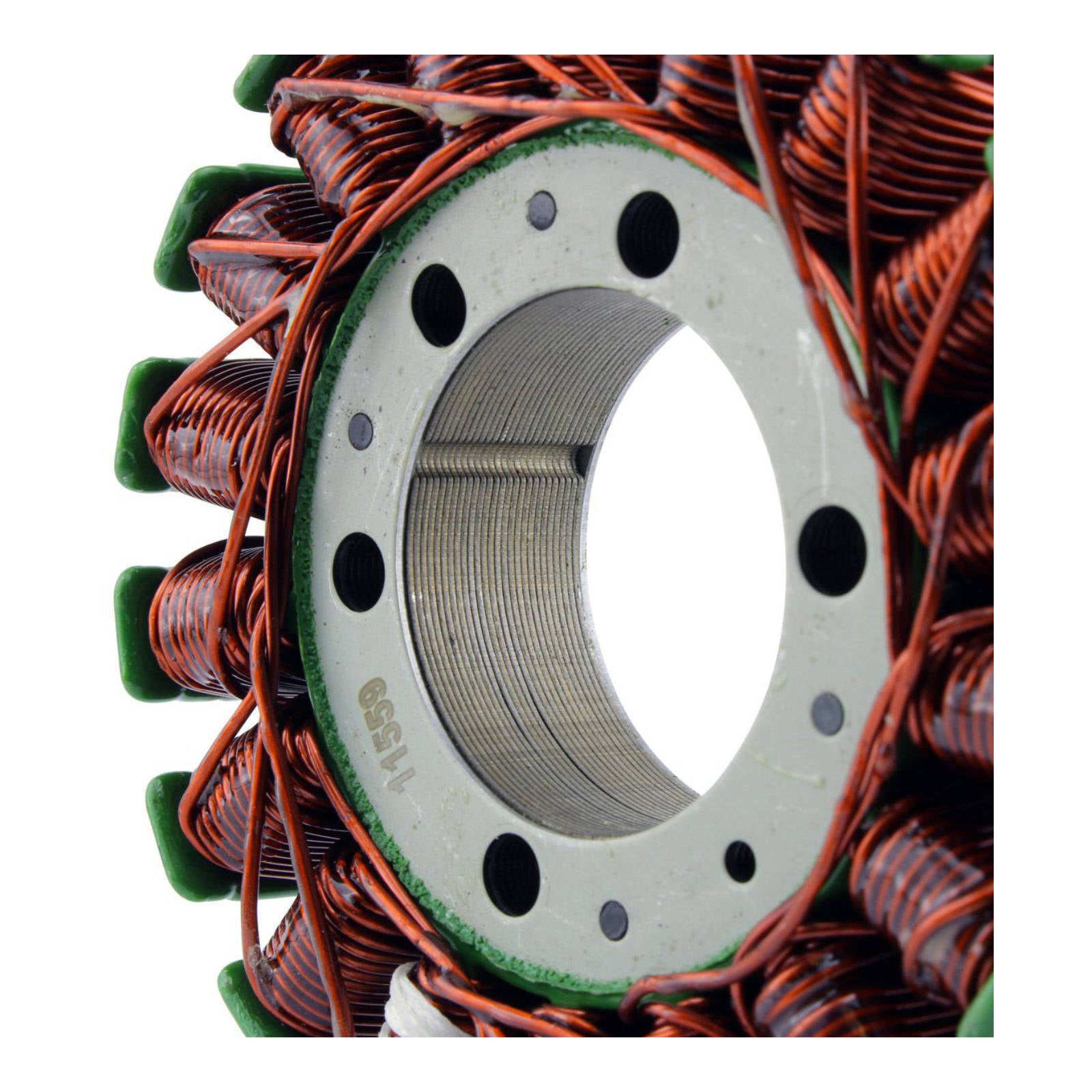

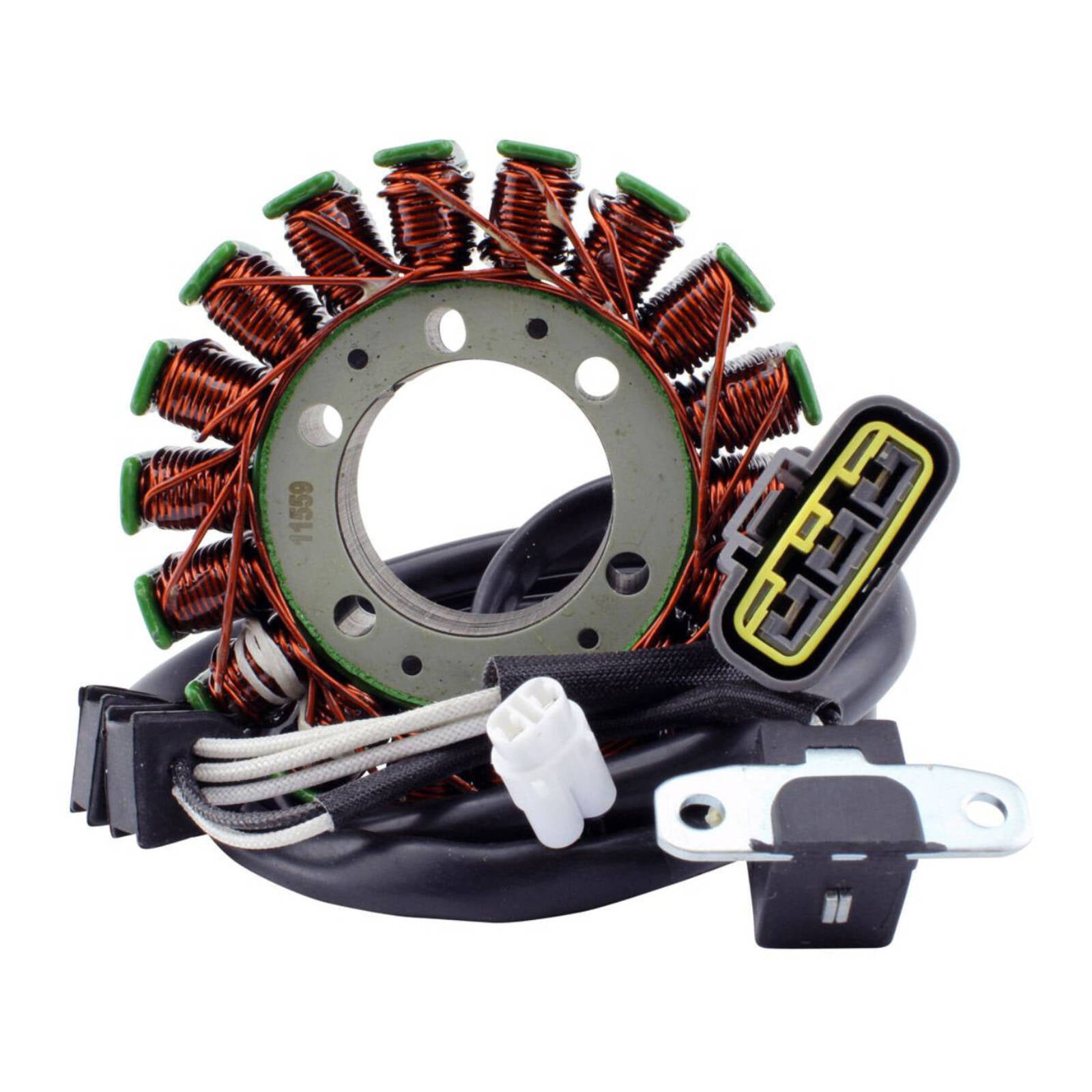

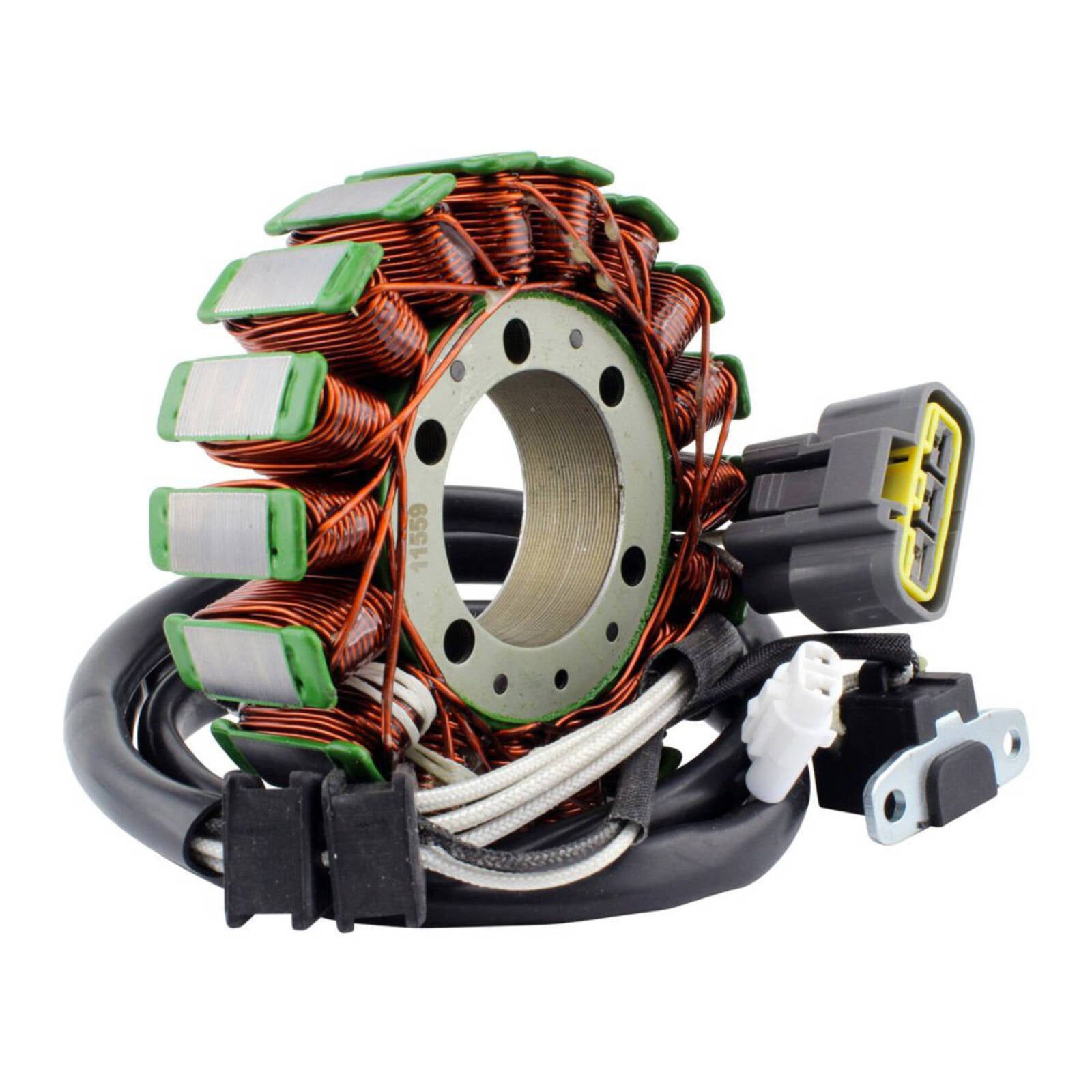

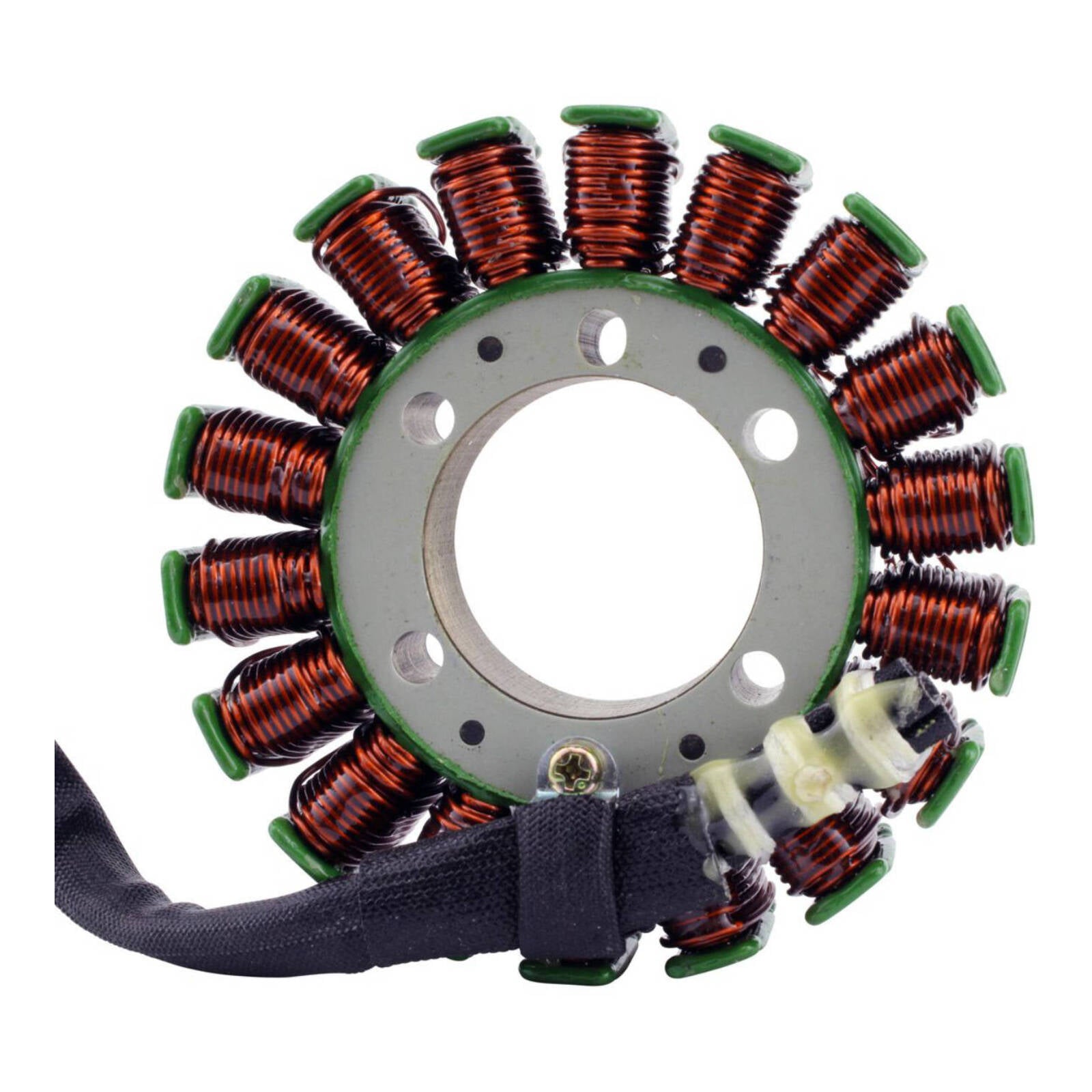

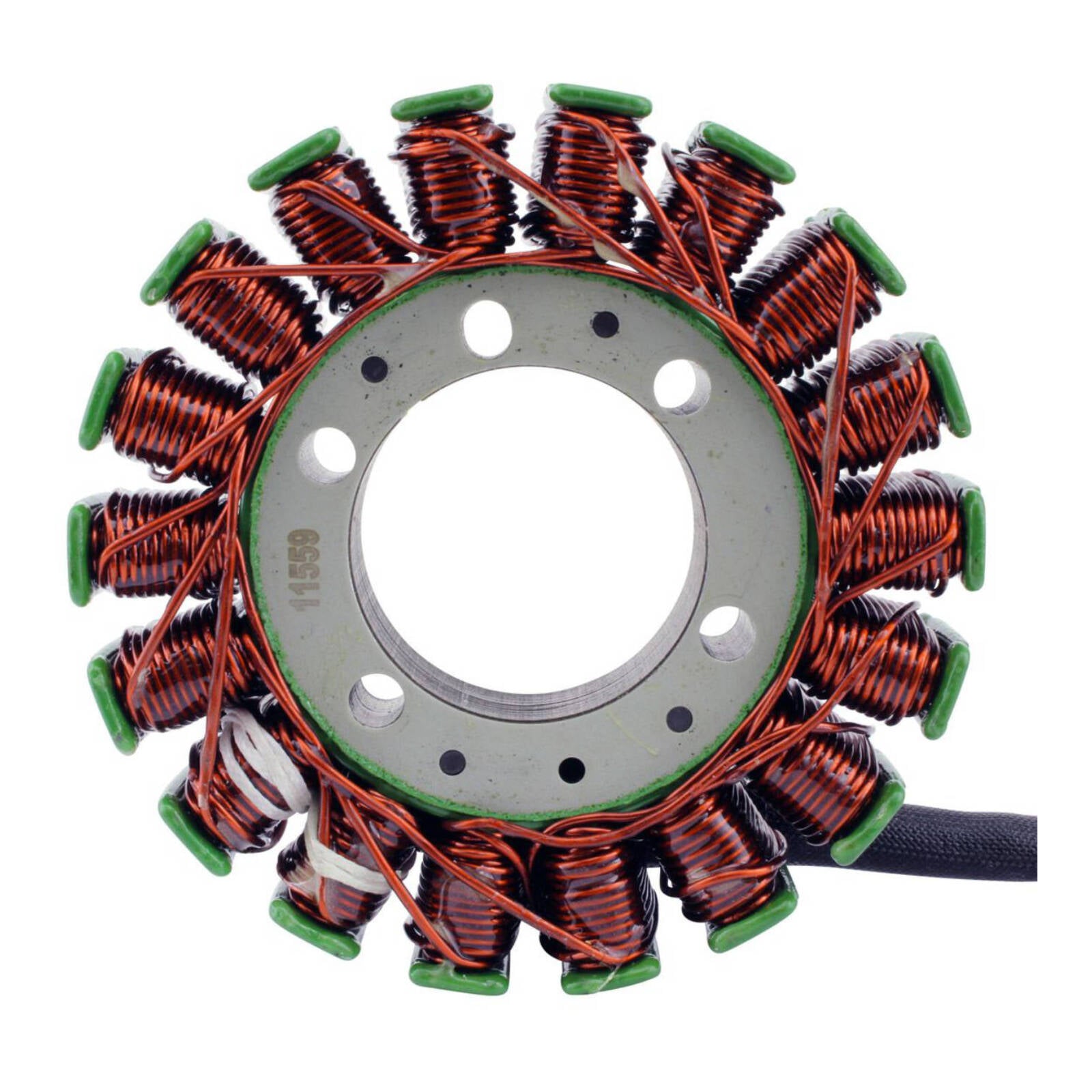

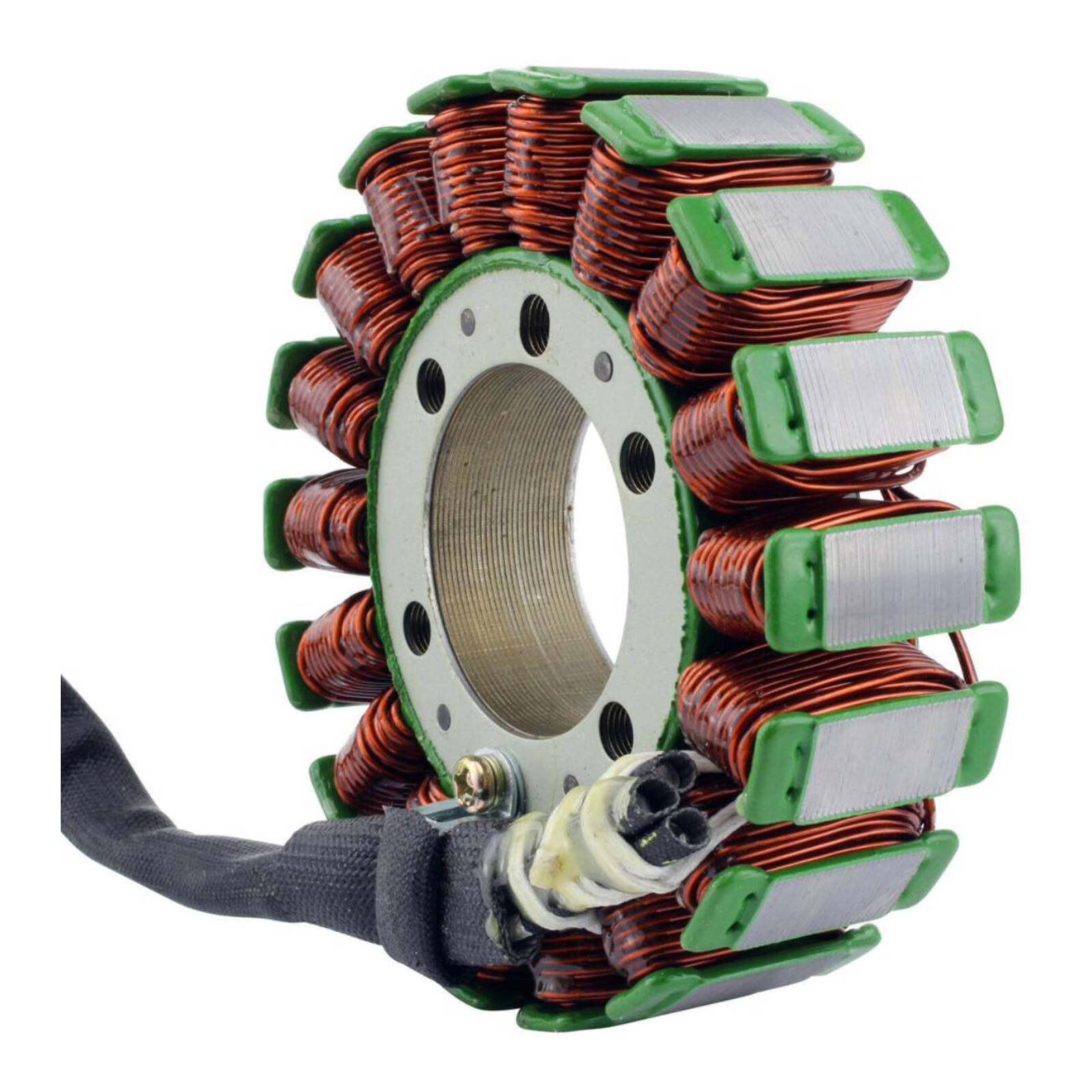

Stator Yamaha YFM700 Grizzly YFM700 Kodiak 4x4 '16-'18

Plug-and-play replacement generator stator from RM Stator.

Dimensions:

• Interior diameter: 42mm
• Exterior diameter: 66mm
• Thickness: 22mm
• Length of wires stator to grommet: 130mm
• Length of wires grommet to plug: 1096mm
• Length of pickup coil's wire to grommet: 115mm

Other specifications:

• Number of wires: 5
• Number of plugs: 2
• Number of pins: 5
• Number of poles: 18
• Wire to wire resistance:
  • Alternator: Between each white = 0.4 ohms +-20%
  • Source: Black to White = 200 ohms +-20%

Details:

< li>Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius

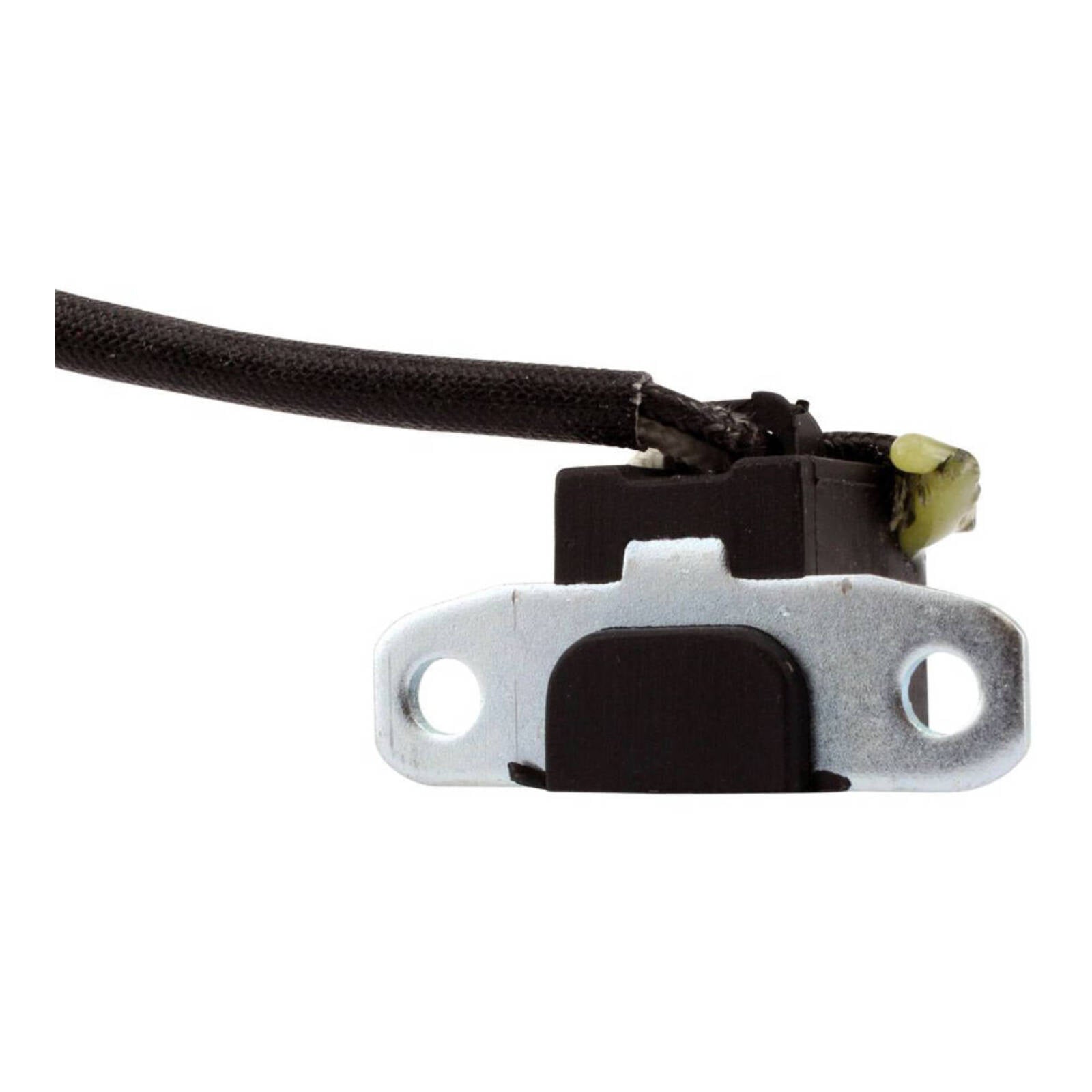

• Pick up pulsar coil included

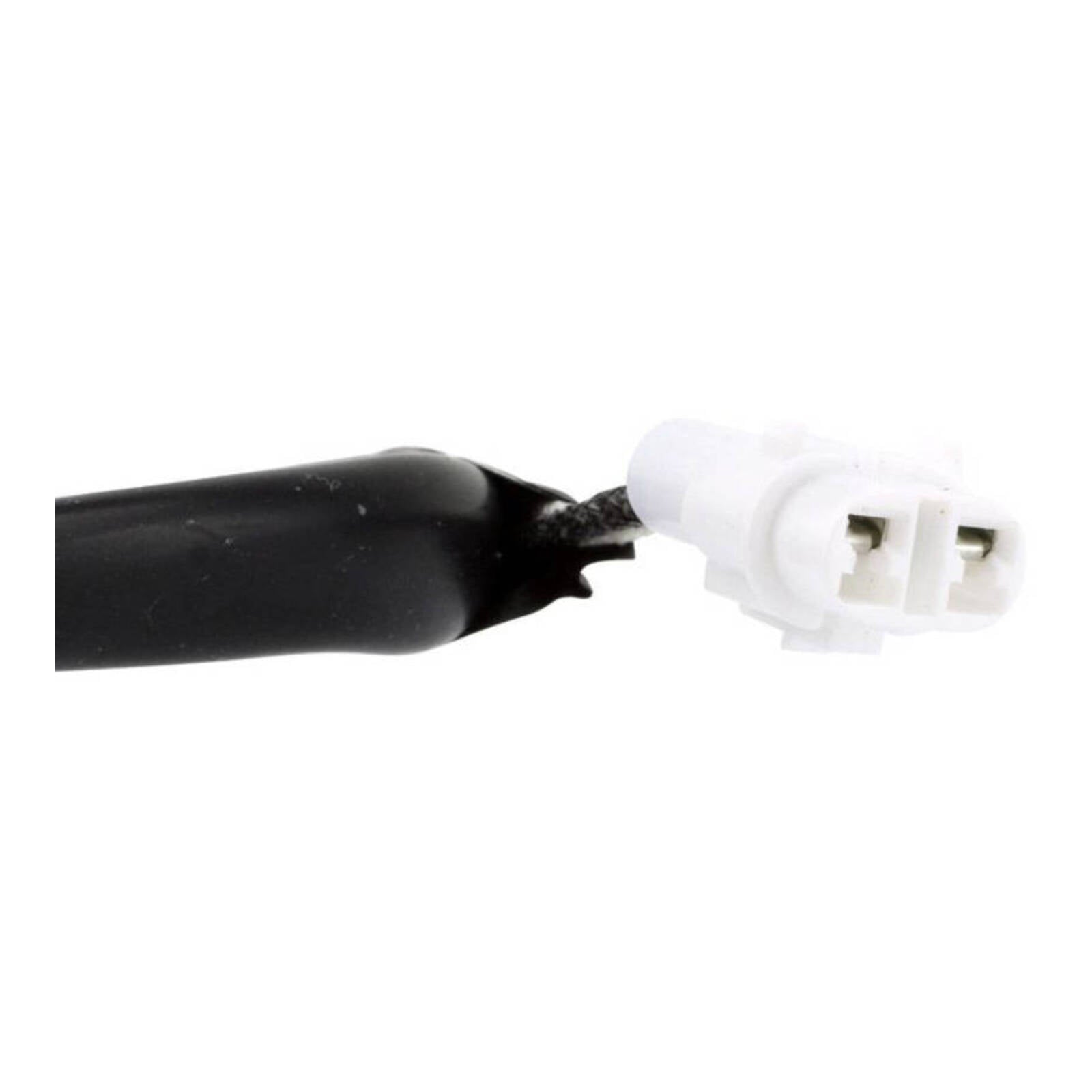

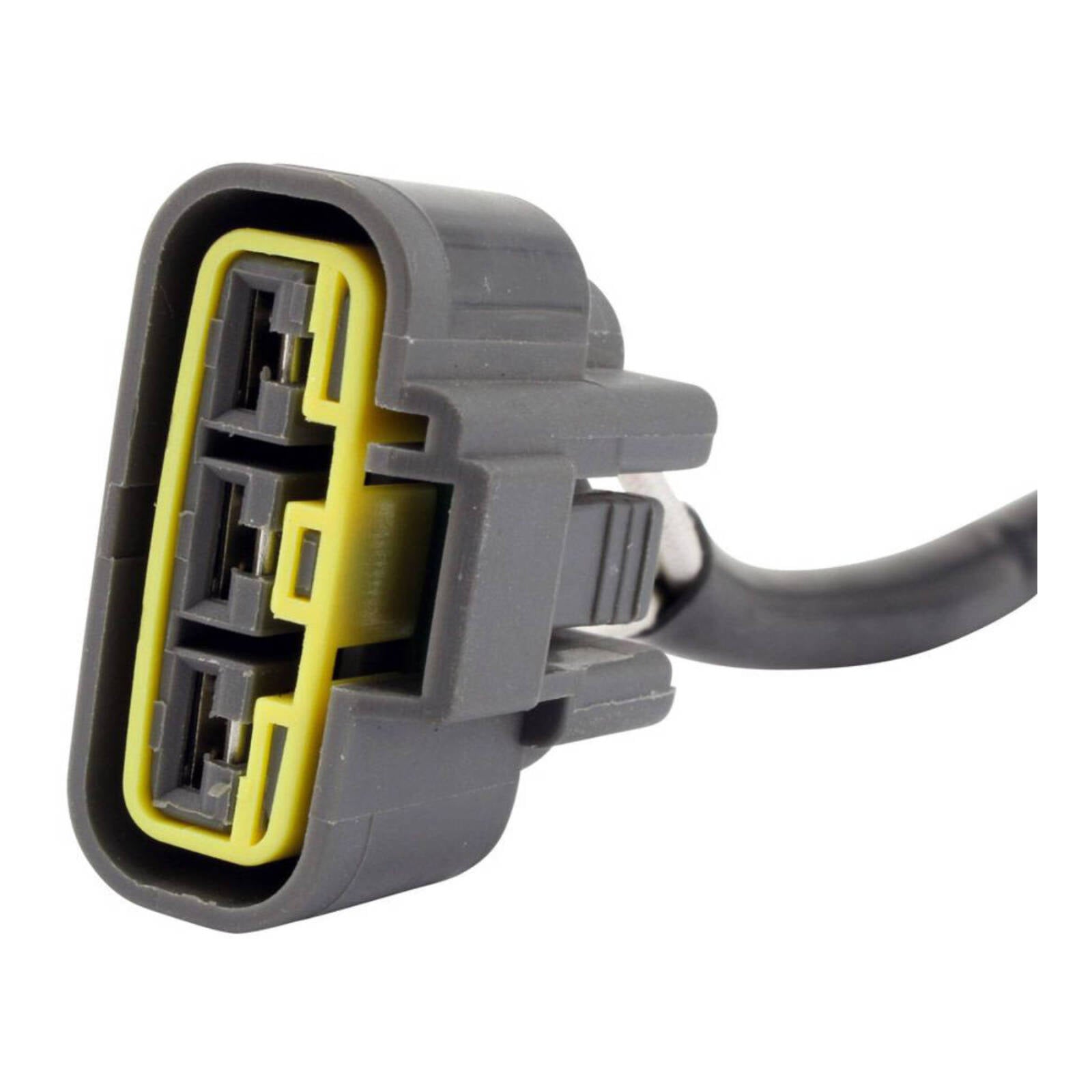

• Connector included
• Rubber grommet included
• All products shipped are tested

Direct replacement to your original unit.

• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

Dimensions:

• Interior diameter: 42 mm
• Exterior diameter: 66 mm
• Thickness: 22 mm
• Length of wires stator to grommet: 130 mm
• Length of wires grommet to plug: 1096 mm
• Length of pickup coil's wire to grommet: 115 mm
