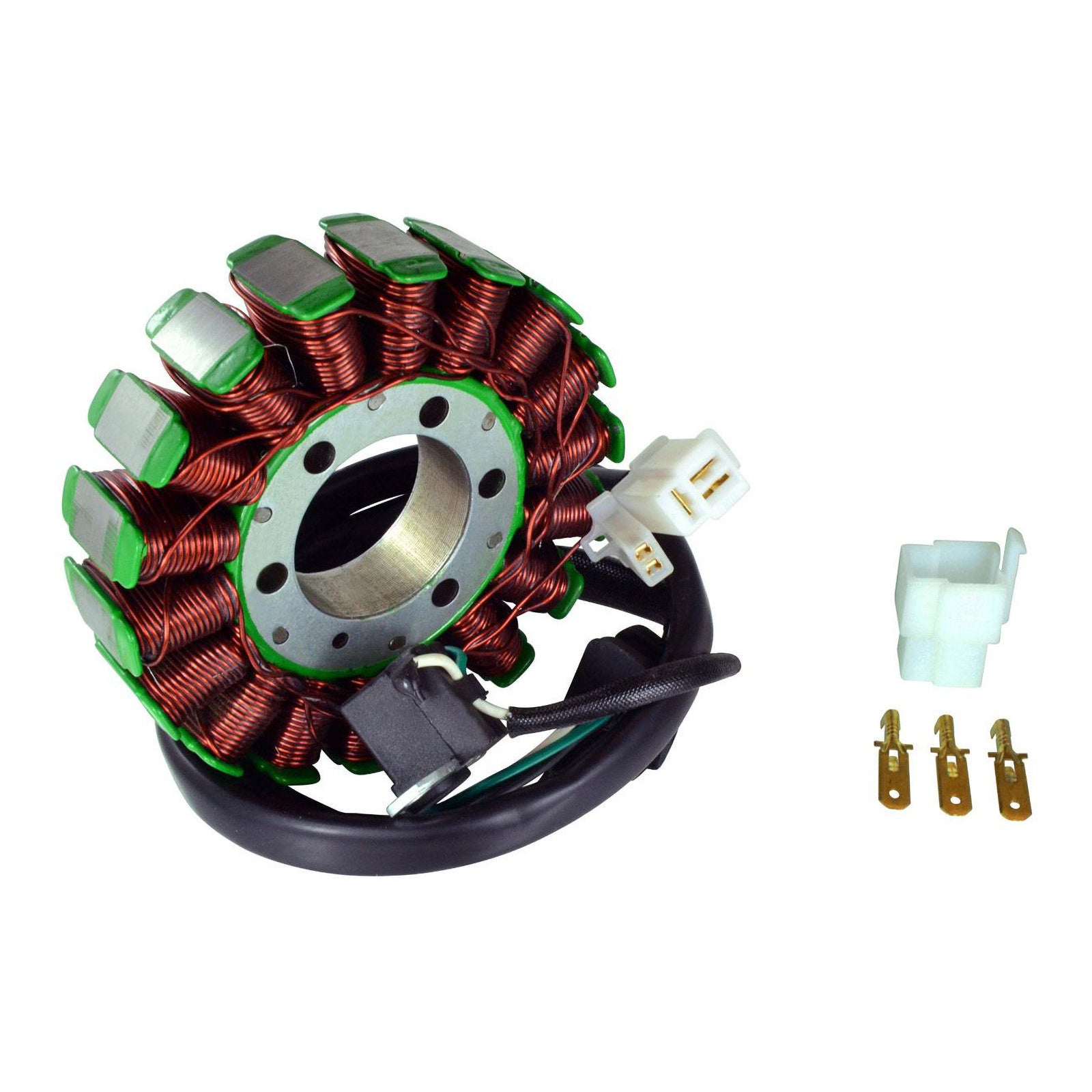

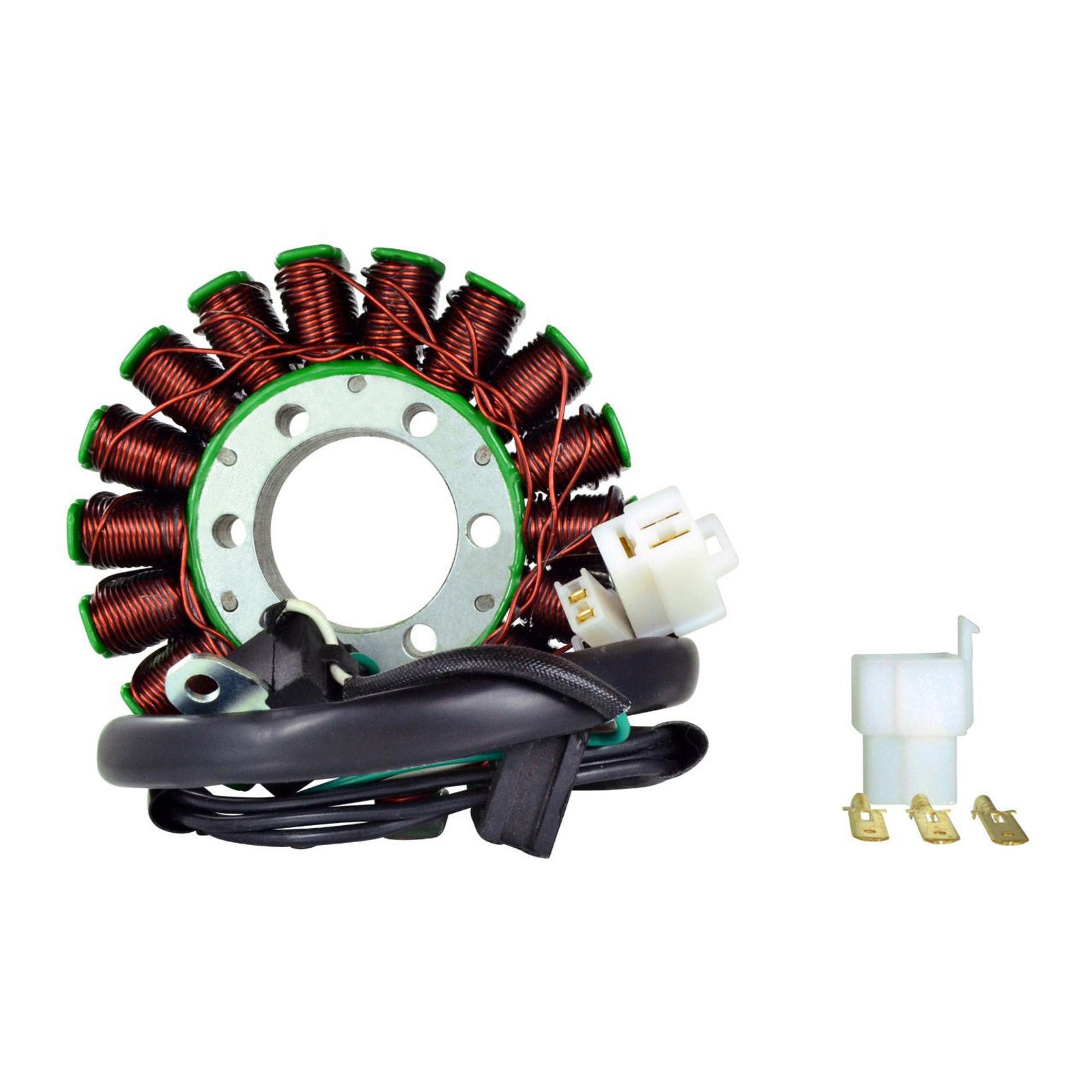

Generator Stator Suzuki SV650 '03-'09 (RMS010-102166)
- Sale price
- $489.99
- Regular price
-
- Regular price
- $489.99
- Unit price
- per
Button-up shirt sleeves and a relaxed silhouette. It’s tailored with drapey, crinkle-texture fabric that’s made from TEAM90DEGREE™ LTD™ Viscose — responsibly sourced wood-based fibres produced through a process that reduces impact on forests, biodiversity and water supply.
Guaranteed safe checkout
Couldn't load pickup availability
Estimate delivery: 12-26 days (International), 3-6 days (United States).
🔥 30 sold in the last 18 hours
Product Description
Product Description
Brand new aftermarket generator stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick-up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted / corroded/defective and a major cause for repetitive electrical issues.
Dimensions:
- Interior diameter: 38 mm
- Exterior diameter: 108 mm
- Thickness: 19 mm
- Length of wires stator to grommet: 120 mm
- Length of wires grommet to plug: 550 mm
- Length of pickup coil's wire to grommet: 59 mm
Other specifications:
- Number of wires: 5
- Number of plugs: 2
- Number of pins: 5
Wire to wire resistance:
- Alternator: Black to Black = 0.5 ohms +-20%
- Pickup: Green to White = 194 ohms +-20%
