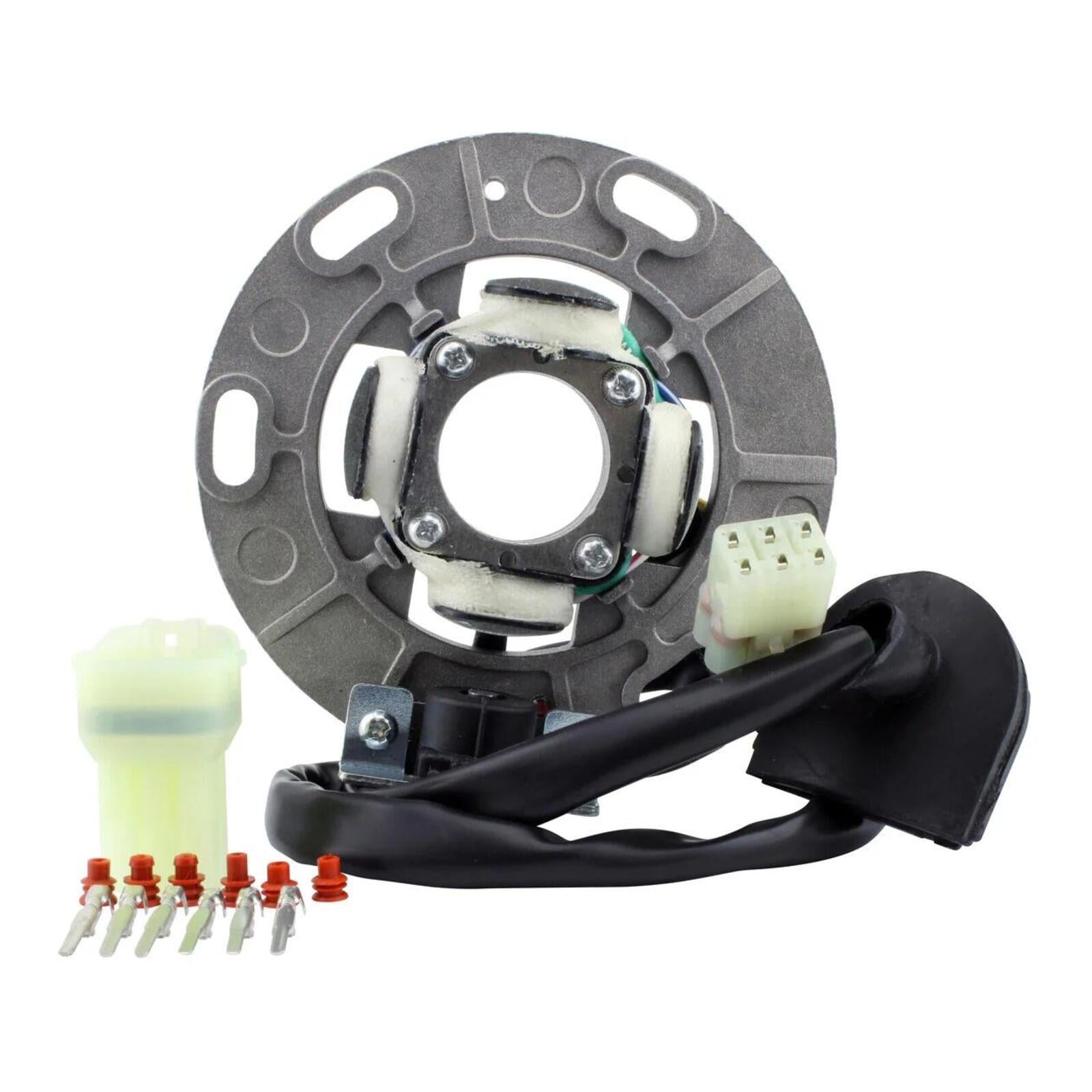

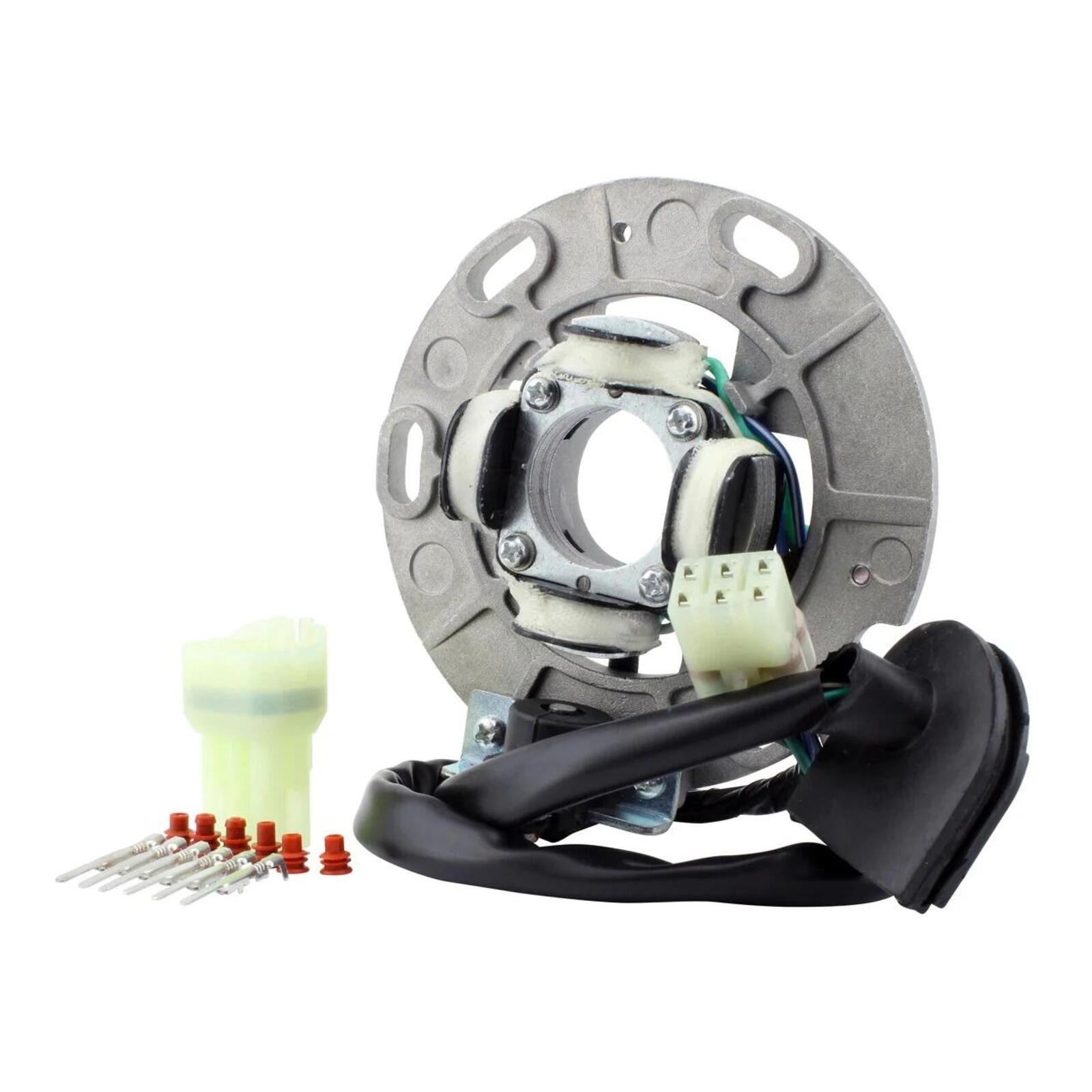

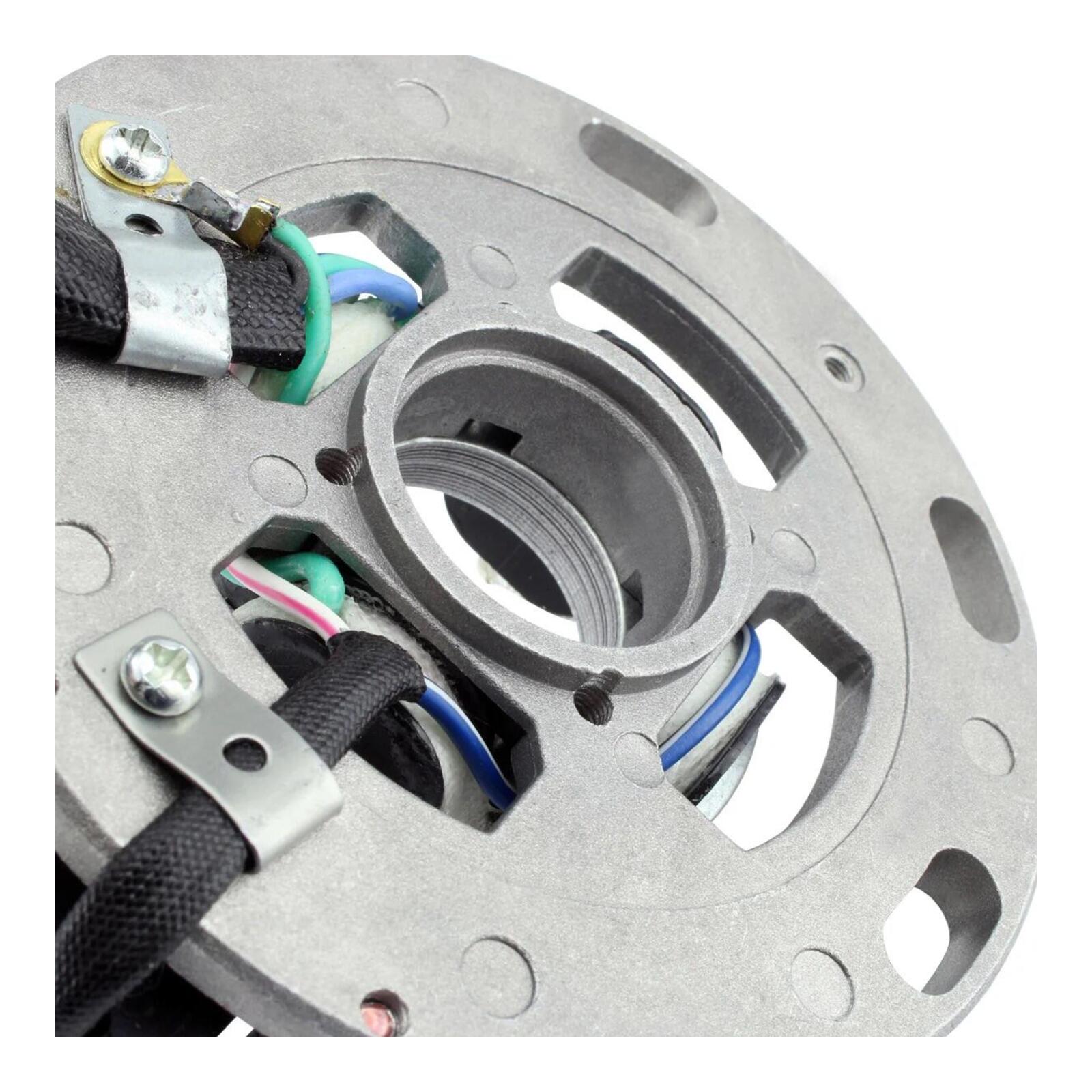

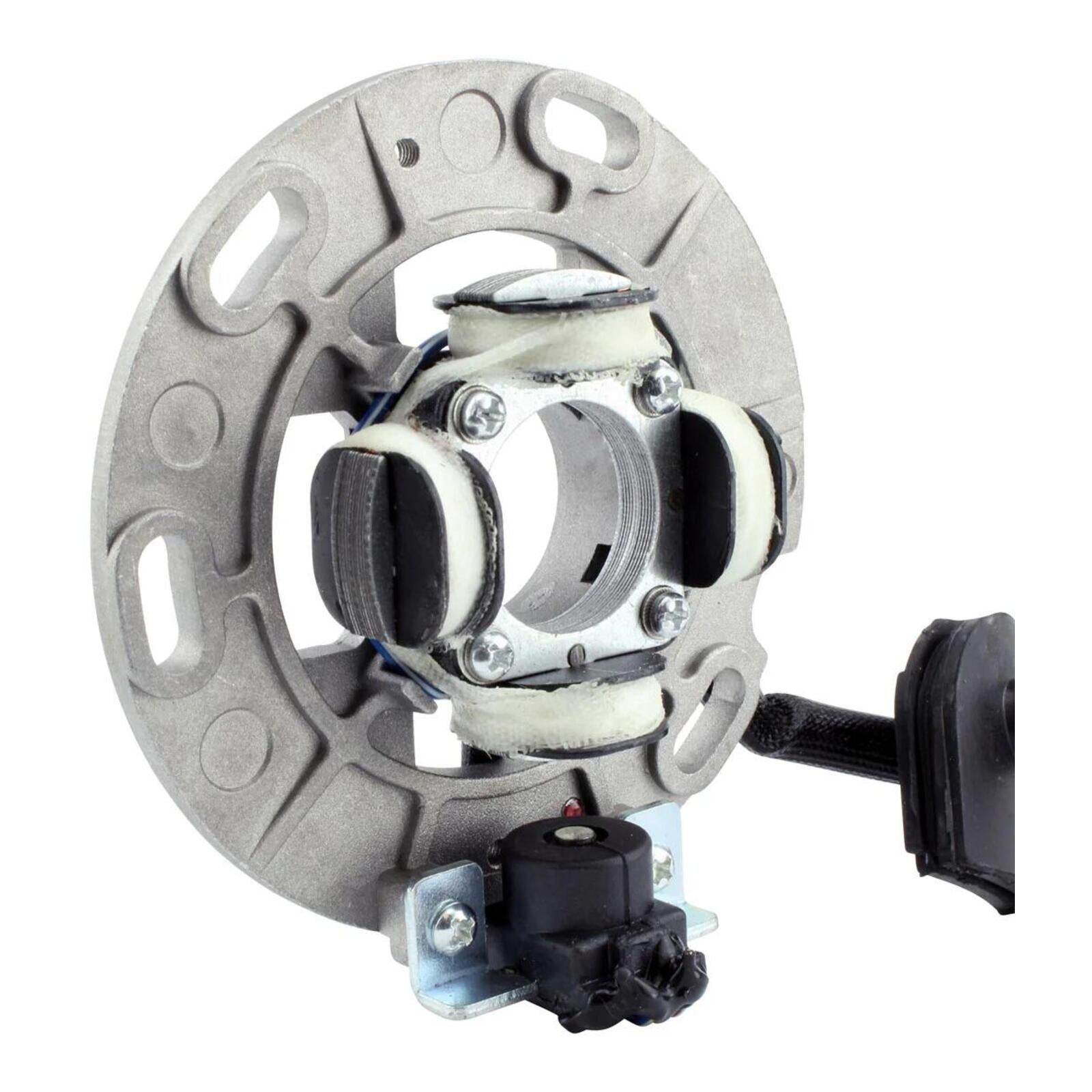

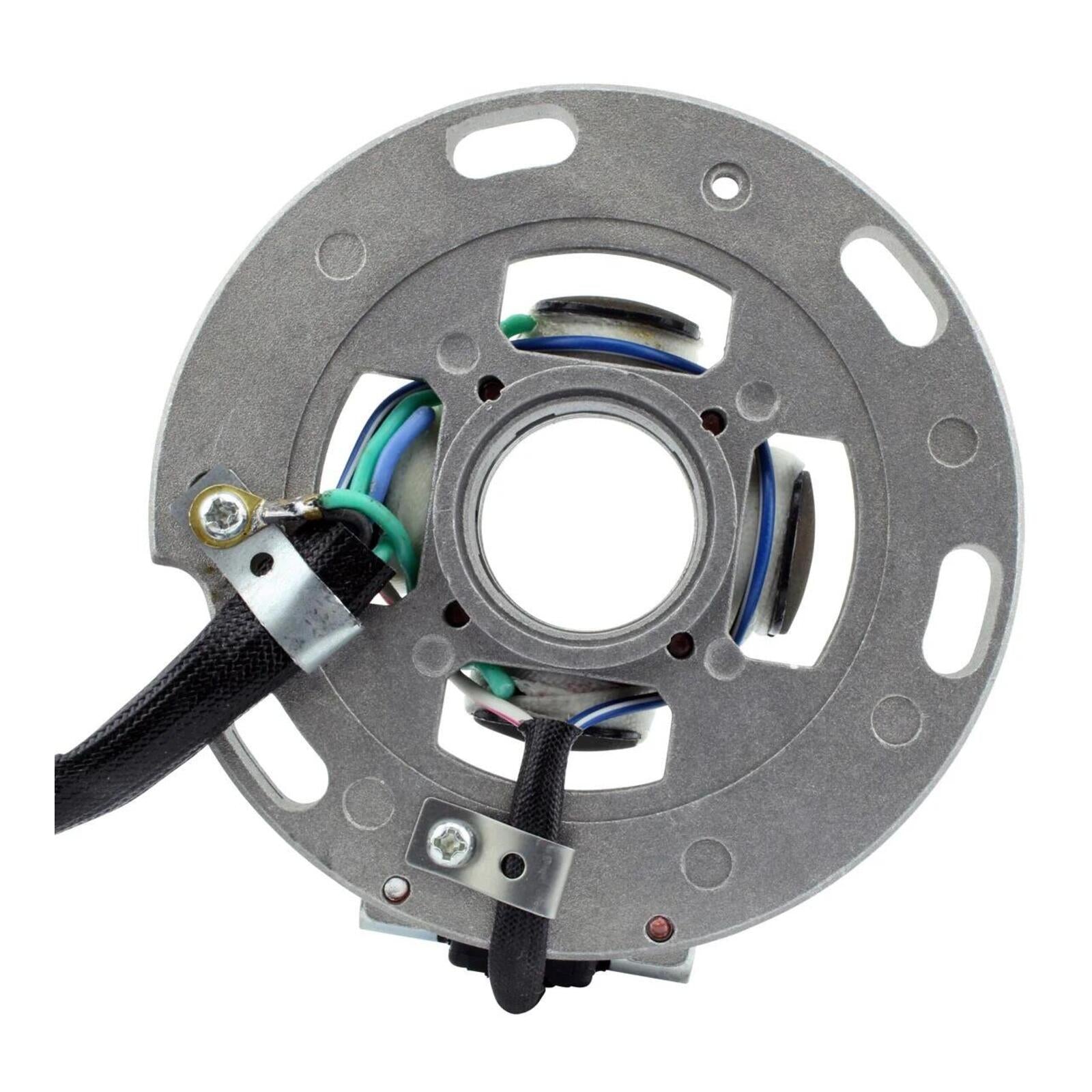

Stator for Yamaha YZ250 '06-'25 / YZ250X '16-'25

Brand new aftermarket stator. Direct replacement to your original unit.

Features:

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.

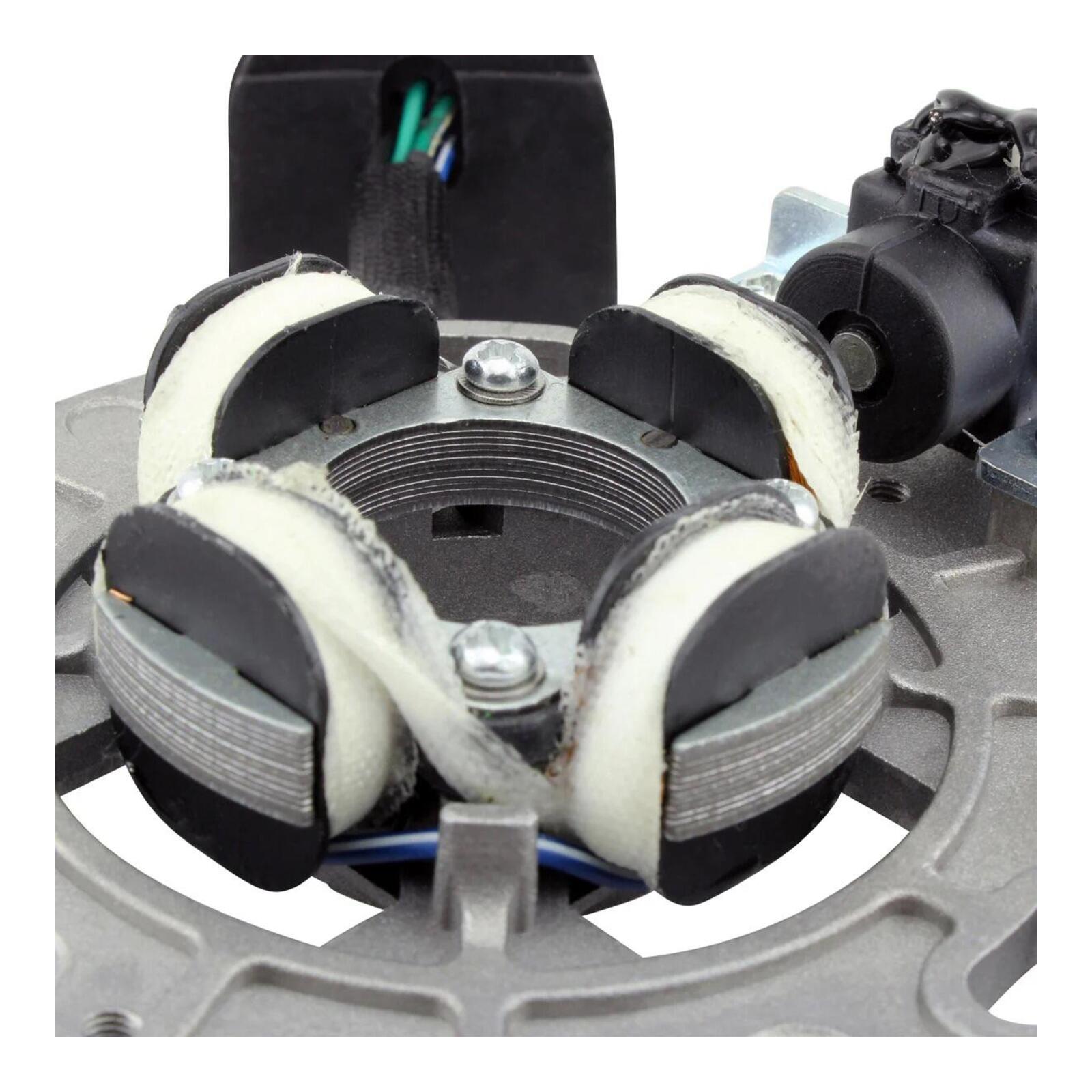

• Highest grade of lamination materials.
• Highest grade of copper winding, resistant to 200 degrees Celsius.

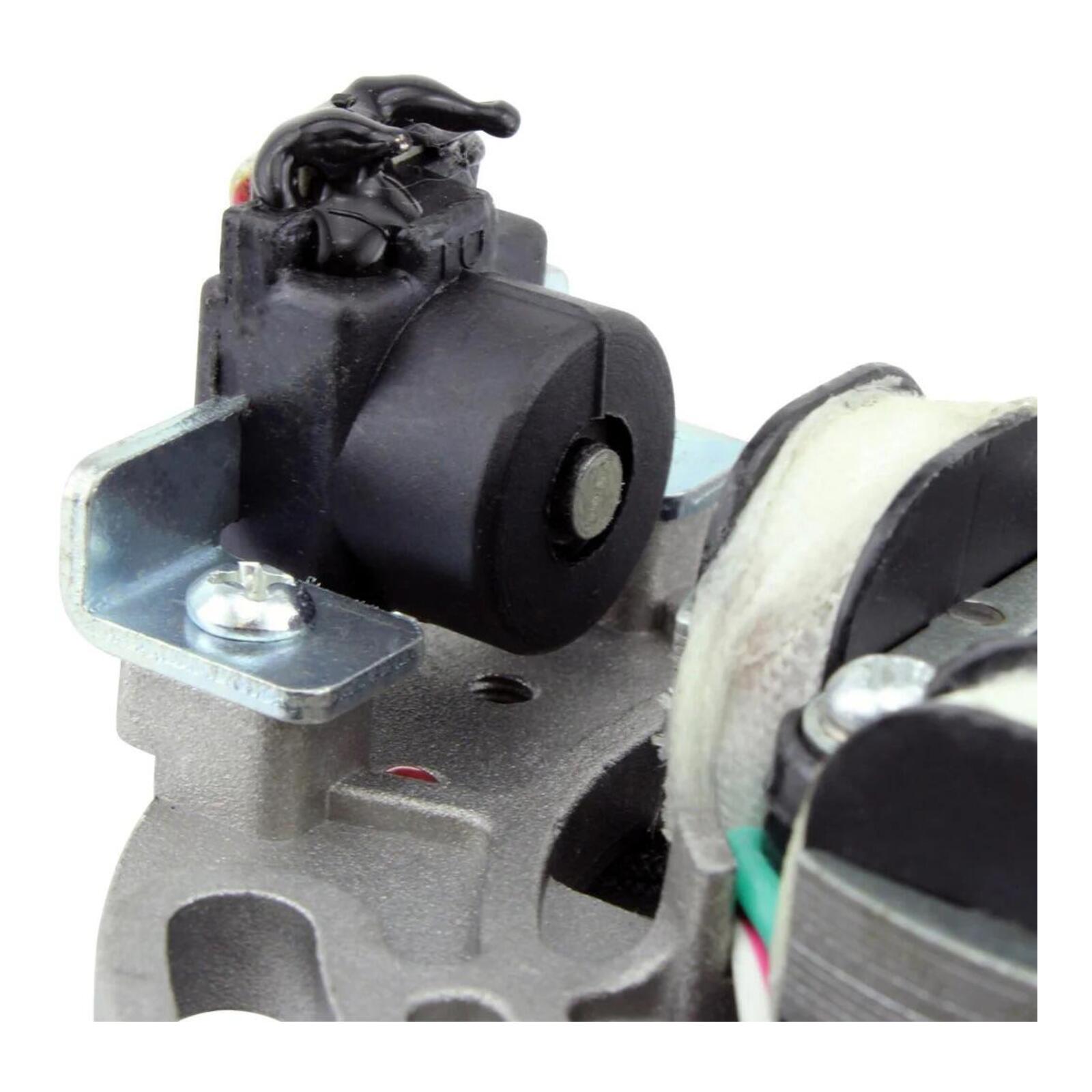

• Pick up pulsar coil included.

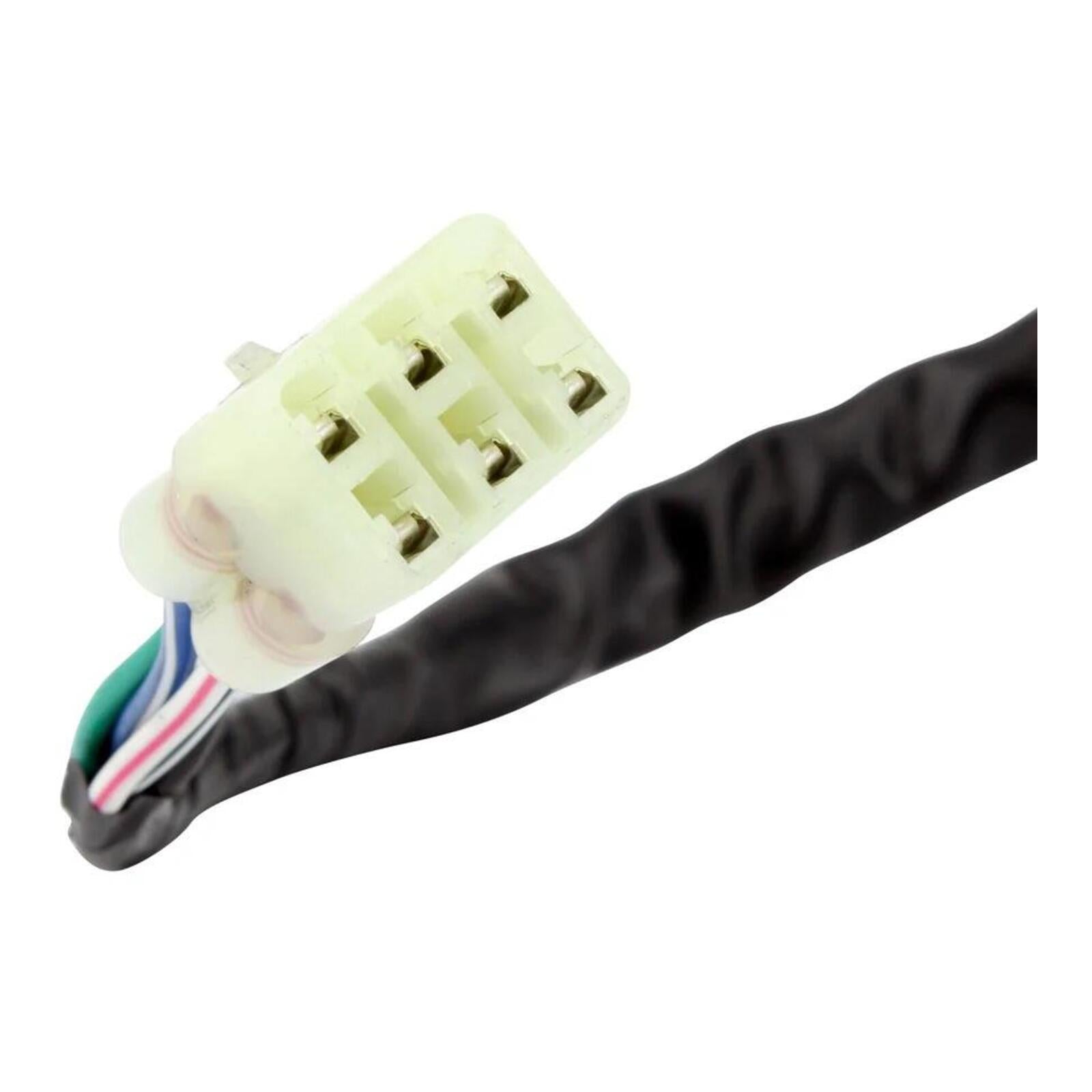

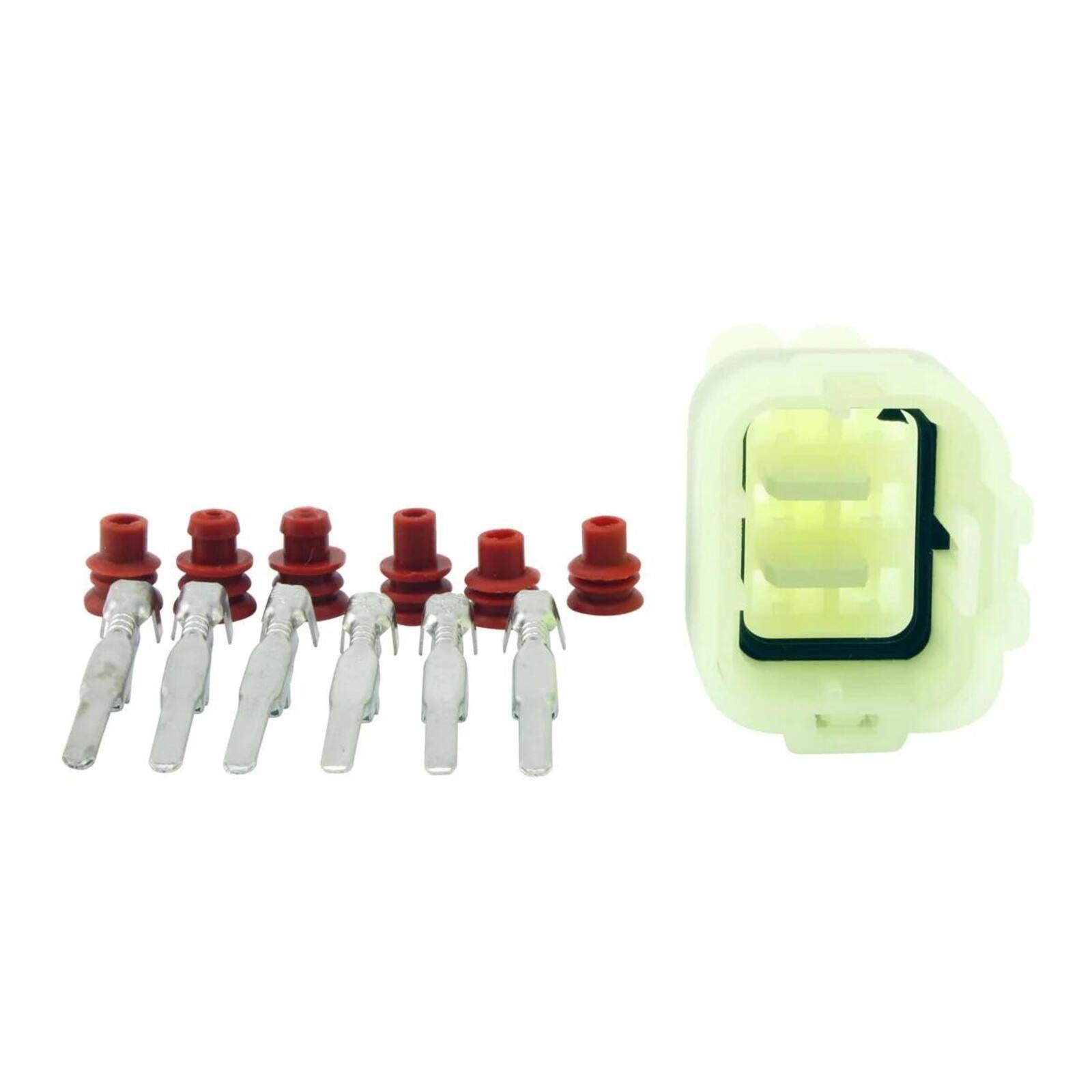

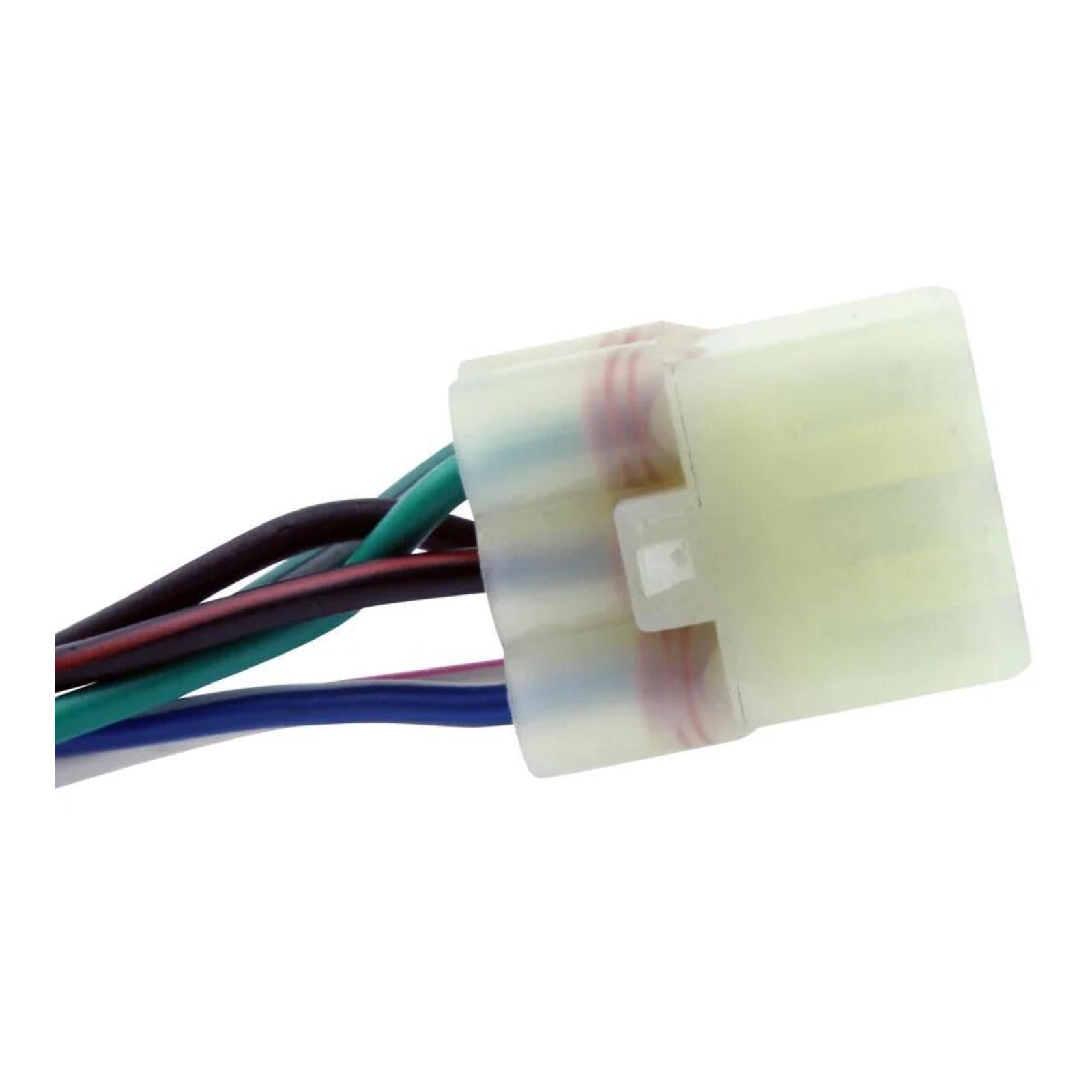

• Connectors included.

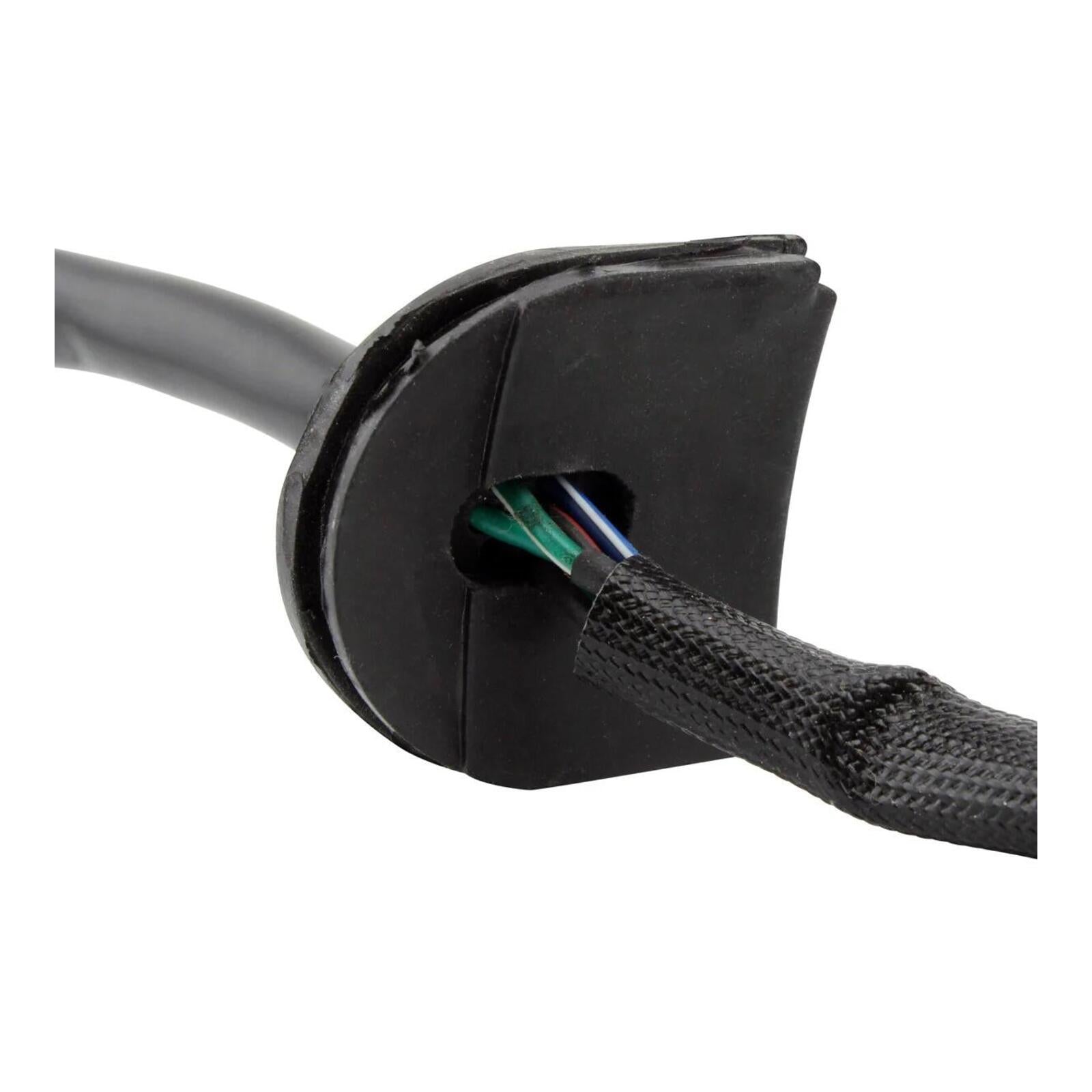

• Rubber grommet included.

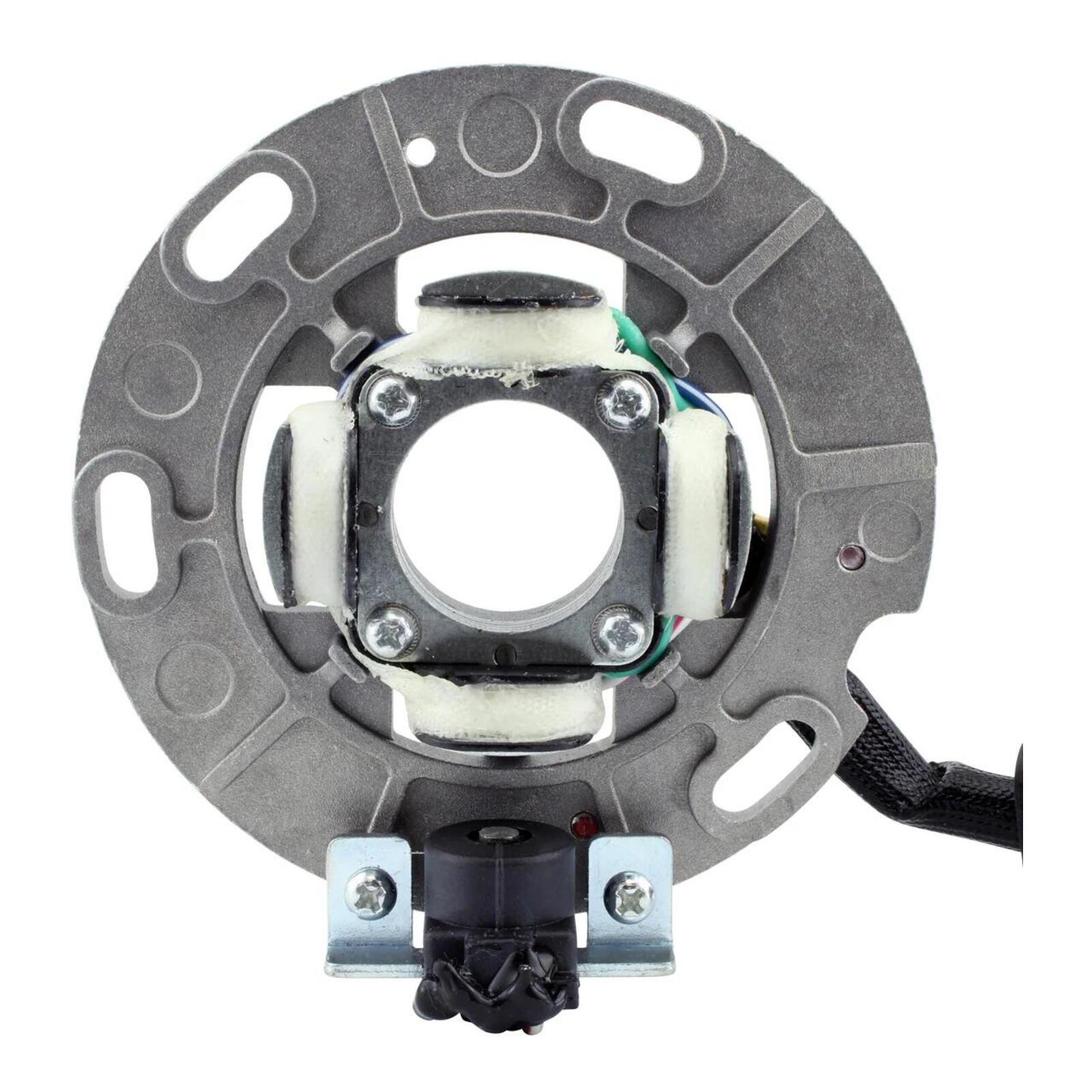

• Back Plate included.
• All products shipped are tested.

Technical Data

Dimensions:

• Interior diameter: 28mm
• Exterior diameter: 59.30mm
• Thickness: 33mm
• Length of wires stator to grommet: 32mm
• Length of wires grommet to plug: 320mm

Other specifications :

• Number of wires: 6
• Number of plugs: 1
• Number of pins: 6
• Number of poles: 4
• Pickup: White/Blue to White/Red = 285 ohms +-20%
• Source #1 : Green/White to Green = 54 ohms +-20%
• Source #2 : Black/Red to Black = 875 ohms +-20%
