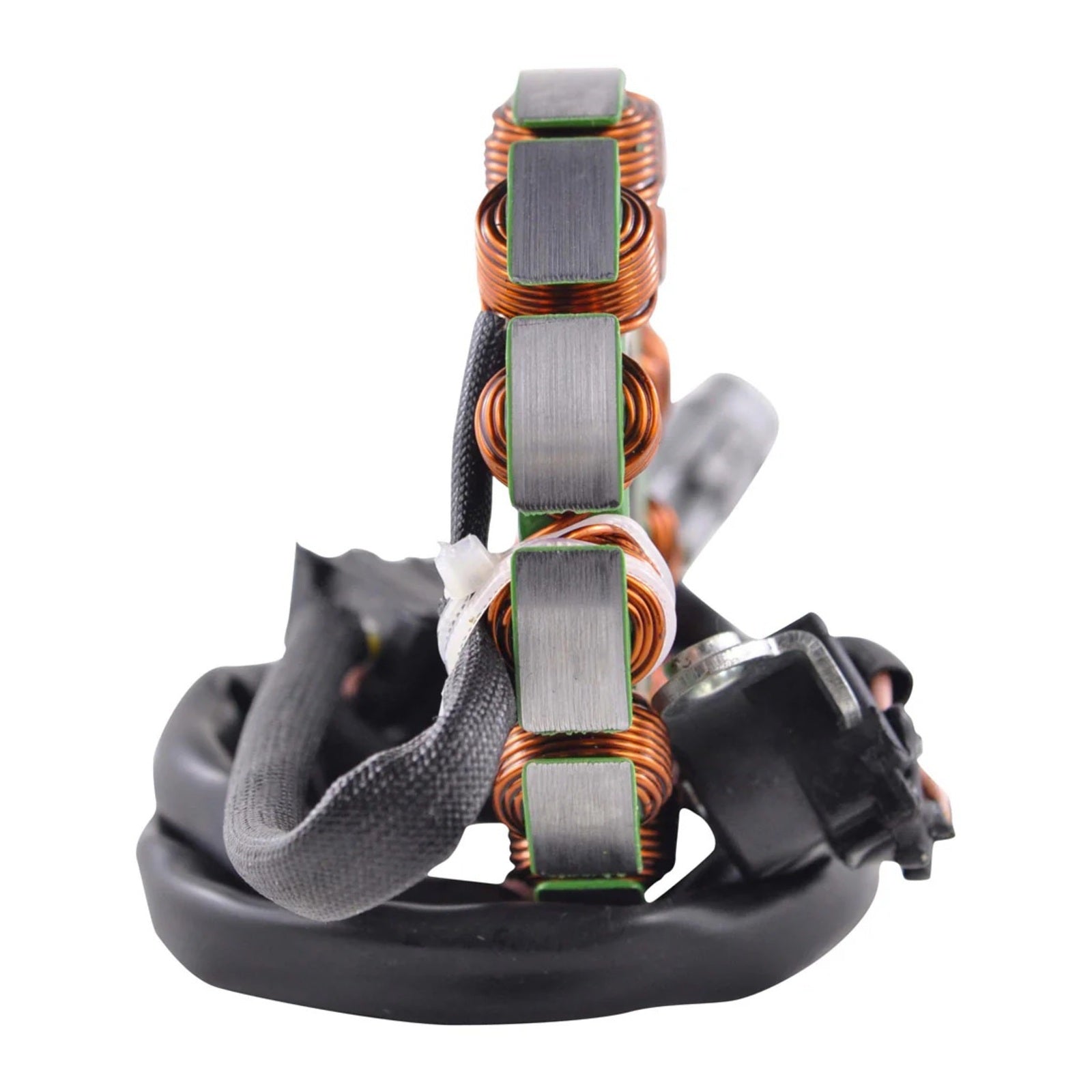

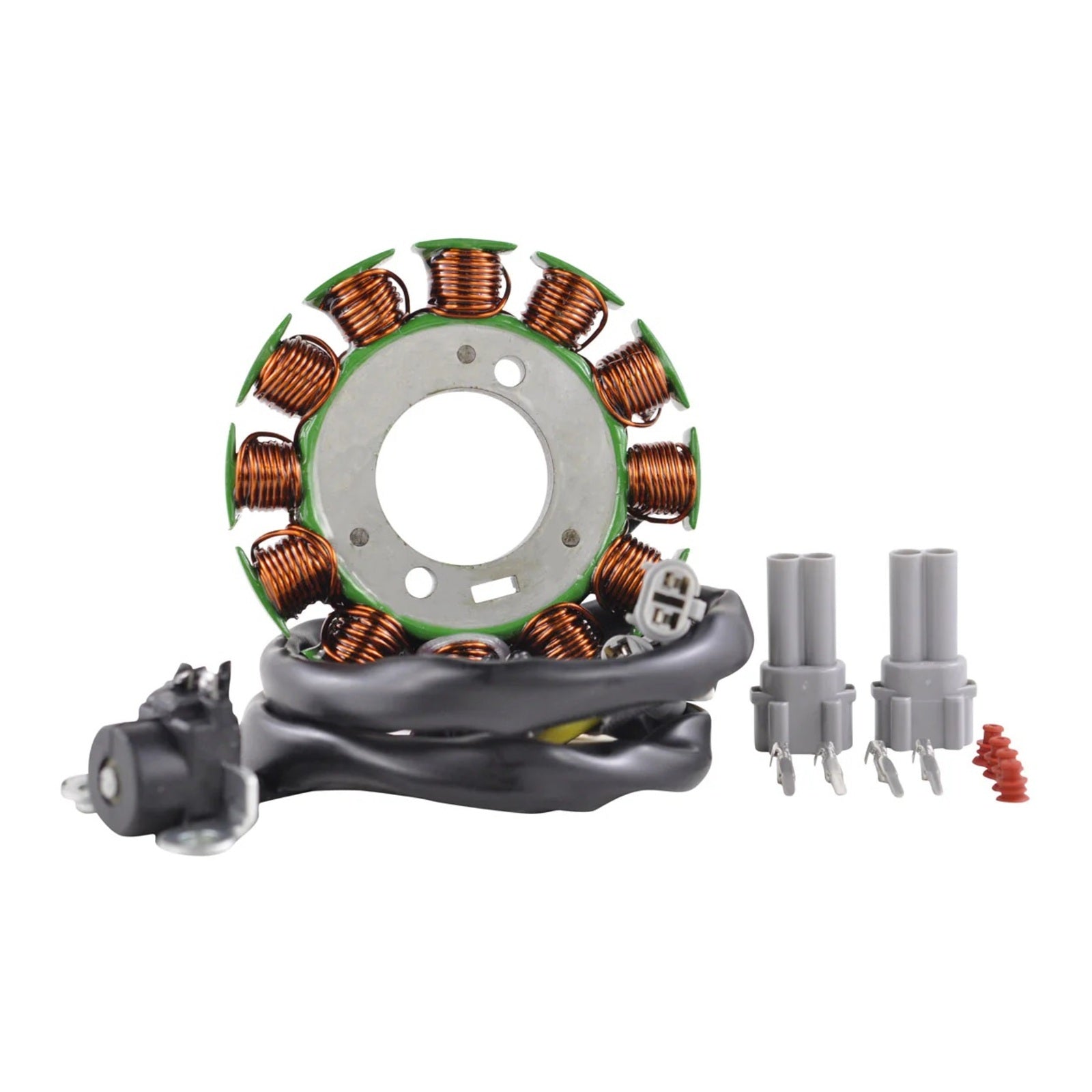

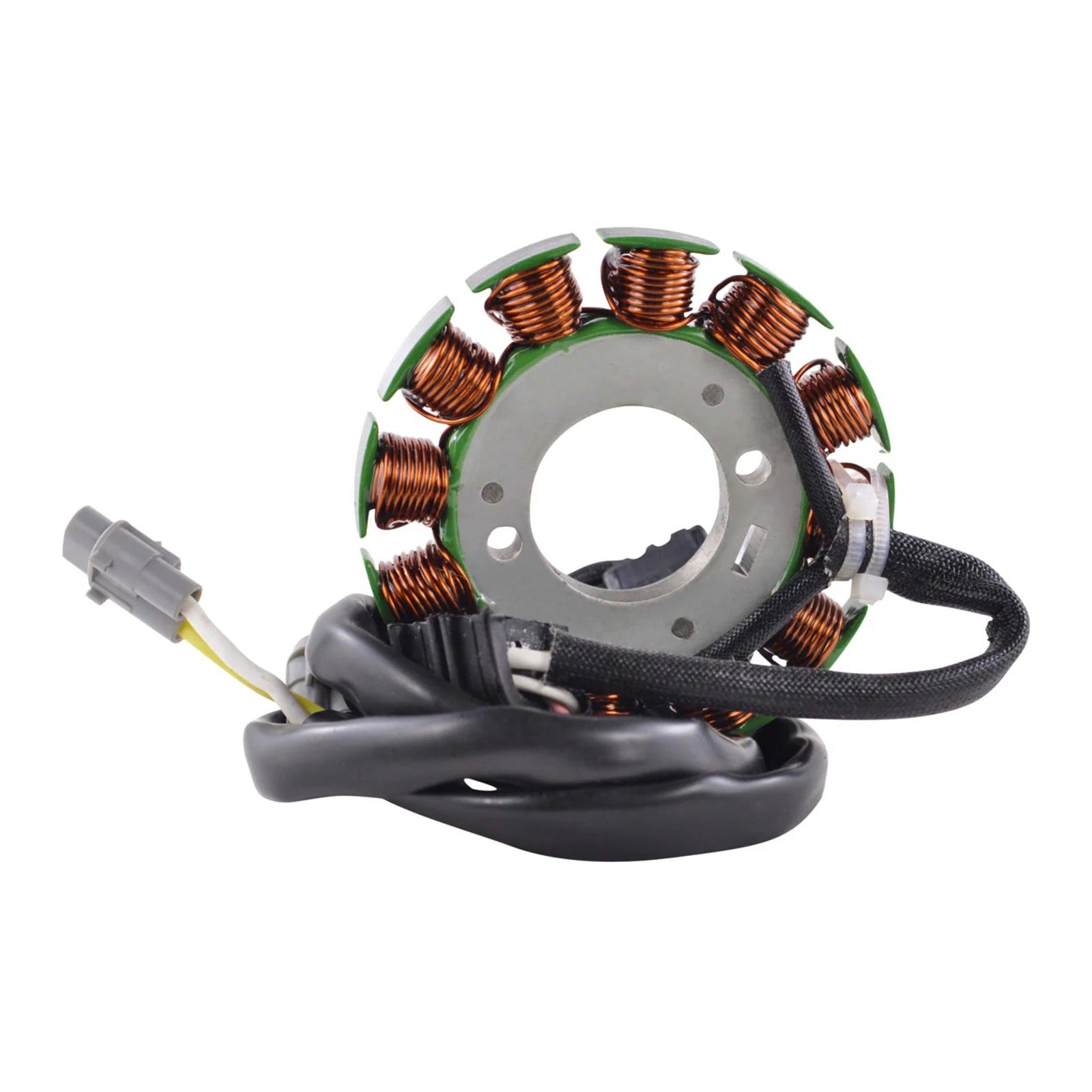

Generator Stator – Yamaha WR250F '05–'13

Sale price: $304.99
Regular price
Regular price: $304.99
Unit price: per

Tax included. Shipping calculated at checkout.

Button-up shirt sleeves and a relaxed silhouette. It’s tailored with drapey, crinkle-texture fabric that’s made from TEAM90DEGREE™ LTD™ Viscose — responsibly sourced wood-based fibres produced through a process that reduces impact on forests, biodiversity and water supply.

Product variants

Only 1 items in stock! Out of stock!

Quantity

Guaranteed safe checkout

Estimate delivery: 12-26 days (International), 3-6 days (United States).

🔥 30 sold in the last 18 hours

Product Description

Brand new aftermarket stator. Direct replacement to your original unit.

Features:

Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.

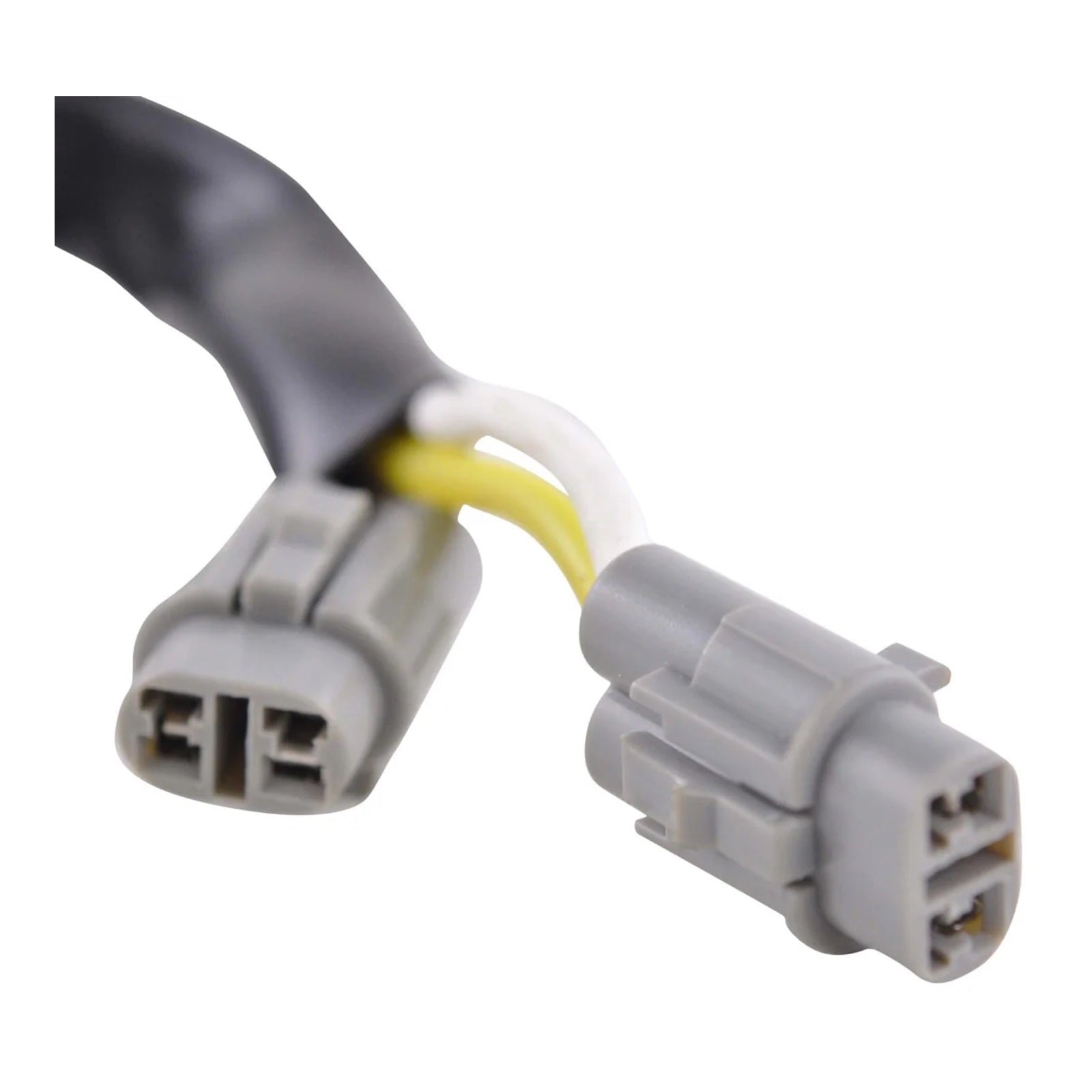

Connector included.
Rubber grommet included.
All products shipped are tested.

Specifications:

Di mensions

Interior Diameter: 30mm
Exterior Diameter: 84mm
Thickness: 9mm
Stator to Grommet: 110mm
Grommet to Plug: 545mm
Pickup Coil to Grommet: 90mm

Other Specifications

Number of Wires: 4
Number of Plugs: 2

Resistance Values

Alternator (Yellow to White): 0.4 Ω ±20%
Pickup (Pink to White): 280 Ω ±20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
