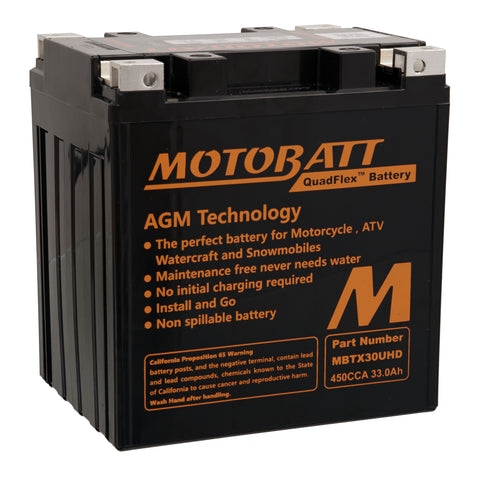

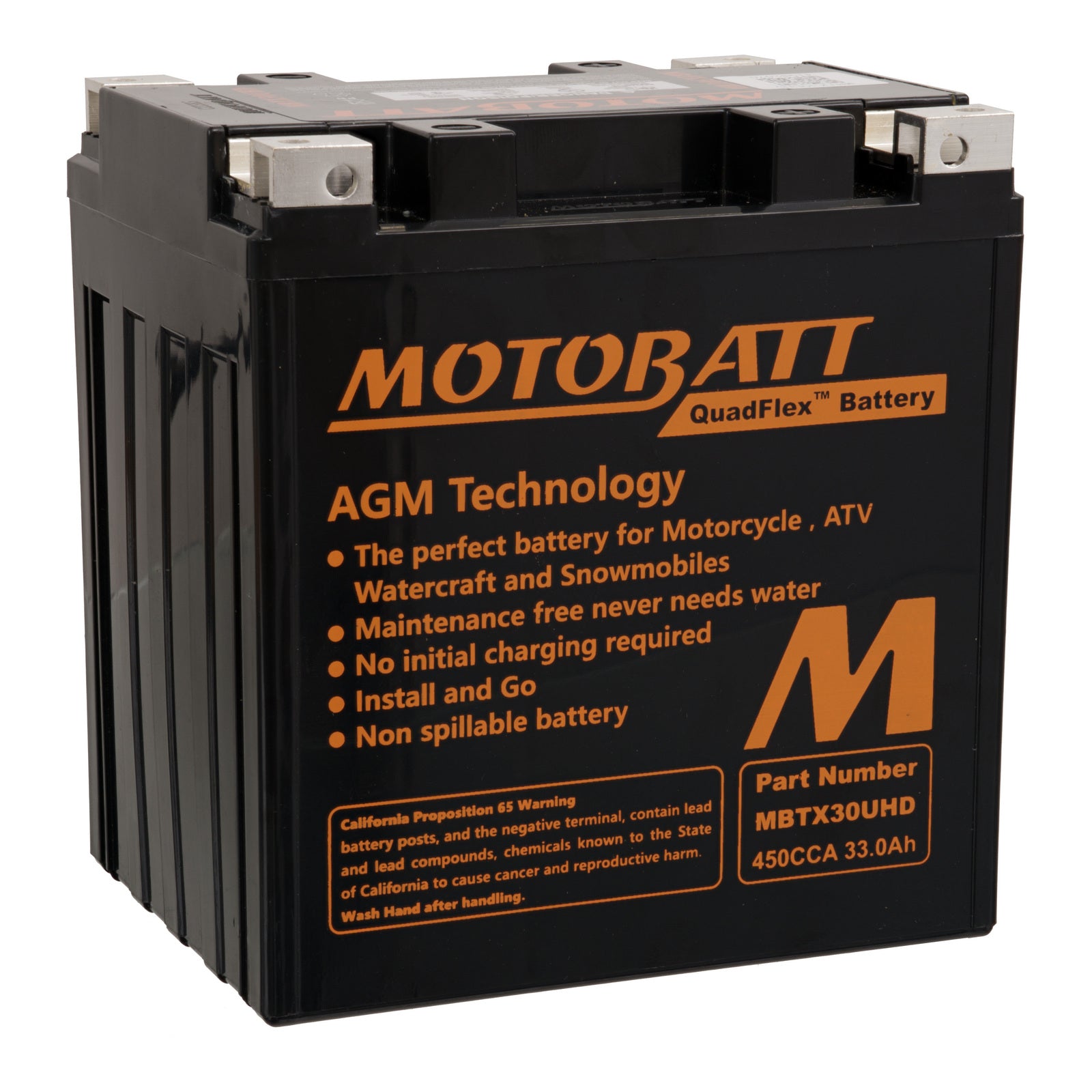

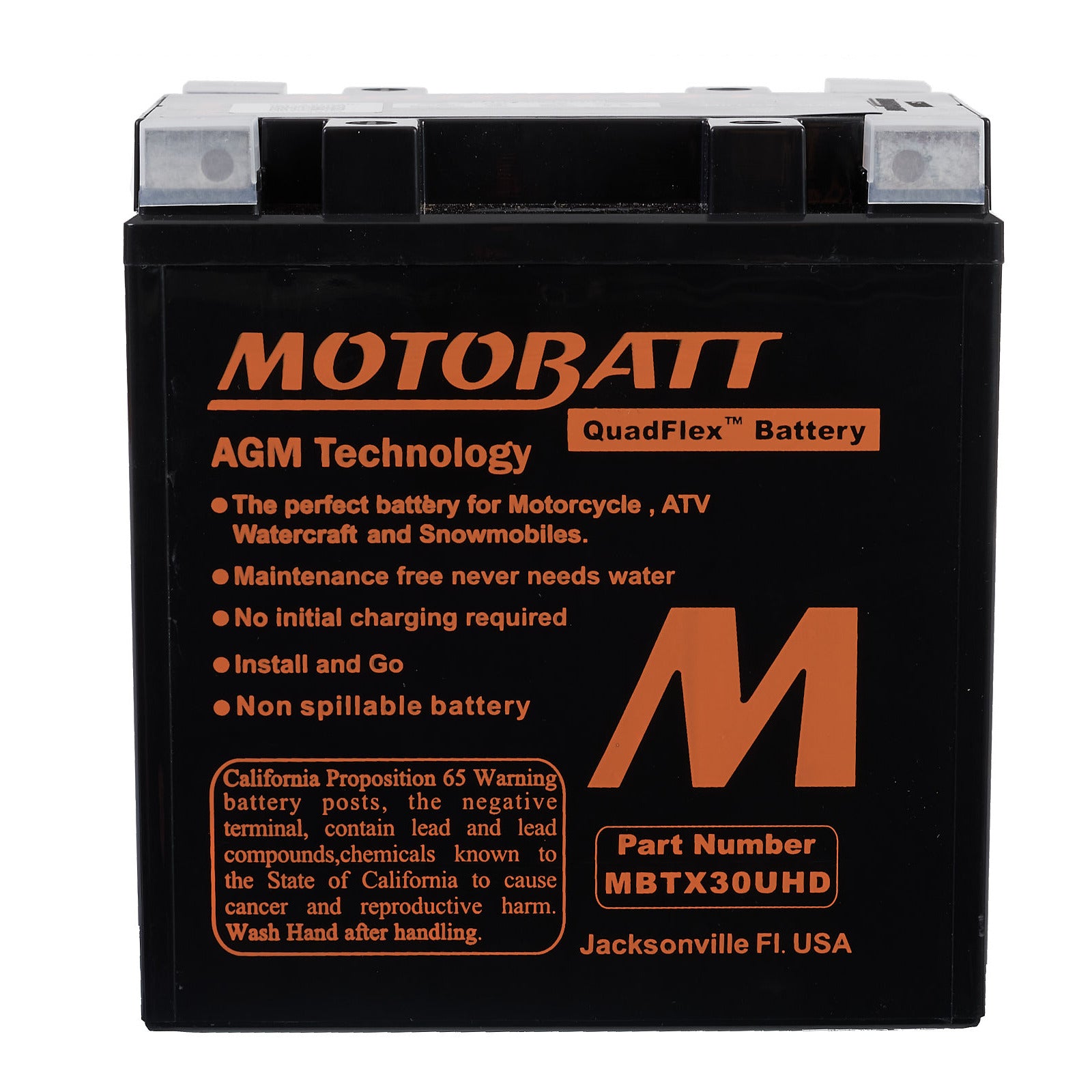

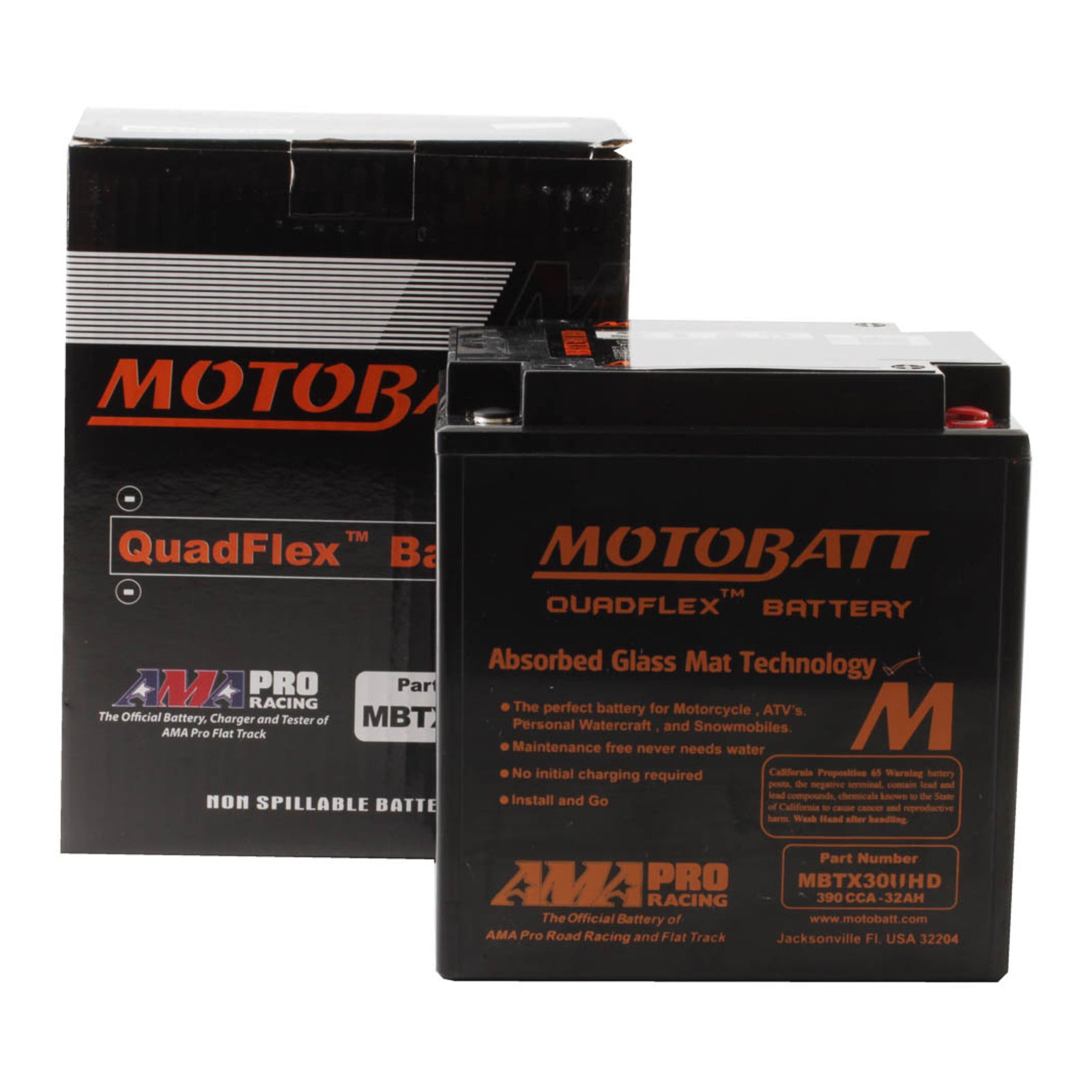

Motobatt Battery Quadflex AGM - MBTX30UHD

The first and unique 4-terminal system proposes the best balance between CCA and amp-hour capacity. Due to utilising the wasted space inside a standard battery case, Motobatt maximises the dimensions of the plates internally. Additionally, the plate grids are made thicker, and that with the additional density of the pasting improves the Amp Hour capacity, durability and Cold cranking Amps.

Motobatt batteries are manufactured from Absorbed Glass Mat (AGM). This design has revolutionised the motorcycle, ATV, lawnmower and small engine industry. QuadFlex provides a unique four-terminal design with two positives, two negatives, along with height spacers that permit an almost universal fit. All Motobatt AGM Batteries are maintenance-free, non-hazardous, non-spill, charged and ready to install directly out of the box.

Your Motobatt is a factory-activated battery, it comes to you pre- conditioned and fully charged for optimum performance and ready to install out of the box. You never have to mess with acid or top up fluid levels or remove corrosion from the terminals caused by gassing, which are all common with standard flooded battery types.

Features:

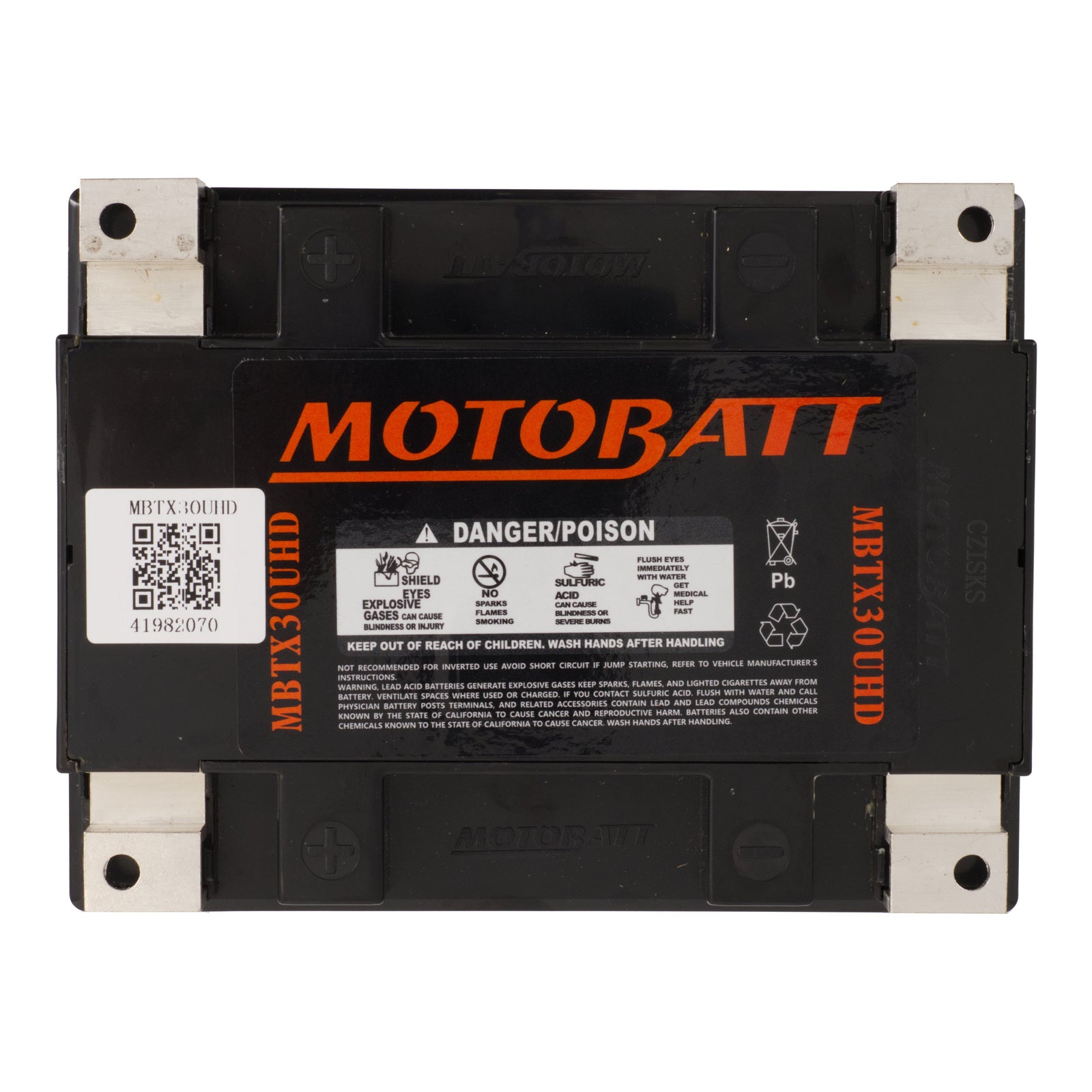

• Patented QuadFlex multi-fit terminals.
• Absorbed Glass Mat technology ensures greater protection against vibration and gives a longer lifecycle.
• Fully sealed, can be mounted and transported in any position.
• No initial charging. Install and go, charged right out of the box.
• Maintenance-free. No messy acid to worry about.
• 20% more cold cranking amps (CCA).
• Easy accessory connection with multiple terminals.

Specifications:

• Voltage: 12V
• C(10) Ah: 33
• C(20) Ah: 35
• CCA (Cold Cranking Amps): 450A
• MCA (Marine Cranking Amps): 525A
• PHCA (Pulse Hot Cranking Amps): 721A
• Weight: 10.2kg (22.48lbs)
• Dimensions (LxWxH): 166 x 126 x 175mm (6.54 x 4.96 x 6.89)
• Terminal Height: 192mm (7.56)
• Terminals: 2, M6x2.5 (MPT2)
• Screws: 4, M6x7 (2x MPS2)
• Allen Wrench: 1, 4x4 (MPAK2)
• Terminal Caps: 4, 12x5.5 (2x MPC2)
• Spacer: 17mm Bottom (MPC2), 2 Square Top Corners (MPSC)
